AXAH52R-ANXMBW (2018)

Toyota Rav4 (Jpp)

Production Nov 2018 - Jul 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1811-2001)

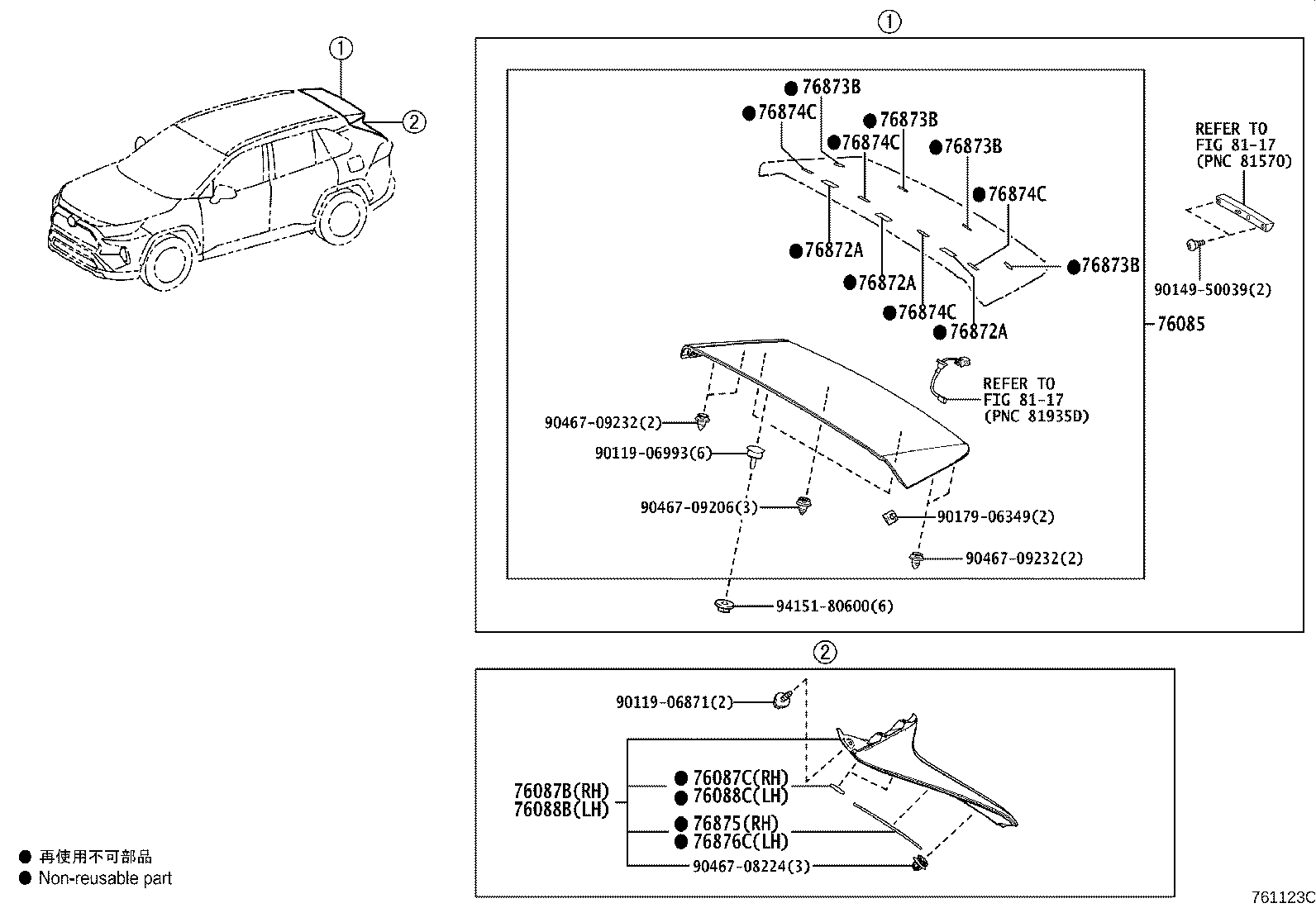

Click highlighted areas on diagram

diagram 76085 76087B 76087C 76088B 76088C 76872A 76872A 76872A 76873B 76873B 76873B 76873B 76874C 76874C 76874C 76874C 76875 76876C 8117 8117 9011906871 9011906993 9014950039 9017906349 9046708224 9046709206 9046709232 9046709232 9415180600
Part # Description Qty Price
Common parts
90119-06871
90119-06993
90149-50039
90179-06349
90467-08224
90467-09206
90467-09232
94151-80600
Linked diagrams
8117

(2001- )

Click highlighted areas on diagram

diagram 76085 76087B 76087C 76088B 76088C 76872A 76872A 76872A 76872A 76872A 76872A 76872A 76873B 76873B 76873B 76873B 76875 76876C 8117 8117 9011906871 9011906993 9014950039 9017906349 9046708224 9046709206 9046709232 9046709232 9415180600
Part # Description Qty Price
Common parts
90119-06871
90119-06993
90149-50039
90179-06349
90467-08224
90467-09206
90467-09232
94151-80600
Linked diagrams
8117

(1811-2001)

Click highlighted areas on diagram

diagram 75392C 7552 76085 76087B 76087C 76088B 76088C 76621D 76621F 76622D 76625G 76626E 76872A 76872A 76872A 76873B 76873B 76873B 76873B 76874C 76874C 76874C 76874C 76875 76876C 8117 8117 9011906871 9011906993 9014950039 9015960477 9017906349 9046708224 9046709206 9046709232 9046709232 9415180600
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-42908

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
76087B - SPOILER SUB-ASSY, REAR SIDE, RH
76087-42050

MXAA54..EUR,RUS;AXAA5#,MXAA52..G;AXAH5#,AXAL5#..G,M;MXAA54..G..(GCC,GEN);AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..(M,X)..(EUR,RUS)

 1
76087C - PROTECTOR, REAR SIDE SPOILER
87268-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
76088B - SPOILER SUB-ASSY, REAR SIDE, LH
76088-42050

MXAA54..EUR,RUS;AXAA5#,MXAA52..G;AXAH5#,AXAL5#..G,M;MXAA54..G..(GCC,GEN);AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..(M,X)..(EUR,RUS)

 1
76088C - PROTECTOR, REAR SIDE SPOILER
87268-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-42060

AXAA5#,AXAH5#,MXAA5#

 3
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-42060

AXAA5#,AXAH5#,MXAA5#

 3
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-42060

AXAA5#,AXAH5#,MXAA5#

 3
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 4
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 4
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 4
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 4
76874C - PROTECTOR, REAR SPOILER, NO.3
76874-42020

AXAA5#,AXAH5#,MXAA5#

 4
76874C - PROTECTOR, REAR SPOILER, NO.3
76874-42020

AXAA5#,AXAH5#,MXAA5#

 4
76874C - PROTECTOR, REAR SPOILER, NO.3
76874-42020

AXAA5#,AXAH5#,MXAA5#

 4
76874C - PROTECTOR, REAR SPOILER, NO.3
76874-42020

AXAA5#,AXAH5#,MXAA5#

 4
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
76876C - PROTECTOR, REAR SPOILER, NO.4
76875-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
Common parts
90119-06871
90119-06993
90149-50039
90159-60477
90179-06349
90467-08224
90467-09206
90467-09232
94151-80600
Linked diagrams
7552
8117

(2001- )

Click highlighted areas on diagram

diagram 75392C 7552 76085 76087B 76087C 76088B 76088C 76621D 76621F 76622D 76625G 76626E 76872A 76872A 76872A 76872A 76872A 76872A 76872A 76873B 76873B 76873B 76873B 76875 76876C 8117 8117 9011906871 9011906993 9014950039 9015960477 9017906349 9046708224 9046709206 9046709232 9046709232 9415180600
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-42908

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
76087B - SPOILER SUB-ASSY, REAR SIDE, RH
76087-42050

MXAA54..EUR,RUS;AXAA5#,MXAA52..G;AXAH5#,AXAL5#..G,M;MXAA54..G..(GCC,GEN);AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..(M,X)..(EUR,RUS)

 1
76087C - PROTECTOR, REAR SIDE SPOILER
87268-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
76088B - SPOILER SUB-ASSY, REAR SIDE, LH
76088-42050

MXAA54..EUR,RUS;AXAA5#,MXAA52..G;AXAH5#,AXAL5#..G,M;MXAA54..G..(GCC,GEN);AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..(M,X)..(EUR,RUS)

 1
76088C - PROTECTOR, REAR SIDE SPOILER
87268-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-42060

AXAA5#,AXAH5#,MXAA5#

 3
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-42060

AXAA5#,AXAH5#,MXAA5#

 3
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-42060

AXAA5#,AXAH5#,MXAA5#

 3
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-42060

AXAA5#,AXAH5#,MXAA5#

 3
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-42060

AXAA5#,AXAH5#,MXAA5#

 3
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-42060

AXAA5#,AXAH5#,MXAA5#

 3
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-42060

AXAA5#,AXAH5#,MXAA5#

 3
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 4
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 4
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 4
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 4
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
76876C - PROTECTOR, REAR SPOILER, NO.4
76875-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
Common parts
90119-06871
90119-06993
90149-50039
90159-60477
90179-06349
90467-08224
90467-09206
90467-09232
94151-80600
Linked diagrams
7552
8117
