AXAH52R-ANXMBW (2018)
Toyota Rav4 (Jpp)
ILLUST NO. 1 OF 2(1811- )
ARMREST
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(1811- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-42661B0 |
AXAH5#,AXAL5#..RHD..M..EUR LT.GRAY,TRIM20 |
1 | ||
| 74310-42661B0 |
MXAA52..RHD..M..EUR;AXAH5#,AXAL5#..RHD..X..EUR LT.GRAY,TRIM2# |
1 | ||
| 74310-42661C0 |
AXAH5#,AXAL5#..RHD..M..EUR BLACK,TRIM20 |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-42671B0 |
AXAH5#,AXAL5#..RHD..M..EUR LT.GRAY,TRIM20 |
1 | ||
| 74320-42671B0 |
MXAA52..RHD..M..EUR;AXAH5#,AXAL5#..RHD..X..EUR LT.GRAY,TRIM2# |
1 | ||
| 74320-42671C0 |
AXAH5#,AXAL5#..RHD..M..EUR BLACK,TRIM20 |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-47010B3 |
AXAH5#..M..EUR LT.GRAY,TRIM1#,20,4# |
2 | ||
| 74348-47010B3 |
AXAA54..LHD..X..GEN;AXAA54,AXAL5#,MXAA52..X..(ARL,GCC);AXAA52,AXAH54,MXAA5#..LHD..X..(GCC,GEN);AXAH5#,MXAA54..RHD..(V,X)..(ARL,EUR,SA) LT.GRAY,TRIM2#,4# |
2 | ||
| 74348-47010C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
2 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-12140C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
2 | ||
| 74610-12140B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
2 | ||
| 74610-12140B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
2 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-12140C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
2 | ||
| 74610-12140B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
2 | ||
| 74610-12140B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
8 | ||
| 74612-47070C2 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
8 | ||
| 74612-47070B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
8 | ||
| 74612-47070C2 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
8 | ||
| 74612-47070B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
8 | ||
| 74612-47070C2 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
8 | ||
| 74612-47070B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
8 | ||
| 74612-47070C2 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
8 | ||
| 74612-47070B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
8 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
8 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
8 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
8 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
8 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-12170B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
1 | ||
| 74610-12170B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
1 | ||
| 74610-12170C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-12180B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
1 | ||
| 74610-12180B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
1 | ||
| 74610-12180C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
1 | ||
| Common parts | ||||
| 90149-50009 | ||||
| 90152-50027 | ||||

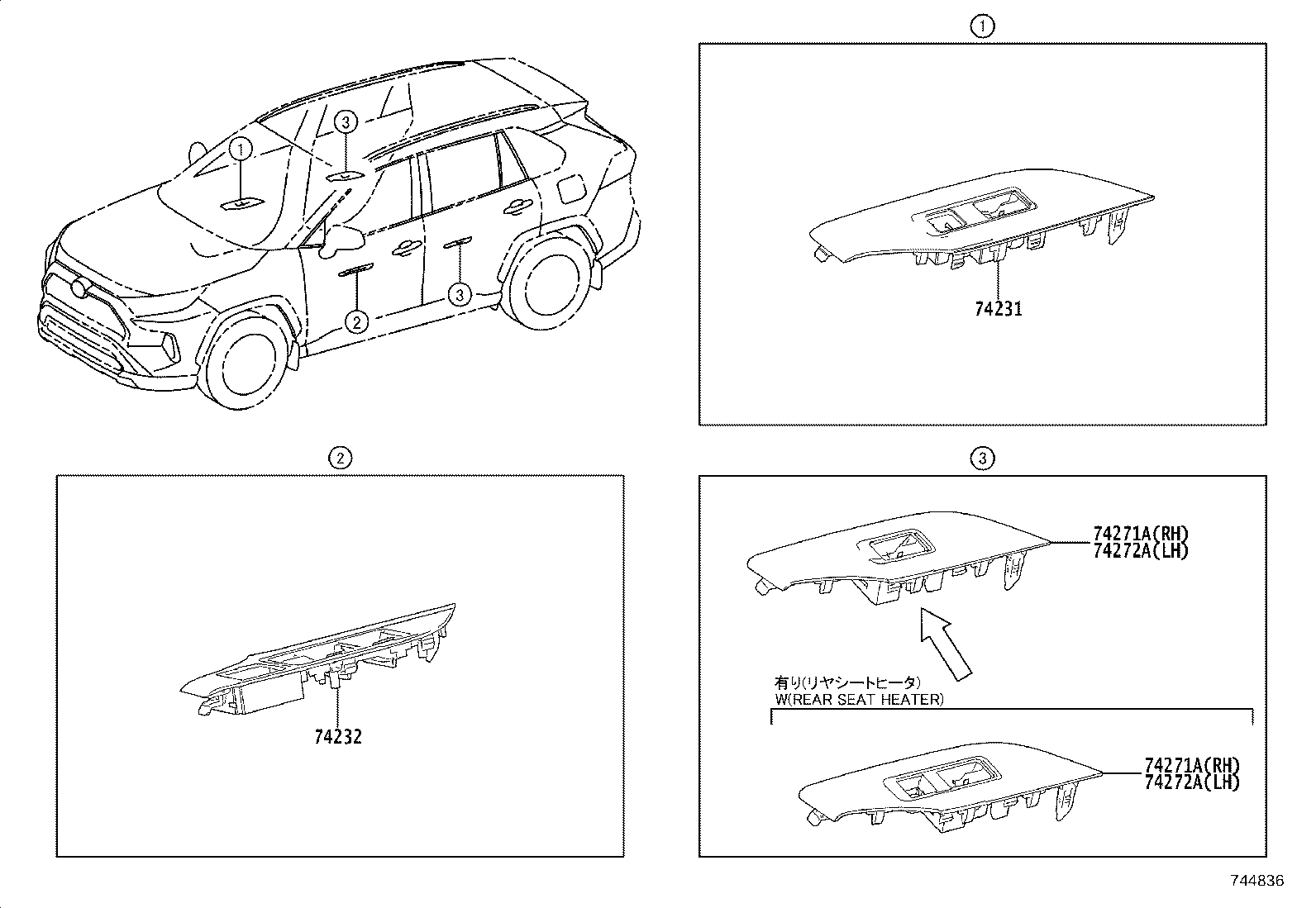

ILLUST NO. 1 OF 2(1811- )RHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-42360 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-42240 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-42110 |
MXAA54..M,V,X;AXAA52,AXAH5#,AXAL5#;MXAA54..G..(EUR,GCC,GEN);AXAA54,MXAA52..(M,X)..RUS;AXAA54,MXAA52..ARL,EUR,GCC,GEN,SA |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-42110 |
MXAA54..M,V,X;AXAA52,AXAH5#,AXAL5#;MXAA54..G..(EUR,GCC,GEN);AXAA54,MXAA52..(M,X)..RUS;AXAA54,MXAA52..ARL,EUR,GCC,GEN,SA |
1 | ||
ILLUST NO. 2 OF 2(1811- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-42661B0 |
AXAH5#,AXAL5#..RHD..M..EUR LT.GRAY,TRIM20 |
1 | ||
| 74310-42661B0 |
MXAA52..RHD..M..EUR;AXAH5#,AXAL5#..RHD..X..EUR LT.GRAY,TRIM2# |
1 | ||
| 74310-42661C0 |
AXAH5#,AXAL5#..RHD..M..EUR BLACK,TRIM20 |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-42671B0 |
AXAH5#,AXAL5#..RHD..M..EUR LT.GRAY,TRIM20 |
1 | ||
| 74320-42671B0 |
MXAA52..RHD..M..EUR;AXAH5#,AXAL5#..RHD..X..EUR LT.GRAY,TRIM2# |
1 | ||
| 74320-42671C0 |
AXAH5#,AXAL5#..RHD..M..EUR BLACK,TRIM20 |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-47010B3 |
AXAH5#..M..EUR LT.GRAY,TRIM1#,20,4# |
2 | ||
| 74348-47010B3 |
AXAA54..LHD..X..GEN;AXAA54,AXAL5#,MXAA52..X..(ARL,GCC);AXAA52,AXAH54,MXAA5#..LHD..X..(GCC,GEN);AXAH5#,MXAA54..RHD..(V,X)..(ARL,EUR,SA) LT.GRAY,TRIM2#,4# |
2 | ||
| 74348-47010C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
2 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-12140C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
2 | ||
| 74610-12140B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
2 | ||
| 74610-12140B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
2 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-12140C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
2 | ||
| 74610-12140B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
2 | ||
| 74610-12140B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
8 | ||
| 74612-47070C2 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
8 | ||
| 74612-47070B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
8 | ||
| 74612-47070C2 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
8 | ||
| 74612-47070B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
8 | ||
| 74612-47070C2 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
8 | ||
| 74612-47070B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
8 | ||
| 74612-47070C2 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
8 | ||
| 74612-47070B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
8 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
8 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
8 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
8 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
8 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-12170B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
1 | ||
| 74610-12170B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
1 | ||
| 74610-12170C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-12180B1 |
MXAA54..RUS;AXAH54..M..RUS;MXAA54..M..EUR;AXAH5#,AXAL5#..X..EUR;AXAA54,MXAA52..G..RUS;AXAA54,MXAA52..(M,X)..(EUR,RUS) LT.GRAY,TRIM2# |
1 | ||
| 74610-12180B1 |
AXAH5#,AXAL5#..M..EUR LT.GRAY,TRIM20 |
1 | ||
| 74610-12180C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM20 |
1 | ||
| Common parts | ||||
| 90149-50009 | ||||
| 90152-50027 | ||||
