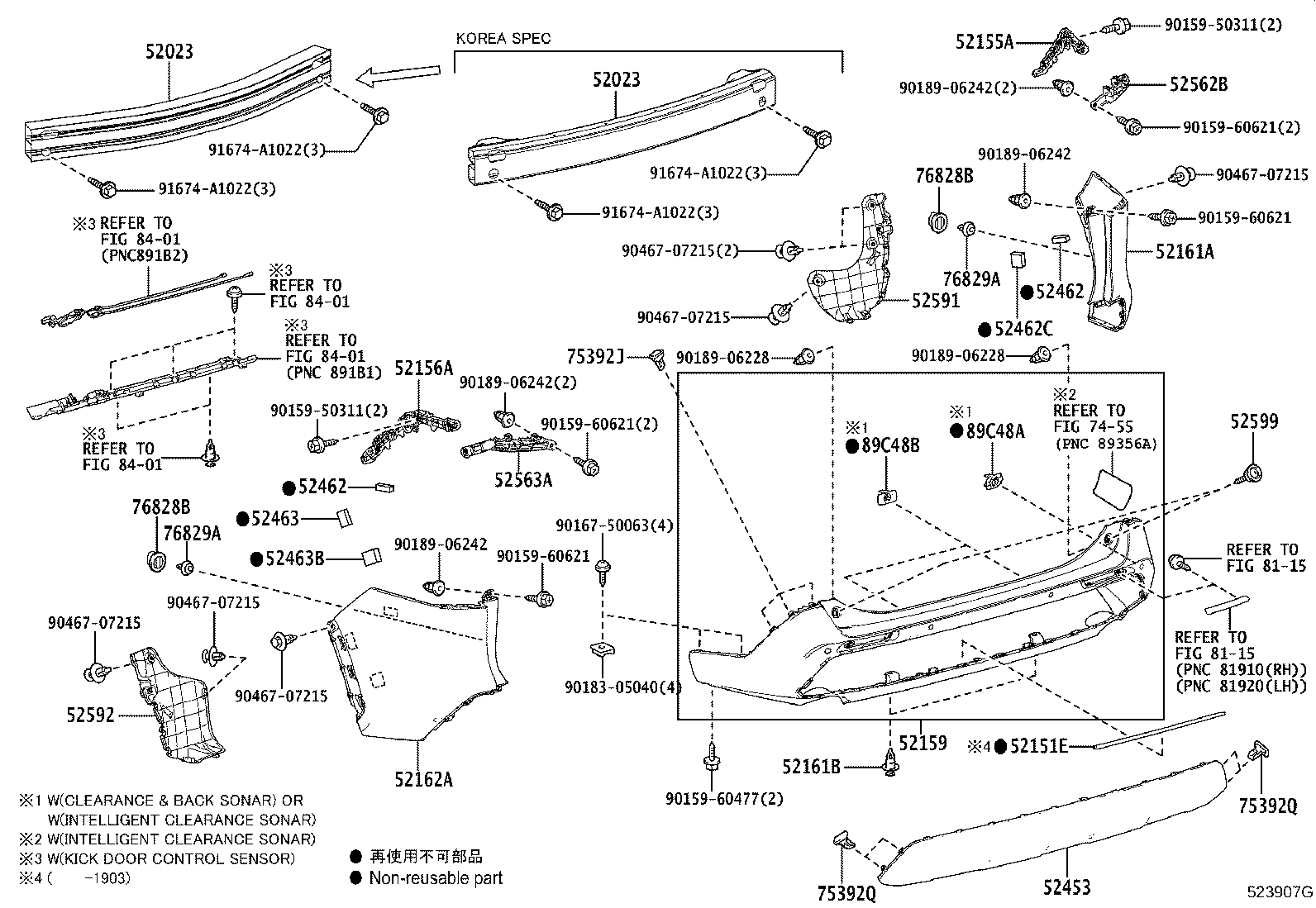

AXAH52R-ANXMBW (2018)
Toyota Rav4 (Jpp)
(1811- )M,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60477 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90183-05040 | ||||
| 90189-06228 | ||||
| 90189-06242 | ||||
| 90467-07215 | ||||
| 91674-A1022 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8115 | ||||

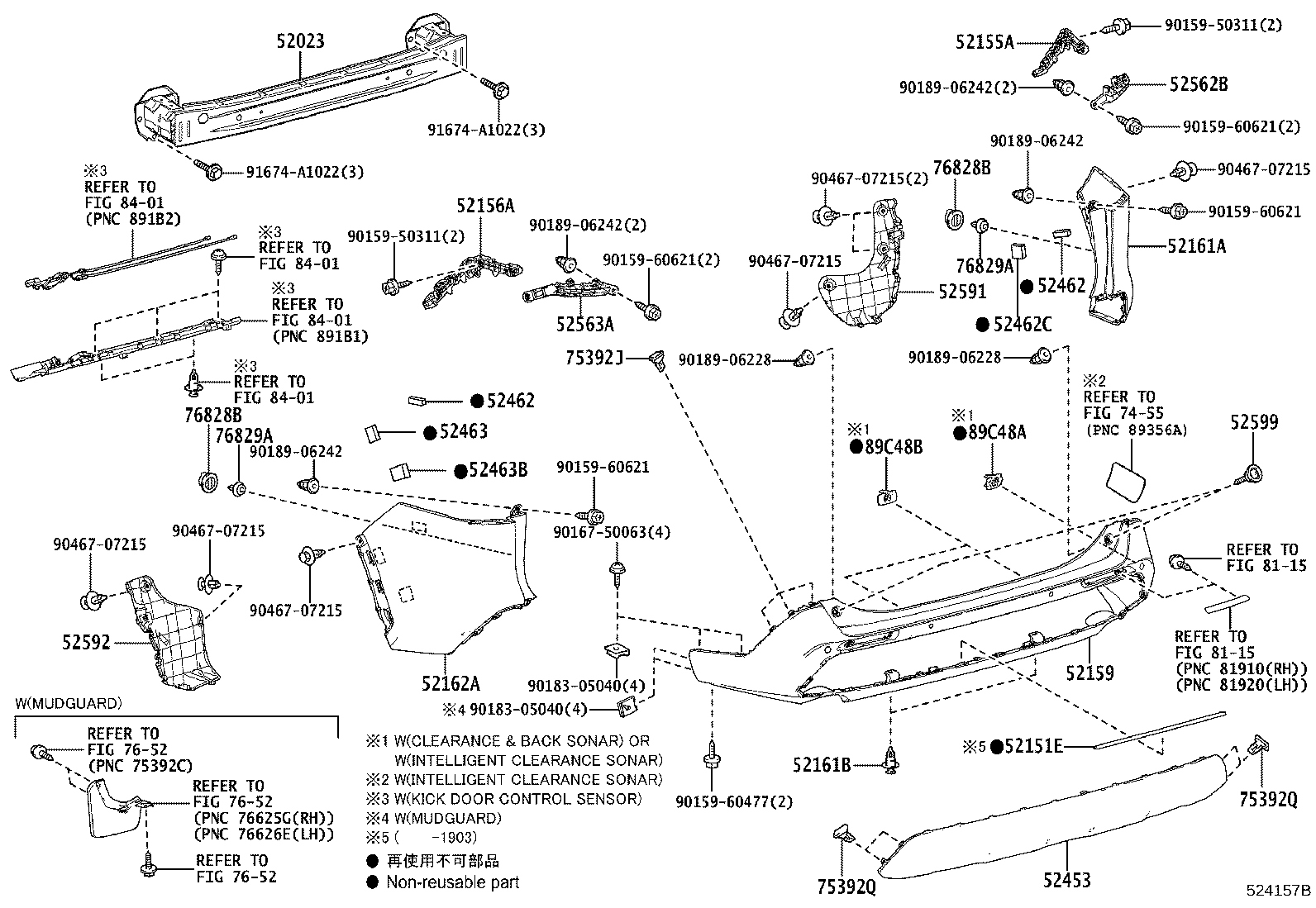

(1811- )G,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60477 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90183-05040 | ||||
| 90189-06228 | ||||
| 90189-06242 | ||||
| 90467-07215 | ||||
| 91674-A1022 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8115 | ||||
| 8401 | ||||

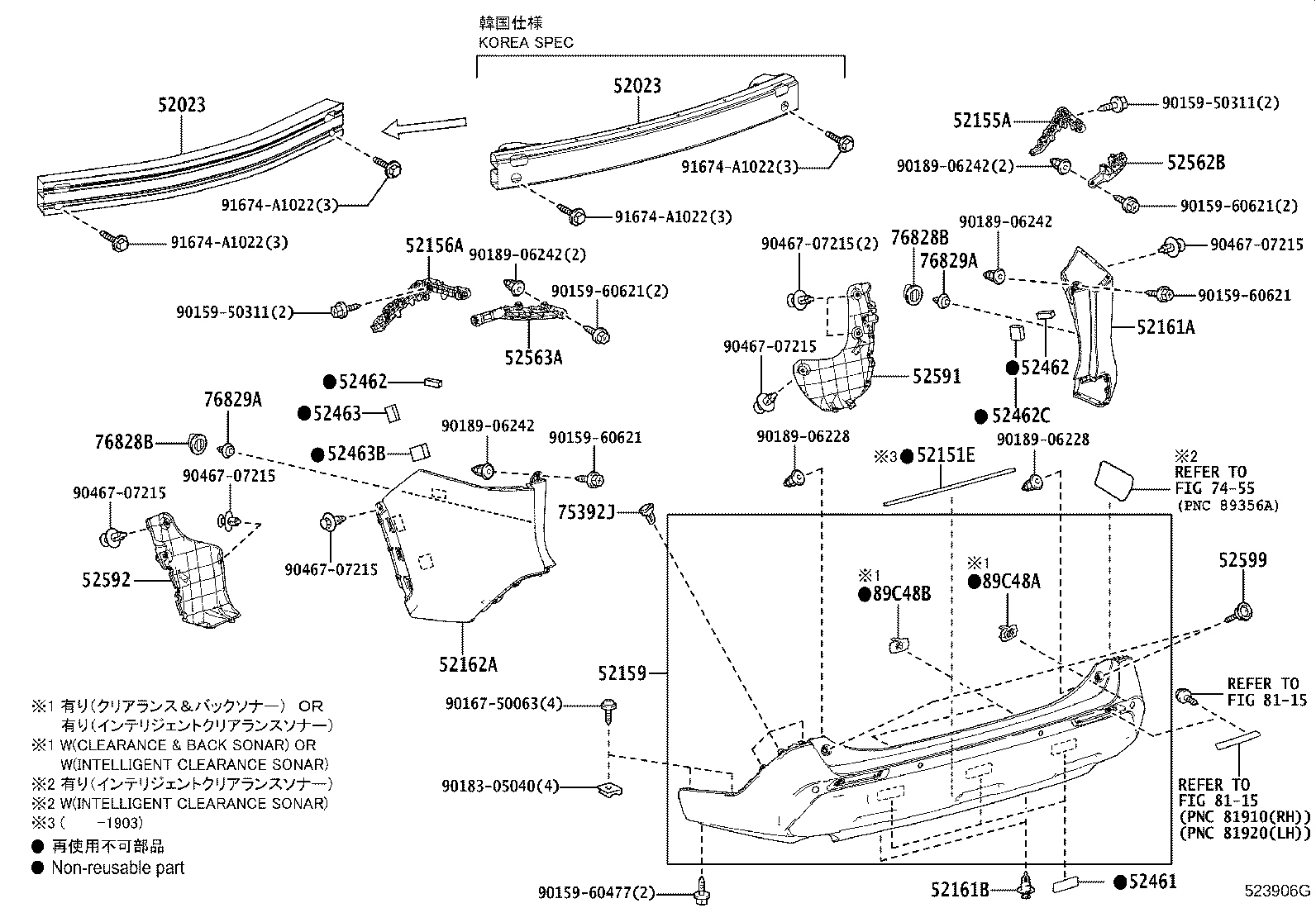

(1811- )AXAH5#,AXAL5#..M..EUR
HV EMOTIONAL PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-42060 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..EUR |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52151-42010 |
AXAA5#,AXAH5#,MXAA5# |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-42220 |
AXAH5#,AXAL5#,MXAA52..X..EUR;AXAA5#,AXAH5#,MXAA5#..(M,X)..(GCC,GEN,SA) |
1 | ||
| 52159-42230 |
MXAA52..6F..(G,M)..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-42230 |
MXAA52..6F..(G,M)..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..EUR CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-42938 |
AXAA54..G..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..CVT..(G,M)..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52159-42938 |
AXAA54..G..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..CVT..(G,M)..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52159-42943 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-42939 |
AXAH52..(G,M)..EUR;AXAA54,AXAH54..M..EUR;MXAA52..6F..(G,M)..EUR;AXAH54..G..(ARL,EUR,RUS);AXAH52,MXAA52..G..(ARL,SA);AXAA54..(G,V)..(ARL,EUR,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAL5#,MXAA54..(G,M)..(ARL,EUR) |
1 | ||
| 52159-42944 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE |
1 | ||
| 52159-42945 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52159-42945 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52159-42944 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 52159-42943 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-42944 |
AXAH54..G;AXAH54..M..EUR;MXAA52..LHD..M..EUR;AXAH52,AXAL5#..X..ARL;AXAA54..(M,X)..(ARL,EUR);AXAH54..(M,X)..(ARL,RUS);AXAH52,MXAA54..G..(GCC,GEN);MXAA52..RHD..(M,X)..(ARL,EUR);AXAH52,AXAL5#,MXAA54..(G,M)..(ARL,EUR);AXAA5#,MXAA52..G..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 52161-42944 |
AXAA54..G..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,MXAA54..CVT..(G,M)..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52161-42944 |
AXAA54..G..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,MXAA54..CVT..(G,M)..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52161-42944 |
AXAH5#,MXAA52..X..EUR;AXAA5#,AXAH5#,MXAA5#..(M,X)..(GCC,GEN,SA) |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52162-42944 |
AXAH5#,MXAA52..X..EUR;AXAA5#,AXAH5#,MXAA5#..(M,X)..(GCC,GEN,SA) |
1 | ||
| 52162-42944 |
AXAA54..G..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,MXAA54..CVT..(G,M)..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52162-42944 |
AXAH54..G;AXAH54..M..EUR;MXAA52..LHD..M..EUR;AXAH52,AXAL5#..X..ARL;AXAA54..(M,X)..(ARL,EUR);AXAH54..(M,X)..(ARL,RUS);AXAH52,MXAA54..G..(GCC,GEN);MXAA52..RHD..(M,X)..(ARL,EUR);AXAH52,AXAL5#,MXAA54..(G,M)..(ARL,EUR);AXAA5#,MXAA52..G..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 52162-42944 |
AXAA54..G..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,MXAA54..CVT..(G,M)..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-42040B0 |
AXAH54..G;AXAH52..(G,M)..EUR;AXAA54,AXAH54,MXAA52..M..EUR;AXAH52,MXAA54..G..(ARL,GCC,GEN);AXAL5#,MXAA54..(G,M)..(ARL,EUR);AXAA5#,MXAA52..G..(ARL,EUR,GCC,GEN,SA) GRAY,040 ,070 ,1D6 ,1G3 ,218 ,3T3 ,6X3 ,8W9 ,8X8 |
1 | ||
| 52453-42040B0 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE,GRAY,2QJ ,2QY ,2QZ ,2RA |
1 | ||
| 52453-42040B0 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK),GRAY,2QJ ,2QY ,2QZ ,2RA |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 52462C - PAD, REAR BUMPER, RH | ||||
| 52462-42030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52463-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52463B - PAD, REAR BUMPER, LH | ||||
| 52463-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-42060 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-42100 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-42100 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52599 - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-68030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
6 | ||
| 75392Q - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75392-35220 |
AXAL5#..G,M;AXAH54..M..EUR;MXAA52..X..RUS;AXAH52..(G,M)..EUR;MXAA54..EUR,RUS,SA;AXAA5#,AXAH54,MXAA52..G,V;AXAA54,MXAA52..M..(EUR,RUS);AXAH52,MXAA54..(G,V)..(ARL,GCC,GEN) |
4 | ||
| 75392Q - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75392-35220 |
AXAL5#..G,M;AXAH54..M..EUR;MXAA52..X..RUS;AXAH52..(G,M)..EUR;MXAA54..EUR,RUS,SA;AXAA5#,AXAH54,MXAA52..G,V;AXAA54,MXAA52..M..(EUR,RUS);AXAH52,MXAA54..(G,V)..(ARL,GCC,GEN) |
4 | ||
| 76828B - RETAINER, BACK DOOR GARNISH | ||||
| 76828-60030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 76828B - RETAINER, BACK DOOR GARNISH | ||||
| 76828-60030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 76829A - RETAINER, BACK DOOR GARNISH | ||||
| 76829-60020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 76829A - RETAINER, BACK DOOR GARNISH | ||||
| 76829-60020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-42170C0 |
AXAA54..G..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..CVT..(G,M)..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DUMMY-MAT BLACK,RH |
1 | ||
| 89348-42190 |
MXAA52..6F..(G,M)..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..EUR CLEARANCE & BACK SONAR-WITHOUT,RH |
1 | ||
| 89348-42170C1 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),ATTITUDE BLACK MC.,2QJ ,2QY ,2QZ ,2RA,RH |
1 | ||
| 89348-42190 |
AXAA54..ARL,EUR,RUS,SA;MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,RUS,SA);AXAH5#,AXAL5#,MXAA52..X..ARL;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..(ARL,EUR,RUS) RH |
1 | ||
| 89348-42200 |
AXAA54..ARL,EUR,RUS,SA;MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,RUS,SA);AXAH5#,AXAL5#,MXAA52..X..ARL;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..(ARL,EUR,RUS) LH |
1 | ||
| 89348-42190 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITHOUT,RH |
1 | ||
| 89348-42180C0 |
AXAA54..G..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..CVT..(G,M)..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DUMMY-MAT BLACK,LH |
1 | ||
| 89348-42180C1 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),ATTITUDE BLACK MC.,2QJ ,2QY ,2QZ ,2RA,LH |
1 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-58110 |
AXAA54..G..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..CVT..(G,M)..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
2 | ||
| 89348-33400 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITHOUT |
2 | ||
| 89348-33400 |
AXAA54..ARL,EUR,RUS,SA;MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,RUS,SA);AXAH5#,AXAL5#,MXAA52..X..ARL;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..(ARL,EUR,RUS) |
2 | ||
| 89348-58110 |
AXAH5#,AXAL5#..M..EUR HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
2 | ||
| 89348-33400 |
MXAA52..6F..(G,M)..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..EUR CLEARANCE & BACK SONAR-WITHOUT |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60477 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90183-05040 | ||||
| 90189-06228 | ||||
| 90189-06242 | ||||
| 90467-07215 | ||||
| 91674-A1022 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 7652 | ||||
| 8115 | ||||
| 8401 | ||||
