AXAH52R-ANXMB (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )

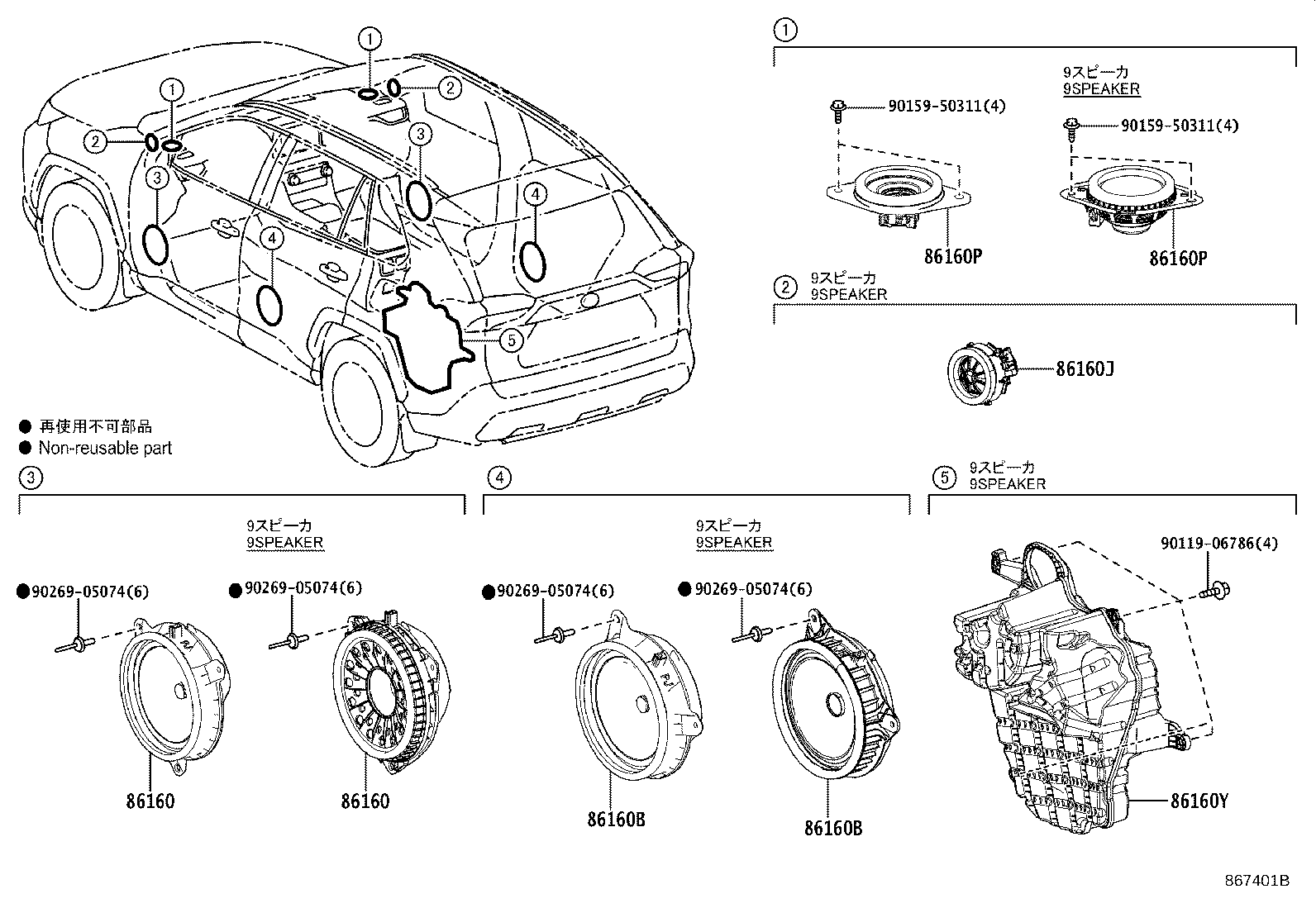

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86160J 86160P 86160P 86160Y 9011906786 9015950311 9015950311 9026905074 9026905074 9026905074 9026905074
Part # Description Qty Price
Common parts
90119-06786
90159-50311
90269-05074

(1811- )

Click highlighted areas on diagram

4SPEAKER

diagram 86160 86160B 86160L 9015950311 9026905074 9026905074
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-1A210

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
86160B - SPEAKER ASSY, REAR
86160-1A210

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
Common parts
90159-50311
90269-05074

(1811- )

Click highlighted areas on diagram

6SPEAKER

diagram 86160 86160B 86160L 86160L 86160P 86160P 9015950311 9015950311 9015950311 9015950311 9026905074 9026905074
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-1A210

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
86160B - SPEAKER ASSY, REAR
86160-1A210

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
86160P - SPEAKER ASSY, FRONT NO.2
86150-42010

AXAA54..RHD..GEN;AXAA52,AXAH5#,MXAA5#..GEN;AXAA54..LHD..(G,M,V)..GEN

AUDIO-6SPEAKER(AUDIO LESS)

 2
86150-42010

AXAA52..G..GEN;AXAA54..RHD..GEN;AXAH5#,MXAA5#..GEN;AXAA54..LHD..(G,V)..GEN

AUDIO-6SPEAKER 7INCH T1 DVD, GENERAL

 2
86150-42010

AXAA5#,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(G,M,X)..GEN

AUDIO-6SPEAKER 7INCH T1 DVD, LATIN AMERICA

 2
86160P - SPEAKER ASSY, FRONT NO.2
86150-42010

AXAA54..RHD..GEN;AXAA52,AXAH5#,MXAA5#..GEN;AXAA54..LHD..(G,M,V)..GEN

AUDIO-6SPEAKER(AUDIO LESS)

 2
86150-42010

AXAA52..G..GEN;AXAA54..RHD..GEN;AXAH5#,MXAA5#..GEN;AXAA54..LHD..(G,V)..GEN

AUDIO-6SPEAKER 7INCH T1 DVD, GENERAL

 2
86150-42010

AXAA5#,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(G,M,X)..GEN

AUDIO-6SPEAKER 7INCH T1 DVD, LATIN AMERICA

 2
Common parts
90159-50311
90269-05074

(1811- )

Click highlighted areas on diagram

9SPEAKER

diagram 86160 86160B 86160J 86160P 86160Y 9011906786 9015950311 9026905074 9026905074
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-1A210

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
86160B - SPEAKER ASSY, REAR
86160-1A210

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
86160P - SPEAKER ASSY, FRONT NO.2
86150-42010

AXAA54..RHD..GEN;AXAA52,AXAH5#,MXAA5#..GEN;AXAA54..LHD..(G,M,V)..GEN

AUDIO-6SPEAKER(AUDIO LESS)

 2
86150-42010

AXAA52..G..GEN;AXAA54..RHD..GEN;AXAH5#,MXAA5#..GEN;AXAA54..LHD..(G,V)..GEN

AUDIO-6SPEAKER 7INCH T1 DVD, GENERAL

 2
86150-42010

AXAA5#,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(G,M,X)..GEN

AUDIO-6SPEAKER 7INCH T1 DVD, LATIN AMERICA

 2
Common parts
90119-06786
90159-50311
90269-05074
