AXAH52R-ANXMB (2019)
Toyota Rav4 (Jpp)
Production
Jan 2019
-
Jul 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1811- )

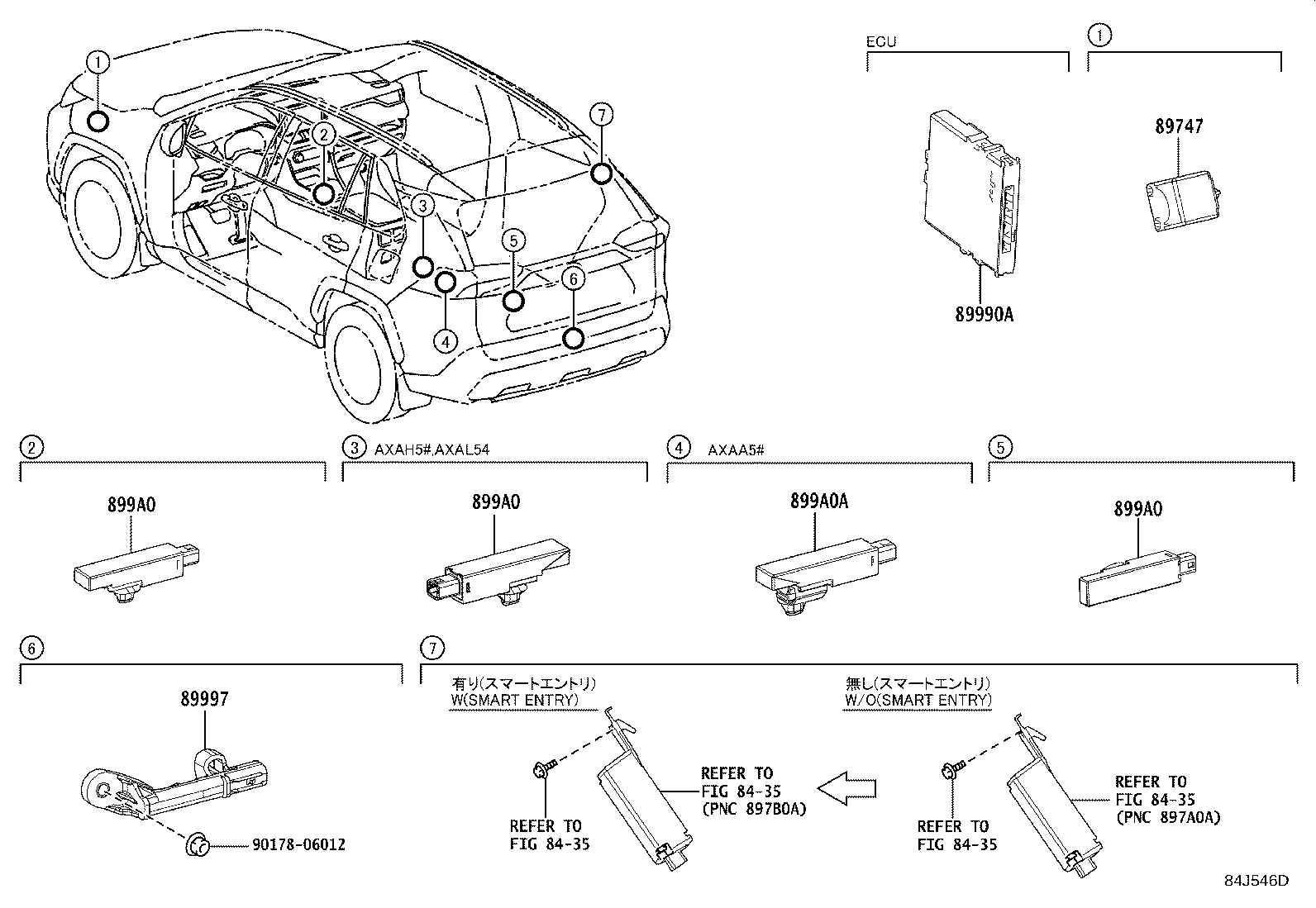

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90178-06012 | ||||
| Linked diagrams | ||||
| 8435 | ||||
(1811- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-42220 |
AXAA5#,AXAH5#,MXAA5#..(G,M,V)..(GEN,SA) |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
AXAH5#,AXAL5#;AXAA5#,MXAA5#..G,M,V |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 899H0-42050 |
AXAH54..G;AXAH52..G..EUR;AXAH52..(G,M)..(ARL,GEN);AXAH54..M..(ARL,GCC,GEN,RUS) |
1 | ||
| 899H0-42110 |
AXAH54..G;AXAH52,AXAL5#..G..EUR;AXAH54..M..(ARL,GCC,GEN);AXAH52,AXAL5#..(G,M)..(ARL,GEN) |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-30100 |
AXAH54,MXAA5#..G,V;MXAA5#..M..(ARL,GCC,GEN);AXAH54..M..(ARL,GCC,GEN,RUS);AXAA54,AXAH52,AXAL5#..G..(EUR,RUS);AXAA5#,AXAH52,AXAL5#..(G,M,V)..(ARL,GCC,GEN,SA) |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-47010 |
AXAH5#,AXAL5# |
3 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-47010 |
AXAH5#,AXAL5# |
3 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-47010 |
AXAH5#,AXAL5# |
3 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90178-06012 | ||||
| Linked diagrams | ||||
| 8435 | ||||
