AXAH52R-ANXMB (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )AXAH5#,AXAL54

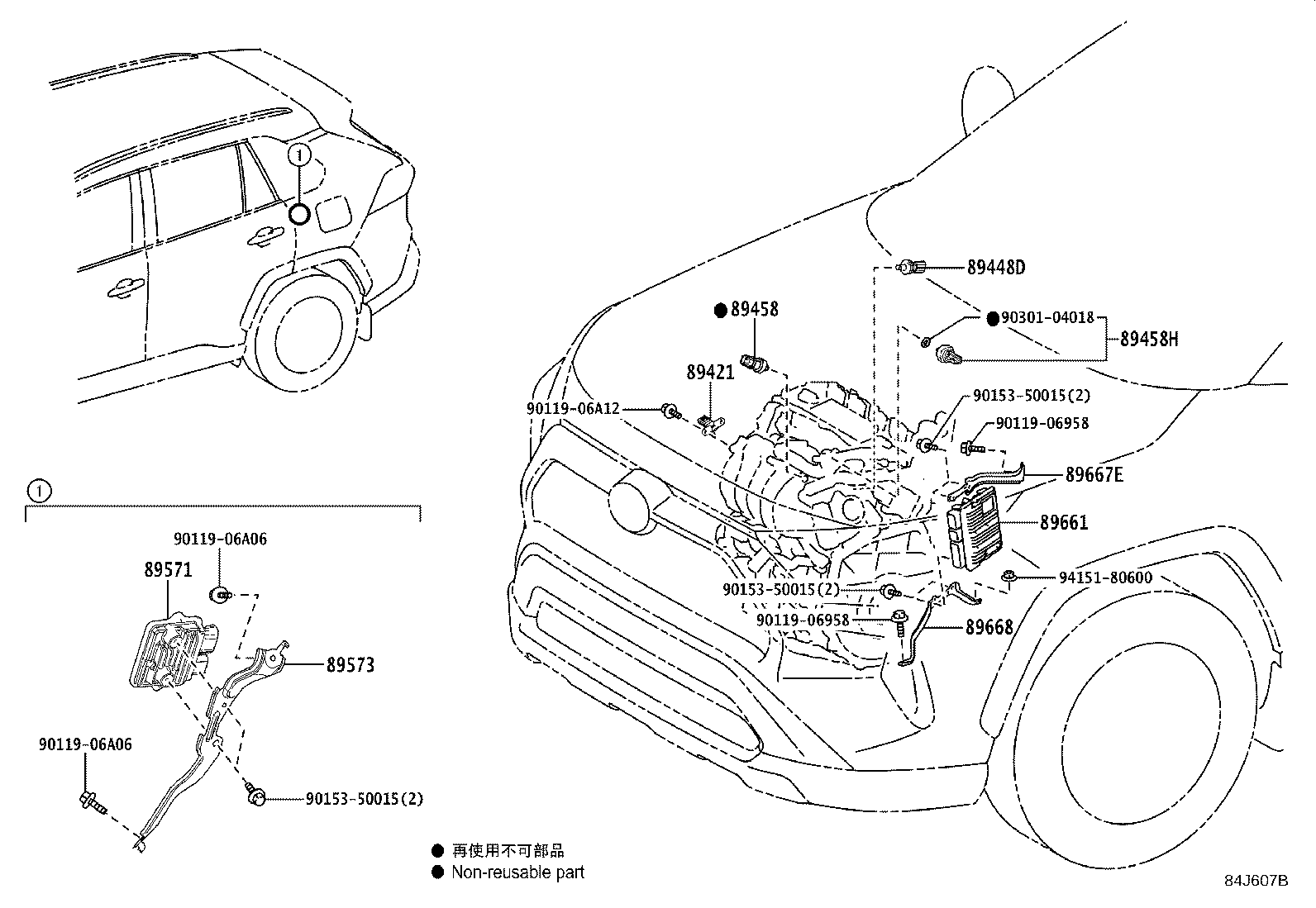

Click highlighted areas on diagram

diagram 89421 89448D 89458 89458H 89571 89573 89661 89667E 89668 9011906958 9011906958 9011906A06 9011906A06 9011906A12 9015350015 9015350015 9015350015 9030104018 9415180600
Part # Description Qty Price
Common parts
90119-06958
90119-06A06
90119-06A12
90153-50015
90301-04018
94151-80600

(1811- )AXAH5#,AXAL5#

Click highlighted areas on diagram

diagram 89421 89448D 89458 89458H 89571 89573 89661 89667E 89668 9011906958 9011906958 9011906A06 9011906A06 9011906A12 9015350015 9015350015 9015350015 9030104018 9415180600
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-33010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89448D - SENSOR, OIL PRESSURE & TEMPERATURE
89448-33010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89458 - SENSOR, FUEL PRESSURE
89458-33030

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89458H - SENSOR, FUEL PRESSURE, NO.2
89458-33041

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-12010

AXAA5#,AXAH5#,MXAA5#

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-42030

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-4A330

AXAH5#..GEN

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-42080

AXAH5#,AXAL5#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-42100

AXAH5#,AXAL5#

 1
Common parts
90119-06958
90119-06A06
90119-06A12
90153-50015
90301-04018
94151-80600
