AXAH52R-ANXMB (2019)
Toyota Rav4 (Jpp)
ILLUST NO. 1 OF 2(1811- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06333 | ||||
| 90105-06344 | ||||
| 90179-06362 | ||||
| 90467-05171 | ||||
| 90467-09206 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7551 | ||||

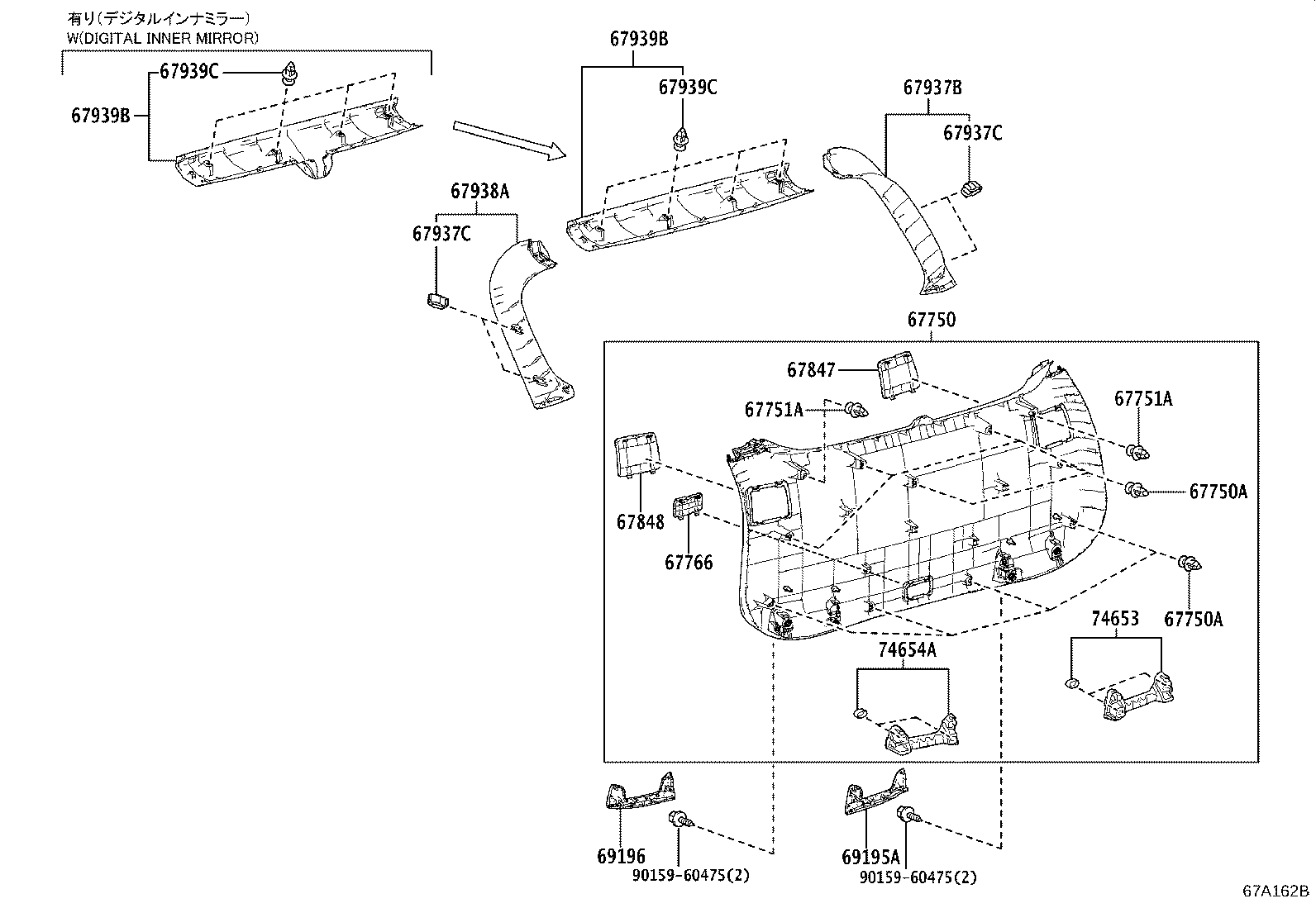

ILLUST NO. 2 OF 2(1811- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-42060C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 67750-42060C0 |
AXAH54..G,M;AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAA5#,AXAH52,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
9 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
9 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-09232 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-09232 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-42020C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 67766-42020C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-42060C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 67847-42060C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-42020C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 67848-42020C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-42060C0 |
AXAH54..G,M;AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAA5#,AXAH52,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 67937-42060C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-09241 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-09241 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-42070C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 67938-42070C0 |
AXAH54..G,M;AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAA5#,AXAH52,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-42050C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 67939-42050C0 |
AXAH54..G,M;AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAA5#,AXAH52,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-42050C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 67939-42050C0 |
AXAH54..G,M;AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAA5#,AXAH52,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 69195A - GRIP, BACK DOOR | ||||
| 69195-42010C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 69195-42010C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 69196 - BASE, BACK DOOR GRIP | ||||
| 69196-42010C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 69196-42010C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 74653 - GRIP, BACK DOOR ASSIST, RH | ||||
| 74653-42010C0 |
AXAL5#..G..EUR;MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH5#,MXAA5#..M..(ARL,GCC,GEN);AXAA5#,AXAL5#..(G,M)..(ARL,GCC,GEN,SA);AXAH54,MXAA5#..CVT..G..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 74653-42010 |
AXAA54..EUR;AXAH54..RUS;AXAH52..RHD..G..GEN;MXAA5#..6F..G..(GEN,SA) |
1 | ||
| 74653-42010C0 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..(V,X)..(ARL,GCC,GEN,SA) BLACK,TRIM2#,4# |
1 | ||
| 74654A - GRIP, BACK DOOR ASSIST, LH | ||||
| 74654-42010 |
AXAA54..EUR;AXAH54..RUS;AXAH52..RHD..G..GEN;MXAA5#..6F..G..(GEN,SA) |
1 | ||
| 74654-42010C0 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..(V,X)..(ARL,GCC,GEN,SA) BLACK,TRIM2#,4# |
1 | ||
| 74654-42010C0 |
AXAL5#..G..EUR;MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH5#,MXAA5#..M..(ARL,GCC,GEN);AXAA5#,AXAL5#..(G,M)..(ARL,GCC,GEN,SA);AXAH54,MXAA5#..CVT..G..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90159-60475 | ||||
ILLUST NO. 1 OF 2(1811- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-60030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-42670 |
AXAH52,MXAA54..G..(GCC,GEN);AXAA5#,AXAH54,MXAA52..GCC,GEN;AXAH52,MXAA54..(M,V,X)..(ARL,EUR,GCC,GEN,SA);AXAA54,AXAH54,AXAL5#,MXAA52..(M,X)..(ARL,EUR,SA) |
1 | ||
| 67005-42650 |
AXAH52,MXAA54..G..(GCC,GEN);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAH54,AXAL5#,MXAA52..M..(ARL,EUR) POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 67005-42650 |
AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67372-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67816D - SHEET, BACK DOOR PANEL SILENCER | ||||
| 67816-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 67837N - SEAL, BACK DOOR DUST PROOF | ||||
| 67837-52040 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-42220 |
MXAA54..GCC;MXAA54..(M,X)..GEN;AXAA5#,AXAH54..(G,V)..GCC;AXAA5#,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,GCC,GEN,SA) |
1 | ||
| 68105-42230 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..(G,V)..(ARL,GEN,SA) |
1 | ||
| 68105-42230 |
MXAA54..RHD..M;AXAA54,MXAA52..LHD..X..GEN;AXAA52,MXAA54..LHD..(M,X)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA52..M..(ARL,GEN) REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68105-42220 |
AXAA54..LHD..V..GEN;MXAA54..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..G..GEN REAR SIDE GLASS-REINFORCED UV-CUT(GREEN) |
1 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AXAA5#,AXAH5#,MXAA5# |
6 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AXAA5#,AXAH5#,MXAA5# |
6 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AXAA5#,AXAH5#,MXAA5# |
6 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AXAA5#,AXAH5#,MXAA5# |
6 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AXAA5#,AXAH5#,MXAA5# |
6 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AXAA5#,AXAH5#,MXAA5# |
6 | ||
| 69478A - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 69478-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-30010 |
AXAH54..ARL,GCC,GEN,RUS;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,GCC,GEN,SA |
2 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-42040 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-42904 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 76802E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER | ||||
| 76802-42140 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-42060 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR | ||||
| 76822-42060 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR | ||||
| 76822-42060 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH | ||||
| 76823-42030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
3 | ||
| 76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH | ||||
| 76824-42030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-42040 |
MXAA54..V,X;MXAA52..X..RUS;AXAH52,AXAL5#..M,X;MXAA54..M..(EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..ARL,GCC,GEN;AXAA54,AXAH54,MXAA52..(M,X)..(EUR,SA);AXAH52,AXAL5#,MXAA54..G..(ARL,GCC,GEN) |
1 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-42140 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 76827A - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 76881B - PROTECTOR, BACK DOOR LOWER MOULDING, RH | ||||
| 76881-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 76881B - PROTECTOR, BACK DOOR LOWER MOULDING, RH | ||||
| 76881-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 76882B - PROTECTOR, BACK DOOR LOWER MOULDING, LH | ||||
| 76882-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90105-06344 | ||||
| 90159-60621 | ||||
| 90179-06362 | ||||
| 90189-06244 | ||||
| 90467-05171 | ||||
| 90467-09206 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7551 | ||||
