AXAA54R-ANZXB (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )

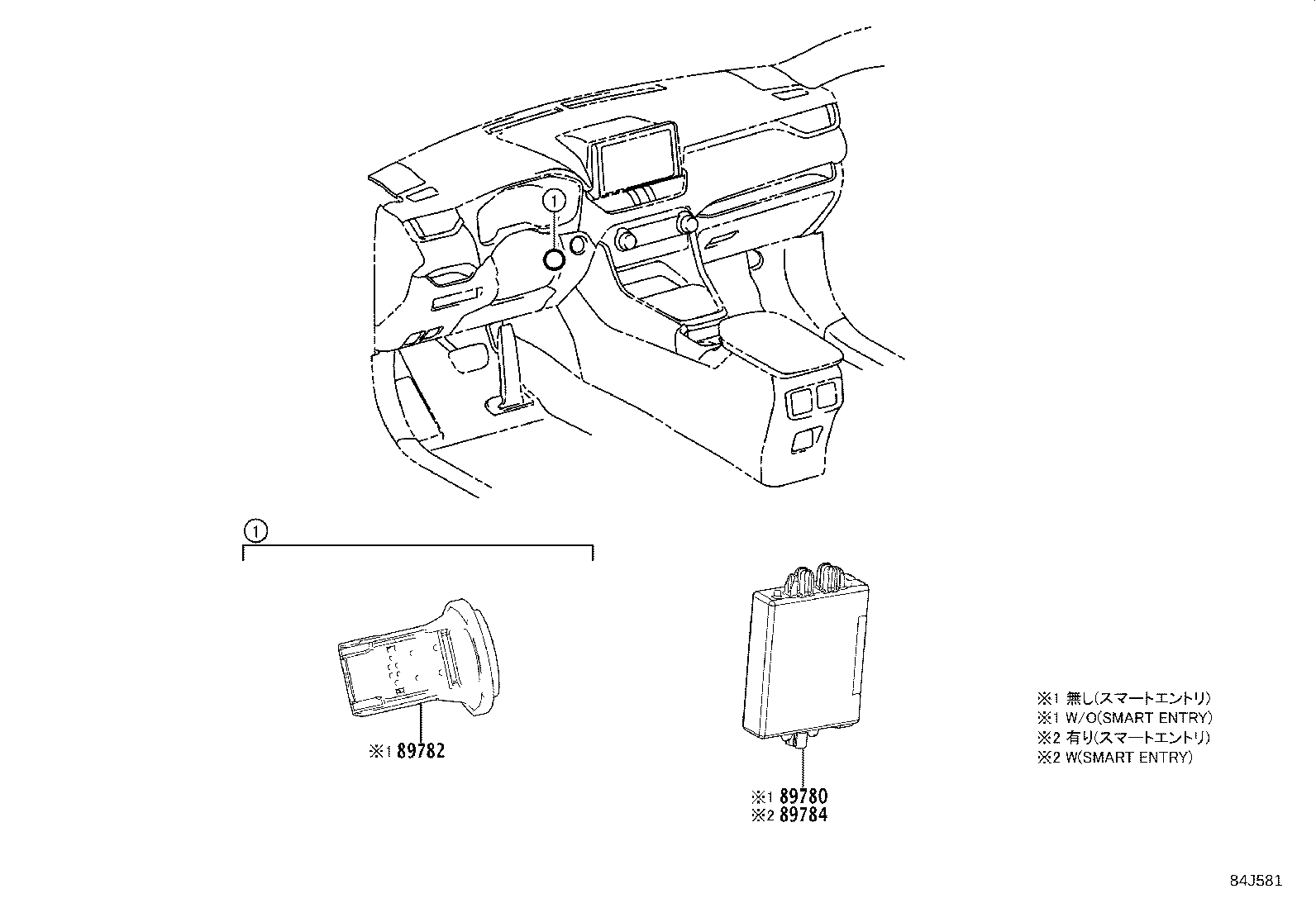

Click highlighted areas on diagram

diagram 89780 89782 89784
Part # Description Qty Price

(1811- )

Click highlighted areas on diagram

diagram 89040 8973B 89780 89782 89784 9016730010 90178W0019 9415180600
Part # Description Qty Price
89040 - SIREN ASSY, THEFT WARNING
89040-42020

MXAA54..RHD..6F;AXAH54..RHD..GEN;MXAA5#..(V,X)..SA;AXAA5#..RHD..G..GEN;MXAA52..RHD..CVT..M..EUR;MXAA52..RHD..G..(EUR,GEN,SA)

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

 1
8973B - SENSOR, THEFT WARNING ULTRASONIC & TILT
8973B-42010

MXAA54..RHD..6F;AXAH54..RHD..GEN;MXAA5#..(V,X)..SA;AXAA5#..RHD..G..GEN;MXAA52..RHD..CVT..M..EUR;MXAA52..RHD..G..(EUR,GEN,SA)

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
897H0-12020

AXAA5#,MXAA5#..X..(ARL,EUR,GCC,GEN,SA)

 1
89782 - COIL, TRANSPONDER KEY
89782-33070

AXAA5#,MXAA5#..X..(ARL,EUR,GCC,GEN,SA)

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-12040

AXAH5#,AXAL5#;AXAA5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,GEN,SA)

 1
Common parts
90167-30010
90178-W0019
94151-80600
