AXAA54R-ANZXB (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 8 OF11(1811- )

Click highlighted areas on diagram

SEAT

diagram 7151 84921A 84921A 84921B 84921B 84922B 84922C 89710 9356054012 9356054012 9356054012 9356054012
Part # Description Qty Price
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-33200C0

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

BLACK,TRIM1#,2#,4#

 1
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-33200C0

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

BLACK,TRIM1#,2#,4#

 1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-33190C0

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

BLACK,TRIM1#,2#,4#

 1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-33190C0

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

BLACK,TRIM1#,2#,4#

 1
84922B - SWITCH, FRONT POWER SEAT, RH
84922-33190C0

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

BLACK,TRIM1#,2#,4#

 1
89710 - COMPUTER ASSY, POSITION CONTROL
89710-42020

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

 1
Common parts
93560-54012
Linked diagrams
7151

ILLUST NO. 7 OF11(1811- )

Click highlighted areas on diagram

STEERING

diagram 4501 84052 84250A 84306 84319 84329 84450 84650 89245B 9015950199
Part # Description Qty Price
Common parts
90159-50199
Linked diagrams
4501

ILLUST NO.11 OF11(1811- )

Click highlighted areas on diagram

FLOOR RELAY BLOCK

diagram 55557F 8202 82210R 82600L 82610D 82620B 82660K 82662C 82662D 82663B 82743 85910K 85910K 85910K 85924C 9011908944
Part # Description Qty Price
Common parts
90119-08944
Linked diagrams
8202

ILLUST NO. 2 OF11(1811- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28850C 28859A 9011906A18 9011906A18 9011906A18 9011906A18 9017806018 9017806018 9415180801
Part # Description Qty Price
Common parts
90119-06A18
90178-06018
94151-80801

ILLUST NO.10 OF11(1811- )AXAA5#

Click highlighted areas on diagram

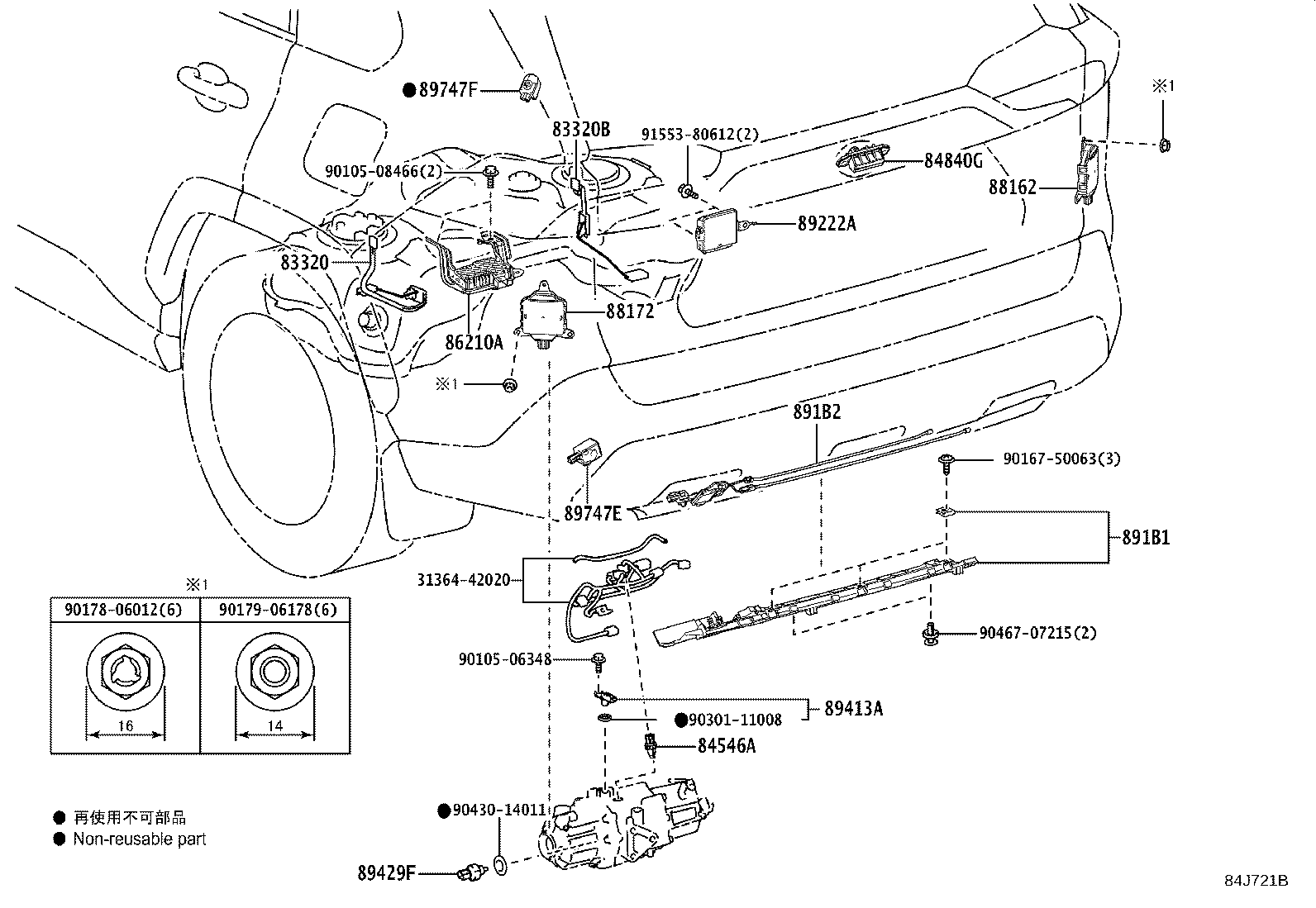

FLOOR & BACK DOOR

diagram 3136442020 83320 83320B 84546A 84840G 86210A 88162 88172 891B1 891B2 89222A 89413A 89429F 89747E 89747F 9010506348 9010508466 9016750063 9017806012 9017906178 9030111008 9043014011 9046707215 9155380612
Part # Description Qty Price
Common parts
31364-42020
90105-06348
90105-08466
90167-50063
90178-06012
90179-06178
90301-11008
90430-14011
90467-07215
91553-80612

ILLUST NO. 1 OF11(1811- )AXAA5#

Click highlighted areas on diagram

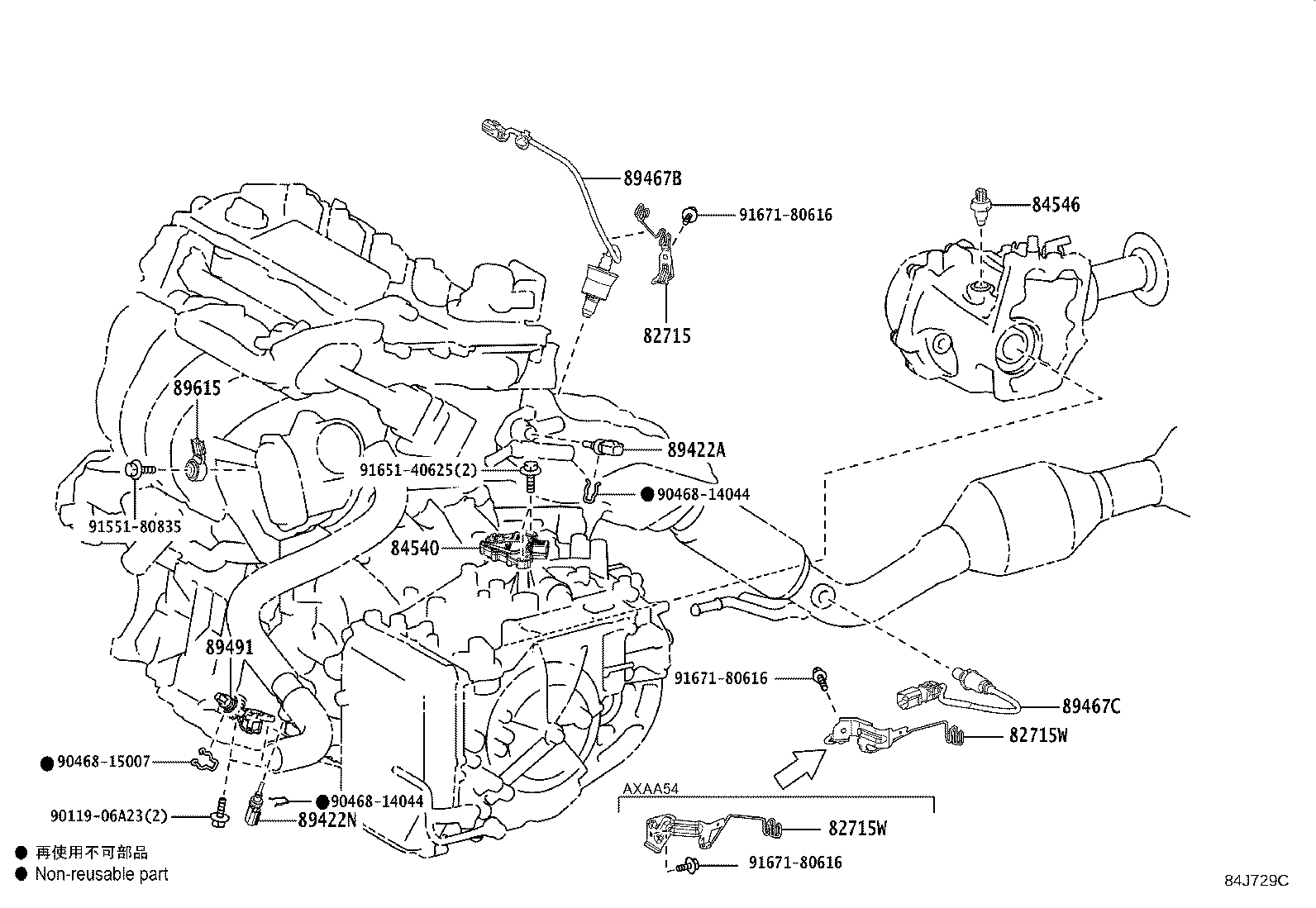

ENGINE & TRANSMISSION

diagram 82715 82715W 82715W 84540 84546 89422A 89422N 89467B 89467C 89491 89615 9011906A23 9046814044 9046814044 9046815007 9155180835 9165140625 9167180616 9167180616 9167180616
Part # Description Qty Price
Common parts
90119-06A23
90468-14044
90468-15007
91551-80835
91651-40625
91671-80616

ILLUST NO. 3 OF11(1811- )AXAA5#

Click highlighted areas on diagram

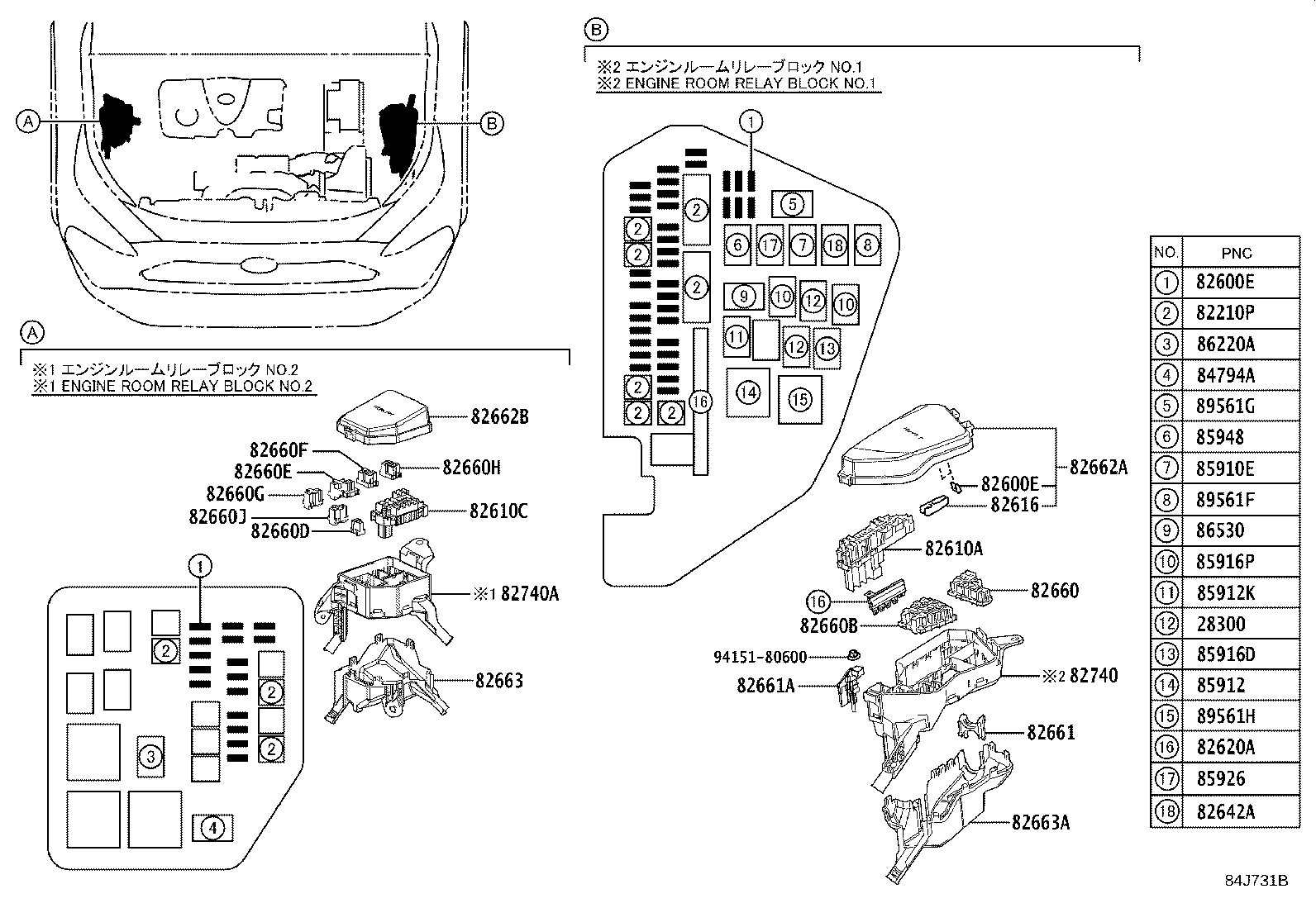

ENGINE ROOM RELAY BLOCK

diagram 28300 82210P 82600E 82600E 82610A 82610C 82616 82620A 82642A 82660 82660B 82660D 82660E 82660F 82660G 82660H 82660J 82661 82661A 82662A 82662B 82663 82663A 82740 82740A 84794A 85910E 85912 85912K 85916D 85916P 85926 85948 86220A 86530 89561F 89561G 89561H 9415180600
Part # Description Qty Price
Common parts
94151-80600

ILLUST NO. 4 OF11(1811- )

Click highlighted areas on diagram

COWL

diagram 8202 82210N 82210N 82600D 82600D 82672A 82673C 82730 82877 84340 84345 85910V 85913F 85940 8598A 89111 89120A 89221 89730A 9011906951 9017906274 9017906274 9017906274 9018306032 9167380616
Part # Description Qty Price
Common parts
90119-06951
90179-06274
90183-06032
91673-80616
Linked diagrams
8202

ILLUST NO. 9 OF11(1811- )

Click highlighted areas on diagram

DOOR & ROOF

diagram 84040 84233 84233 84234 84234 84751R 84751R 84810 84810D 84810D 84870A 84927 84930 84966A 85530B 85530G 85535C 9016440103 9016660005 9016670001
Part # Description Qty Price
Common parts
90164-40103
90166-60005
90166-70001

ILLUST NO. 6 OF11(1811- )

Click highlighted areas on diagram

CONSOLE BOX

diagram 84010D 84010D 84010D 85530 85530D 85530E 85532 85532B 85535B 85535E 85535H 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
Common parts
93568-55014

ILLUST NO. 5 OF11(1811- )

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 83950M 83950M 84119 84153 84255 84330 84470A 84721B 84751 84751F 84752 84794 84841A 84966 84988L 89611 89611
Part # Description Qty Price

ILLUST NO. 7 OF11(1811- )RHD

Click highlighted areas on diagram

STEERING

diagram 4501 84052 84250A 84306 84319 84329 84450 84523 84610G 84610H 84650 89245B 9015950199 9015950265 9015950265
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010

AXAA5#,MXAA5#..X

 1
84250A - SWITCH ASSY, STEERING PAD
84250-12550

AXAA5#,AXAH5#,MXAA5#..(M,X)..GEN

 1
84250-12580

AXAA54..LHD..V..GEN;AXAA54..RHD..(M,X)..GEN;AXAH5#,MXAA5#..CVT..(M,X)..GEN

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)&AUDIO-6SPEAKER 7INCH T1 DVD, GENERAL

 1
84250-42430

AXAA5#,AXAH5#,MXAA52..RHD..G..GEN

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)&AUDIO-6SPEAKER 7INCH T1 DVD, GENERAL

 1
84250-12570

AXAA5#,AXAH54,MXAA54..M..GCC;AXAA54,AXAH5#,MXAA5#..RHD..M..GEN

CRUISE CONTROL-WITH(NORMAL)

 1
84250-42410

AXAL5#..(G,M)..EUR;AXAH54..M..(ARL,EUR,RUS);AXAH52,MXAA54..G..(GCC,GEN);AXAA54,MXAA52..(M,V)..(ARL,EUR);AXAH52,MXAA54..(G,M,V)..(ARL,EUR,SA);AXAA5#,AXAH54,MXAA52..G..(ARL,EUR,GCC,GEN,SA)

 1
84250-12570

AXAA54,AXAH5#,MXAA5#..RHD..M..GEN

CRUISE CONTROL-WITH(NORMAL)&AUDIO-6SPEAKER 7INCH T1 DVD, GENERAL

 1
84250-42450

AXAA54..RHD..(M,X)..GEN;AXAH5#,MXAA5#..(M,X)..GEN

AUDIO-6SPEAKER 7INCH T1 DVD, GENERAL

 1
84250-12570

AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..M..GEN

CRUISE CONTROL-WITH(NORMAL)&AUDIO-6SPEAKER 7INCH T1 DVD, LATIN AMERICA

 1
84250-12580

AXAA54..LHD..V..GEN;AXAA5#,AXAH5#,MXAA5#..(ATM,CVT)..(M,X)..GEN

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)&AUDIO-6SPEAKER 7INCH T1 DVD, LATIN AMERICA

 1
84250-12580

AXAA54..LHD..V..GEN;AXAA54..RHD..(M,X)..GEN;AXAH5#,MXAA5#..CVT..(M,X)..GEN

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)&AUDIO-6SPEAKER 7INCH T1 DVD, GENERAL

 1
84250-42450

AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(M,X)..GEN

AUDIO-6SPEAKER 7INCH T1 DVD, LATIN AMERICA

 1
84250-42430

AXAA5#,AXAH5#,MXAA52..RHD..G..GEN

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)&AUDIO-6SPEAKER 7INCH T1 DVD, GENERAL

 1
84250-42430

AXAA5#,AXAH5#,MXAA52..RHD..G..GEN

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)&AUDIO-6SPEAKER 7INCH T1 DVD, LATIN AMERICA

 1
84306 - CABLE SUB-ASSY, SPIRAL
84308-12020

AXAH52,AXAL5#..M,X;AXAH52,AXAL5#..LHD..G;AXAH54,MXAA52..(M,X)..EUR;AXAH54,MXAA52..LHD..G..EUR;AXAH54,MXAA52..ARL,GCC,GEN,SA;AXAH52,AXAL5#..RHD..G..(ARL,GEN);AXAA5#,MXAA54..ARL,EUR,GCC,GEN,SA

 1
84319 - HOUSING, STEERING WHEEL SWITCH
84319-33030

AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(ARL,GEN,SA)

 1
84329 - SWITCH, TURN SIGNAL
84329-12120

AXAA54,MXAA5#..RHD..X..GEN

 1
84329-33030

AXAA54,MXAA5#..RHD..X..GEN

FRONT FOG & DRIVING LAMP-WITH

 1
84329-33030

AXAA5#,AXAH5#,MXAA5#..RHD..(G,M,V)..GEN

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-33040

AXAA5#,MXAA5#..X

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-12B40

AXAA54,MXAA5#..RHD..X..(GEN,SA)

 1
84652-42210

AXAA54,MXAA52..X..ARL;AXAA52,AXAH5#,AXAL5#..RHD..(ARL,GEN);AXAA54,MXAA5#..RHD..(G,M,V)..(ARL,GEN,SA)

 1
89245B - SENSOR, STEERING
8924B-50010

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
Common parts
90159-50199
90159-50265
Linked diagrams
4501

ILLUST NO. 4 OF11(1811- )RHD..ATM,CVT

Click highlighted areas on diagram

COWL

diagram 69065A 8202 82210N 82210N 82600D 82600D 82672A 82673C 82730 82877 84340 84345 85910V 85913F 85940 85970A 8598A 89111 89120A 89221 89730A 9011906951 9011906A21 9017906274 9017906274 9017906274 9018306032 9167380616 9167380616
Part # Description Qty Price
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08306

AXAA5#,AXAH5#,AXAL5#,MXAA5#

30A,TERM.:FEMALE,PNK

 1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08306

AXAA5#,AXAH5#,AXAL5#,MXAA5#

30A,TERM.:FEMALE,PNK

 1
82600D - INSTRUMENT PANEL FUSE
90982-09023

AXAA5#,AXAH5#,AXAL5#,MXAA5#

20A,MINI FUSE,YELLOW

 1
90982-09021

AXAA5#,AXAH5#,AXAL5#,MXAA5#

10A,MINI FUSE,RED

 1
90982-09022

AXAA5#,AXAH5#,AXAL5#,MXAA5#

15A,MINI FUSE,BLUE

 1
90982-09020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

7.5A,MINI FUSE,BROWN

 1
90982-09019

AXAA5#,AXAH5#,AXAL5#,MXAA5#

5A,MINI FUSE,TAN

 1
82600D - INSTRUMENT PANEL FUSE
90982-09023

AXAA5#,AXAH5#,AXAL5#,MXAA5#

20A,MINI FUSE,YELLOW

 1
90982-09021

AXAA5#,AXAH5#,AXAL5#,MXAA5#

10A,MINI FUSE,RED

 1
90982-09022

AXAA5#,AXAH5#,AXAL5#,MXAA5#

15A,MINI FUSE,BLUE

 1
90982-09020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

7.5A,MINI FUSE,BROWN

 1
90982-09019

AXAA5#,AXAH5#,AXAL5#,MXAA5#

5A,MINI FUSE,TAN

 1
82672A - COVER, JUNCTION BLOCK
82672-42200

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
82673C - BRACKET, JUNCTION BLOCK
82673-42270

AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD

 1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-42890

MXAA52..G,X;MXAA52..CVT..M;MXAA52..LHD..6F..M;AXAA5#,AXAH5#,AXAL5#,MXAA54

 1
82877 - BOX, COMPUTER INTEGRATION, RH
82877-33040

AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD

 1
84340 - SWITCH ASSY, STOP LAMP
84340-49105

AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-51010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85910V - RELAY, SEAT HEATER
90987-02027

AXAA54..LHD..V;MXAA54..RHD..(M,X);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA)

 1
90987-02027

AXAA54..RUS;MXAA54..RHD..V..GEN;MXAA54..CVT..(RUS,SA);AXAH54,MXAA52..CVT..(M,X)..RUS;AXAA54,MXAA52..RHD..(6F,8FC)..(G,V);AXAA52,AXAH5#,AXAL5#,MXAA52..(ATM,CVT)..G;AXAA54,MXAA54..LHD..(ATM,CVT)..G..(EUR,GCC,GEN)

 2
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-42040

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL
85970-42060

MXAA52..X..SA;MXAA54..RHD..6F;AXAH54..RHD..GEN;AXAA5#..RHD..G..GEN;MXAA52..RHD..G..(GEN,SA)

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

 1
8598A - BATTERY, DOOR CONTROL
8598A-42030

AXAA5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
89111 - COMPUTER, NETWORK GATEWAY
89111-12050

AXAA5#,MXAA5#

 1
89120A - SENSOR, AUTOMATIC LIGHT CONTROL
89121-30020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89221 - COMPUTER, MULTIPLEX NETWORK BODY
89220-4B830

AXAA5#,AXAH5#,MXAA52..RHD..G..GEN

 1
89220-4B870

AXAA54,MXAA5#..RHD..(ATM,CVT)..(M,X)..GEN

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE

 1
89220-4B840

AXAA5#,AXAH54,MXAA52..RHD..G..GEN

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

 1
89220-4B800

AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(M,X)..GEN

 1
89220-4B890

AXAA5#,MXAA52..RHD..G..GEN

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE

 1
89220-4BA00

AXAA5#,MXAA52..RHD..G..GEN

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE&ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK& ALARM

 1
89220-4B801

AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(M,X)..GEN

 1
89220-4B841

AXAA5#,AXAH54,MXAA52..RHD..G..GEN

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

 1
89220-4B831

AXAA5#,AXAH5#,MXAA52..RHD..G..GEN

 1
89220-4B871

AXAA54,MXAA5#..RHD..(ATM,CVT)..(M,X)..GEN

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE

 1
89220-4BA01

AXAA5#,MXAA52..RHD..G..GEN

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE&ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK& ALARM

 1
89220-4B891

AXAA5#,MXAA52..RHD..G..GEN

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE

 1
89220-42R30

AXAA5#,AXAH54,MXAA52..RHD..G..GEN

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

 1
89220-42R00

AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(M,X)..GEN

 1
89220-42R10

AXAA5#,AXAH54,MXAA52..RHD..G..GEN

 1
89220-42T50

AXAA54,MXAA5#..RHD..(ATM,CVT)..(M,X)..GEN

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE

 1
89220-42T90

AXAA5#,MXAA52..RHD..G..GEN

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE&ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK& ALARM

 1
89220-42T70

AXAA5#,MXAA52..RHD..G..GEN

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE

 1
Common parts
90119-06951
90119-06A21
90179-06274
90183-06032
91673-80616
Linked diagrams
8202

ILLUST NO. 5 OF11(1811- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 83950M 83950M 84153 84255 84330 84470A 84721B 84751 84751F 84752 84794 84841A 84966 84988L 89611 89611
Part # Description Qty Price
84153 - SWITCH, AUTO HIGH BEAM
84153-33040

AXAA54..LHD..V;MXAA54..RHD..(M,X);MXAA54..6F..G..EUR;MXAA52..LHD..6F..GEN;MXAA52..6F..(M,X)..EUR;MXAA52..G..(EUR,GEN,SA);MXAA52..CVT..(M,X)..GEN;MXAA52..LHD..CVT..(M,X)..EUR;MXAA54..CVT..G..(EUR,GCC,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..(G,M,X)..(EUR,GCC,GEN,SA)

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-42030

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
84721B - SWITCH, PANORAMIC VIEW MONITOR
84721-33010

AXAH54..M..(EUR,RUS);AXAA54,MXAA54..M..EUR;MXAA52..6F..(G,M)..EUR;AXAH52,AXAL5#..(G,M)..EUR;MXAA52..LHD..CVT..(G,M)..EUR;MXAA54..(G,V)..(EUR,GEN,RUS);AXAH52,AXAL5#,MXAA52..G..(ARL,GEN,RUS,SA);AXAA5#,AXAH54..(G,V)..(ARL,EUR,GEN,RUS,SA)

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
84752 - SWITCH, REFRESHING SEAT
84752-42040

AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN

TYPE C

 1
84966 - SWITCH, POWER BACK DOOR CONTROL
84966-42010

AXAH52,MXAA54..G..(GCC,GEN);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAH54,AXAL5#,MXAA52..M..(ARL,EUR)

POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK

 1
84966-42010

AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR

POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)

 1
84988L - SWITCH, VSC OFF
84988-42050

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89611 - SWITCH, PUSH START
89611-42012

AXAA5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,GEN,SA)

 1
89611 - SWITCH, PUSH START
89611-42012

AXAA5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,GEN,SA)

 1

ILLUST NO. 6 OF11(1811- )RHD..ATM,CVT

Click highlighted areas on diagram

CONSOLE BOX

diagram 84010D 84010D 84010D 85530 85530D 85530E 85532 85532B 85535B 85535E 85535H 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
84010D - CONTROL & PANEL ASSY, INTEGRATION
84010-42090

AXAA54,MXAA54..RHD..(G,V)

 1
84010-42070

AXAA54,MXAA54..RHD..(ATM,CVT)..(M,X)

 1
84010D - CONTROL & PANEL ASSY, INTEGRATION
84010-42090

AXAA54,MXAA54..RHD..(G,V)

 1
84010-42070

AXAA54,MXAA54..RHD..(ATM,CVT)..(M,X)

 1
84010D - CONTROL & PANEL ASSY, INTEGRATION
84010-42090

AXAA54,MXAA54..RHD..(G,V)

 1
84010-42070

AXAA54,MXAA54..RHD..(ATM,CVT)..(M,X)

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85530D - SOCKET ASSY, POWER OUTLET, NO.2
85530-42010

AXAH52..M..GEN;MXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..(G,M)..(ARL,EUR);MXAA52..LHD..CVT..(G,M)..EUR;MXAA52..6F..(G,M)..(EUR,GEN);MXAA54..CVT..G..(EUR,GCC,GEN);MXAA54..(M,V)..(EUR,GCC,GEN,SA);AXAA52,AXAH54,AXAL5#..(G,M)..(ARL,EUR,GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..(G,M,V)..(ARL,GCC,GEN,SA)

AUDIO JACK-FRONT:USB3, REAR:USB3

 1
85530-42010

AXAH54..GEN;MXAA54..(G,M)..RUS;AXAH52,MXAA54..(M,V)..GEN;MXAA52..LHD..(G,M)..(GEN,RUS);AXAA5#..(G,M,V)..(GCC,GEN,RUS);AXAH52,MXAA54..LHD..CVT..G..GEN;MXAA52..RHD..CVT..(G,M)..(EUR,GEN)

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

 1
85530-42010

MXAA52..G,M;AXAA5#,AXAH5#,AXAL5#,MXAA54;MXAA52..X..(ARL,EUR,GEN,RUS)

 1
85530E - SOCKET ASSY, POWER OUTLET, NO.3
85530-42010

AXAA5#,AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAH52,MXAA54..LHD..CVT..G..GEN

AUDIO JACK-FRONT:AUX & USB1,REAR:USB2

 1
85530-42010

AXAH52,MXAA54..(M,V)..GEN;AXAH52,MXAA54..LHD..CVT..G..GEN;AXAA5#,AXAH54,MXAA52..(G,M,V)..GEN

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

 1
85530-42010

AXAA54,MXAA52..GEN;AXAA54,MXAA52..X..(ARL,GCC,SA);AXAA52,AXAH5#,MXAA54..(G,M,V)..GEN;AXAA52,AXAH5#,AXAL5#,MXAA54..X..(ARL,GCC,GEN)

 1
85530-42010

AXAA5#,AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAH52,MXAA54..LHD..CVT..G..GEN

AUDIO JACK-FRONT:USB1,REAR:USB2

 1
85530-42010

AXAH52,MXAA54..(M,V)..GEN;AXAH52,MXAA54..LHD..CVT..G..GEN;AXAA5#,AXAH54,MXAA52..(G,M,V)..GEN

AUDIO JACK-FRONT:USB3, REAR:USB3

 1
85532 - SOCKET, USB CHARGER
85532-15010

AXAH52..M..GEN;AXAH52..LHD..G..GEN;AXAA5#,AXAH54,MXAA5#..(G,M,V)..GEN

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

 1
85532-15010

AXAH52..M..GEN;AXAH52..LHD..G..GEN;AXAA5#,AXAH54,MXAA5#..GEN

AUDIO JACK-FRONT:AUX & USB1,REAR:USB2

 1
85532-15010

AXAA5#,AXAH5#,MXAA5#..(G,M,V)..GEN

AUDIO JACK-FRONT:USB3, REAR:USB3

 1
85532-15010

AXAA5#,AXAH5#,MXAA5#..GEN

AUDIO JACK-FRONT:USB1,REAR:USB2

 1
85532B - SOCKET, USB CHARGER
85532-42010

MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,GEN,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,GCC,GEN,SA)

AUDIO JACK-FRONT:USB3, REAR:USB3

 1
85532-42010

AXAH52..M..GEN;MXAA52..6F..G..SA;AXAH52..LHD..G..GEN;MXAA52..LHD..(G,M)..(GEN,RUS);AXAH54,MXAA54..(G,M,V)..(GEN,RUS);AXAA5#..(G,M,V)..(EUR,GCC,GEN,RUS);MXAA52..RHD..CVT..(G,M)..(EUR,GEN)

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-30020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-30020

AXAH54..GEN;MXAA54..(G,M)..RUS;AXAH52,MXAA54..(M,V)..GEN;MXAA52..LHD..(G,M)..(GEN,RUS);AXAA5#..(G,M,V)..(GCC,GEN,RUS);AXAH52,MXAA54..LHD..CVT..G..GEN;MXAA52..RHD..CVT..(G,M)..(EUR,GEN)

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

 1
85535-30020

AXAH52..M..GEN;MXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..(G,M)..(ARL,EUR);MXAA52..LHD..CVT..(G,M)..EUR;MXAA52..6F..(G,M)..(EUR,GEN);MXAA54..CVT..G..(EUR,GCC,GEN);MXAA54..(M,V)..(EUR,GCC,GEN,SA);AXAA52,AXAH54,AXAL5#..(G,M)..(ARL,EUR,GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..(G,M,V)..(ARL,GCC,GEN,SA)

AUDIO JACK-FRONT:USB3, REAR:USB3

 1
85535-30020

MXAA52..G,M;AXAA5#,AXAH5#,AXAL5#,MXAA54;MXAA52..X..(ARL,EUR,GEN,RUS)

 1
85535H - COVER, POWER OUTLET SOCKET, NO.3
85535-30020

AXAA54,MXAA52..GEN;AXAA54,MXAA52..X..(ARL,GCC,SA);AXAA52,AXAH5#,MXAA54..(G,M,V)..GEN;AXAA52,AXAH5#,AXAL5#,MXAA54..X..(ARL,GCC,GEN)

 1
85535-30020

AXAH52,MXAA54..(M,V)..GEN;AXAH52,MXAA54..LHD..CVT..G..GEN;AXAA5#,AXAH54,MXAA52..(G,M,V)..GEN

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

 1
85535-30020

AXAA5#,AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAH52,MXAA54..LHD..CVT..G..GEN

AUDIO JACK-FRONT:AUX & USB1,REAR:USB2

 1
85535-30020

AXAH52,MXAA54..(M,V)..GEN;AXAH52,MXAA54..LHD..CVT..G..GEN;AXAA5#,AXAH54,MXAA52..(G,M,V)..GEN

AUDIO JACK-FRONT:USB3, REAR:USB3

 1
85535-30020

AXAA5#,AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAH52,MXAA54..LHD..CVT..G..GEN

AUDIO JACK-FRONT:USB1,REAR:USB2

 1
Common parts
93568-55014

ILLUST NO.11 OF11(1811- )

Click highlighted areas on diagram

FLOOR RELAY BLOCK

diagram 55557F 8202 82210R 82600L 82610D 82620B 82660K 82662C 82662D 82663B 82743 85910K 85910K 85910K 85924C 9011908944
Part # Description Qty Price
Common parts
90119-08944
Linked diagrams
8202

ILLUST NO. 2 OF11(1811- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28850C 28859A 9011906A18 9011906A18 9011906A18 9011906A18 90119W0343 90119W0343 90119W0343 90119W0343 9017806018 9017806018 9415180801
Part # Description Qty Price
Common parts
90119-06A18
90119-W0343
90178-06018
94151-80801

ILLUST NO.10 OF11(1811- )AXAA5#,MXAA5#

Click highlighted areas on diagram

FLOOR & BACK DOOR

diagram 3136442020 83320 83320B 84546A 84840G 88162 88172 891B1 891B2 89222A 89413A 89429F 89747E 89747F 9010506348 9016750063 9017806012 9017906178 9030111008 9043014011 9046707215 9155380612
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-42080

AXAA5#,MXAA5#

 1
83320B - GAGE ASSY, FUEL SENDER, NO.2
83320-42090

AXAA5#,MXAA5#

 1
84546A - SWITCH, 4 WHEEL DRIVE POSITION, NO.2
84546-42010

MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)

 1
84840G - SWITCH ASSY, BACK DOOR OPENER
84840-47030

AXAH54..M..EUR;AXAL5#..X..ARL;AXAL5#..(M,X)..EUR;AXAA5#,AXAH5#,MXAA5#..X;AXAA54,AXAH52,MXAA5#..M..(EUR,RUS)

 1
84840-47040

AXAH54,MXAA5#..G,V;MXAA5#..M..(ARL,GCC,GEN);AXAH54..M..(ARL,GCC,GEN,RUS);AXAA54,AXAH52,AXAL5#..G..(EUR,RUS);AXAA5#,AXAH52,AXAL5#..(G,M,V)..(ARL,GCC,GEN,SA)

 1
88162 - SENSOR, BLIND SPOT MONITOR, RH
88162-42090

AXAA54,AXAH5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN)

LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA

 1
88162-42090

AXAA54,AXAH5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN)

LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)

 1
88162-42091

MXAA52..6F..M..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN)

LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA

 1
88162-42091

MXAA52..6F..M..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN)

LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)

 1
88172 - SENSOR, BLIND SPOT MONITOR, LH
88162-42090

AXAA54,AXAH5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN)

LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)

 1
88162-42090

AXAA54,AXAH5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN)

LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA

 1
88162-42091

MXAA52..6F..M..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN)

LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA

 1
88162-42091

MXAA52..6F..M..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN)

LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)

 1
891B1 - BRACKET, KICK DOOR CONTROL
891B1-42030

AXAH52..G..GEN;AXAH54..G..(EUR,GEN,RUS);AXAH52,AXAL5#..(G,M)..EUR;AXAA54,AXAH54,MXAA5#..M..EUR;AXAA5#,MXAA5#..(G,V)..(EUR,GEN)

POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)

 1
891B2 - SENSOR, KICK DOOR CONTROL
891B2-0W050

AXAH52..G..GEN;AXAH54..G..(EUR,GEN,RUS);AXAH52,AXAL5#..(G,M)..EUR;AXAA54,AXAH54,MXAA5#..M..EUR;AXAA5#,MXAA5#..(G,V)..(EUR,GEN)

POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)

 1
89222A - COMPUTER, MULTIPLEX NETWORK DOOR
89222-42100

AXAH52,MXAA54..G..(GCC,GEN);AXAA54,AXAH54,MXAA52..M..(ARL,EUR);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN)

POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK

 1
89222-42100

AXAA54,AXAH5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN

POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)

 1
89222-42101

AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR

POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)

 1
89222-42101

AXAH52,MXAA54..G..(GCC,GEN);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAH54,AXAL5#,MXAA52..M..(ARL,EUR)

POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK

 1
89413A - SENSOR, TRANSMISSION REVOLUTION
89413-12010

MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)

 1
89429F - SENSOR, TEMPERATURE
89429-53010

MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)

 1
89747E - BUZZER, POWER BACK DOOR WARNING
89747-30040

AXAH52,MXAA54..G..(GCC,GEN);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAH54,AXAL5#,MXAA52..M..(ARL,EUR)

POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK

 1
89747-30040

AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR

POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)

 1
89747F - BUZZER, BLIND SPOT MONITOR
89747-52010

MXAA52..6F..M..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN)

LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA

 1
Common parts
31364-42020
90105-06348
90167-50063
90178-06012
90179-06178
90301-11008
90430-14011
90467-07215
91553-80612

ILLUST NO. 1 OF11(1811- )AXAA5#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 82715 82715W 82715W 84540 84546 89422A 89467B 89467C 89491 89615 9011906A23 9046814044 9046815007 9155180835 9165140625 9167180616 9167180616 9167180616
Part # Description Qty Price
82715 - BRACKET,WIRING HARNESS CLAMP
82715-33K11

AXAA5#;AXAH5#,AXAL5#..LHD..EUR;AXAH5#,AXAL5#..ARL,GCC,GEN,RUS

 1
82715W - BRACKET, WIRING HARNESS CLAMP
82715-42K70

AXAA54

 1
82715W - BRACKET, WIRING HARNESS CLAMP
82715-42K70

AXAA54

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-33020

AXAA5#

 1
84546 - SWITCH, 4 WHEEL DRIVE POSITION, NO.1
84546-42010

MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)

 1
89422A - SENSOR, WATER TEMPERATURE
89422-33040

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89467B - SENSOR, AIR FUEL RATIO
89467-33290

AXAA5#;AXAH5#,AXAL5#..LHD..EUR;AXAH5#,AXAL5#..ARL,GCC,GEN,RUS

 1
89467C - SENSOR, AIR FUEL RATIO, NO.2
89467-42170

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-33051

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
Common parts
90119-06A23
90468-14044
90468-15007
91551-80835
91651-40625
91671-80616

ILLUST NO. 3 OF11(1811- )AXAA5#,MXAA5#

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 28300 82210P 82600E 82600E 82610A 82610C 82616 82620A 82660 82660B 82660D 82660E 82660F 82660G 82660H 82660J 82661 82661A 82662A 82662B 82663 82663A 82740 82740A 84794A 85278A 85910E 85912 85912F 85912K 85916D 85916P 85941 85948 86530 87989 89561F 89561G 89561H 90178W0019 9415180600
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-21020

M20AFKS..MXAA54;M20AFKS..MXAA52..6F..EUR;M20AFKS..MXAA52..LHD..CVT..EUR;A25AFKS,M20AFKS..AXAA5#,MXAA52..ARL,GCC,GEN,RUS,SA

 1
82210P - ENGINE ROOM FUSIBLE LINK
90982-08285

AXAA5#,AXAH5#,AXAL5#,MXAA5#

50A,TERM.:FEMALE,RED

 1
90982-08302

AXAA5#,AXAH5#,AXAL5#,MXAA5#

50A-30A-50A,FEMALE

 1
90982-08283

AXAA5#,AXAH5#,AXAL5#,MXAA5#

30A,TERM.:FEMALE,PNK

 1
90982-08303

AXAA5#,MXAA5#

50A-50A-50A,FEMALE

 1
82600E - ENGINE ROOM FUSE
90982-09021

AXAA5#,AXAH5#,AXAL5#,MXAA5#

10A,MINI FUSE,RED

 1
90982-09022

AXAA5#,AXAH5#,AXAL5#,MXAA5#

15A,MINI FUSE,BLUE

 1
90982-09020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

7.5A,MINI FUSE,BROWN

 1
90982-09019

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

5A,MINI FUSE,TAN

 1
90982-09024

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

25A,MINI FUSE

 1
90982-09025

AXAA5#,AXAH5#,AXAL5#,MXAA5#

30A,MINI FUSE,GRN

 1
90982-09023

AXAA5#,AXAH5#,AXAL5#,MXAA5#

20A,MINI FUSE,YELLOW

 1
82600E - ENGINE ROOM FUSE
90982-09021

AXAA5#,AXAH5#,AXAL5#,MXAA5#

10A,MINI FUSE,RED

 1
90982-09022

AXAA5#,AXAH5#,AXAL5#,MXAA5#

15A,MINI FUSE,BLUE

 1
90982-09020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

7.5A,MINI FUSE,BROWN

 1
90982-09019

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

5A,MINI FUSE,TAN

 1
90982-09024

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

25A,MINI FUSE

 1
90982-09025

AXAA5#,AXAH5#,AXAL5#,MXAA5#

30A,MINI FUSE,GRN

 1
90982-09023

AXAA5#,AXAH5#,AXAL5#,MXAA5#

20A,MINI FUSE,YELLOW

 1
82610A - BLOCK ASSY, FUSE
82610-42080

AXAA5#,MXAA5#

 1
82610C - BLOCK ASSY, FUSE
82610-42090

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

 1
82616 - PULLER, FUSE
82616-58010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-33130

AXAA54..V..GCC;MXAA54..G..GEN;AXAA54,MXAA52..SA;MXAA54..RHD..(M,X);AXAH5#,AXAL5#..EUR,GEN,RUS;AXAA5#,MXAA52..LHD..(G,V)..GEN;MXAA54..LHD..(M,V,X)..(GCC,GEN);AXAA5#,MXAA52..(M,X)..(ARL,GCC,GEN)

 1
82620-33150

AXAA54..EUR,RUS;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..(M,X)..(EUR,RUS);MXAA52..LHD..G..(EUR,RUS);AXAA5#,MXAA5#..RHD..(G,V)..(ARL,EUR,GEN)

 1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-42100

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
82660B - BLOCK ASSY, RELAY
82660-42110

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
82660D - BLOCK ASSY, RELAY
82660-0E010

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

 1
82660E - BLOCK ASSY, RELAY
82660-33050

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAA5#,MXAA52..(ATM,CVT)..(ARL,EUR,GEN,RUS,SA)

 1
82660F - BLOCK ASSY, RELAY
82660-48020

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

 1
82660G - BLOCK ASSY, RELAY
82660-48030

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

 1
82660H - BLOCK ASSY, RELAY
82660-48040

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

 1
82660J - BLOCK ASSY, RELAY
82660-52100

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-42080

AXAA5#,MXAA5#..RHD

 1
82661A - COVER, RELAY BLOCK, NO.2
82661-42060

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-42640

AXAA54..V..GCC;MXAA54..G..GEN;AXAA54,MXAA52..SA;MXAA54..RHD..(M,X);AXAA5#,MXAA52..LHD..(G,V)..GEN;MXAA54..LHD..(M,V,X)..(GCC,GEN);AXAA5#,MXAA52..(M,X)..(ARL,GCC,GEN)

 1
82662-42700

AXAA54..EUR,RUS;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..(M,X)..(EUR,RUS);MXAA52..LHD..G..(EUR,RUS);AXAA5#,MXAA5#..RHD..(G,V)..(ARL,EUR,GEN)

 1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-42650

MXAA5#..6F..EUR;AXAA5#,MXAA54..G..GCC;MXAA5#..6F..G..(GEN,SA);AXAA5#,MXAA5#..(ATM,CVT)..(ARL,EUR,GEN,SA)

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-42170

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

 1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-42160

AXAA5#,MXAA54..G..GCC;AXAA5#,MXAA5#..ARL,EUR,GEN,RUS,SA

 1
82740 - BLOCK ASSY, ENGINE ROOM RELAY
82740-42050

AXAA5#,MXAA5#

 1
82740A - BLOCK ASSY, ENGINE ROOM RELAY, NO.2
82740-42120

MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA

 1
85910E - RELAY, INJECTOR
90987-02027

AXAA5#,MXAA5#

 1
85912 - RELAY, DEFOGGER
90987-04010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85912K - RELAY, VVT
90987-02027

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85916D - RELAY, FOG LAMP
90987-02027

AXAA54,AXAH54,MXAA54..X..(EUR,GEN);AXAA52,AXAH52,AXAL5#,MXAA52..X..(EUR,GCC,GEN)

FRONT FOG & DRIVING LAMP-WITH,(J)

 1
90080-87026

AXAA5#,AXAH5#,AXAL5#,MXAA5#..G,M,V;AXAA54,AXAH5#,AXAL5#,MXAA52..X..(ARL,SA)

(L)

 1
90987-02027

AXAA5#,AXAH5#,AXAL5#,MXAA5#..G,M,V;AXAA54,AXAH5#,AXAL5#,MXAA52..X..(ARL,SA)

(J)

 1
90080-87026

AXAA54,AXAH54,MXAA54..X..(EUR,GEN);AXAA52,AXAH52,AXAL5#,MXAA52..X..(EUR,GCC,GEN)

FRONT FOG & DRIVING LAMP-WITH,(L)

 1
85916P - RELAY, HEADLAMP
90080-87026

AXAA5#,AXAH5#,AXAL5#,MXAA5#

(L)

 2
90987-02027

AXAA5#,AXAH5#,AXAL5#,MXAA5#

(J)

 2
85948 - RELAY, WINDSHIELD WIPER
90987-02027

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
86530 - RELAY ASSY, HORN
90987-02027

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
90987-02027

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
90987-02027

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
90987-02025

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
Common parts
90178-W0019
94151-80600

ILLUST NO. 9 OF11(1811- )RHD

Click highlighted areas on diagram

DOOR & ROOF

diagram 84040 84233 84233 84234 84234 84751R 84751R 84810 84810D 84810D 84870A 84927 84966A 85530B 85535C 9016440103 9016660005 9016670001
Part # Description Qty Price
84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK
84040-42040

MXAA52..RHD..X;MXAA52..RHD..M..GEN;AXAA54,AXAH5#,MXAA54..RHD..(M,V,X)..GEN;AXAA54,AXAH5#,AXAL5#..RHD..X..(ARL,EUR)

 1
84040-42050

AXAH52..RHD..G..GEN;AXAA5#,AXAH54,MXAA52..RHD..G;AXAH52,AXAL5#..RHD..(G,M)..(ARL,EUR);AXAA54,AXAH54,MXAA5#..RHD..(M,V)..(ARL,EUR,SA)

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-60070

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-60070

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12110

AXAA5#,AXAH54,MXAA52..G;AXAH52,MXAA54..G..(GCC,GEN);AXAA54,AXAH54,MXAA52..(M,V)..(ARL,EUR,RUS);AXAH52,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,RUS,SA)

 1
84810-12100

MXAA52..X;MXAA5#..M..(GCC,GEN);MXAA54..(V,X)..(GCC,GEN,RUS);AXAA5#,AXAH5#..(M,V,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#..X..(ARL,EUR)

 1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-12100

MXAA52..X;MXAA5#..M..(GCC,GEN);MXAA54..(V,X)..(GCC,GEN,RUS);AXAA5#,AXAH5#..(M,V,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#..X..(ARL,EUR)

 2
84810-12110

AXAA5#,AXAH54,MXAA52..G;AXAH52,MXAA54..G..(GCC,GEN);AXAA54,AXAH54,MXAA52..(M,V)..(ARL,EUR,RUS);AXAH52,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,RUS,SA)

 2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-12100

MXAA52..X;MXAA5#..M..(GCC,GEN);MXAA54..(V,X)..(GCC,GEN,RUS);AXAA5#,AXAH5#..(M,V,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#..X..(ARL,EUR)

 2
84810-12110

AXAA5#,AXAH54,MXAA52..G;AXAH52,MXAA54..G..(GCC,GEN);AXAA54,AXAH54,MXAA52..(M,V)..(ARL,EUR,RUS);AXAH52,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,RUS,SA)

 2
84870A - SWITCH ASSY, OUTER MIRROR
84872-42020

AXAA54,AXAH5#,MXAA52..M..ARL;AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN

BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA

 1
84872-42020

AXAA5#,AXAH5#,MXAA5#..(G,V)..(ARL,GEN)

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA

 1
84872-42020

AXAH52..ARL;AXAH52..G..GEN;AXAH54..M..ARL;AXAH54..(G,X)..(ARL,GEN);AXAA54,MXAA52..(M,X)..ARL;AXAA5#,MXAA5#..(G,V)..(ARL,GEN)

LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)

 1
84872-42010

AXAA54,MXAA52..X..(GCC,SA);AXAA54,AXAH5#,MXAA52..ARL,GEN;AXAA52,MXAA54..(G,M,V)..(GEN,SA);AXAA52,AXAH54,MXAA54..X..(GCC,GEN)

 1
84927 - SWITCH, SEAT MEMORY
84927-42050

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

 1
84966A - SWITCH, POWER BACK DOOR CONTROL, NO.1
84966-42020

AXAH52,MXAA54..G..(GCC,GEN);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAH54,AXAL5#,MXAA52..M..(ARL,EUR)

POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK

 1
84966-42020

AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR

POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)

 1
85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1
85530-42010

AXAA5#,AXAH5#,MXAA5#..GEN

AUDIO JACK-FRONT:AUX & USB1,REAR:USB2

 1
85530-42010

AXAA5#,AXAH5#,MXAA5#..(G,M,V)..GEN

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

 1
85530-42010

AXAA5#,AXAH5#,MXAA5#..(G,M,V)..GEN

AUDIO JACK-FRONT:USB3, REAR:USB3

 1
85530-42010

AXAA5#,AXAH5#,MXAA5#..GEN

AUDIO JACK-FRONT:USB1,REAR:USB2

 1
85535C - COVER, POWER OUTLET SOCKET, REAR
85535-30020

AXAA5#,AXAH5#,MXAA5#..GEN

AUDIO JACK-FRONT:AUX & USB1,REAR:USB2

 1
85535-30020

AXAA5#,AXAH5#,MXAA5#..(G,M,V)..GEN

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

 1
85535-30020

AXAA5#,AXAH5#,MXAA5#..GEN

AUDIO JACK-FRONT:USB1,REAR:USB2

 1
85535-30020

AXAA5#,AXAH5#,MXAA5#..(G,M,V)..GEN

AUDIO JACK-FRONT:USB3, REAR:USB3

 1
Common parts
90164-40103
90166-60005
90166-70001

ILLUST NO. 8 OF11(1811- )RHD

Click highlighted areas on diagram

SEAT

diagram 7151 84921A 84921A 84921B 84921B 84922B 84922C 89710 9356054012 9356054012 9356054012 9356054012 9356054012
Part # Description Qty Price
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-33200C0

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

BLACK,TRIM1#,2#,4#

 1
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-33200C0

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

BLACK,TRIM1#,2#,4#

 1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-33190C0

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

BLACK,TRIM1#,2#,4#

 1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-33190C0

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

BLACK,TRIM1#,2#,4#

 1
84922B - SWITCH, FRONT POWER SEAT, RH
84922-33190C0

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

BLACK,TRIM1#,2#,4#

 1
89710 - COMPUTER ASSY, POSITION CONTROL
89710-42020

AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G

 1
Common parts
93560-54012
Linked diagrams
7151
