AXAA54R-ANZXB (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

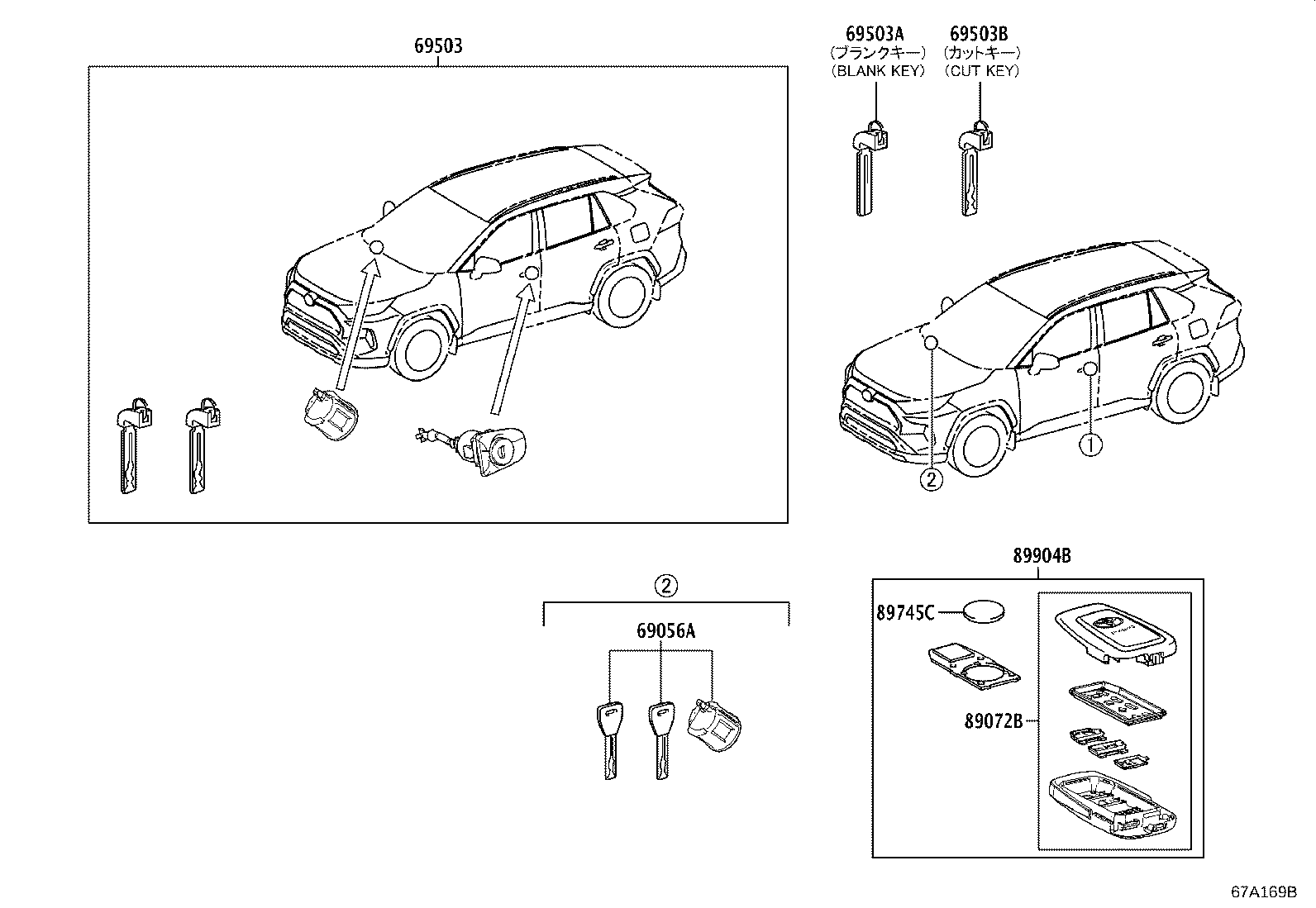

(1811- )

Click highlighted areas on diagram

W(SMART KEY)

diagram 69056A 69503 69503A 69503B 89072B 89745C 89904B
Part # Description Qty Price

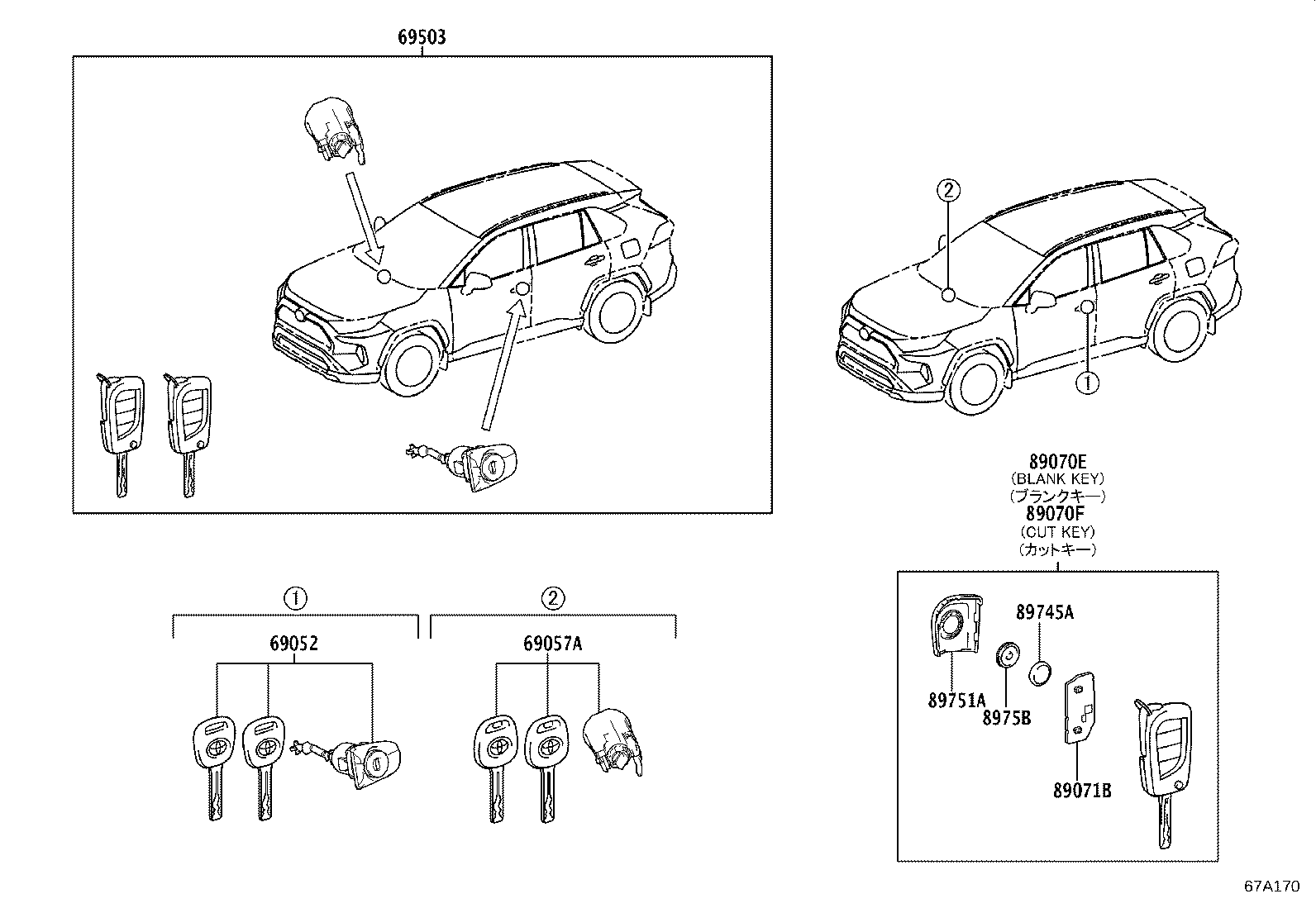

(1811- )X

Click highlighted areas on diagram

W/O(SMART KEY)

diagram 69052 69057A 69503 89070E 89070F 89071B 89745A 89751A 8975B
Part # Description Qty Price

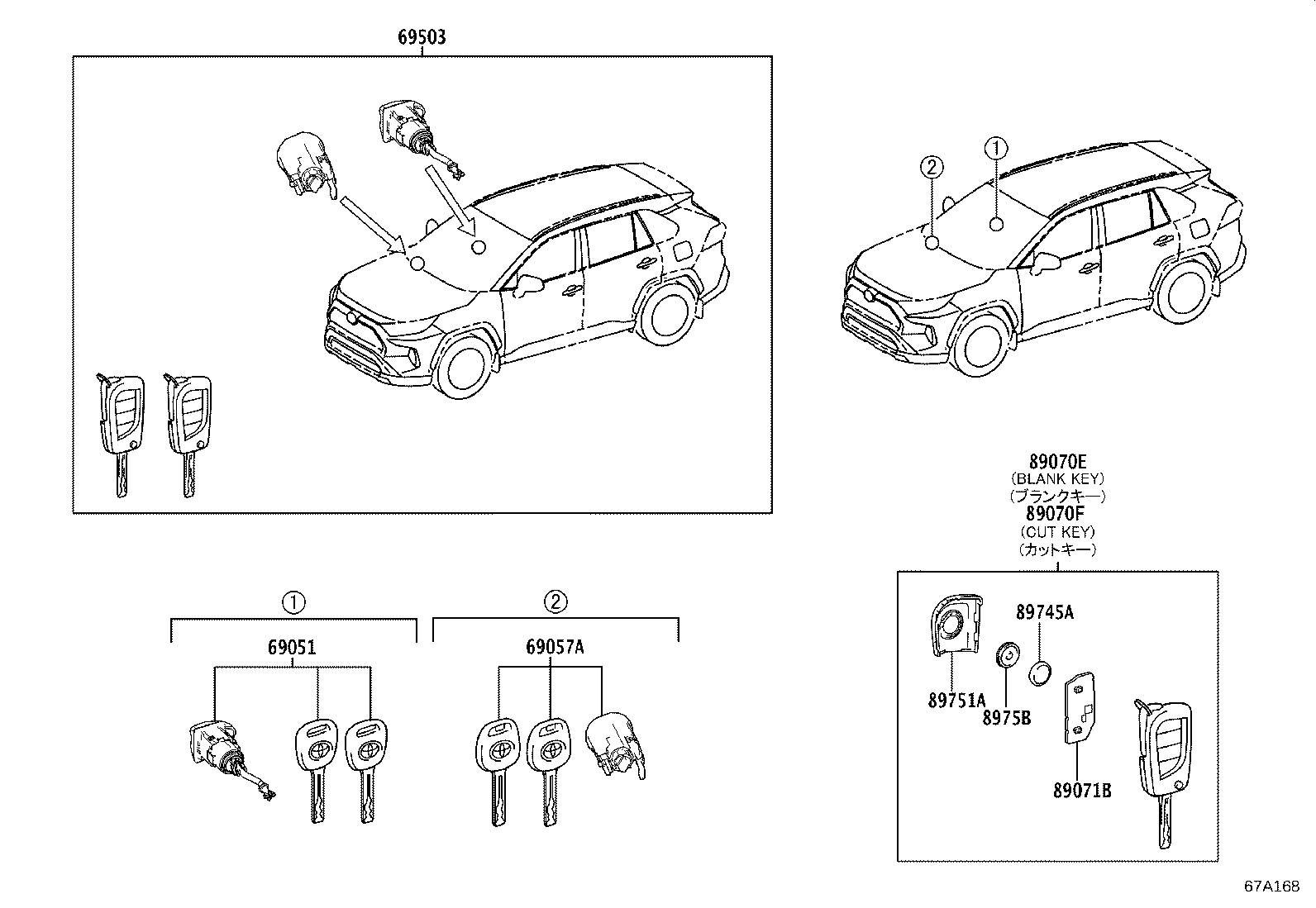

(1811- )AXAA54,MXAA5#..RHD..X

Click highlighted areas on diagram

W/O(SMART KEY) RHD

diagram 69051 69057A 69503 89070E 89070F 89071B 89745A 89751A 8975B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-42240

AXAA54,MXAA5#..RHD..X

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-33410

AXAA5#,MXAA5#..X..(ARL,EUR,GCC,GEN,SA)

 1
69503 - CYLINDER SET, LOCK
69005-42890

AXAA52,AXAH5#,AXAL5#..RHD..(ARL,GEN);AXAA54,MXAA5#..RHD..(G,M,V)..(ARL,GEN,SA)

 1
89704-42F60

AXAA54,MXAA5#..RHD..X..(GEN,SA)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-42G60

AXAA5#,MXAA5#..X..(GEN,SA)

 1
89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89070-42J30

AXAA5#,MXAA5#..X..(GEN,SA)

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-12380

AXAA5#,MXAA5#..X..(GEN,SA)

 2
89745A - BATTERY, TRANSMITTER
89745-50020

AXAA5#,MXAA5#..X..(ARL,EUR,GCC,GEN,SA)

CR2032

 1
89751A - COVER, TRANSMITTER HOUSING
89751-33200

AXAA5#,MXAA5#..X..(ARL,GEN,SA)

 2
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-33050

AXAA5#,MXAA5#..X..(ARL,GEN,SA)

 2
