AXAA54R-ANZXB (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )

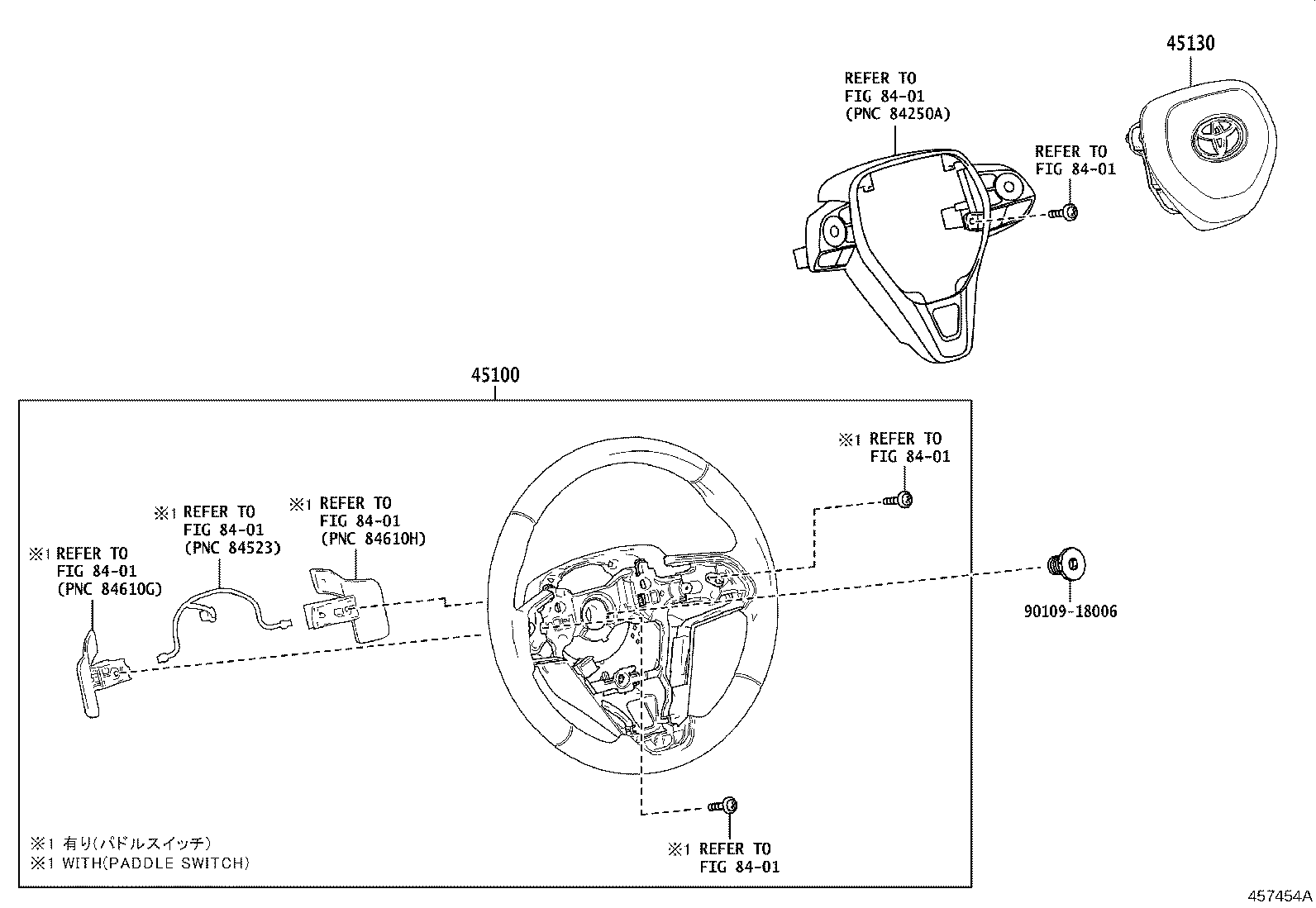

Click highlighted areas on diagram

diagram 45100 45130 8401 8401 9010918006
Part # Description Qty Price
Common parts
90109-18006
Linked diagrams
8401

(1811- )

Click highlighted areas on diagram

diagram 45100 45130 8401 8401 8401 8401 8401 8401 8401 9010918006
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-12G60C0

AXAH5#..M..(GCC,GEN);MXAA52..LHD..CVT..X..GEN;AXAA54,MXAA5#..RHD..(M,X)..GEN;AXAA5#,MXAA5#..LHD..M..(GCC,GEN)

3-SPOKE,URETHANE,BLACK,TRIM1#,2#,4#

 1
45100-12G70C0

MXAA54..EUR;AXAL5#..LHD..G;AXAH52..LHD..(G,X);AXAL5#..(G,M)..ARL;AXAH52..RHD..G..(ARL,GEN);AXAH54,MXAA52..LHD..(G,X)..EUR;AXAA5#..G..(ARL,EUR,GCC,GEN,SA);AXAA54,AXAH5#,MXAA52..M..(ARL,EUR);AXAH54,MXAA5#..G..(ARL,GCC,GEN,SA)

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

 1
45130 - BUTTON ASSY, HORN
45130-12E40C0

AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS)

BLACK,TRIM1#,2#,4#

 1
Common parts
90109-18006
Linked diagrams
8401
