AXAA54R-ANZXB (2019)
Toyota Rav4 (Jpp)

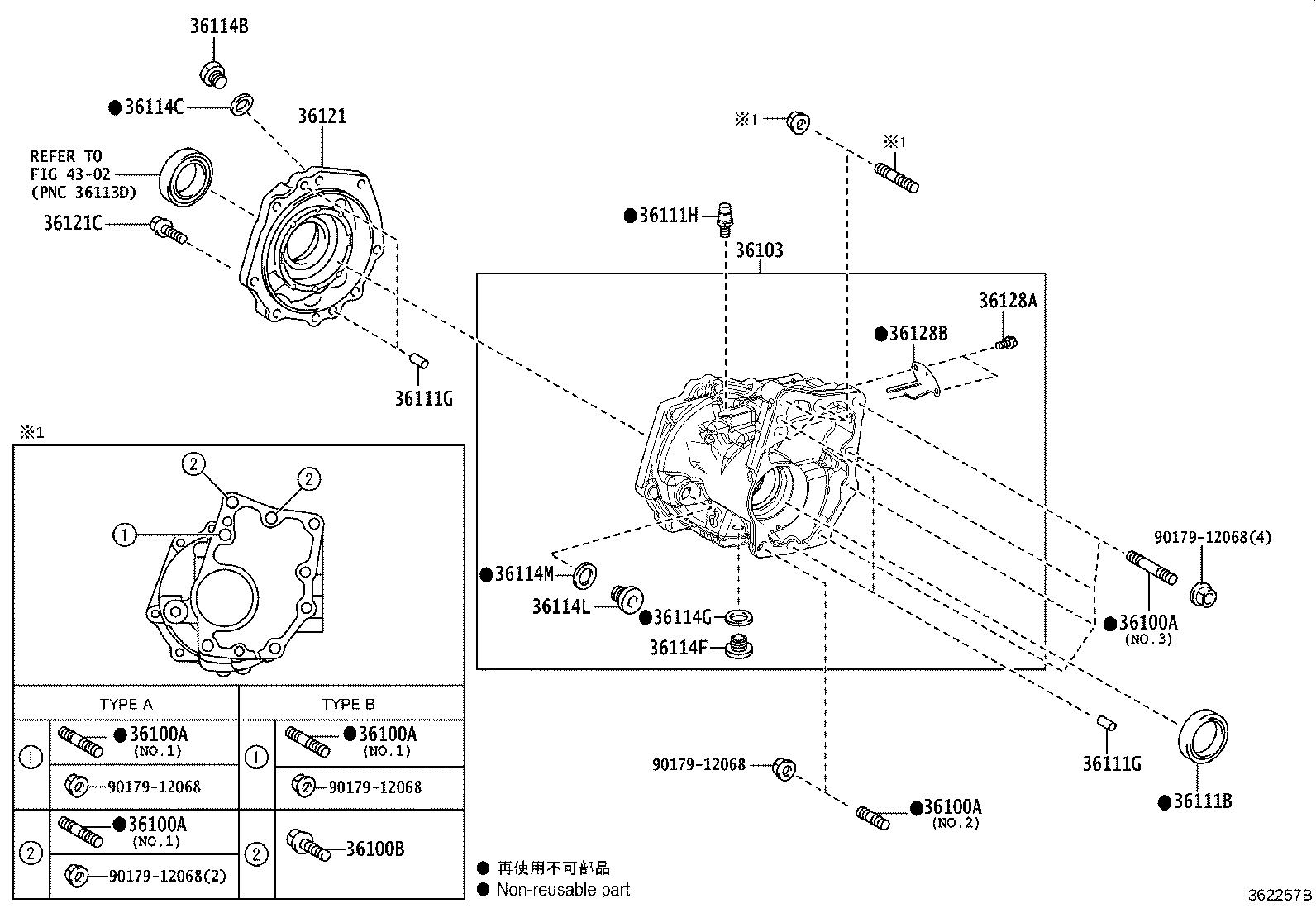

(1811- )AXAA54..M,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12034 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) S=19 & 19,L=47,NO.2 |
1 | ||
| 90116-12028 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) S=22 & 22,L=69,NO.1 |
3 | ||
| 90116-12041 |
AXAA54,MXAA54..G..RUS;AXAA54,MXAA54..ARL,EUR,GCC,GEN,SA S=30 & 22,L=64,NO.3 |
4 | ||
| 90116-12028 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) S=22 & 22,L=69,NO.1,TYPE B:REF ILL. |
1 | ||
| 90116-12034 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) S=19 & 19,L=47,NO.2,TYPE B:REF ILL. |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12034 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) S=19 & 19,L=47,NO.2 |
1 | ||
| 90116-12028 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) S=22 & 22,L=69,NO.1 |
3 | ||
| 90116-12041 |
AXAA54,MXAA54..G..RUS;AXAA54,MXAA54..ARL,EUR,GCC,GEN,SA S=30 & 22,L=64,NO.3 |
4 | ||
| 90116-12028 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) S=22 & 22,L=69,NO.1,TYPE B:REF ILL. |
1 | ||
| 90116-12034 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) S=19 & 19,L=47,NO.2,TYPE B:REF ILL. |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12034 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) S=19 & 19,L=47,NO.2 |
1 | ||
| 90116-12028 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) S=22 & 22,L=69,NO.1 |
3 | ||
| 90116-12041 |
AXAA54,MXAA54..G..RUS;AXAA54,MXAA54..ARL,EUR,GCC,GEN,SA S=30 & 22,L=64,NO.3 |
4 | ||
| 90116-12028 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) S=22 & 22,L=69,NO.1,TYPE B:REF ILL. |
1 | ||
| 90116-12034 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) S=19 & 19,L=47,NO.2,TYPE B:REF ILL. |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12034 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) S=19 & 19,L=47,NO.2 |
1 | ||
| 90116-12028 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) S=22 & 22,L=69,NO.1 |
3 | ||
| 90116-12041 |
AXAA54,MXAA54..G..RUS;AXAA54,MXAA54..ARL,EUR,GCC,GEN,SA S=30 & 22,L=64,NO.3 |
4 | ||
| 90116-12028 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) S=22 & 22,L=69,NO.1,TYPE B:REF ILL. |
1 | ||
| 90116-12034 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) S=19 & 19,L=47,NO.2,TYPE B:REF ILL. |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12034 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) S=19 & 19,L=47,NO.2 |
1 | ||
| 90116-12028 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) S=22 & 22,L=69,NO.1 |
3 | ||
| 90116-12041 |
AXAA54,MXAA54..G..RUS;AXAA54,MXAA54..ARL,EUR,GCC,GEN,SA S=30 & 22,L=64,NO.3 |
4 | ||
| 90116-12028 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) S=22 & 22,L=69,NO.1,TYPE B:REF ILL. |
1 | ||
| 90116-12034 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) S=19 & 19,L=47,NO.2,TYPE B:REF ILL. |
1 | ||
| 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90105-12298 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) *12-1.25PX53-35,TYPE B:REFER ILLUST. |
2 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-42070 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-55002 |
AXAA54,MXAA54..G..RUS;AXAA54,MXAA54..ARL,EUR,GCC,GEN,SA |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) L=20,OD=10 |
2 | ||
| 90250-10017 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) L=20,OD=10 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) L=20,OD=10 |
2 | ||
| 90250-10017 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) L=20,OD=10 |
4 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03031 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 90930-03133 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
AXAA54,MXAA54 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
AXAA54,MXAA54 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18051 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) TYPE A:REFER ILLUST. |
1 | ||
| 90341-18035 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) TYPE B:REFER ILLUST. |
1 | ||
| 90341-18051 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 12157-10010 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 12157-10010 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 36114L - PLUG, FILLER(FOR TRANSFER) | ||||
| 90341-18023 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 90341-18023 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 36114M - GASKET (FOR TRANSFER FILLER PLUG) | ||||
| 12157-10010 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 12157-10010 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36121-52020 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91552-81030 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
8 | ||
| 36128A - BOLT (FOR BREATHER OIL DEFLECTOR) | ||||
| 91621-60614 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
2 | ||
| 36128B - DEFLECTOR, BREATHER OIL | ||||
| 36128-42010 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| Common parts | ||||
| 90179-12068 | ||||
| Linked diagrams | ||||
| 4302 | ||||

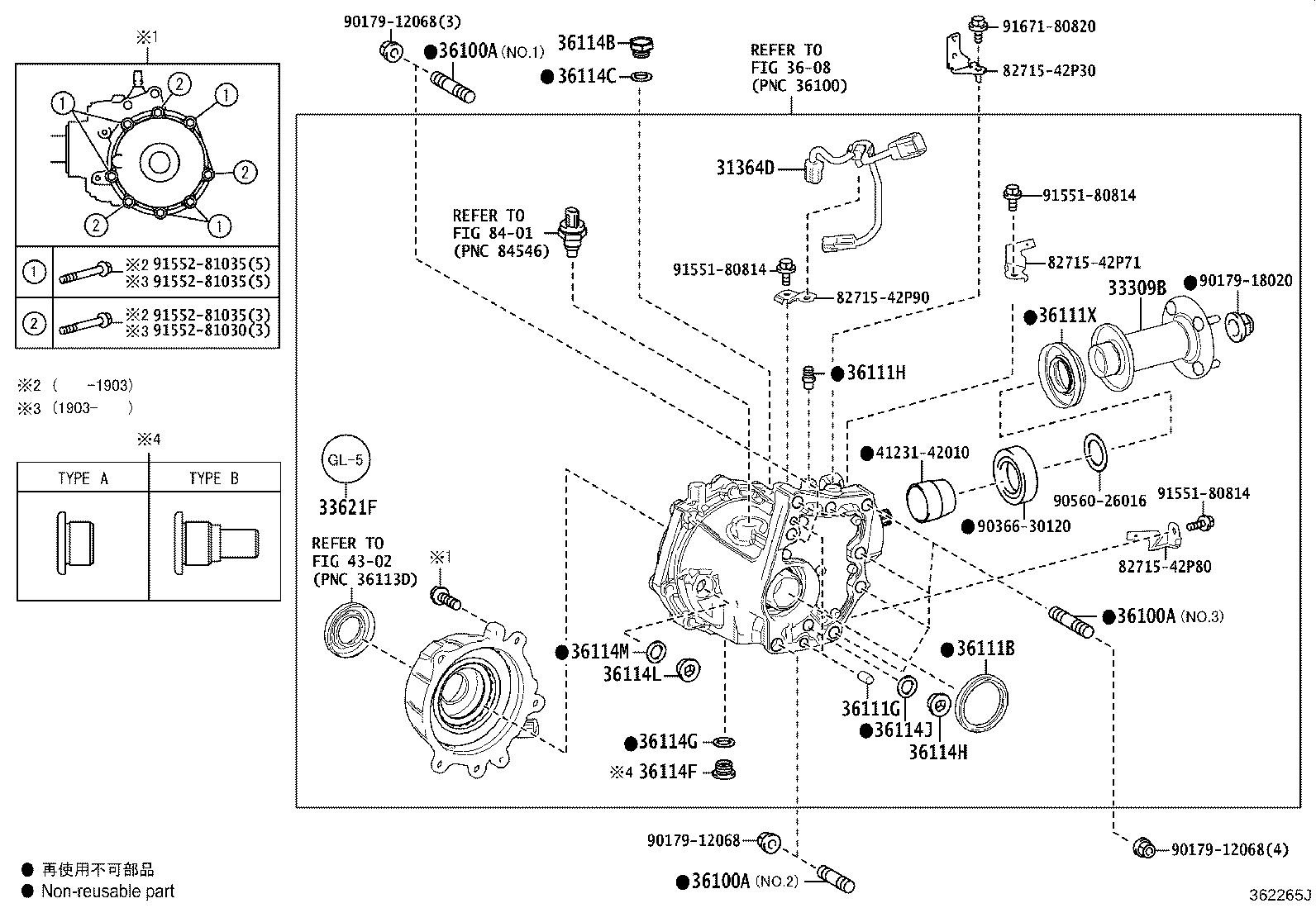

(1811- )AXAA54..G,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 41231-42010 | ||||
| 82715-42P30 | ||||
| 82715-42P71 | ||||
| 82715-42P80 | ||||
| 82715-42P90 | ||||
| 90179-12068 | ||||
| 90179-18020 | ||||
| 90366-30120 | ||||
| 90560-26016 | ||||
| 91551-80814 | ||||
| 91552-81030 | ||||
| 91552-81035 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 3608 | ||||
| 4302 | ||||
| 8401 | ||||
