AXAA54L-RNZMBX (2020)

Toyota Rav4 (Jpp)

Production Oct 2020 - Sep 9999
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 7(2010- )AXAA54,MXAA54..ATM,CVT..M..RUS

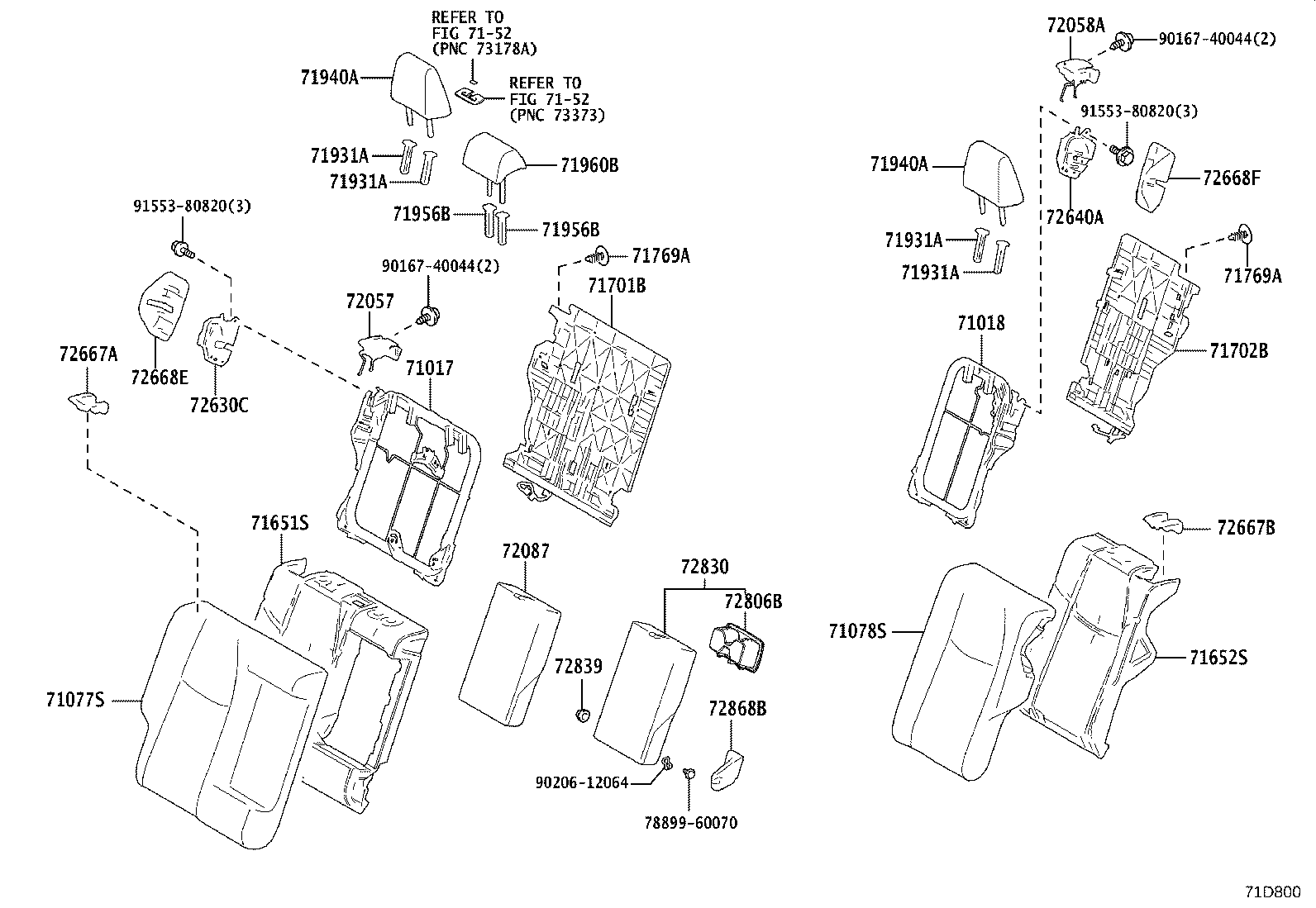

Click highlighted areas on diagram

REAR SEAT BACK, "STYLE PACKAGE"

diagram 71017 71018 71077S 71078S 7152 7152 71651S 71652S 71701B 71702B 71769A 71769A 71931A 71931A 71931A 71931A 71940A 71940A 71956B 71956B 71960B 72057 72058A 72087 72630C 72640A 72667A 72667B 72668E 72668F 72806B 72830 72839 72868B 7889960070 9016740044 9016740044 9020612064 9155380820 9155380820
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-0R100

AXAA54,MXAA5#..RUS

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-0R090

AXAA54,MXAA5#..RUS

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-0R340C1

AXAA54,MXAA5#..(M,X)..RUS

BLACK,TRIM2#

 1
71077-YY390

AXAA54,MXAA54..(ATM,CVT)..M..RUS

"STYLE PACKAGE"

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-0R340C0

AXAA54,MXAA5#..(M,X)..RUS

BLACK,TRIM2#

 1
71078-YY330

AXAA54,MXAA54..(ATM,CVT)..M..RUS

"STYLE PACKAGE"

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-0R110

AXAA54,MXAA5#..RUS

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-0R100

AXAA54,MXAA5#..RUS

 1
71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH
71701-0R030

AXAA54,MXAA5#..RUS

 1
71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH
71702-0R030

AXAA54,MXAA5#..RUS

 1
71769A - CLIP, REAR SEAT BACK BOARD
71769-28040

AXAA54,MXAA5#..RUS

 4
71769A - CLIP, REAR SEAT BACK BOARD
71769-28040

AXAA54,MXAA5#..RUS

 4
71940A - HEADREST ASSY, REAR SEAT
71940-0R280C0

AXAA54,MXAA5#..(M,X)..RUS

BLACK,TRIM2#

 2
71940-0R290C1

AXAA54,MXAA54..(ATM,CVT)..M..RUS

"STYLE PACKAGE",BLACK

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0R280C0

AXAA54,MXAA5#..(M,X)..RUS

BLACK,TRIM2#

 2
71940-0R290C1

AXAA54,MXAA54..(ATM,CVT)..M..RUS

"STYLE PACKAGE",BLACK

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-0R220C1

AXAA54,MXAA54..(ATM,CVT)..M..RUS

"STYLE PACKAGE",BLACK,TRIM2#

 1
71960-0R210C0

AXAA54,MXAA5#..(M,X)..RUS

BLACK,TRIM2#

 1
72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
72057-0R020C0

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 1
72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
72058-0R010C0

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 1
72087 - COVER, REAR SEAT CENTER ARMREST, NO.1
72087-0R100C2

AXAA54,MXAA54..(ATM,CVT)..M..RUS

"STYLE PACKAGE",BLACK,TRIM2#

 1
72667A - BEZEL, REAR SEAT BACK LOCK, UPPER RH
72667-0R030C0

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 1
72667B - BEZEL, REAR SEAT BACK LOCK, UPPER LH
72667-0R050C0

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 1
72668E - BEZEL, REAR SEAT BACK LOCK, LOWER RH
72668-0R030C0

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 1
72668F - BEZEL, REAR SEAT BACK LOCK, LOWER LH
72668-0R040C0

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 1
72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
72806-0R080C0

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-0R220C1

AXAA54,MXAA5#..(M,X)..RUS

BLACK,TRIM2#

 1
Common parts
78899-60070
90167-40044
90206-12064
91553-80820
Linked diagrams
7152
