AXAA54L-RNZGBX (2019)
Toyota Rav4 (Jpp)

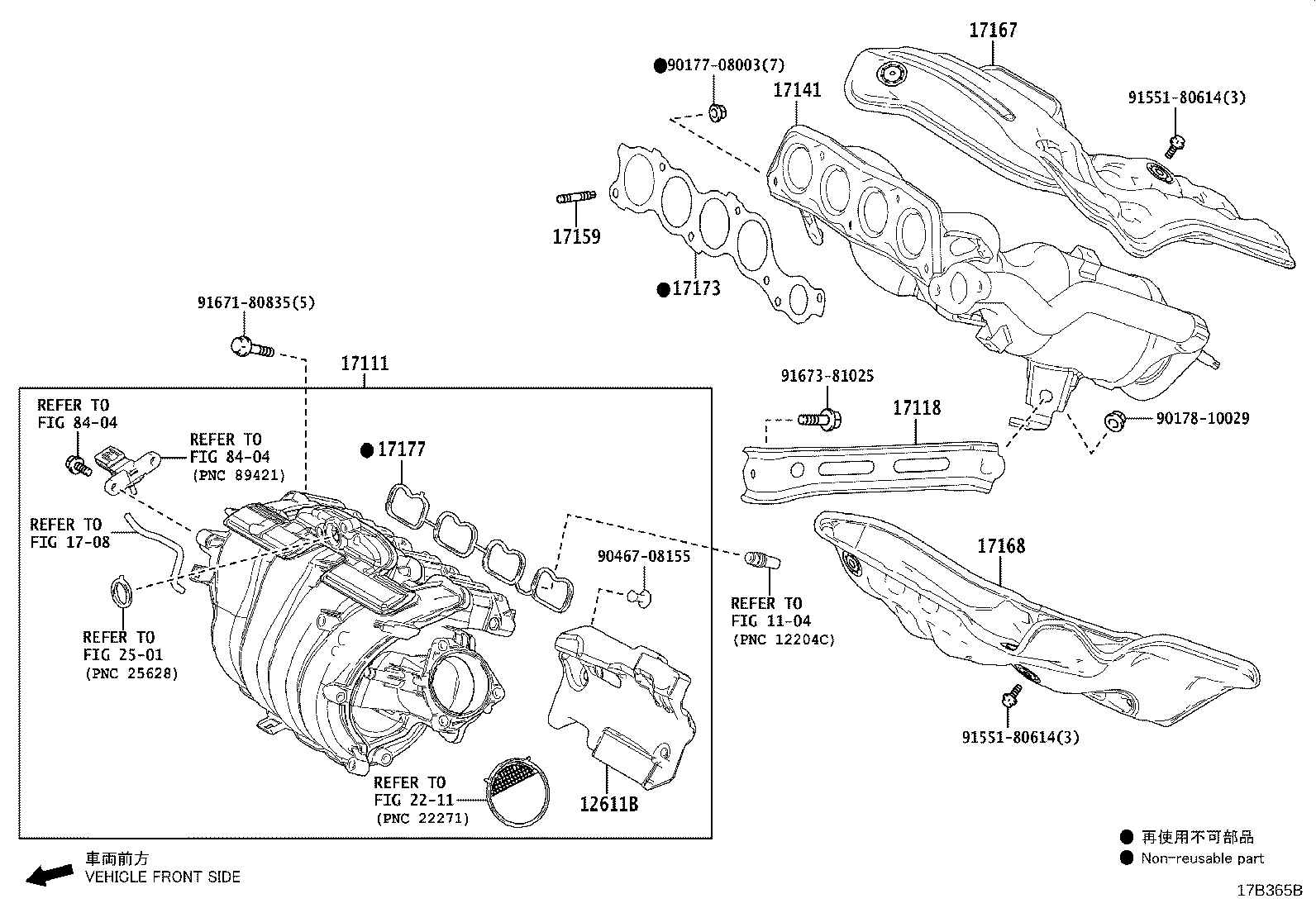

(1811-2007)A25AFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90177-08003 | ||||
| 90178-10029 | ||||
| 90467-08155 | ||||
| 91551-80614 | ||||
| 91671-80835 | ||||
| 91673-81025 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1708 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
(2008- )A25AFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90177-08003 | ||||
| 90178-10029 | ||||
| 90467-08155 | ||||
| 91551-80614 | ||||
| 91671-80835 | ||||
| 91673-81025 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1708 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
(1811-2007)A25AFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12611B - COVER, ENGINE, NO.1 | ||||
| 12613-25010 |
A25AFKS..AXAA5# |
1 | ||
| 12613-25010 |
A25AFKS..AXAA52..LHD;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-25010 |
A25AFKS..AXAA52..LHD;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA |
1 | ||
| 17120-25010 |
A25AFKS..AXAA5# |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-25030 |
A25AFXS..AXAH52..ARL,GEN;A25AFXS..AXAH52..LHD..EUR;A25#..AXAA5#,AXAH54,AXAL5# |
1 | ||
| 17118-25030 |
A25AFXS..AXAH54..G;A25AFXS..AXAH54..LHD..(M,X);A25AFXS..AXAH54..RHD..M..EUR;A25AFXS..AXAH52,AXAL5#..LHD..X;A25AFXS..AXAH52,AXAL5#..X..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25#..AXAA54,AXAH54..(M,V,X)..ARL;A25#..AXAA52,AXAH52..LHD..(GCC,GEN);A25AFXS..AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-25140 |
A25AFKS..AXAA5# |
1 | ||
| 17141-25141 |
A25AFKS..AXAA54..RUS |
1 | ||
| 17141-25141 |
A25AFKS..AXAA52..LHD;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08052 |
A25AFXS..AXAH54..G;A25AFXS..AXAH54..LHD..(M,X);A25AFXS..AXAH54..RHD..M..EUR;A25AFXS..AXAH52,AXAL5#..LHD..X;A25AFXS..AXAH52,AXAL5#..X..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25#..AXAA54,AXAH54..(M,V,X)..ARL;A25#..AXAA52,AXAH52..LHD..(GCC,GEN);A25AFXS..AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
7 | ||
| 90126-08052 |
A25#..AXAA5#,AXAH5#,AXAL5# |
7 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-25010 |
A25AFKS..AXAA5#;A25AFXS..AXAH5#,AXAL5#..LHD..EUR;A25AFXS..AXAH5#,AXAL5#..ARL,GCC,GEN,RUS |
1 | ||
| 17167-25040 |
A25AFKS..AXAA54..RUS |
1 | ||
| 17167-25040 |
A25#..AXAA52,AXAH52..LHD;A25AFXS..AXAH54..LHD..EUR;A25AFXS..AXAH52,AXAL5#..ARL;A25AFXS..AXAH54..LHD..M..GEN;A25AFXS..AXAH54..M..(ARL,GCC);A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25AFXS..AXAH54..(G,X)..(ARL,GCC,GEN) |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-25010 |
A25AFXS..AXAH52..G..ARL;A25AFXS..AXAH52..LHD..(G,X);A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH54..ARL,GCC,GEN;A25AFXS..AXAH54,AXAL5#..LHD..EUR;A25AFXS..AXAH52..(M,X)..(ARL,GEN);A25#..AXAA5#,AXAL5#..ARL,GCC,GEN,RUS,SA |
1 | ||
| 17168-25040 |
A25AFKS..AXAA54..RUS |
1 | ||
| 17168-25040 |
A25AFXS..AXAH54..G;A25AFXS..AXAH54..LHD..(M,X);A25AFXS..AXAH54..RHD..M..EUR;A25AFXS..AXAH52,AXAL5#..LHD..X;A25AFXS..AXAH52,AXAL5#..X..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25#..AXAA54,AXAH54..(M,V,X)..ARL;A25#..AXAA52,AXAH52..LHD..(GCC,GEN);A25AFXS..AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-25020 |
A25AFXS..AXAH52..ARL,GEN;A25AFXS..AXAH52..LHD..EUR;A25#..AXAA5#,AXAH54,AXAL5# |
1 | ||
| 17173-25020 |
A25AFXS..AXAH54..G;A25AFXS..AXAH54..LHD..(M,X);A25AFXS..AXAH54..RHD..M..EUR;A25AFXS..AXAH52,AXAL5#..LHD..X;A25AFXS..AXAH52,AXAL5#..X..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25#..AXAA54,AXAH54..(M,V,X)..ARL;A25#..AXAA52,AXAH52..LHD..(GCC,GEN);A25AFXS..AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-25010 |
A25#..AXAA5#,AXAH5#,AXAL5# |
1 | ||
| 17171-25010 |
A25AFXS..AXAH54..G;A25AFXS..AXAH54..LHD..(M,X);A25AFXS..AXAH54..RHD..M..EUR;A25AFXS..AXAH52,AXAL5#..LHD..X;A25AFXS..AXAH52,AXAL5#..X..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25#..AXAA54,AXAH54..(M,V,X)..ARL;A25#..AXAA52,AXAH52..LHD..(GCC,GEN);A25AFXS..AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| Common parts | ||||
| 90177-08003 | ||||
| 90178-10029 | ||||
| 90467-08155 | ||||
| 91551-80614 | ||||
| 91671-80835 | ||||
| 91673-81025 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1708 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
(2007- )A25AFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12611B - COVER, ENGINE, NO.1 | ||||
| 12613-25010 |
A25AFKS..AXAA5# |
1 | ||
| 12613-25010 |
A25AFKS..AXAA52..LHD;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-25010 |
A25AFKS..AXAA52..LHD;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA |
1 | ||
| 17120-25010 |
A25AFKS..AXAA5# |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-25030 |
A25AFXS..AXAH52..ARL,GEN;A25AFXS..AXAH52..LHD..EUR;A25#..AXAA5#,AXAH54,AXAL5# |
1 | ||
| 17118-25030 |
A25AFXS..AXAH54..G;A25AFXS..AXAH54..LHD..(M,X);A25AFXS..AXAH54..RHD..M..EUR;A25AFXS..AXAH52,AXAL5#..LHD..X;A25AFXS..AXAH52,AXAL5#..X..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25#..AXAA54,AXAH54..(M,V,X)..ARL;A25#..AXAA52,AXAH52..LHD..(GCC,GEN);A25AFXS..AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-25140 |
A25AFKS..AXAA5# |
1 | ||
| 17141-25141 |
A25AFKS..AXAA54..RUS |
1 | ||
| 17141-25141 |
A25AFKS..AXAA52..LHD;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08052 |
A25AFXS..AXAH54..G;A25AFXS..AXAH54..LHD..(M,X);A25AFXS..AXAH54..RHD..M..EUR;A25AFXS..AXAH52,AXAL5#..LHD..X;A25AFXS..AXAH52,AXAL5#..X..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25#..AXAA54,AXAH54..(M,V,X)..ARL;A25#..AXAA52,AXAH52..LHD..(GCC,GEN);A25AFXS..AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
7 | ||
| 90126-08052 |
A25#..AXAA5#,AXAH5#,AXAL5# |
7 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-25010 |
A25AFKS..AXAA5#;A25AFXS..AXAH5#,AXAL5#..LHD..EUR;A25AFXS..AXAH5#,AXAL5#..ARL,GCC,GEN,RUS |
1 | ||
| 17167-25040 |
A25AFKS..AXAA54..RUS |
1 | ||
| 17167-25040 |
A25#..AXAA52,AXAH52..LHD;A25AFXS..AXAH54..LHD..EUR;A25AFXS..AXAH52,AXAL5#..ARL;A25AFXS..AXAH54..LHD..M..GEN;A25AFXS..AXAH54..M..(ARL,GCC);A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25AFXS..AXAH54..(G,X)..(ARL,GCC,GEN) |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-25010 |
A25AFXS..AXAH52..G..ARL;A25AFXS..AXAH52..LHD..(G,X);A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH54..ARL,GCC,GEN;A25AFXS..AXAH54,AXAL5#..LHD..EUR;A25AFXS..AXAH52..(M,X)..(ARL,GEN);A25#..AXAA5#,AXAL5#..ARL,GCC,GEN,RUS,SA |
1 | ||
| 17168-25040 |
A25AFKS..AXAA54..RUS |
1 | ||
| 17168-25040 |
A25AFXS..AXAH54..G;A25AFXS..AXAH54..LHD..(M,X);A25AFXS..AXAH54..RHD..M..EUR;A25AFXS..AXAH52,AXAL5#..LHD..X;A25AFXS..AXAH52,AXAL5#..X..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25#..AXAA54,AXAH54..(M,V,X)..ARL;A25#..AXAA52,AXAH52..LHD..(GCC,GEN);A25AFXS..AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-25020 |
A25AFXS..AXAH52..ARL,GEN;A25AFXS..AXAH52..LHD..EUR;A25#..AXAA5#,AXAH54,AXAL5# |
1 | ||
| 17173-25020 |
A25AFXS..AXAH54..G;A25AFXS..AXAH54..LHD..(M,X);A25AFXS..AXAH54..RHD..M..EUR;A25AFXS..AXAH52,AXAL5#..LHD..X;A25AFXS..AXAH52,AXAL5#..X..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25#..AXAA54,AXAH54..(M,V,X)..ARL;A25#..AXAA52,AXAH52..LHD..(GCC,GEN);A25AFXS..AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-25010 |
A25#..AXAA5#,AXAH5#,AXAL5# |
1 | ||
| 17171-25010 |
A25AFXS..AXAH54..G;A25AFXS..AXAH54..LHD..(M,X);A25AFXS..AXAH54..RHD..M..EUR;A25AFXS..AXAH52,AXAL5#..LHD..X;A25AFXS..AXAH52,AXAL5#..X..ARL;A25AFKS..AXAA54..GCC,GEN,RUS,SA;A25#..AXAA54,AXAH54..(M,V,X)..ARL;A25#..AXAA52,AXAH52..LHD..(GCC,GEN);A25AFXS..AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| Common parts | ||||
| 90177-08003 | ||||
| 90178-10029 | ||||
| 90467-08155 | ||||
| 91551-80614 | ||||
| 91671-80835 | ||||
| 91673-81025 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1708 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
