AXAA54L-ANZVB (2018)
Toyota Rav4 (Jpp)
(1811- )A25AFKS..AXAA52 ; (1811- )A25AFKS..AXAA54..G,M,V
12V 1.2KW,1.3KW

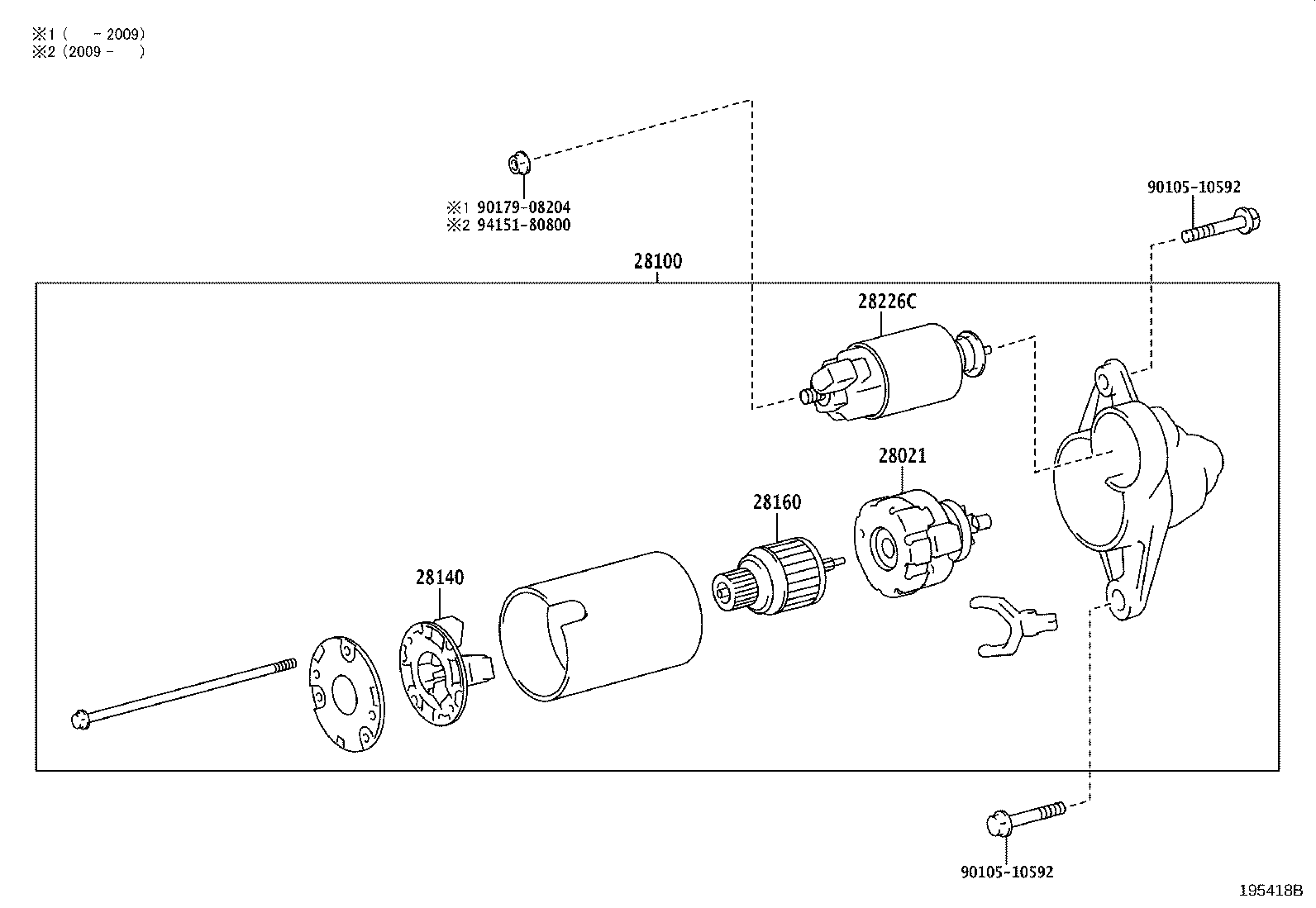

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28021-K0040 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA 12V 1.3KW |
1 | ||
| 28100-K0050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA 12V 1.2KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28140-21070 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21080 |
M20AFKS..MXAA52..LHD..EUR;M20AFKS..MXAA54..EUR,GCC,GEN,SA;A25AFKS,M20AFKS..AXAA5#,MXAA52..ARL,GCC,GEN,SA |
1 | ||
| 28226C - STARTER KIT, REPAIR SERVICE, NO.2 | ||||
| 28226-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28226-K0040 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 90105-10592 | ||||
| 90179-08204 | ||||
| 94151-80800 | ||||
(1811- )A25AFKS..M,X
12V 1.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28021-K0040 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA 12V 1.3KW |
1 | ||
| 28100-K0050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA 12V 1.2KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28140-21070 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21080 |
M20AFKS..MXAA52..LHD..EUR;M20AFKS..MXAA54..EUR,GCC,GEN,SA;A25AFKS,M20AFKS..AXAA5#,MXAA52..ARL,GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 90105-10592 | ||||
| 90179-08204 | ||||
| 94151-80800 | ||||
(1811- )M20AFKS..MXAA52..LHD..EUR ; (1811-)M20AFKS..MXAA52..ARL,GEN,SA ; (18
12V 1.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28021-K0040 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA 12V 1.3KW |
1 | ||
| 28100-K0050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA 12V 1.2KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28140-21070 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21080 |
M20AFKS..MXAA52..LHD..EUR;M20AFKS..MXAA54..EUR,GCC,GEN,SA;A25AFKS,M20AFKS..AXAA5#,MXAA52..ARL,GCC,GEN,SA |
1 | ||
| 28226C - STARTER KIT, REPAIR SERVICE, NO.2 | ||||
| 28226-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28226-K0040 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 90105-10592 | ||||
| 90179-08204 | ||||
| 94151-80800 | ||||
(1811- )A25AFKS..ARL,EUR,GCC,GEN,SA
12V 1.2KW,1.3KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28021-K0040 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA 12V 1.3KW |
1 | ||
| 28100-K0050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA 12V 1.2KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28140-21070 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21080 |
M20AFKS..MXAA52..LHD..EUR;M20AFKS..MXAA54..EUR,GCC,GEN,SA;A25AFKS,M20AFKS..AXAA5#,MXAA52..ARL,GCC,GEN,SA |
1 | ||
| 28226C - STARTER KIT, REPAIR SERVICE, NO.2 | ||||
| 28226-25050 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| 28226-K0040 |
A25AFKS..AXAA5#..ARL,GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 90105-10592 | ||||
| 90179-08204 | ||||
| 94151-80800 | ||||
