AXAA52L-ANZMBA (2020)

Toyota Rav4 (Jpp)

Production Aug 2020 - Sep 9999
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(2008- )

Click highlighted areas on diagram

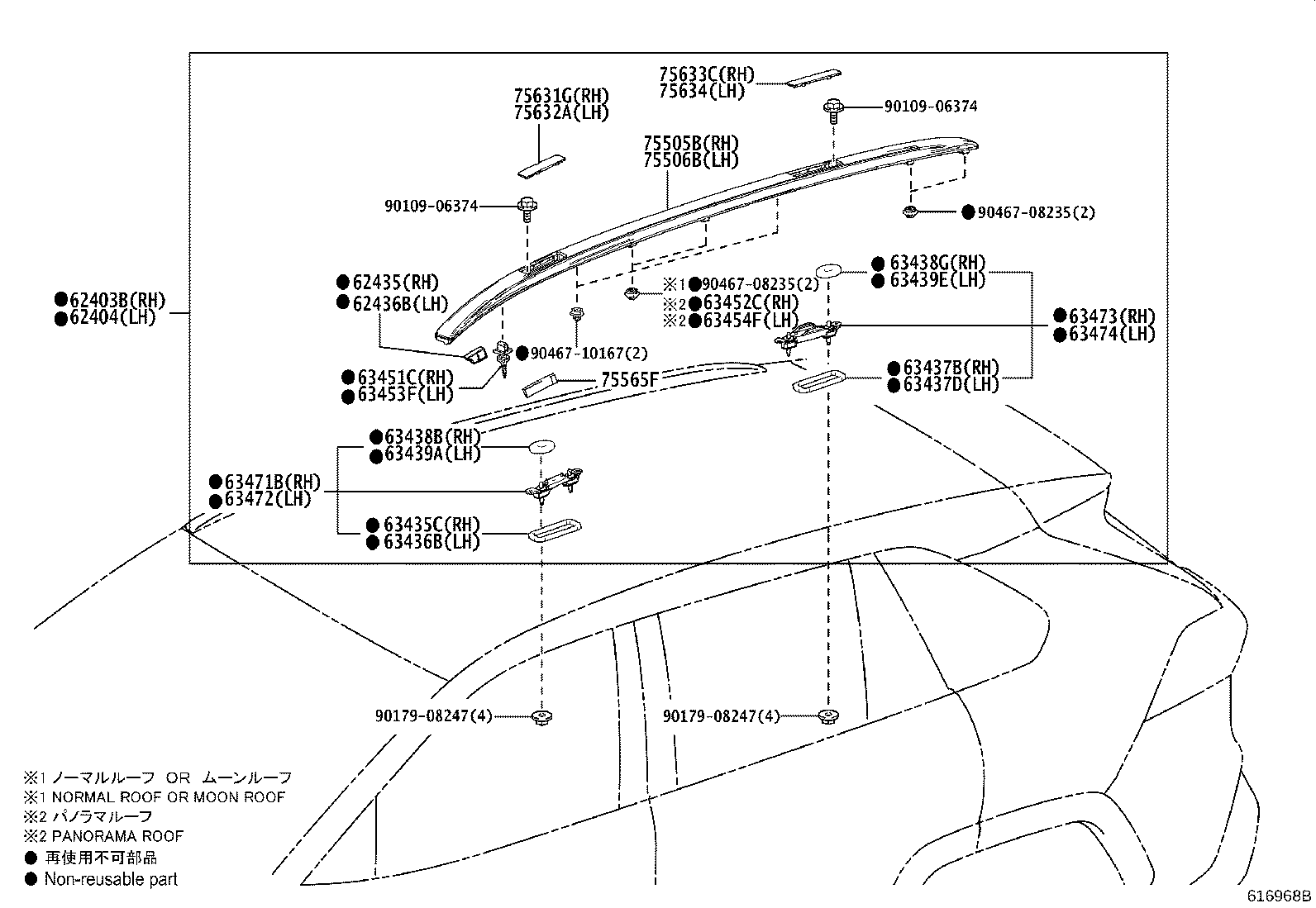

ROOF RAIL

diagram 62403B 62404 62435 62436B 63435C 63436B 63437B 63437D 63438B 63438G 63439A 63439E 63451C 63452C 63453F 63454F 63471B 63472 63473 63474 75505B 75506B 75565F 75631G 75632A 75633C 75634 9010906374 9010906374 9017908247 9017908247 9046708235 9046708235 9046710167
Part # Description Qty Price
62403B - GARNISH SUB-ASSY, ROOF SIDE RAIL, RH
62403-42010C2

AXAA5#..X

BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9

 1
62403-42010C2

AXAA5#,AXAH52..M

BLACK,040 ,070 ,1D6 ,1G3 ,218 ,3T3 ,6X3 ,8W2 ,8W9 ,8X8

 1
62404 - GARNISH SUB-ASSY, ROOF SIDE RAIL, LH
62404-42010C2

AXAA5#,AXAH52..M

BLACK,040 ,070 ,1D6 ,1G3 ,218 ,3T3 ,6X3 ,8W2 ,8W9 ,8X8

 1
62404-42010C2

AXAA5#..X

BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9

 1
62435 - PAD, ROOF SIDE RAIL GARNISH, RH
62435-42010

AXAA5#..X

 1
62435-42010

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 1
62436B - PAD, ROOF SIDE RAIL GARNISH, LH
62436-42010

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 1
62436-42010

AXAA5#..X

 1
63435C - SEAL, ROOF CARRIER, NO.1 RH
63437-48030

AXAA5#..X

 2
63437-48030

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 2
63436B - SEAL, ROOF CARRIER, NO.1 LH
63437-48030

AXAA5#..X

 2
63437-48030

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 2
63437B - SEAL, ROOF CARRIER, NO.2 RH
63437-48030

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 2
63437-48030

AXAA5#..X

 2
63437D - SEAL, ROOF CARRIER, NO.2 LH
63437-48030

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 2
63437-48030

AXAA5#..X

 2
63438B - SEAL, ROOF CARRIER, NO.3 RH
63438-20010

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 2
63438-20010

AXAA5#..X

 2
63438G - SEAL, ROOF CARRIER, NO.4 RH
63438-20010

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 2
63438-20010

AXAA5#..X

 2
63439A - SEAL, ROOF CARRIER, NO.3 LH
63438-20010

AXAA5#..X

 2
63438-20010

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 2
63439E - SEAL, ROOF CARRIER, NO.4 LH
63438-20010

AXAA5#..X

 2
63438-20010

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 2
63451C - RETAINER, ROOF RACK, FRONT RH
63451-42010

AXAA5#..X

 1
63451-42010

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 1
63453F - RETAINER, ROOF RACK, FRONT LH
63451-42010

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 1
63451-42010

AXAA5#..X

 1
63471B - LEG, ROOF RACK, FRONT RH
63471-42050

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 1
63471-42050

AXAA5#..X

 1
63472 - LEG, ROOF RACK, FRONT LH
63472-42050

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 1
63472-42050

AXAA5#..X

 1
63473 - LEG, ROOF RACK, REAR RH
63473-42050

AXAA5#..X

 1
63473-42050

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 1
63474 - LEG, ROOF RACK, REAR LH
63474-42050

AXAA5#..X

 1
63474-42050

AXAH54,AXAL54;AXAA5#,AXAH52..G,M,V

 1
75505B - GARNISH SUB-ASSY, ROOF SIDE, FRONT RH
75505-42040C2

AXAA5#..X

BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9

 1
75505-42040C2

AXAA5#,AXAH52..M

BLACK,040 ,070 ,1D6 ,1G3 ,218 ,3T3 ,6X3 ,8W2 ,8W9 ,8X8

 1
75506B - GARNISH SUB-ASSY, ROOF SIDE, FRONT LH
75506-42040C2

AXAA5#..X

BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9

 1
75506-42040C2

AXAA5#,AXAH52..M

BLACK,040 ,070 ,1D6 ,1G3 ,218 ,3T3 ,6X3 ,8W2 ,8W9 ,8X8

 1
75631G - LID, ROOF SIDE GARNISH, NO.1 RH
75631-42010C2

AXAA5#,AXAH52..M

BLACK,040 ,070 ,1D6 ,1G3 ,218 ,3T3 ,6X3 ,8W2 ,8W9 ,8X8

 1
75631-42010C2

AXAA5#..X

BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9

 1
75632A - LID, ROOF SIDE GARNISH, NO.1 LH
75632-42010C2

AXAA5#,AXAH52..M

BLACK,040 ,070 ,1D6 ,1G3 ,218 ,3T3 ,6X3 ,8W2 ,8W9 ,8X8

 1
75632-42010C2

AXAA5#..X

BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9

 1
75633C - LID, ROOF SIDE GARNISH, NO.2 RH
75633-42010C2

AXAA5#..X

BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9

 1
75633-42010C2

AXAA5#,AXAH52..M

BLACK,040 ,070 ,1D6 ,1G3 ,218 ,3T3 ,6X3 ,8W2 ,8W9 ,8X8

 1
75634 - LID, ROOF SIDE GARNISH, NO.2 LH
75634-42010C2

AXAA5#,AXAH52..M

BLACK,040 ,070 ,1D6 ,1G3 ,218 ,3T3 ,6X3 ,8W2 ,8W9 ,8X8

 1
75634-42010C2

AXAA5#..X

BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9

 1
Common parts
90109-06374
90179-08247
90467-08235
90467-10167

ILLUST NO. 3 OF 3(2008- )

Click highlighted areas on diagram

ROOF RAIL(FLAT TYPE)

diagram 62403B 62404 62435 62436B 63435C 63436B 63437B 63437D 63438B 63438G 63439A 63439E 63451C 63452C 63453F 63454F 63471B 63472 63473 63474 75505B 75506B 75565F 75631G 75632A 75633C 75634 9010906374 9010906374 9017908247 9017908247 9046708235 9046708235 9046710167
Part # Description Qty Price
Common parts
90109-06374
90179-08247
90467-08235
90467-10167
