AVA44L-ANXMBA (2015)
Toyota Rav4 (Jpp)
Production
Oct 2015
-
Oct 2018
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1510- )AVA44

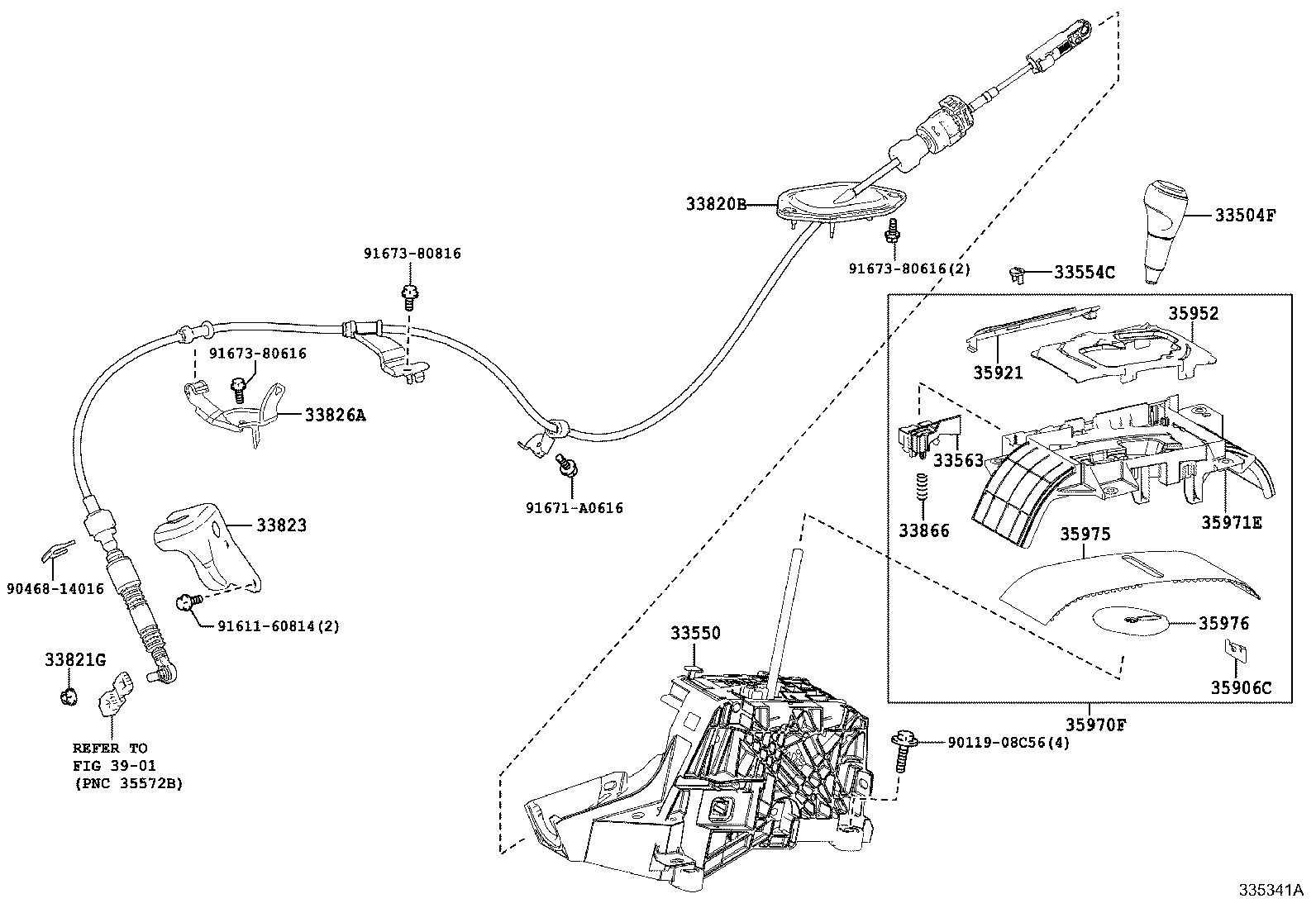

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-42080C0 |
ASA4#,AVA44..XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-42230 |
ASA4#,AVA44 |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-42050 |
ASA4#,AVA44 |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-42100 |
ASA4#,AVA44 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-42430 |
AVA44 |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
AVA44 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-28280 |
AVA44 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-48100 |
AVA44 |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-33010 |
ASA4#,AVA44 |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-42060 |
ASA4#,AVA44 |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-42020 |
ASA4#,AVA44 |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-42130 |
ASA4#,AVA44 |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 35971-42050 |
ASA4#,AVA44 |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-42040 |
ASA4#,AVA44 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-42020 |
ASA4#,AVA44 |
1 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 90468-14016 | ||||
| 91611-60814 | ||||
| 91671-A0616 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 3901 | ||||
