AVA44L-ANXGBK (2015)

Toyota Rav4 (Jpp)

Production Oct 2015 - Oct 2018
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )AVA44

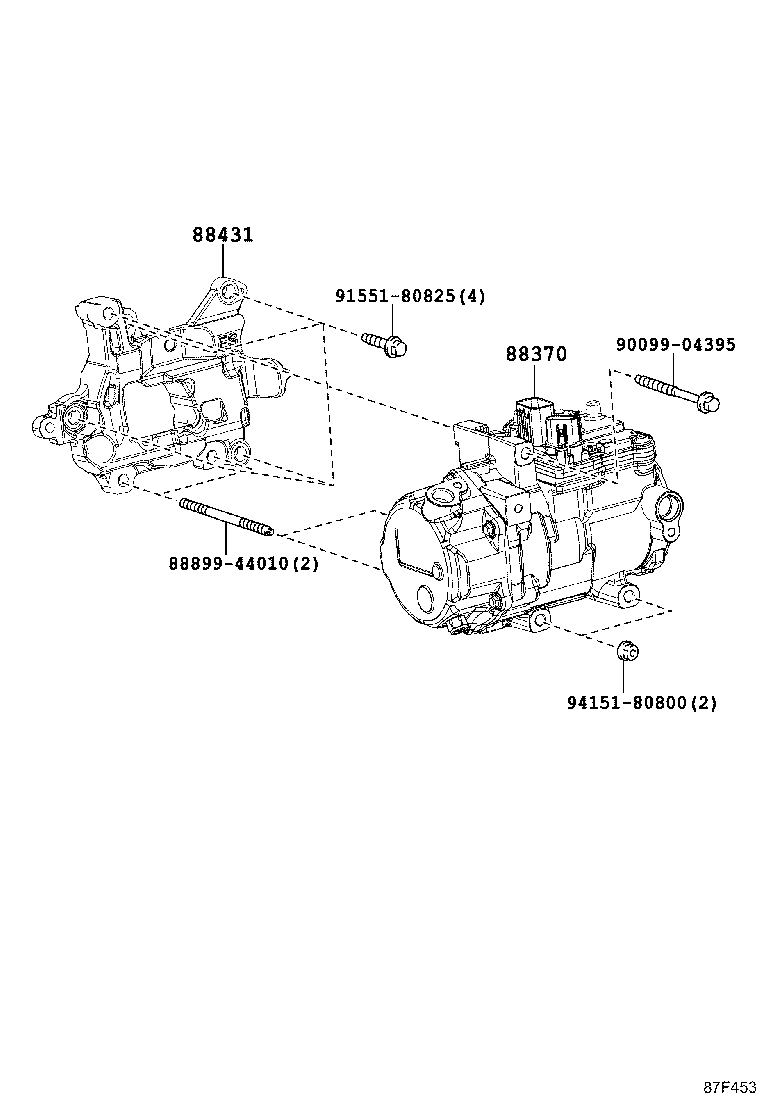

Click highlighted areas on diagram

diagram 88370 88431 8889944010 9009904395 9155180825 9415180800
Part # Description Qty Price
88370 - COMPRESSOR ASSY, W/MOTOR
88370-33030

AVA44

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-33050

AVA44

 1
Common parts
88899-44010
90099-04395
91551-80825
94151-80800
