AVA44L-ANXGBA (2015)
Toyota Rav4 (Jpp)
Production
Oct 2015
-
Oct 2018
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF11(1510- )AVA44
Click highlighted areas on diagram

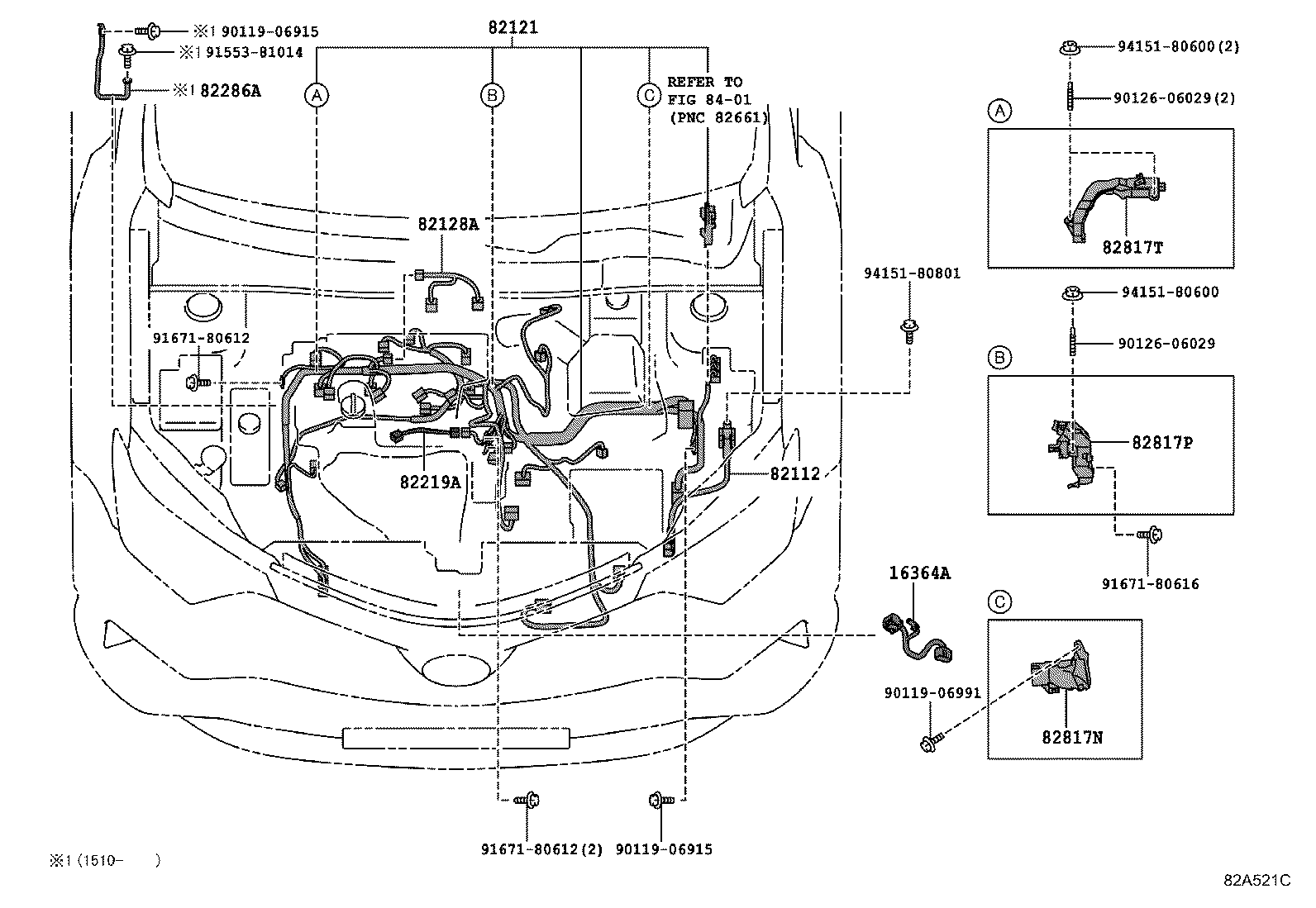

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16364A - WIRE, COOLING FAN | ||||
| 16364-36010 |
2ARFXE..AVA44 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-48060 |
AVA44 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-42F40 |
AVA44 |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-33010 |
AVA44 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-06040 |
AVA44 (L) |
1 | ||
| 82219-33060 |
AVA44 (J) |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-48L10 |
AVA44 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-48L20 |
AVA44 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-48L30 |
AVA44 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06991 | ||||
| 90126-06029 | ||||
| 91553-81014 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF11(1510- )AVA44
Click highlighted areas on diagram

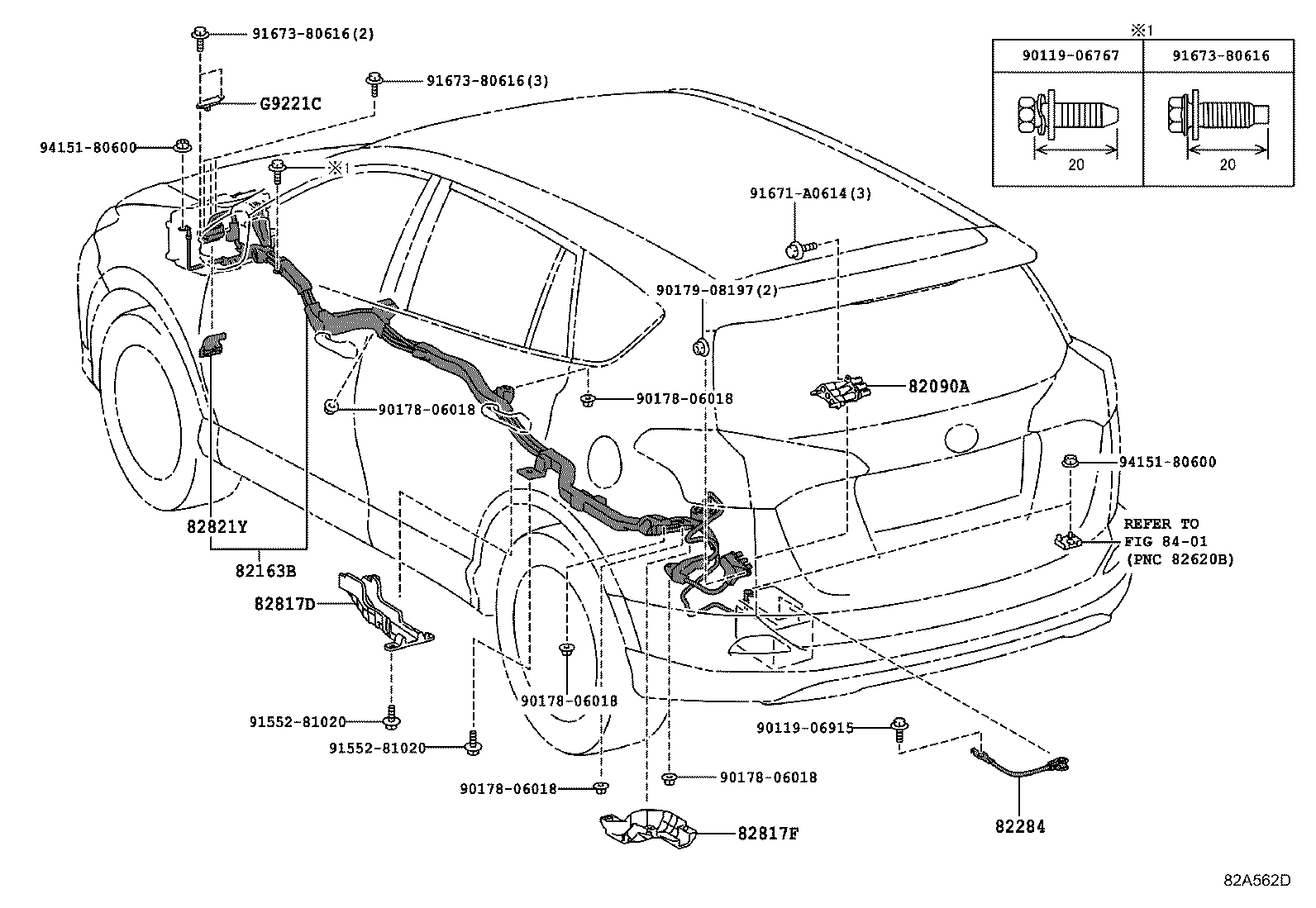

HI-TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82090A - WIRE ASSY, EXTENSION | ||||
| 82090-48020 |
AVA44 |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-42080 |
AVA44 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-42030 |
AVA44 |
1 | ||
| 82284-48040 |
AVA44..LIMD..USA AUDIO-JBL 7INCH AVN NA |
1 | ||
| 82284-48040 |
AVA44 AUDIO-6SPEAKER 7INCH AVN XM NA |
1 | ||
| 82284-48040 |
AVA44..LIMD,SE AUDIO-JBL 7INCH AVN XM NA |
1 | ||
| 82284-48040 |
AVA44..USA AUDIO-6SPEAKER 7INCH AVN NA |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-48M00 |
AVA44 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-48M30 |
AVA44 |
1 | ||
| 82821Y - COVER, CONNECTOR | ||||
| 82814-42030 |
AVA44 |
1 | ||
| G9221C - COVER, INVERTER, UPPER | ||||
| G9221-33010 |
AVA44 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90119-06915 | ||||
| 90178-06018 | ||||
| 90179-08197 | ||||
| 91552-81020 | ||||
| 91671-A0614 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 9 OF11(1510- )AVA44
Click highlighted areas on diagram

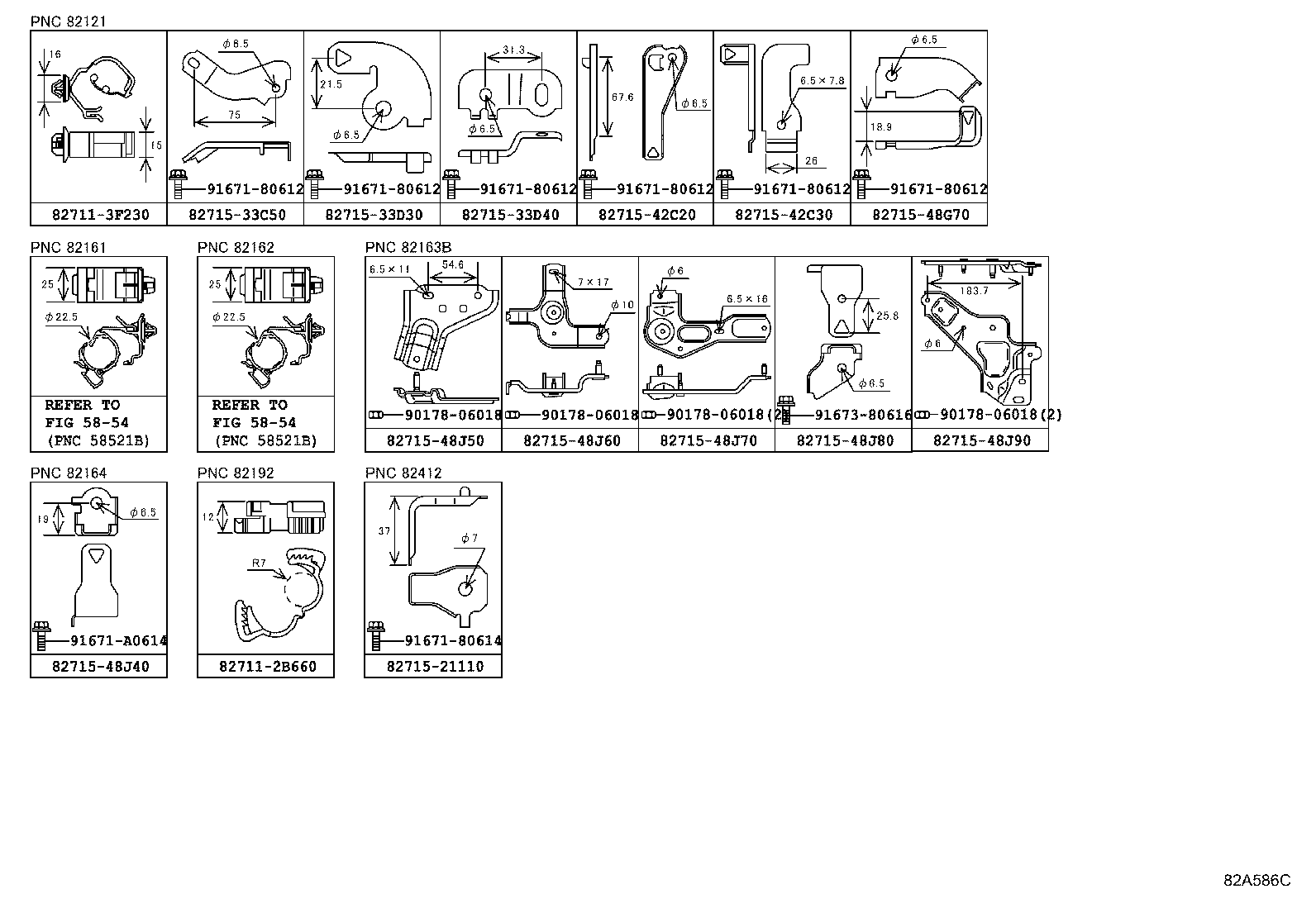

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2B660 | ||||
| 82711-3F230 | ||||
| 82715-21110 | ||||
| 82715-33C50 | ||||
| 82715-33D30 | ||||
| 82715-33D40 | ||||
| 82715-42C20 | ||||
| 82715-42C30 | ||||
| 82715-48G70 | ||||
| 82715-48J40 | ||||
| 82715-48J50 | ||||
| 82715-48J60 | ||||
| 82715-48J70 | ||||
| 82715-48J80 | ||||
| 82715-48J90 | ||||
| 90178-06018 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-A0614 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5854 | ||||
ILLUST NO. 8 OF11(1510- )AVA44
Click highlighted areas on diagram

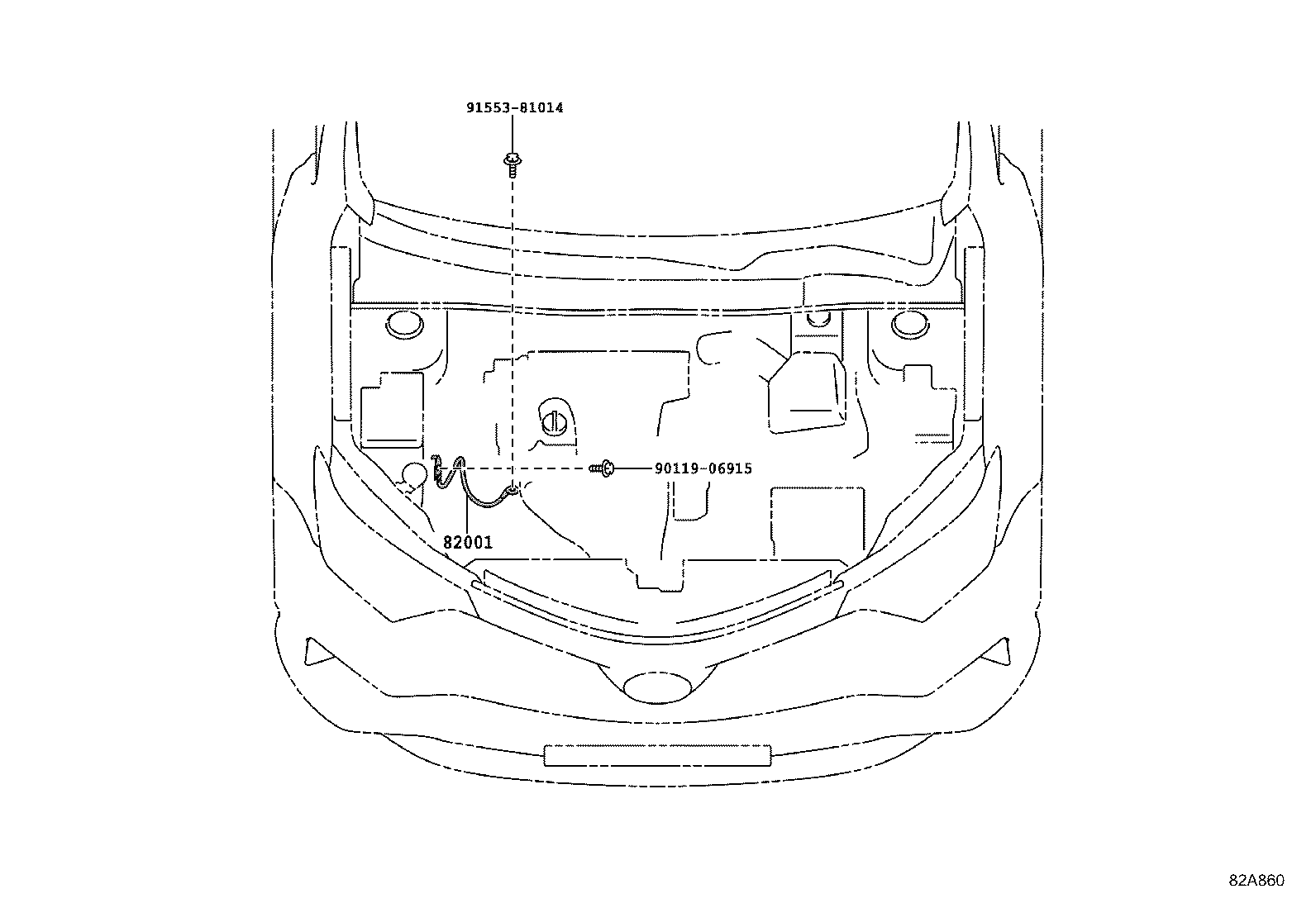

CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 86203-48290 |
AVA44 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-81014 | ||||
