AVA44L-ANXGBA (2015)

Toyota Rav4 (Jpp)

Production Oct 2015 - Oct 2018
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2ARFXE

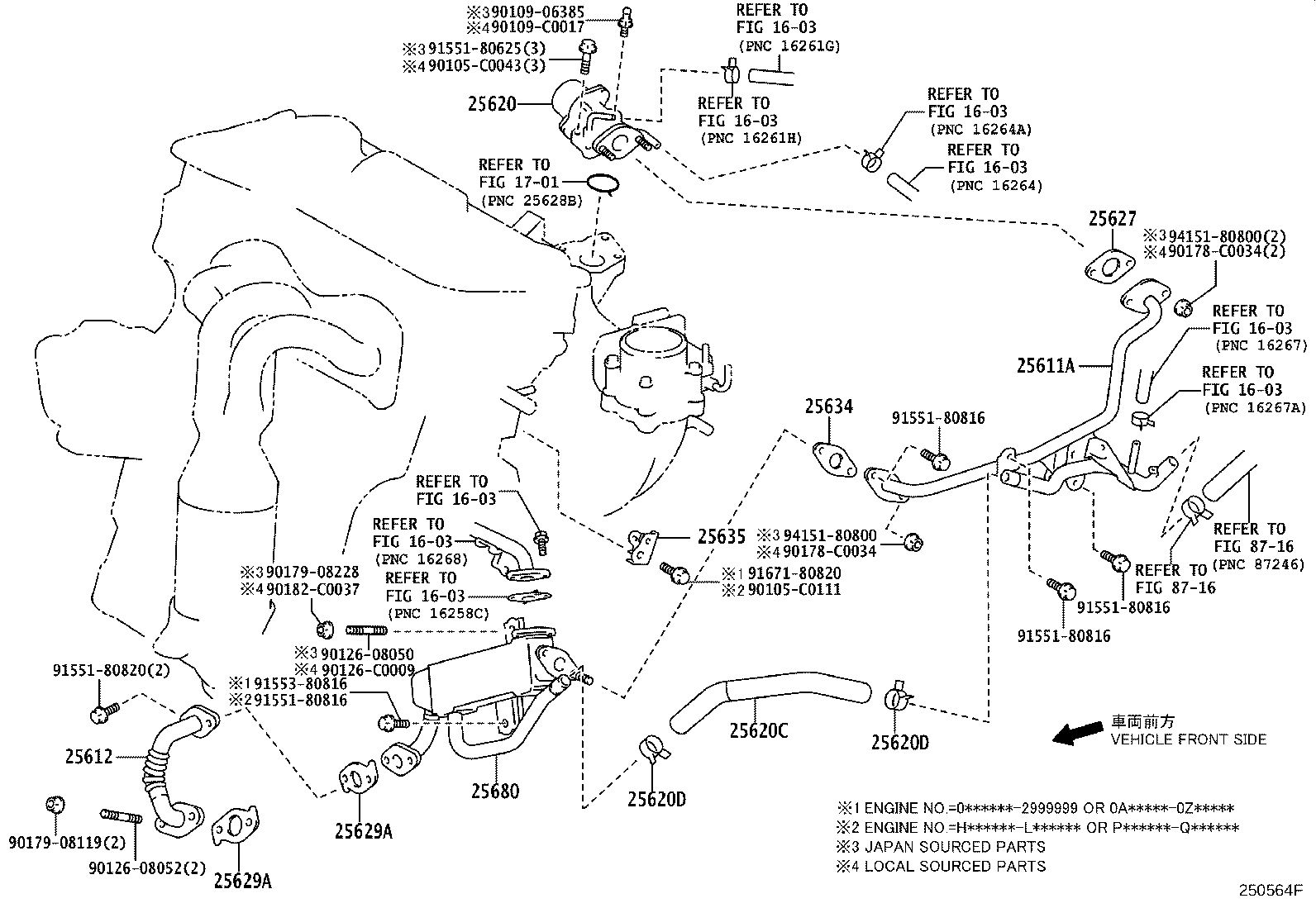

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1603 1603 1701 25611A 25612 25620 25620C 25620D 25620D 25627 25629A 25629A 25634 25635 25680 8716 8716 90105C0043 90105C0111 9010906385 90109C0017 9012608050 9012608052 90126C0009 90178C0034 90178C0034 9017908119 9017908228 90182C0037 9155180625 9155180816 9155180816 9155180816 9155180816 9155180820 9155380816 9167180820 9415180800 9415180800
Part # Description Qty Price
25611A - PIPE, EGR, NO.1
25611-36011

2ARFXE..AVA44

*347,*265 OR *524

 1
25612 - PIPE, EGR, NO.2
25612-36010

2ARFXE..AVA44

*347,*265 OR *524

 1
25620 - VALVE ASSY, EGR
25620-36060

2ARFXE..AVA44

*347,*265 OR *524

 1
25620C - HOSE, WATER BY-PASS, NO.1
16282-36100

2ARFXE..AVA44

*347,*265 OR *524

 1
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
90466-21001

2ARFXE..AVA44

*347,*265 OR *524

 2
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
90466-21001

2ARFXE..AVA44

*347,*265 OR *524

 2
25627 - GASKET, EGR VALVE
25627-36010

2ARFXE..AVA44

*347,*265 OR *524

 1
25629A - GASKET, EGR PIPE, NO.2
25629-36010

2ARFXE..AVA44

*347,*265 OR *524

 2
25629A - GASKET, EGR PIPE, NO.2
25629-36010

2ARFXE..AVA44

*347,*265 OR *524

 2
25634 - GASKET, EGR PIPE
25634-36010

2ARFXE..AVA44

*347,*265 OR *524

 1
25635 - BRACKET, EGR PIPE, NO.1
25635-36010

2ARFXE..AVA44

*347,*265 OR *524

 1
25680 - COOLER ASSY, EGR
25680-36012

2ARFXE..AVA44

*347,*265 OR *524

 1
Common parts
90105-C0043
90105-C0111
90109-06385
90109-C0017
90126-08050
90126-08052
90126-C0009
90178-C0034
90179-08119
90179-08228
90182-C0037
91551-80625
91551-80816
91551-80820
91553-80816
91671-80820
94151-80800
Linked diagrams
1603
1701
8716
