ASA44L-ANTSKA (2015)

Toyota Rav4 (Jpp)

Production Oct 2015 - Oct 2018

Engine 2ARFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1510- )

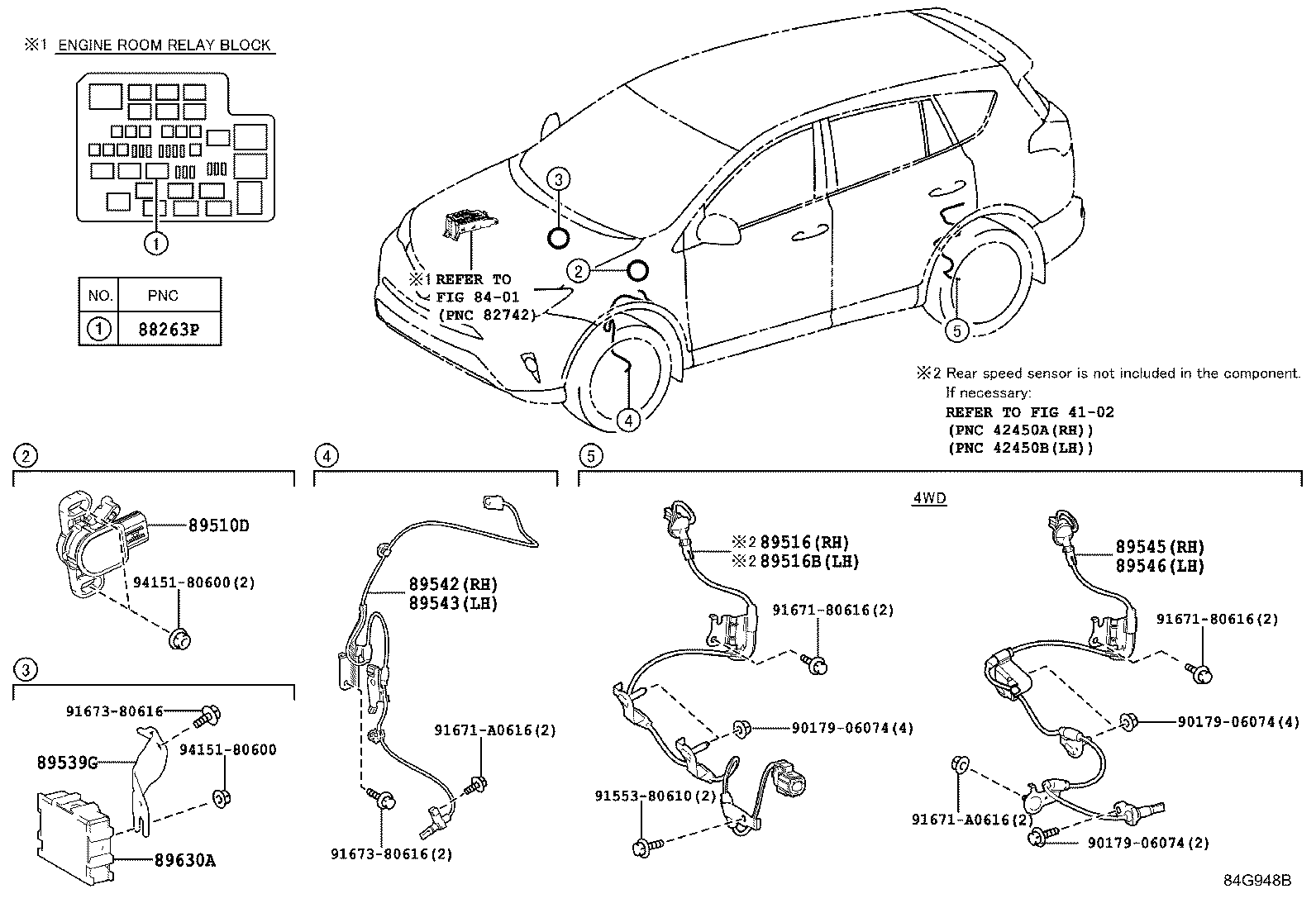

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
89539G - BRACKET, COMPUTER
89634-42020	ASA44	10/2015 - 10/2018	1
89542 - SENSOR, SPEED, FRONT RH
89542-42050	ASA4#	12/2012 - 10/2015	1
89542-42050	ASA4#,AVA44	10/2015 - 10/2018	1
89543 - SENSOR, SPEED, FRONT LH
89543-42050	ASA4#	12/2012 - 10/2015	1
89543-42050	ASA4#,AVA44	10/2015 - 10/2018	1
89545 - SENSOR, SPEED, REAR RH
89545-42050	ASA44	12/2012 - 11/2013	1
89545-48070	ASA44,AVA44	10/2015 - 10/2018	1
89546 - SENSOR, SPEED, REAR LH
89546-42050	ASA44	12/2012 - 11/2013	1
89546-48070	ASA44,AVA44	10/2015 - 10/2018	1
89630A - COMPUTER ASSY, 4WD
89630-42080	ASA44	12/2012 - 10/2013	1
89630-42082	ASA44	10/2015 - 10/2018	1
Common parts
90179-06074
91553-80610
91671-80616
91671-A0616
91673-80616
94151-80600
Linked diagrams
4102
8401
