ASA44L-ANTSKA (2015)
Toyota Rav4 (Jpp)

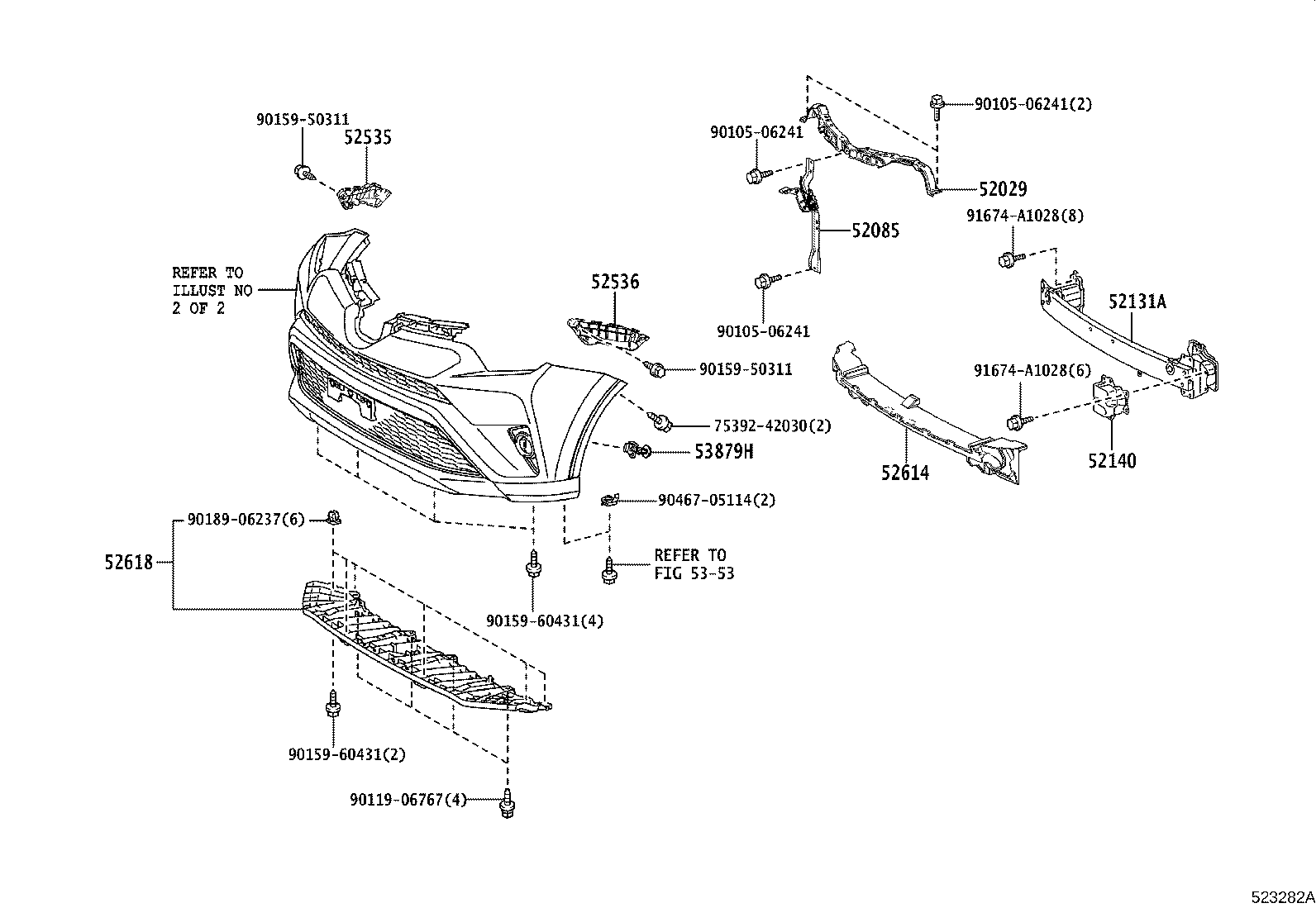

ILLUST NO. 1 OF 2(1510- )ASA4#..SE ; (1510- )SE,XLE..CND
SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-42110 |
ASA4#,AVA44 |
1 | ||
| 52029-42100 |
ASA4# |
1 | ||
| 52085 - STAY SUB-ASSY, FRONT BUMPER, CENTER | ||||
| 52085-42050 |
ASA4#,AVA44 |
1 | ||
| 52085-42040 |
ASA4# |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-42150 |
ASA4#,AVA44 |
1 | ||
| 52021-42130 |
ASA4# |
1 | ||
| 52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52140-42010 |
ASA4#,AVA44 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-42070 |
ASA4# |
1 | ||
| 52535-42080 |
ASA4#,AVA44 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-42070 |
ASA4#,AVA44 |
1 | ||
| 52536-42050 |
ASA4# |
1 | ||
| 52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2 | ||||
| 52614-42070 |
ASA4# |
1 | ||
| 52614-42100 |
ASA4#,AVA44 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-42070 |
ASA4#,AVA44..SE |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
ASA4# |
2 | ||
| 53879-28010 |
ASA4#,AVA44 |
2 | ||
| Common parts | ||||
| 75392-42030 | ||||
| 90105-06241 | ||||
| 90119-06767 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90189-06237 | ||||
| 90467-05114 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5353 | ||||

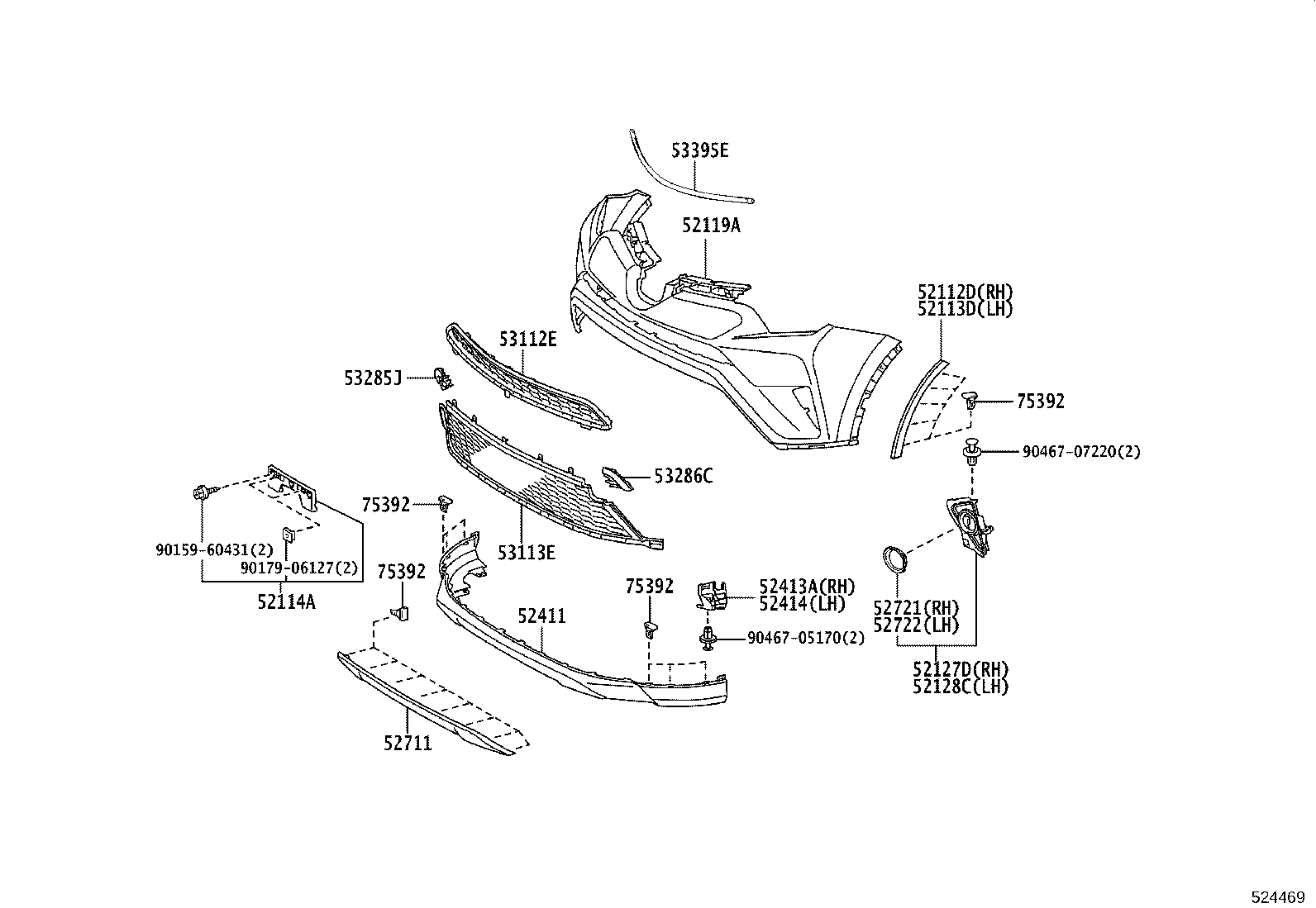

ILLUST NO. 2 OF 2(1510- )ASA4#..SE ; (1510- )SE,XLE..CND
SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-42904 |
ASA4#..SE PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52112-42904 |
ASA4#..SE PAINT REQ.,FRONT BUMPER-WITH(2TONE COLOR) |
1 | ||
| 52112-42904 |
ASA4#..SE PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42100 |
ASA4# NO PAINT REQ. |
1 | ||
| 52112-42904 |
ASA4#..SE PAINT REQ.,FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52112-42904 |
ASA4#..SE PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR) |
1 | ||
| 52112-42110 |
ASA4#,AVA44 NO PAINT REQ. |
1 | ||
| 52112-42904 |
ASA4#..SE PAINT REQ.,FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-42903 |
ASA4#..SE NO PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52113-42903 |
ASA4#..SE NO PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR) |
1 | ||
| 52113-42903 |
ASA4#..SE NO PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
ASA4#..SE FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
ASA4#..SE NO PAINT REQ.,FRONT BUMPER-WITH(2TONE COLOR) |
1 | ||
| 52113-42903 |
ASA4#..SE FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52113-42120 |
ASA4#,AVA44 |
1 | ||
| 52113-42100 |
ASA4# NO PAINT REQ. |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-42130 |
ASA4#,AVA44..SE |
1 | ||
| 52114-42100 |
ASA4# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-4A909 |
ASA4#..SE PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A909 |
ASA4#..SE PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A904 |
ASA4# PAINT REQ. |
1 | ||
| 52119-4A909 |
ASA4#..SE PAINT REQ.,FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A909 |
ASA4#,AVA44..(SE,XLE)..USA PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A909 |
ASA4#,AVA44..(LIMD,SE)..USA PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A908 |
ASA4#;AVA44..SE..USA;AVA44..LIMD,XLE PAINT REQ. |
1 | ||
| 52119-4A909 |
ASA4#..SE PAINT REQ.,FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A909 |
AVA44..SE..USA;ASA4#..LIMD,SE,XLE PAINT REQ.,PRE-COLLISION SYSTEM-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A909 |
ASA4#,AVA44..(LIMD,SE)..USA PAINT REQ.,PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACKMONITOR-WITH(*PVM) |
1 | ||
| 52119-4A909 |
ASA4#,AVA44..(LIMD,SE,XLE)..USA PAINT REQ.,PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52030-42050 |
ASA4#,AVA44..SE |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52040-42050 |
ASA4#,AVA44..SE |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-42906 |
ASA4#..SE PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
ASA4#..SE PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR) |
1 | ||
| 52411-42906 |
ASA4#..SE PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
ASA4#..SE FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
ASA4#..SE FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
ASA4#..SE FRONT BUMPER-WITH(2TONE COLOR) |
1 | ||
| 52411-42080 |
ASA4#,AVA44..SE |
1 | ||
| 52411-42060 |
ASA4#,AVA44..SE |
1 | ||
| 52413A - PAD, FRONT BUMPER GUARD, RH | ||||
| 52413-42010 |
ASA4#,AVA44 |
1 | ||
| 52414 - PAD, FRONT BUMPER GUARD, LH | ||||
| 52414-42010 |
ASA4#,AVA44 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-42110B2 |
ASA4#,AVA44..SE..USA SILVER ME.,040 ,070 ,1D6 ,1G3 ,209 ,221 ,3R3 ,3T0 ,4T3 ,4U5 ,8X7 |
1 | ||
| 52711-42130B0 |
ASA4#..SE SILVER ME.,040 ,070 ,1D6 ,1G3 ,209 ,221 ,3R3 ,3T0 ,3T3 ,4T3 ,4U5 ,8X7 |
1 | ||
| 52711-42110B0 |
ASA4#..SE SILVER ME.,040 ,070 ,1F7 ,1G3 ,209 ,3R3 ,3T0 ,4R8 ,4T3 ,4U5 ,8X7 |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-42030 |
ASA4#,AVA44..SE |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-42030 |
ASA4#,AVA44..SE |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-42120 |
ASA4#,AVA44..SE |
1 | ||
| 53112-42090 |
ASA4# NO PAINT REQ. |
1 | ||
| 53112-42130 |
ASA4#..SE FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42130 |
ASA4#..SE NO PAINT REQ.,PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42130 |
ASA4#..SE NO PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42130 |
ASA4#,AVA44..SE..USA CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-42100 |
ASA4#,AVA44..SE |
1 | ||
| 53113-42101 |
ASA4#,AVA44..SE |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-42110 |
ASA4#,AVA44..SE |
1 | ||
| 53285-42070 |
ASA4# |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-42120 |
ASA4#,AVA44..SE |
1 | ||
| 53286-42080 |
ASA4# |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-42070 |
ASA4#,AVA44 |
1 | ||
| 53395-42060 |
ASA4# |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ASA4#,AVA44..SE |
27 | ||
| 75392-35220 |
ASA4#,AVA44..SE |
26 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ASA4#,AVA44..SE |
27 | ||
| 75392-35220 |
ASA4#,AVA44..SE |
26 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ASA4#,AVA44..SE |
27 | ||
| 75392-35220 |
ASA4#,AVA44..SE |
26 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ASA4#,AVA44..SE |
27 | ||
| 75392-35220 |
ASA4#,AVA44..SE |
26 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90179-06127 | ||||
| 90467-05170 | ||||
| 90467-07220 | ||||
