ASA44L-ANTMKA (2015)

Toyota Rav4 (Jpp)

Production Oct 2015 - Oct 2018
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

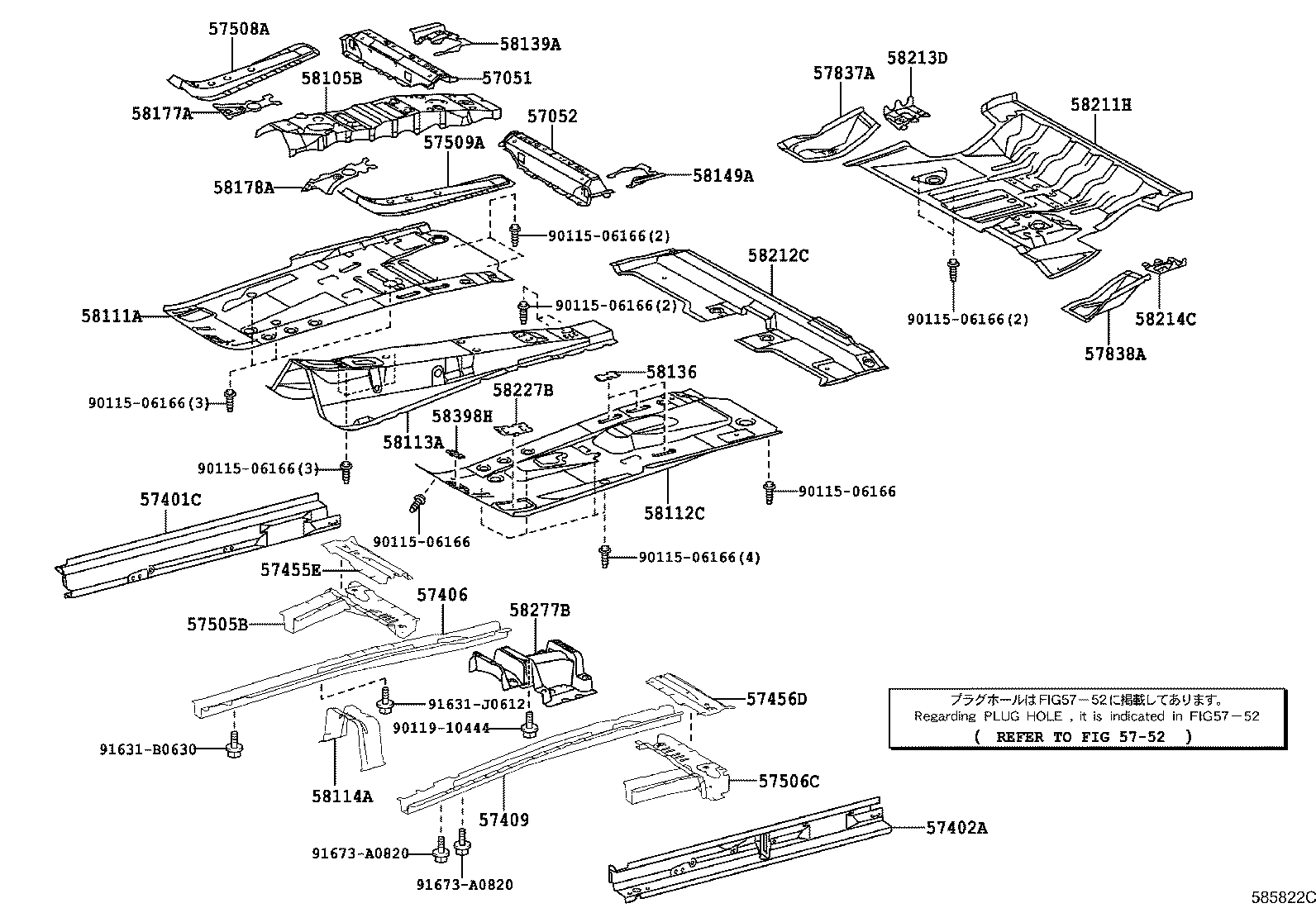

ILLUST NO. 2 OF 2(1510- )ASA4#

Click highlighted areas on diagram

diagram 57051 57052 57401C 57402A 57406 57409 57455E 57456D 57505B 57506C 57508A 57509A 5752 57837A 57838A 58105B 58111A 58112C 58113A 58114A 58136 58139A 58149A 58177A 58178A 58211H 58212C 58213D 58214C 58227B 58277B 58398H 9011506166 9011506166 9011506166 9011506166 9011506166 9011506166 9011506166 9011506166 9011910444 91631B0630 91631J0612 91673A0820 91673A0820
Part # Description Qty Price
57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-42011

ASA4#,AVA44

 1
57051-42011

ASA4#

 1
57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-42011

ASA4#

 1
57052-42011

ASA4#,AVA44

 1
57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-42150

ASA4#

 1
57401-42150

ASA4#,AVA44

 1
57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-42160

ASA4#,AVA44

 1
57402-42150

ASA4#

 1
57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57406-42010

ASA4#

 1
57406-42011

ASA4#,AVA44

 1
57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57409-42010

ASA4#

 1
57409-42010

ASA4#,AVA44

 1
57455E - PLATE, FRONT FLOOR CROSS MEMBER, NO.3 RH
57455-42030

ASA4#

 1
57455-42030

ASA4#,AVA44

 1
57456D - PLATE, FRONT FLOOR CROSS MEMBER, NO.3 LH
57456-42010

ASA4#

 1
57456-42010

ASA4#,AVA44

 1
57505B - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH
57505-42110

ASA4#

 1
57505-42110

ASA4#,AVA44

 1
57506C - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH
57506-42050

ASA4#,AVA44

 1
57506-42050

ASA4#

 1
57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57508-42010

ASA4#,AVA44

 1
57508-42010

ASA4#

 1
57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57509-42010

ASA4#,AVA44

 1
57509-42010

ASA4#

 1
57837A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57837-42030

ASA4#

 1
57837-42030

ASA4#

 1
57838A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
57838-42020

ASA4#

 1
57838-42020

ASA4#

 1
58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58105-42012

ASA4#

 1
58105-42013

ASA4#,AVA44

 1
58111A - PAN, FRONT FLOOR, RH
58111-42201

ASA4#

 1
58111-42201

ASA4#,AVA44

 1
58112C - PAN, FRONT FLOOR, LH
58112-42011

ASA4#

 1
58112-42011

ASA4#,AVA44

 1
58113A - PANEL, FRONT FLOOR, CENTER
58113-42010

ASA4#

 1
58113-42012

ASA4#,AVA44

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-42041

ASA4#,AVA44

 1
58114-42041

ASA4#

 1
58136 - COVER, FRONT FLOOR HOLE
58136-42020

ASA4#

 6
58136-42020

ASA4#,AVA44

 6
58139A - PLATE, FRONT FLOOR SIDE, REAR RH
58139-42010

ASA4#

 1
58139-42010

ASA4#,AVA44

 1
58149A - PLATE, FRONT FLOOR SIDE, REAR LH
58149-42011

ASA4#,AVA44

 1
58149-42011

ASA4#

 1
58177A - EXTENSION, FRONT FLOOR PANEL, RH
58177-42010

ASA4#,AVA44

 1
58177-42010

ASA4#

 1
58178A - EXTENSION, FRONT FLOOR PANEL, LH
58178-42010

ASA4#

 1
58178-42010

ASA4#,AVA44

 1
58211H - PAN, CENTER FLOOR
58211-42011

ASA4#

 1
58211-42011

ASA4#

 1
58212C - PAN, CENTER FLOOR, FRONT
58202-42020

ASA4#

 1
58202-78020

ASA4#

 1
58213D - REINFORCEMENT, CENTER FLOOR PANEL
58213-42010

ASA4#

 1
58213-42010

ASA4#

 1
58214C - REINFORCEMENT, CENTER FLOOR PANEL, LH
58214-42010

ASA4#

 1
58214-42010

ASA4#

 1
58227B - PLATE, FRONT FLOOR PANEL SIDE, RH
58227-42010

ASA4#,AVA44

 2
58227-42010

ASA4#

 2
58277B - REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
58209-42030

ASA4#

 1
58209-48010

ASA4#,AVA44

 1
58398H - COVER, FLOOR UNDER, NO.1
58398-42010

ASA4#,AVA44

 2
58398-42010

ASA4#

 2
Common parts
90115-06166
90119-10444
91631-B0630
91631-J0612
91673-A0820
Linked diagrams
5752
