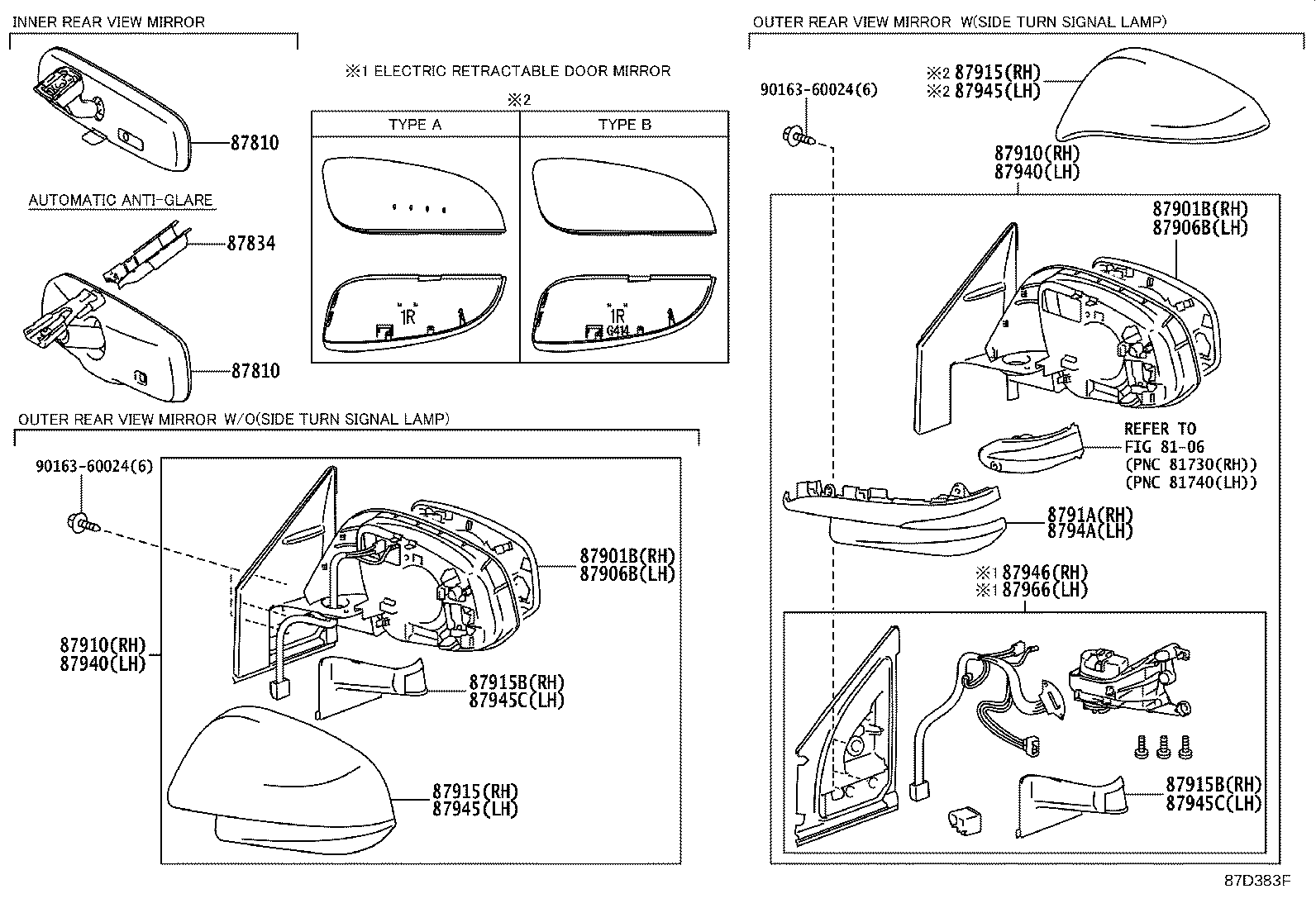

ASA44L-ANTMKA (2012)
Toyota Rav4 (Jpp)
(1212-1510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ASA4#..LE,XLE |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ASA4#..LE,XLE |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-42B80 |
ASA4#..LIMD,XLE |
1 | ||
| 87931-42B70 |
ASA4#..LE |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-42B80 |
ASA4#..LIMD,XLE |
1 | ||
| 87931-42B70 |
ASA4#..LE |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-42B50 |
ASA4#..LIMD,XLE |
1 | ||
| 87961-42B40 |
ASA4#..LE |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-42B50 |
ASA4#..LIMD,XLE |
1 | ||
| 87961-42B40 |
ASA4#..LE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-42B80 |
ASA4#..LIMD,XLE NO PAINT REQ. |
1 | ||
| 87910-42B70 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87910-42D00 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-42B80 |
ASA4#..LIMD,XLE NO PAINT REQ. |
1 | ||
| 87910-42B70 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87910-42D00 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-42160A1 |
ASA4#..LIMD,XLE WHITE PEARL CS.,070,TYPE A |
1 | ||
| 87915-42160B0 |
ASA4#..LIMD,XLE SILVER ME.,1F7,TYPE A |
1 | ||
| 87915-42160G0 |
ASA4#..LIMD,XLE DK.GREEN MC.,6V4,TYPE A |
1 | ||
| 87915-42160C1 |
ASA4#..LIMD,XLE BLACK MC.,209,TYPE A |
1 | ||
| 87915-42160A0 |
ASA4#..LIMD,XLE SUPER WHITE 2,040,TYPE A |
1 | ||
| 87915-42160B1 |
ASA4#..LIMD,XLE GRAY ME.,1G3,TYPE A |
1 | ||
| 87915-42160J0 |
ASA4#..LIMD,XLE GRAYISH BLUE M.M.,8V5,TYPE A |
1 | ||
| 87915-48040B0 |
ASA4#..LIMD,XLE SILVER ME.,1F7,TYPE B |
1 | ||
| 87915-42190 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87915-48040A0 |
ASA4#..LIMD,XLE WHITE PEARL CS.,070,TYPE B |
1 | ||
| 87915-42150 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87915-48040E3 |
ASA4#..LIMD,XLE BRONZE M.M.,4T3,TYPE B |
1 | ||
| 87915-42160E1 |
ASA4#..LIMD,XLE DK.BROWN ME.,4U5,TYPE A |
1 | ||
| 87915-48040D2 |
ASA4#..LIMD,XLE RED M.M.,3R3,TYPE B |
1 | ||
| 87915-48040E0 |
ASA4#..LIMD,XLE DK.BROWN ME.,4U5,TYPE B |
1 | ||
| 87915-48040B2 |
ASA4#..LIMD,XLE GRAY ME.,1G3,TYPE B |
1 | ||
| 87915-48040C3 |
ASA4#..LIMD,XLE BLACK MC.,209,TYPE B |
1 | ||
| 87915-42160D0 |
ASA4#..LIMD,XLE RED M.M.,3R3,TYPE A |
1 | ||
| 87915-42160E0 |
ASA4#..LIMD,XLE BRONZE M.M.,4T3,TYPE A |
1 | ||
| 87915-48040E2 |
ASA4#..LIMD,XLE ORANGE ME.,4R8,TYPE B |
1 | ||
| 87915-48040A1 |
ASA4#..LIMD,XLE SUPER WHITE 2,040,TYPE B |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-42160A1 |
ASA4#..LIMD,XLE WHITE PEARL CS.,070,TYPE A |
1 | ||
| 87915-42160B0 |
ASA4#..LIMD,XLE SILVER ME.,1F7,TYPE A |
1 | ||
| 87915-42160G0 |
ASA4#..LIMD,XLE DK.GREEN MC.,6V4,TYPE A |
1 | ||
| 87915-42160C1 |
ASA4#..LIMD,XLE BLACK MC.,209,TYPE A |
1 | ||
| 87915-42160A0 |
ASA4#..LIMD,XLE SUPER WHITE 2,040,TYPE A |
1 | ||
| 87915-42160B1 |
ASA4#..LIMD,XLE GRAY ME.,1G3,TYPE A |
1 | ||
| 87915-42160J0 |
ASA4#..LIMD,XLE GRAYISH BLUE M.M.,8V5,TYPE A |
1 | ||
| 87915-48040B0 |
ASA4#..LIMD,XLE SILVER ME.,1F7,TYPE B |
1 | ||
| 87915-42190 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87915-48040A0 |
ASA4#..LIMD,XLE WHITE PEARL CS.,070,TYPE B |
1 | ||
| 87915-42150 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87915-48040E3 |
ASA4#..LIMD,XLE BRONZE M.M.,4T3,TYPE B |
1 | ||
| 87915-42160E1 |
ASA4#..LIMD,XLE DK.BROWN ME.,4U5,TYPE A |
1 | ||
| 87915-48040D2 |
ASA4#..LIMD,XLE RED M.M.,3R3,TYPE B |
1 | ||
| 87915-48040E0 |
ASA4#..LIMD,XLE DK.BROWN ME.,4U5,TYPE B |
1 | ||
| 87915-48040B2 |
ASA4#..LIMD,XLE GRAY ME.,1G3,TYPE B |
1 | ||
| 87915-48040C3 |
ASA4#..LIMD,XLE BLACK MC.,209,TYPE B |
1 | ||
| 87915-42160D0 |
ASA4#..LIMD,XLE RED M.M.,3R3,TYPE A |
1 | ||
| 87915-42160E0 |
ASA4#..LIMD,XLE BRONZE M.M.,4T3,TYPE A |
1 | ||
| 87915-48040E2 |
ASA4#..LIMD,XLE ORANGE ME.,4R8,TYPE B |
1 | ||
| 87915-48040A1 |
ASA4#..LIMD,XLE SUPER WHITE 2,040,TYPE B |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87915-42140 |
ASA4# |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87915-42140 |
ASA4# |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791B-42C10 |
ASA4#..LIMD,XLE |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-42C70 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87940-42B40 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87940-42B50 |
ASA4#..LIMD,XLE NO PAINT REQ. |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-42C70 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87940-42B40 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87940-42B50 |
ASA4#..LIMD,XLE NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-42160B0 |
ASA4#..LIMD,XLE SILVER ME.,1F7,TYPE A |
1 | ||
| 87945-42150 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87945-48040A1 |
ASA4#..LIMD,XLE SUPER WHITE 2,040,TYPE B |
1 | ||
| 87945-42160E1 |
ASA4#..LIMD,XLE DK.BROWN ME.,4U5,TYPE A |
1 | ||
| 87945-42160J0 |
ASA4#..LIMD,XLE GRAYISH BLUE M.M.,8V5,TYPE A |
1 | ||
| 87945-42160D0 |
ASA4#..LIMD,XLE RED M.M.,3R3,TYPE A |
1 | ||
| 87945-42160A1 |
ASA4#..LIMD,XLE WHITE PEARL CS.,070,TYPE A |
1 | ||
| 87945-42160C1 |
ASA4#..LIMD,XLE BLACK MC.,209,TYPE A |
1 | ||
| 87945-42160A0 |
ASA4#..LIMD,XLE SUPER WHITE 2,040,TYPE A |
1 | ||
| 87945-42160E0 |
ASA4#..LIMD,XLE BRONZE M.M.,4T3,TYPE A |
1 | ||
| 87945-48040E3 |
ASA4#..LIMD,XLE BRONZE M.M.,4T3,TYPE B |
1 | ||
| 87945-48040E0 |
ASA4#..LIMD,XLE DK.BROWN ME.,4U5,TYPE B |
1 | ||
| 87945-42160B1 |
ASA4#..LIMD,XLE GRAY ME.,1G3,TYPE A |
1 | ||
| 87945-42160G0 |
ASA4#..LIMD,XLE DK.GREEN MC.,6V4,TYPE A |
1 | ||
| 87945-48040C3 |
ASA4#..LIMD,XLE BLACK MC.,209,TYPE B |
1 | ||
| 87945-48040A0 |
ASA4#..LIMD,XLE WHITE PEARL CS.,070,TYPE B |
1 | ||
| 87945-42190 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87945-48040D2 |
ASA4#..LIMD,XLE RED M.M.,3R3,TYPE B |
1 | ||
| 87945-48040E2 |
ASA4#..LIMD,XLE ORANGE ME.,4R8,TYPE B |
1 | ||
| 87945-48040B2 |
ASA4#..LIMD,XLE GRAY ME.,1G3,TYPE B |
1 | ||
| 87945-48040B0 |
ASA4#..LIMD,XLE SILVER ME.,1F7,TYPE B |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-42160B0 |
ASA4#..LIMD,XLE SILVER ME.,1F7,TYPE A |
1 | ||
| 87945-42150 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87945-48040A1 |
ASA4#..LIMD,XLE SUPER WHITE 2,040,TYPE B |
1 | ||
| 87945-42160E1 |
ASA4#..LIMD,XLE DK.BROWN ME.,4U5,TYPE A |
1 | ||
| 87945-42160J0 |
ASA4#..LIMD,XLE GRAYISH BLUE M.M.,8V5,TYPE A |
1 | ||
| 87945-42160D0 |
ASA4#..LIMD,XLE RED M.M.,3R3,TYPE A |
1 | ||
| 87945-42160A1 |
ASA4#..LIMD,XLE WHITE PEARL CS.,070,TYPE A |
1 | ||
| 87945-42160C1 |
ASA4#..LIMD,XLE BLACK MC.,209,TYPE A |
1 | ||
| 87945-42160A0 |
ASA4#..LIMD,XLE SUPER WHITE 2,040,TYPE A |
1 | ||
| 87945-42160E0 |
ASA4#..LIMD,XLE BRONZE M.M.,4T3,TYPE A |
1 | ||
| 87945-48040E3 |
ASA4#..LIMD,XLE BRONZE M.M.,4T3,TYPE B |
1 | ||
| 87945-48040E0 |
ASA4#..LIMD,XLE DK.BROWN ME.,4U5,TYPE B |
1 | ||
| 87945-42160B1 |
ASA4#..LIMD,XLE GRAY ME.,1G3,TYPE A |
1 | ||
| 87945-42160G0 |
ASA4#..LIMD,XLE DK.GREEN MC.,6V4,TYPE A |
1 | ||
| 87945-48040C3 |
ASA4#..LIMD,XLE BLACK MC.,209,TYPE B |
1 | ||
| 87945-48040A0 |
ASA4#..LIMD,XLE WHITE PEARL CS.,070,TYPE B |
1 | ||
| 87945-42190 |
ASA4#..LE NO PAINT REQ. |
1 | ||
| 87945-48040D2 |
ASA4#..LIMD,XLE RED M.M.,3R3,TYPE B |
1 | ||
| 87945-48040E2 |
ASA4#..LIMD,XLE ORANGE ME.,4R8,TYPE B |
1 | ||
| 87945-48040B2 |
ASA4#..LIMD,XLE GRAY ME.,1G3,TYPE B |
1 | ||
| 87945-48040B0 |
ASA4#..LIMD,XLE SILVER ME.,1F7,TYPE B |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-42140 |
ASA4# |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-42140 |
ASA4# |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794B-42B80 |
ASA4#..LIMD,XLE |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
