ASA44L-ANTMKA (2012)

Toyota Rav4 (Jpp)

Production Dec 2012 - Oct 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1212- )

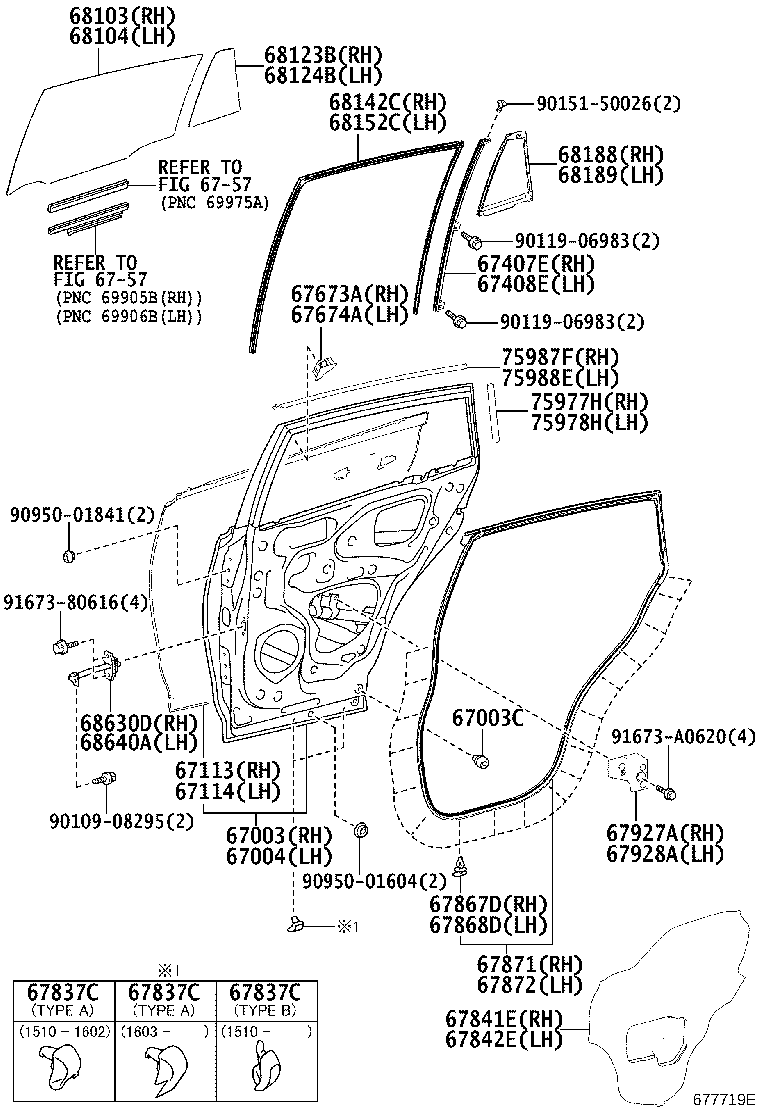

Click highlighted areas on diagram

DOOR PANEL

diagram 67003 67003C 67004 67113 67114 67407E 67408E 6757 6757 67673A 67674A 67837C 67837C 67837C 67841E 67842E 67867D 67868D 67871 67872 67927A 67928A 68103 68104 68123B 68124B 68142C 68152C 68188 68189 68630D 68640A 75977H 75978H 75987F 75988E 9010908295 9011906983 9011906983 9015150026 9095001604 9095001841 9167380616 91673A0620
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-42160

ASA4#

 1
67003C - CUSHION, REAR DOOR PANEL
90541-09137

ASA4#

 2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-42160

ASA4#

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-42110

ASA4#

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-42110

ASA4#

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-42040

ASA4#

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-42040

ASA4#

 1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-48010

ASA4#

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-48010

ASA4#

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-42060

ASA4#

 1
67841-42061

ASA4#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-42040

ASA4#

 1
67842-42041

ASA4#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

ASA4#

 18
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

ASA4#

 18
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-42070

ASA4#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-42070

ASA4#

 1
67927A - CUSHION, REAR DOOR STIFFENER, RH
67927-42020

ASA4#

 1
67928A - CUSHION, REAR DOOR STIFFENER, LH
67928-42020

ASA4#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-42150

ASA4#..LE

*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)

 1
68113-42140

ASA4#..LE

*UVCT,T=3.1,GREEN

 1
68113-42150

ASA4#..LIMD,XLE

*TEM,T=3.1,DARK GRAY

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-42140

ASA4#..LE

*UVCT,T=3.1,GREEN

 1
68114-42150

ASA4#..LIMD,XLE

*TEM,T=3.1,DARK GRAY

 1
68114-42150

ASA4#..LE

*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-42140

ASA4#..LE

*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)

 1
68123-42130

ASA4#..LE

*UVCT,T=3.1,GREEN

 1
68123-42140

ASA4#..LIMD,XLE

*TEM,T=3.1,DARK GRAY

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-42150

ASA4#..LIMD,XLE

*TEM,T=3.1,DARK GRAY

 1
68124-42150

ASA4#..LE

*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)

 1
68124-42140

ASA4#..LE

*UVCT,T=3.1,GREEN

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-42050

ASA4#

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-42050

ASA4#

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-42050

ASA4#

 1
68188-42060

ASA4#

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-42060

ASA4#

 1
68189-42050

ASA4#

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-42041

ASA4#

 1
68630-42040

ASA4#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68630-42040

ASA4#

 1
68630-42041

ASA4#

 1
75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH
75977-42040

ASA4#

 1
75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH
75978-42040

ASA4#

 1
75987F - STRIPE, REAR DOOR, OUTSIDE, RH
75987-42050

ASA4#

 1
75988E - STRIPE, REAR DOOR, OUTSIDE LH
75988-42050

ASA4#

 1
Common parts
90109-08295
90119-06983
90151-50026
90950-01604
90950-01841
91673-80616
91673-A0620
Linked diagrams
6757

ILLUST NO. 2 OF 2(1212- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67603 67603B 67604 68173B 68174A 74645C 74646A 9016460021 9018906024
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-42520C4

ASA4#..LE,XLE

BLACK/GRAY/GRAY,TRIM1#

 1
67630-42520C3

ASA4#..LE,XLE

BLACK/BEIGE/BEIGE,TRIM4#

 1
67630-42520C5

ASA4#..LE,XLE

BLACK/BLACK/BLACK,TRIM2#

 1
67630-42520C2

ASA4#..LE,XLE

BLACK/BLACK/GRAY,TRIM1#

 1
67630-42520C6

ASA4#..XLE

BLACK/BLACK/BEIGE,TRIM4#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206

ASA4#

 16
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-42520C3

ASA4#..LE,XLE

BLACK/BEIGE/BEIGE,TRIM4#

 1
67640-42520C4

ASA4#..LE,XLE

BLACK/GRAY/GRAY,TRIM1#

 1
67640-42520C2

ASA4#..LE,XLE

BLACK/BLACK/GRAY,TRIM1#

 1
67640-42520C5

ASA4#..LE,XLE

BLACK/BLACK/BLACK,TRIM2#

 1
67640-42520C6

ASA4#..XLE

BLACK/BLACK/BEIGE,TRIM4#

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-42050

ASA4#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-42040

ASA4#

 1
74645C - COVER, DOOR ASSIST GRIP, RH
74645-42040

ASA4#

 1
74646A - COVER, DOOR ASSIST GRIP, LH
74646-42040

ASA4#

 1
Common parts
90164-60021
90189-06024
