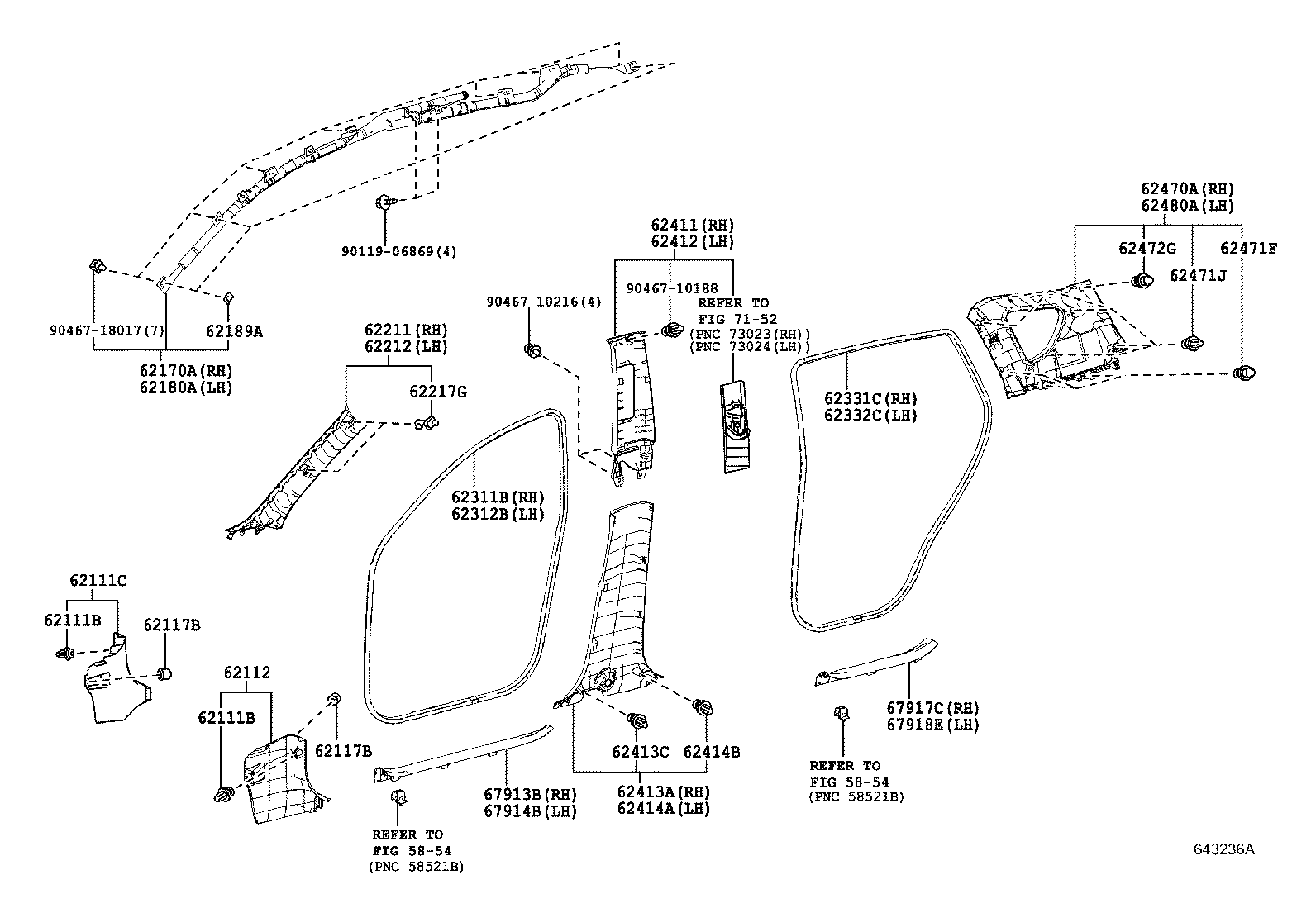

ASA42L-ANTXKA (2012)
Toyota Rav4 (Jpp)
(1212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
ASA4# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
ASA4# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-42060C0 |
ASA4#..LE BLACK,TRIM1#,2# |
1 | ||
| 62111-42060C0 |
ASA4#..LE BLACK,TRIM1#,2#,4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-42061C0 |
ASA4#..LE BLACK,TRIM1#,2# |
1 | ||
| 62112-42060C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06155 |
ASA4# |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06155 |
ASA4# |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-42060 |
ASA4# |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-42060 |
ASA4# |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
ASA4# |
6 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-42050B0 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-42050B0 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-52120 |
ASA4# |
4 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-42080 |
ASA4# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-42080 |
ASA4# |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-42050 |
ASA4# |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-42050 |
ASA4# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-42070B0 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-42070B0 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-42060C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
ASA4# |
2 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-42060C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 62414B - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10167 |
ASA4# |
2 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-42130B0 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-09236 |
ASA4# |
6 | ||
| 90467-09240 |
ASA4# |
6 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
ASA4# |
10 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 90467-10167 |
ASA4# |
2 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-42130B0 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-42110C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-42110C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-42070C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-42070C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90119-06869 | ||||
| 90467-10188 | ||||
| 90467-10216 | ||||
| 90467-18017 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 7152 | ||||
