ASA42L-ANTXKA (2012)

Toyota Rav4 (Jpp)

Production Dec 2012 - Oct 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )2ARFE

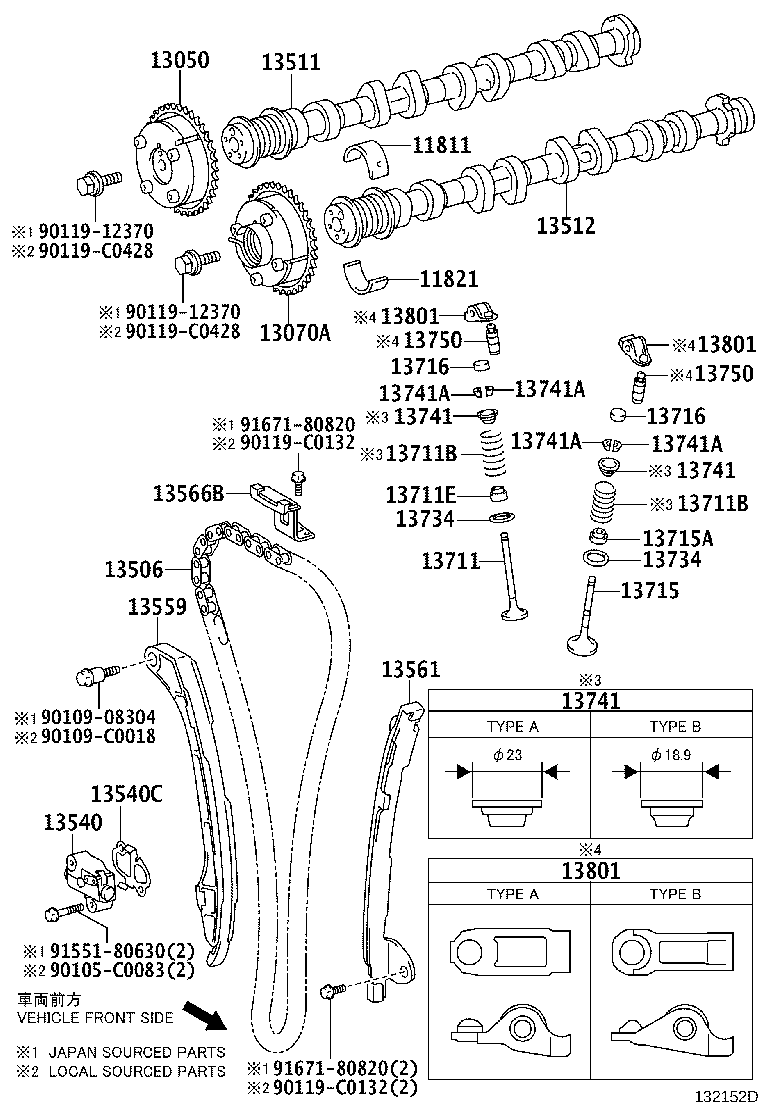

Click highlighted areas on diagram

diagram 11811 11821 13050 13070A 13506 13511 13512 13540 13540C 13559 13561 13566B 13711 13711B 13711B 13711E 13715 13715A 13716 13716 13734 13734 13741 13741 13741 13741A 13741A 13741A 13741A 13750 13750 13801 13801 13801 90105C0083 9010908304 90109C0018 9011912370 9011912370 90119C0132 90119C0132 90119C0428 90119C0428 9155180630 9167180820 9167180820
Part # Description Qty Price
11811 - BEARING, CAMSHAFT, NO.1
11811-36010

2ARFE..ASA4#

*524

 1
11811-0V010

2ARFE..ASA4#

*347

 1
11821 - BEARING, CAMSHAFT, NO.2
11821-0V010

2ARFE..ASA4#

*347

 1
11821-36010

2ARFE..ASA4#

*524

 1
13050 - GEAR ASSY, CAMSHAFT TIMING
13050-36030

2ARFE..ASA4#

*524

 1
13050-0V070

2ARFE..ASA4#

*347

 1
13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST
13070-0V030

2ARFE..ASA4#

*347

 1
13070-36030

2ARFE..ASA4#

*524

 1
13506 - CHAIN SUB-ASSY
13506-0V020

2ARFE..ASA4#

*347

 1
13506-36030

2ARFE..ASA4#

*419 OR *463

 1
13506-36010

2ARFE..ASA4#

*524

 1
13511 - CAMSHAFT
13501-36050

2ARFE..ASA4#

*524

 1
13501-0V020

2ARFE..ASA4#

*347

 1
13512 - CAMSHAFT, NO.2
13502-36030

2ARFE..ASA4#

*524

 1
13502-0V020

2ARFE..ASA4#

*347

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-36010

2ARFE..ASA4#

 1
13540-0V040

2ARFE..ASA4#

*347

 1
13540-36040

2ARFE..ASA4#

*524

 1
13540C - GASKET(FOR CHAIN TENSIONER)
13552-0V020

2ARFE..ASA4#

*347

 1
13552-36010

2ARFE..ASA4#

*524

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-36040

2ARFE..ASA4#

*524

 1
13559-36010

2ARFE..ASA4#

*524

 1
13559-0V020

2ARFE..ASA4#

*347

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-36030

2ARFE..ASA4#

*524

 1
13561-36010

2ARFE..ASA4#

*524

 1
13561-0V020

2ARFE..ASA4#

*347

 1
13566B - GUIDE, TIMING CHAIN
13566-0V021

2ARFE..ASA4#

*347

 1
13566-36011

2ARFE..ASA4#

*524

 1
13711 - VALVE, INTAKE
13711-36060

2ARFE..ASA4#

*524

 8
13711-0V020

2ARFE..ASA4#

*347

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-C0019

2ARFE..ASA4#

*347

 16
90501-34016

2ARFE..ASA4#

*524,TYPE A

 16
90501-34022

2ARFE..ASA4#

*524,TYPE B

 16
13711B - SPRING, COMPRESSION(FOR INNER)
90501-C0019

2ARFE..ASA4#

*347

 16
90501-34016

2ARFE..ASA4#

*524,TYPE A

 16
90501-34022

2ARFE..ASA4#

*524,TYPE B

 16
13711E - SEAL, INTAKE VALVE STEM OIL
90913-T2001

2ARFE..ASA4#

*347

 8
90913-02101

2ARFE..ASA4#

*524

 8
13715 - VALVE, EXHAUST
13715-0V020

2ARFE..ASA4#

*347

 8
13715-36020

2ARFE..ASA4#

*524

 8
13715A - SEAL, EXHAUST VALVE STEM OIL
90913-02112

2ARFE..ASA4#

*524

 8
90913-T2003

2ARFE..ASA4#

*347

 8
13716 - CAP, VALVE STEM
13716-75020

2ARFE..ASA4#

(J),*347

 16
13716-75020

2ARFE..ASA4#

*524

 16
13716-75020

2ARFE..ASA4#

*347

 16
13716-0Y010

2ARFE..ASA4#

(L),*347

 16
13716 - CAP, VALVE STEM
13716-75020

2ARFE..ASA4#

(J),*347

 16
13716-75020

2ARFE..ASA4#

*524

 16
13716-75020

2ARFE..ASA4#

*347

 16
13716-0Y010

2ARFE..ASA4#

(L),*347

 16
13734 - SEAT, VALVE SPRING
13734-62020

2ARFE..ASA4#

*524

 16
13734-0P020

2ARFE..ASA4#

*347

 16
13734 - SEAT, VALVE SPRING
13734-62020

2ARFE..ASA4#

*524

 16
13734-0P020

2ARFE..ASA4#

*347

 16
13741 - RETAINER, VALVE SPRING
13741-20021

2ARFE..ASA4#

*524,TYPE A

 16
13741-36010

2ARFE..ASA4#

*524,TYPE B

 16
13741-20021

2ARFE..ASA4#

(J),*347

 16
13741-0Y020

2ARFE..ASA4#

(L),*347

 16
13741-20021

2ARFE..ASA4#

*347

 16
13741 - RETAINER, VALVE SPRING
13741-20021

2ARFE..ASA4#

*524,TYPE A

 16
13741-36010

2ARFE..ASA4#

*524,TYPE B

 16
13741-20021

2ARFE..ASA4#

(J),*347

 16
13741-0Y020

2ARFE..ASA4#

(L),*347

 16
13741-20021

2ARFE..ASA4#

*347

 16
13741 - RETAINER, VALVE SPRING
13741-20021

2ARFE..ASA4#

*524,TYPE A

 16
13741-36010

2ARFE..ASA4#

*524,TYPE B

 16
13741-20021

2ARFE..ASA4#

(J),*347

 16
13741-0Y020

2ARFE..ASA4#

(L),*347

 16
13741-20021

2ARFE..ASA4#

*347

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

2ARFE..ASA4#

(J),*347

 32
90913-03028

2ARFE..ASA4#

*347

 32
90913-03028

2ARFE..ASA4#

*524

 32
90913-C3002

2ARFE..ASA4#

(L),*347

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

2ARFE..ASA4#

(J),*347

 32
90913-03028

2ARFE..ASA4#

*347

 32
90913-03028

2ARFE..ASA4#

*524

 32
90913-C3002

2ARFE..ASA4#

(L),*347

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

2ARFE..ASA4#

(J),*347

 32
90913-03028

2ARFE..ASA4#

*347

 32
90913-03028

2ARFE..ASA4#

*524

 32
90913-C3002

2ARFE..ASA4#

(L),*347

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

2ARFE..ASA4#

(J),*347

 32
90913-03028

2ARFE..ASA4#

*347

 32
90913-03028

2ARFE..ASA4#

*524

 32
90913-C3002

2ARFE..ASA4#

(L),*347

 32
13750 - ADJUSTER ASSY, VALVE LASH
13750-36020

2ARFE..ASA4#

*524,TYPE B

 16
13750-0V020

2ARFE..ASA4#

*347

 16
13750-31030

2ARFE..ASA4#

*524,TYPE A

 16
13750 - ADJUSTER ASSY, VALVE LASH
13750-36020

2ARFE..ASA4#

*524,TYPE B

 16
13750-0V020

2ARFE..ASA4#

*347

 16
13750-31030

2ARFE..ASA4#

*524,TYPE A

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-0P020

2ARFE..ASA4#

*347

 16
13801-36020

2ARFE..ASA4#

*524,TYPE B

 16
13801-23011

2ARFE..ASA4#

*524,TYPE A

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-0P020

2ARFE..ASA4#

*347

 16
13801-36020

2ARFE..ASA4#

*524,TYPE B

 16
13801-23011

2ARFE..ASA4#

*524,TYPE A

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-0P020

2ARFE..ASA4#

*347

 16
13801-36020

2ARFE..ASA4#

*524,TYPE B

 16
13801-23011

2ARFE..ASA4#

*524,TYPE A

 16
Common parts
90105-C0083
90109-08304
90109-C0018
90119-12370
90119-C0132
90119-C0428
91551-80630
91671-80820
