ASA42L-ANTMKA (2012)

Toyota Rav4 (Jpp)

Production Dec 2012 - Oct 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1510)

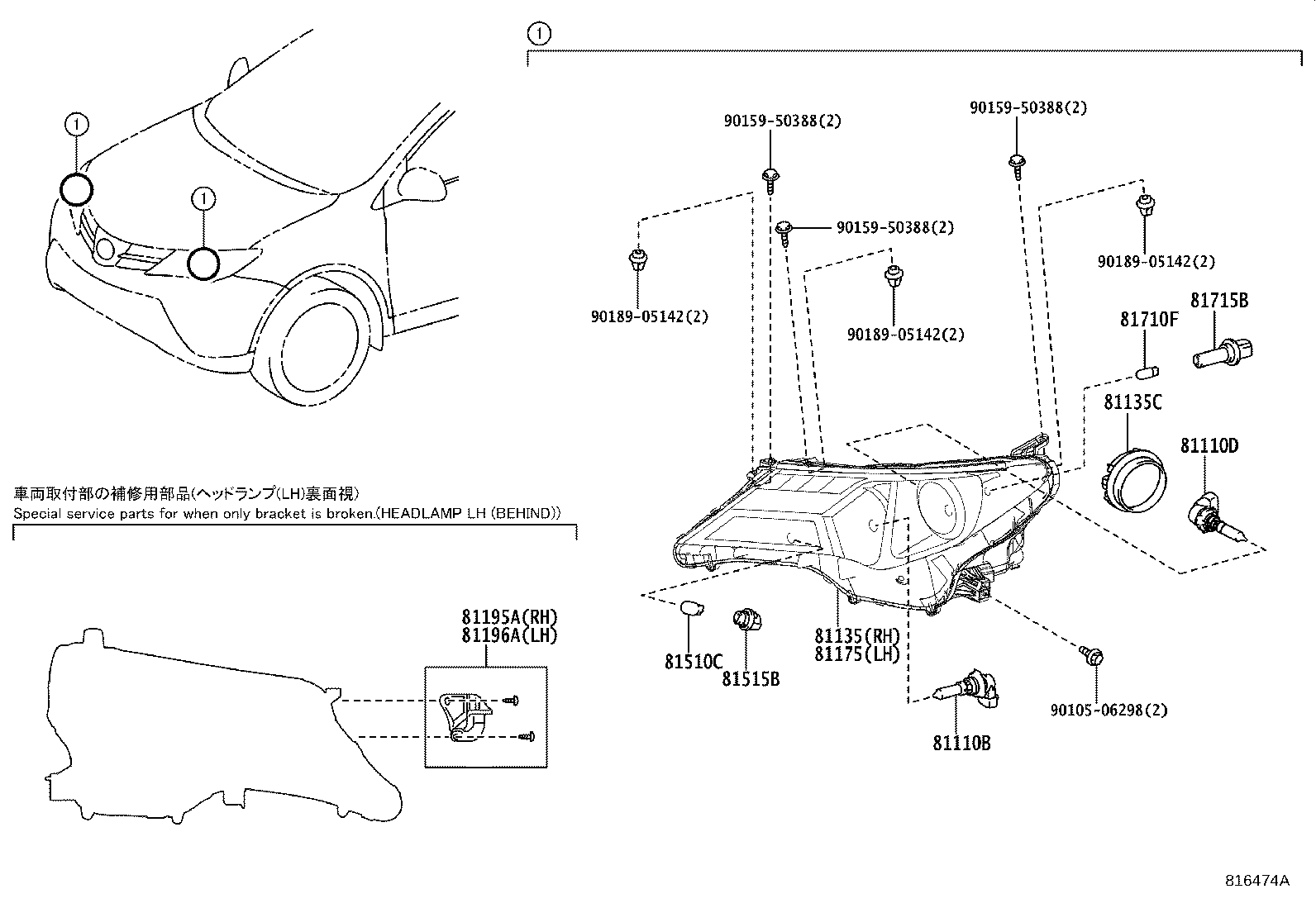

Click highlighted areas on diagram

diagram 81110B 81110D 81135 81135C 81175 81195A 81196A 81510C 81515B 81710F 81715B 9010506298 9015950388 9015950388 9015950388 9018905142 9018905142 9018905142
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13092

ASA4#

12V 60W,HALOGEN

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13092

ASA4#

12V 60W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-42590

ASA4#

 1
81130-42591

ASA4#

 1
81130-42592

ASA4#

 1
81135C - COVER, HEADLAMP BACK, NO.1
81135-42520

ASA4#

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-42590

ASA4#

 1
81170-42592

ASA4#

 1
81170-42591

ASA4#

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-42010

ASA4#

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-42010

ASA4#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15025

ASA4#

12V 28/8W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60083

ASA4#

 2
81710F - BULB, FRONT SIDE MAKER LAMP
90981-11064

ASA4#

 2
81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP
81138-22680

ASA4#

 2
Common parts
90105-06298
90159-50388
90189-05142
