ASA42L-ANTGKA (2015)
Toyota Rav4 (Jpp)

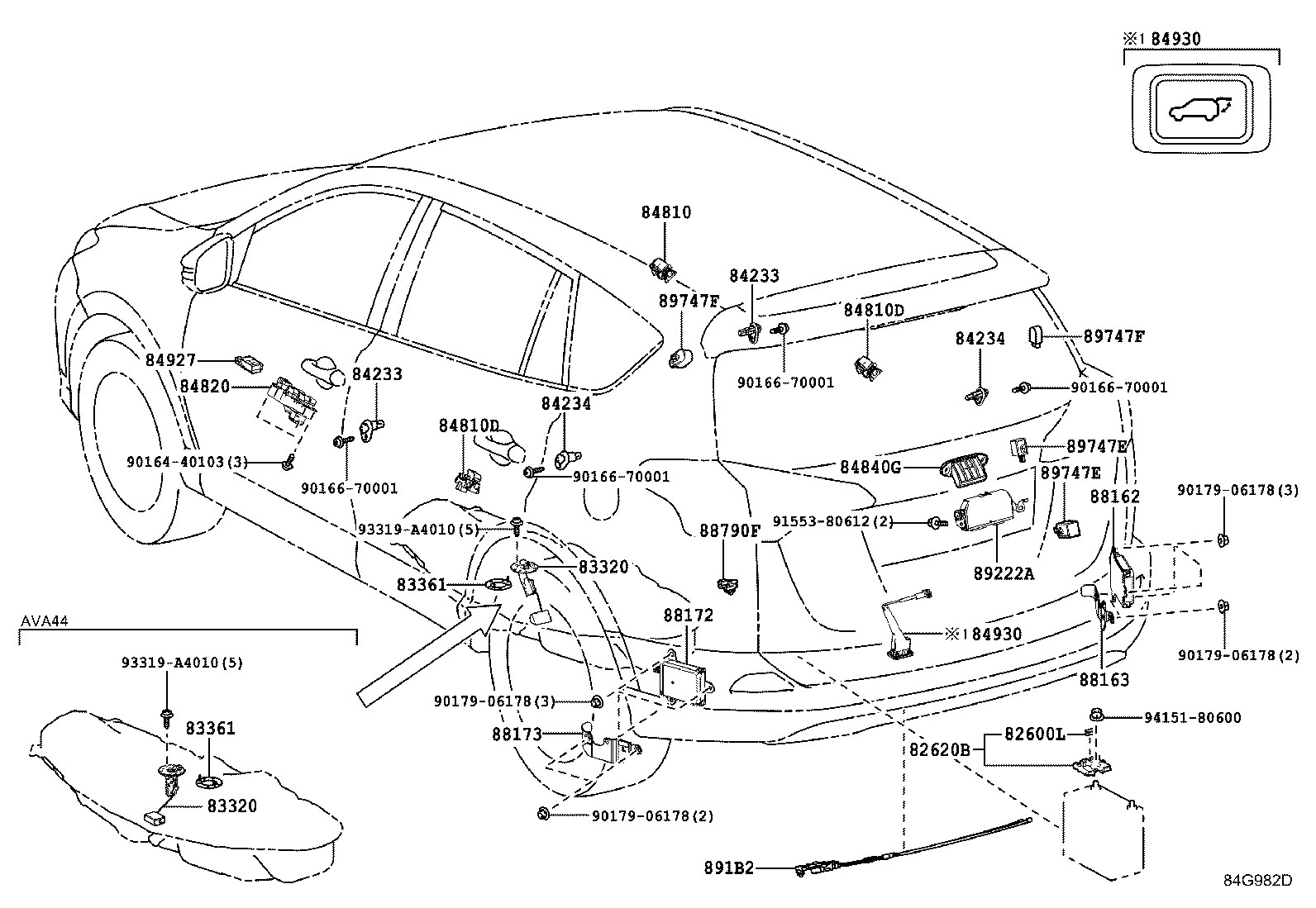

ILLUST NO. 8 OF 8(1510- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49205 |
ASA4# |
1 | ||
| 83320-49205 |
ASA4# EXCEPT ROSSIA |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49205 |
ASA4# |
1 | ||
| 83320-49205 |
ASA4# EXCEPT ROSSIA |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ASA4# |
2 | ||
| 77169-14020 |
ASA4# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ASA4# |
2 | ||
| 77169-14020 |
ASA4# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ASA4#,AVA44 |
2 | ||
| 84231-60070 |
ASA4# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ASA4#,AVA44 |
2 | ||
| 84231-60070 |
ASA4# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ASA4# |
2 | ||
| 84231-60070 |
ASA4#,AVA44 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ASA4# |
2 | ||
| 84231-60070 |
ASA4#,AVA44 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ASA4# |
1 | ||
| 84810-52030 |
ASA4#,AVA44 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ASA4# |
2 | ||
| 84810-52030 |
ASA4#,AVA44 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ASA4# |
2 | ||
| 84810-52030 |
ASA4#,AVA44 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-42210 |
ASA4#,AVA44..LIMD,SE,XLE |
1 | ||
| 84820-42210 |
ASA4#..LIMD,XLE |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-48020 |
AVA44;ASA4#..LIMD |
1 | ||
| 84840-28030 |
ASA4# |
1 | ||
| 84840-28040 |
ASA4#..LIMD WIRELESS DOOR LOCK-SMART ENTRY+PANIC BUTTON+POWER BACK DOOR |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-42030 |
ASA4#,AVA44..LIMD |
1 | ||
| 84927-42010 |
ASA4#..LIMD |
1 | ||
| 84927-42011 |
ASA4#,AVA44..LIMD |
1 | ||
| 84927-42010 |
ASA42..LIMD SEAT COVER MATERIAL-FABRIC |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-42040 |
ASA4#,AVA44..LIMD |
1 | ||
| 84930-42040 |
ASA4#..LIMD |
1 | ||
| 84930-42040 |
ASA42..LIMD POWER DOOR LOCK-WITH(TWO OPERATION) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-42040 |
ASA4#,AVA44..LIMD |
1 | ||
| 84930-42040 |
ASA4#..LIMD |
1 | ||
| 84930-42040 |
ASA42..LIMD POWER DOOR LOCK-WITH(TWO OPERATION) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0W380 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W382 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W070 |
ASA4#..LIMD KOREA SPEC,MARK=RA |
1 | ||
| 88162-0W381 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W383 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88163 - COVER, BLIND SPOT MONITOR, RH | ||||
| 88163-42010 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88163-42010 |
ASA4#..LIMD KOREA SPEC |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0W070 |
ASA4#..LIMD KOREA SPEC,MARK=RA |
1 | ||
| 88162-0W380 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W382 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W383 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W381 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88173 - COVER, BLIND SPOT MONITOR, LH | ||||
| 88173-42010 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88173-42010 |
ASA4#..LIMD KOREA SPEC |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-42050 |
ASA4#..LIMD P/N LABEL=8922242050 |
1 | ||
| 89222-42050 |
ASA42..LIMD KOREA SPEC&WIRELESS DOOR LOCK-SMART ENTRY,P/N LABEL=8922242050 |
1 | ||
| 89222-42040 |
ASA4#,AVA44..LIMD |
1 | ||
| 89222-42040 |
ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION)&HEAD LAMP-LED |
1 | ||
| 89222-42041 |
ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION)&HEAD LAMP-LED |
1 | ||
| 89222-42041 |
ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION) |
1 | ||
| 89222-42040 |
ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION) |
1 | ||
| 89222-42041 |
ASA4#,AVA44..LIMD |
1 | ||
| 89222-42090 |
ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION) |
1 | ||
| 89222-42090 |
ASA4#,AVA44..LIMD |
1 | ||
| 89222-42090 |
ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION)&HEAD LAMP-LED |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
ASA4#..LIMD |
1 | ||
| 89747-30040 |
ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION) |
1 | ||
| 89747-30040 |
ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION)&HEAD LAMP-LED |
1 | ||
| 89747-30040 |
ASA4#,AVA44..LIMD |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
ASA4#..LIMD |
1 | ||
| 89747-30040 |
ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION) |
1 | ||
| 89747-30040 |
ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION)&HEAD LAMP-LED |
1 | ||
| 89747-30040 |
ASA4#,AVA44..LIMD |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90179-06178 | ||||
| 91553-80612 | ||||
| 93319-A4010 | ||||
| 94151-80600 | ||||

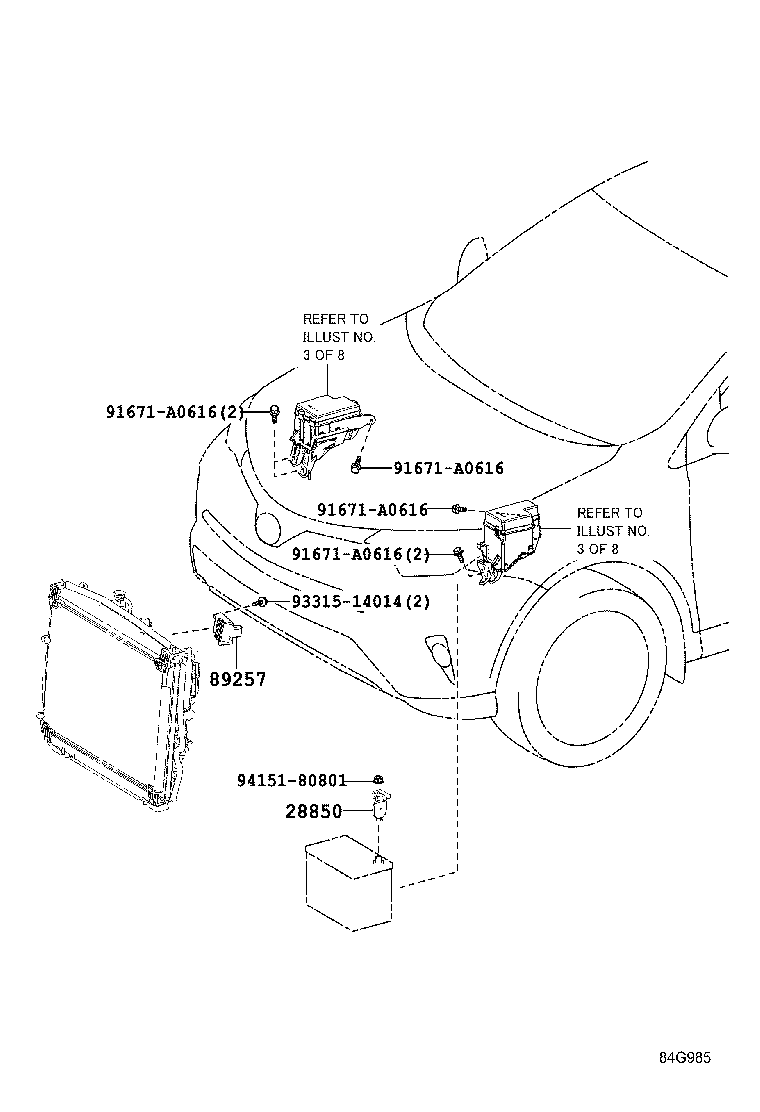

ILLUST NO. 2 OF 8(1510- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-36010 |
2ARFE..ASA42 |
1 | ||
| 28850-36010 |
2ARFE..ASA42 |
1 | ||
| Common parts | ||||
| 91671-A0616 | ||||
| 93315-14014 | ||||
| 94151-80801 | ||||

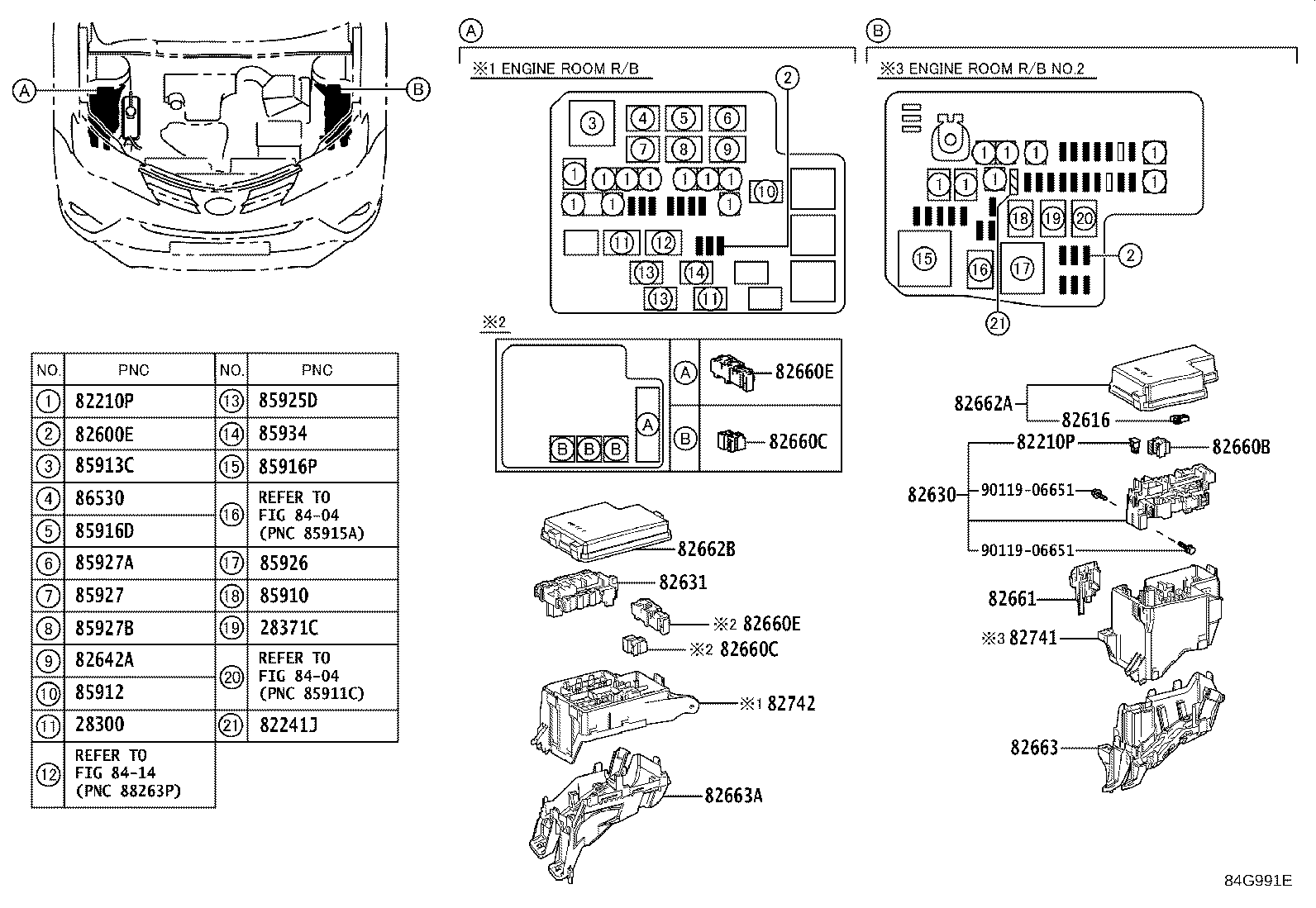

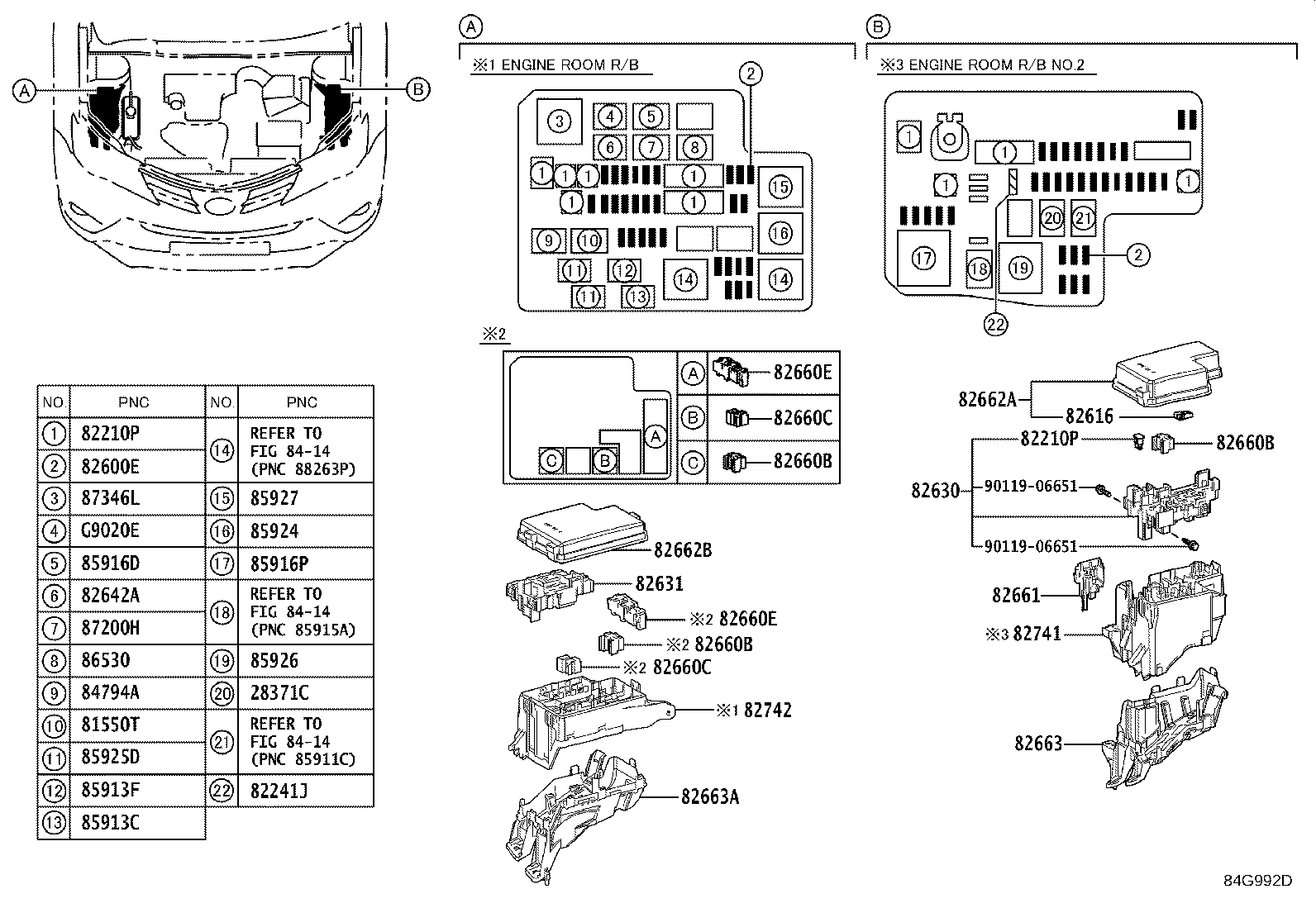

ILLUST NO. 3 OF 8(1510- )ASA4# ; (1510- )AVA44..SE
ENGINE ROOM RELAY BLOCK(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2ARFE..ASA4# |
1 | ||
| 28300-21020 |
2ARFE..ASA4# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2ARFE..ASA4# |
1 | ||
| 90987-02027 |
2AR#..ASA4#,AVA44 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
ASA4# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08294 |
ASA4# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ASA4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
ASA4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ASA4#,AVA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08305 |
ASA4# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08286 |
ASA4# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
ASA4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
ASA4#,AVA44 80A,TERM.:FEMALE,BLK |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
ASA4# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08294 |
ASA4# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ASA4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
ASA4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ASA4#,AVA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08305 |
ASA4# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08286 |
ASA4# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
ASA4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
ASA4#,AVA44 80A,TERM.:FEMALE,BLK |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
ASA4#..LIMD,XLE |
1 | ||
| 82241-42010 |
ASA4#..LIMD,SE,XLE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
ASA4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ASA4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASA4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ASA4#,AVA44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ASA4# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09020 |
ASA4#,AVA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASA4#,AVA44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASA4#,AVA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ASA4# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASA4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASA4#,AVA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
ASA4#,AVA44 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ASA4#,AVA44 |
1 | ||
| 82616-58010 |
ASA4# |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-42020 |
ASA4# |
1 | ||
| 82630-42030 |
ASA4# |
1 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-42060 |
ASA4# |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-02027 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 90987-02027 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 82642-60020 |
ASA4# |
1 | ||
| 82642-52030 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-60170 |
ASA4# |
1 | ||
| 82660-52130 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ASA4# |
1 | ||
| 82660-42060 |
ASA4# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ASA4# |
1 | ||
| 82660-42060 |
ASA4# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42040 |
ASA4# |
1 | ||
| 82661-42040 |
ASA4#,AVA44 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42340 |
ASA4# |
1 | ||
| 82662-42410 |
ASA4# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42620 |
ASA4# |
1 | ||
| 82662-42621 |
ASA4# |
1 | ||
| 82662-42370 |
ASA4# |
1 | ||
| 82662-42620 |
ASA4#..LE,LIMD,XLE |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42100 |
ASA4# |
1 | ||
| 82663-42100 |
ASA4#,AVA44 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42120 |
ASA4# |
1 | ||
| 82663-42110 |
ASA4#,AVA44 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42020 |
ASA4# |
1 | ||
| 82741-42020 |
ASA4# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-42040 |
ASA4# |
1 | ||
| 82741-42031 |
ASA4# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ASA4#,AVA44..LIMD,SE,XLE |
1 | ||
| 90987-02027 |
ASA4#..LIMD,XLE |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ASA4# |
1 | ||
| 90987-02025 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 90987-02025 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 85925D - RELAY, PTC HEATER | ||||
| 90987-02027 |
ASA4# |
2 | ||
| 90987-02027 |
ASA4#,AVA44 |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ASA4#,AVA44 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ASA4# |
1 | ||
| 90987-02027 |
ASA4# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ASA4# |
1 | ||
| 90987-04004 |
ASA4# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ASA4# |
1 | ||
| 90987-02027 |
ASA4# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02027 |
ASA42 |
1 | ||
| 90987-02027 |
ASA42 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ASA4# |
1 | ||
| 90987-02027 |
ASA4#,AVA44 |
1 | ||
| Common parts | ||||
| 90119-06651 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
ILLUST NO. 3 OF 8(1510- )LIMD,SE,XLE
ENGINE ROOM RELAY BLOCK(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2ARFE..ASA4# |
1 | ||
| 90987-02027 |
2AR#..ASA4#,AVA44 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
ASA4# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08294 |
ASA4# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ASA4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
ASA4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ASA4#,AVA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08305 |
ASA4# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08286 |
ASA4# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
ASA4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
ASA4#,AVA44 80A,TERM.:FEMALE,BLK |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
ASA4# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08294 |
ASA4# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ASA4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
ASA4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ASA4#,AVA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08305 |
ASA4# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08286 |
ASA4# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
ASA4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
ASA4#,AVA44 80A,TERM.:FEMALE,BLK |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
ASA4#..LIMD,XLE |
1 | ||
| 82241-42010 |
ASA4#..LIMD,SE,XLE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
ASA4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ASA4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASA4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ASA4#,AVA44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ASA4# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09020 |
ASA4#,AVA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASA4#,AVA44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASA4#,AVA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ASA4# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASA4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASA4#,AVA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
ASA4#,AVA44 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ASA4#,AVA44 |
1 | ||
| 82616-58010 |
ASA4# |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-42020 |
ASA4# |
1 | ||
| 82630-42030 |
ASA4# |
1 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-42060 |
ASA4# |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-02027 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 90987-02027 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 82642-60020 |
ASA4# |
1 | ||
| 82642-52030 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-60170 |
ASA4# |
1 | ||
| 82660-52130 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-60170 |
ASA4# |
1 | ||
| 82660-52130 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-60170 |
ASA4# |
1 | ||
| 82660-52130 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 82660-0H070 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ASA4# |
1 | ||
| 82660-42060 |
ASA4# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ASA4# |
1 | ||
| 82660-42060 |
ASA4# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42040 |
ASA4# |
1 | ||
| 82661-42040 |
ASA4#,AVA44 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42340 |
ASA4# |
1 | ||
| 82662-42410 |
ASA4# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42620 |
ASA4# |
1 | ||
| 82662-42621 |
ASA4# |
1 | ||
| 82662-42370 |
ASA4# |
1 | ||
| 82662-42620 |
ASA4#..LE,LIMD,XLE |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42100 |
ASA4# |
1 | ||
| 82663-42100 |
ASA4#,AVA44 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42120 |
ASA4# |
1 | ||
| 82663-42110 |
ASA4#,AVA44 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42020 |
ASA4# |
1 | ||
| 82741-42020 |
ASA4# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-42040 |
ASA4# |
1 | ||
| 82741-42031 |
ASA4# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ASA4#,AVA44..LIMD,SE,XLE |
1 | ||
| 90987-02027 |
ASA4#..LIMD,XLE |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ASA4# |
1 | ||
| 90987-02025 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 90987-02025 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 85925D - RELAY, PTC HEATER | ||||
| 90987-02027 |
ASA4# |
2 | ||
| 90987-02027 |
ASA4#,AVA44 |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ASA4#,AVA44 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ASA4# |
1 | ||
| 90987-02027 |
ASA4# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ASA4# |
1 | ||
| 90987-02027 |
ASA4#,AVA44 |
1 | ||
| 87200H - RELAY, HEATER WATER PUMP | ||||
| 90987-02027 |
ASA4#,AVA44..LIMD,SE,XLE |
1 | ||
| Common parts | ||||
| 90119-06651 | ||||
| Linked diagrams | ||||
| 8414 | ||||
ILLUST NO. 4 OF 8(1510- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASA4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ASA4#,AVA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASA4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ASA4#,AVA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ASA4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ASA4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ASA4# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ASA4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASA4#,AVA44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
ASA4#,AVA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ASA4#,AVA44 25A,MINI FUSE |
1 | ||
| 90982-09024 |
ASA4# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
ASA4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ASA4#,AVA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ASA4#,AVA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ASA4#,AVA44 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ASA4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ASA4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ASA4# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ASA4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASA4#,AVA44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
ASA4#,AVA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ASA4#,AVA44 25A,MINI FUSE |
1 | ||
| 90982-09024 |
ASA4# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
ASA4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ASA4#,AVA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ASA4#,AVA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ASA4#,AVA44 15A,MINI FUSE,BLUE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-42180 |
ASA4#,AVA44 |
1 | ||
| 82672-42150 |
ASA4# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-42730 |
ASA4#..LIMD,XLE |
1 | ||
| 82730-42801 |
ASA4#,AVA44..LIMD,SE,XLE |
1 | ||
| 82730-42800 |
ASA4#,AVA44..LIMD,SE,XLE |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-42010 |
ASA4#..LIMD WIRELESS DOOR LOCK-SMART ENTRY+PANIC BUTTON+POWER BACK DOOR&CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 82877-42010 |
ASA4#..LIMD WIRELESS DOOR LOCK-SMART ENTRY+PANIC BUTTON+POWER BACK DOOR |
1 | ||
| 82877-42030 |
ASA4#,AVA44 |
1 | ||
| 82877-42010 |
ASA4# CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
ASA4# |
1 | ||
| 90987-02027 |
ASA4#,AVA44 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
ASA4#..LE,LIMD,XLE |
1 | ||
| 84340-19025 |
ASA4# |
1 | ||
| 84340-49065 |
ASA4#..LIMD KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 84340-39015 |
ASA4#..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 84340-39015 |
ASA4#..LIMD HEAD LAMP-LED |
1 | ||
| 84340-19026 |
ASA4#..LE,LIMD,XLE |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ASA4# |
1 | ||
| 84345-51010 |
ASA4# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ASA4# |
1 | ||
| 84550-33010 |
ASA4#,AVA44 |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-42010 |
ASA4# PRE-COLLISION SYSTEM-WITH |
1 | ||
| 88150-42011 |
ASA4# PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 88150-42011 |
ASA4# |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-42021 |
ASA4#,AVA44 |
1 | ||
| 89111-42020 |
ASA4#,AVA44 |

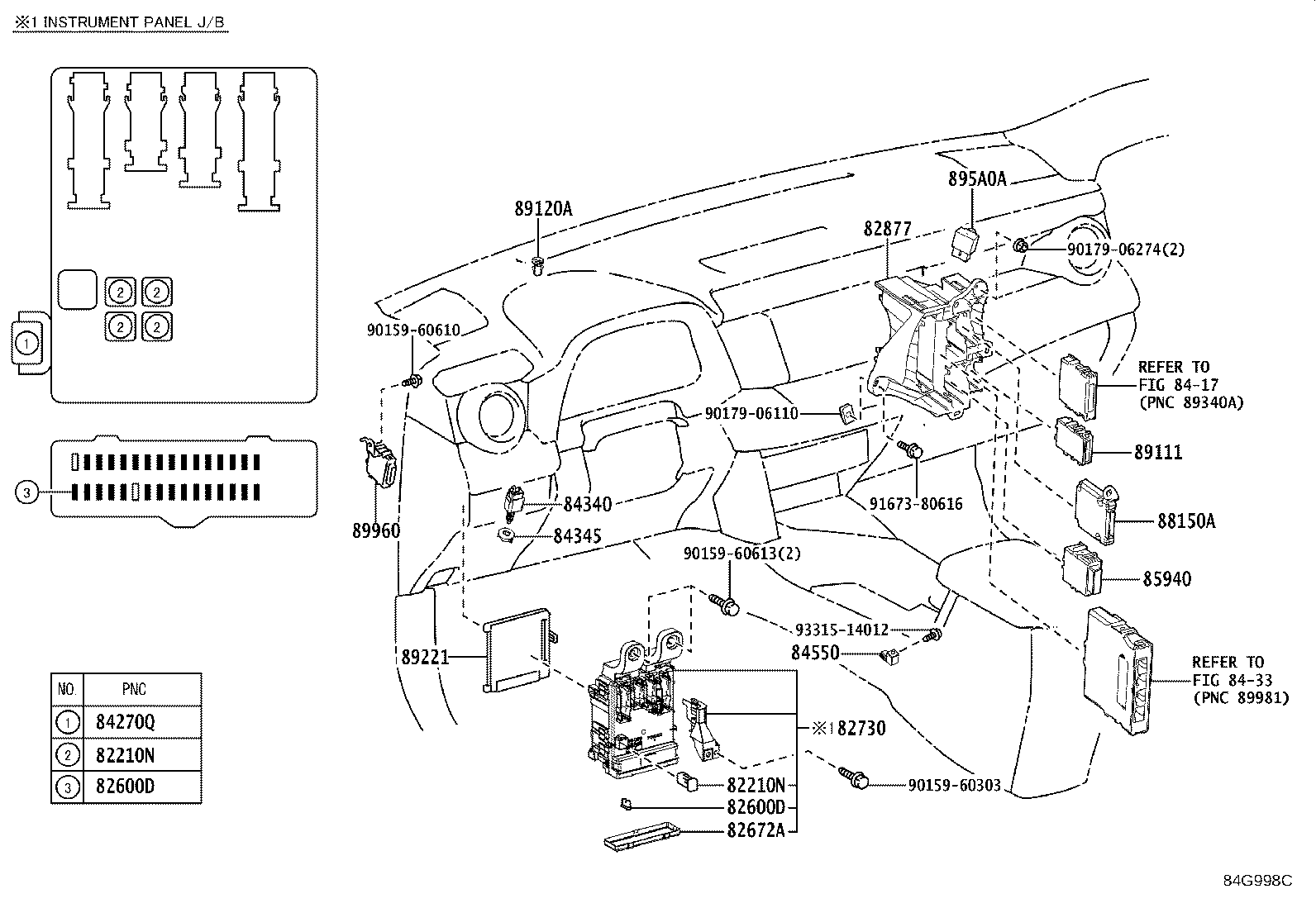

1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-50020 |
ASA4#,AVA44..LIMD,SE,XLE |
1 | ||
| 89121-50020 |
ASA4#..LIMD,XLE |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-42310 |
ASA4#..LIMD GUAM,SAIPAN,A.SAMOA,HAWAII SPEC,P/N LABEL=8922042310 |
1 | ||
| 89220-42040 |
ASA42..LIMD KOREA SPEC&SEAT COVER MATERIAL-FABRIC,P/N LABEL=8922042040 |
1 | ||
| 89220-42030 |
ASA4#..LIMD P/N LABEL=8922042030 |
1 | ||
| 89220-42V10 |
ASA4#,AVA44..LIMD..USA HAWAII SPEC |
1 | ||
| 89220-42U50 |
ASA4#,AVA44..LIMD..USA |
1 | ||
| 89220-42V20 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 89220-42V60 |
ASA4#,AVA44..LIMD..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC |
1 | ||
| 89220-4A570 |
ASA4#,AVA44..LIMD..USA |
1 | ||
| 89220-4A630 |
ASA4#,AVA44..LIMD..USA HAWAII SPEC |
1 | ||
| 89220-4A640 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4A680 |
ASA4#,AVA44..LIMD..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-20020 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 895A0-20020 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-42170 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60610 | ||||
| 90159-60613 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8433 | ||||

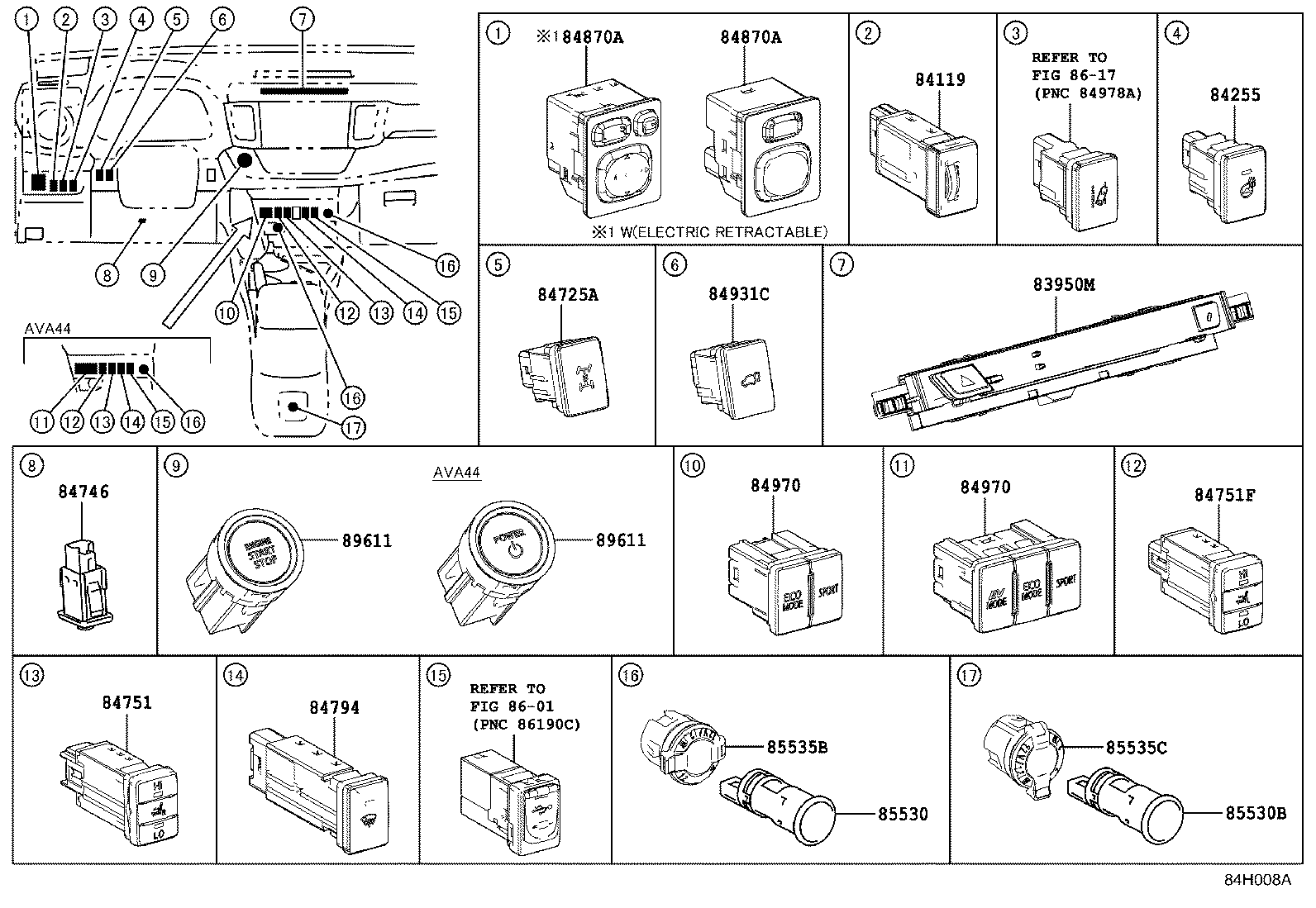

ILLUST NO. 5 OF 8(1510- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-42190 |
ASA4#,AVA44 |
1 | ||
| 83950-42020 |
ASA4# CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 83950-42200 |
ASA4#,AVA44..LIMD,SE CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 83950-42040 |
ASA4# |
1 | ||
| 83950-42360 |
ASA4#,AVA44 |
1 | ||
| 83950-42370 |
AVA44..LIMD..CND;ASA4#,AVA44..(LIMD,SE)..USA CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-47030 |
ASA4# |
1 | ||
| 84119-42021 |
ASA4#,AVA44 |
1 | ||
| 84119-42021 |
ASA4#,AVA44..LIMD..USA KOREA SPEC |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-50010 |
ASA4# |
1 | ||
| 84746-50010 |
ASA4#,AVA44..USA |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-42070 |
ASA4#..LIMD |
1 | ||
| 84751-42072 |
ASA4#,AVA44..LIMD,SE |
1 | ||
| 84751-42070 |
ASA42..LIMD SEAT COVER MATERIAL-FABRIC |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-42080 |
ASA42..LIMD SEAT COVER MATERIAL-FABRIC |
1 | ||
| 84751-42082 |
ASA4#,AVA44..LIMD,SE |
1 | ||
| 84751-42080 |
ASA4#..LIMD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-52050 |
ASA4#..LIMD KOREA SPEC |
1 | ||
| 84870-52050 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 84870-74010 |
ASA4#,AVA44 |
1 | ||
| 84870-74010 |
ASA4# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-52050 |
ASA4#..LIMD KOREA SPEC |
1 | ||
| 84870-52050 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 84870-74010 |
ASA4#,AVA44 |
1 | ||
| 84870-74010 |
ASA4# |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-42050 |
ASA4#..LIMD |
1 | ||
| 84930-42051 |
ASA4#,AVA44..LIMD |
1 | ||
| 84930-42050 |
ASA42..LIMD KOREA SPEC |
1 | ||
| 84930-42051 |
ASA42..LIMD POWER DOOR LOCK-WITH(TWO OPERATION) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42010 |
ASA4# |
1 | ||
| 84970-42010 |
ASA4# |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42010 |
ASA4# |
1 | ||
| 84970-42010 |
ASA4# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ASA4# |
1 | ||
| 85530-42010 |
ASA4#,AVA44 |
2 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
ASA4#,AVA44 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-42060 |
ASA4# |
1 | ||
| 85535-42060 |
ASA4#,AVA44 |
2 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-42070 |
ASA4#,AVA44 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42010 |
ASA4#..LIMD WIRELESS DOOR LOCK-SMART ENTRY+PANIC BUTTON+POWER BACK DOOR |
1 | ||
| 89611-42011 |
ASA4#..LIMD |
1 | ||
| 89611-42012 |
ASA4#..LIMD |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42010 |
ASA4#..LIMD WIRELESS DOOR LOCK-SMART ENTRY+PANIC BUTTON+POWER BACK DOOR |
1 | ||
| 89611-42011 |
ASA4#..LIMD |
1 | ||
| 89611-42012 |
ASA4#..LIMD |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||
| 8617 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
