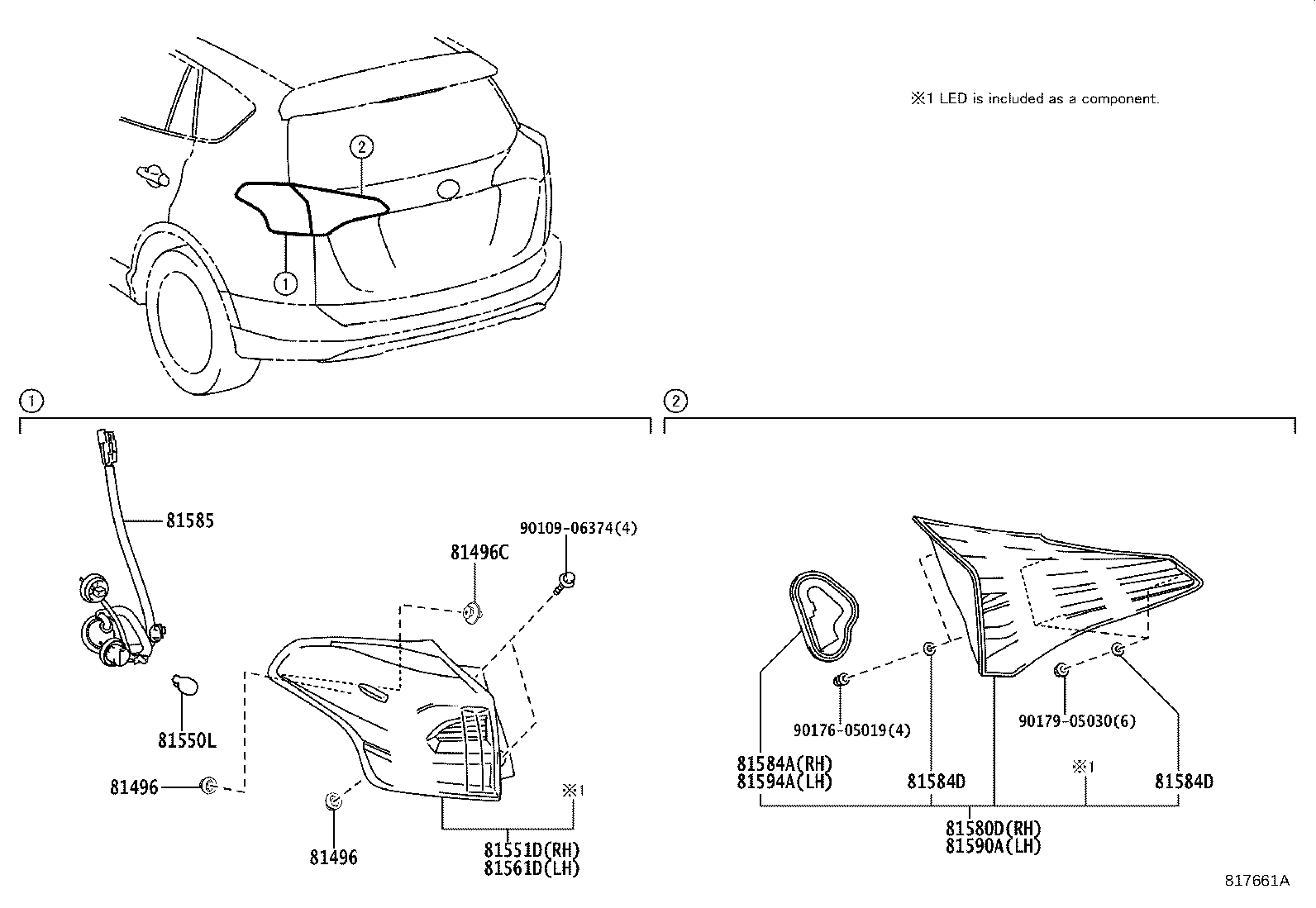

ASA42L-ANTGKA (2015)
Toyota Rav4 (Jpp)
(1510- )LE,LIMD,XLE
STOP LAMP = BULB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ASA4#,AVA44 |
4 | ||
| 81496-52020 |
ASA4# |
4 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ASA4#,AVA44 |
4 | ||
| 81496-52020 |
ASA4# |
4 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
ASA4# |
2 | ||
| 81496-60010 |
ASA4#,AVA44 |
2 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 90981-11067 |
ASA4# |
2 | ||
| 90981-11067 |
ASA4#,AVA44..LE,LIMD,XLE 12V 5W |
2 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
ASA4# |
2 | ||
| 90981-13044 |
ASA4#,AVA44..LE,LIMD,XLE 12V 21/5W |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-13043 |
ASA4# |
2 | ||
| 90981-15011 |
ASA4#,AVA44 12V 21W,AMBER |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-42160 |
ASA4# |
1 | ||
| 81551-42210 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81551-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81551-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81551-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81551-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81551-42211 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81551-42201 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81551-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81551-42202 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81551-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81551-42212 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81551-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81561-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561-42210 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81561-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561-42211 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81561-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81561-42212 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81561-42160 |
ASA4# |
1 | ||
| 81561-42201 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81561-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81561-42202 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81561-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-42050 |
ASA4# |
1 | ||
| 81581-42062 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81581-42061 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81581-42060 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-42050 |
ASA4# |
1 | ||
| 81584-42060 |
ASA4#,AVA44 |
1 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81584-22040 |
ASA4# |
10 | ||
| 81584-22040 |
ASA4#,AVA44 |
10 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81584-22040 |
ASA4# |
10 | ||
| 81584-22040 |
ASA4#,AVA44 |
10 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81555-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
2 | ||
| 81555-42210 |
ASA4#,AVA44..LE,LIMD,XLE |
2 | ||
| 81555-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
2 | ||
| 81555-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
2 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81593-42010 |
ASA4# |
1 | ||
| 81591-42021 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81591-42020 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81591-42022 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-42020 |
ASA4#,AVA44 |
1 | ||
| 81584-42050 |
ASA4# |
1 | ||
| Common parts | ||||
| 90109-06374 | ||||
| 90176-05019 | ||||
| 90179-05030 | ||||
(1510- )LIMD,SE
STOP LAMP = LED , EXCEPT KOREA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ASA4#,AVA44 |
4 | ||
| 81496-52020 |
ASA4# |
4 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ASA4#,AVA44 |
4 | ||
| 81496-52020 |
ASA4# |
4 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
ASA4# |
2 | ||
| 81496-60010 |
ASA4#,AVA44 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-13043 |
ASA4# |
2 | ||
| 90981-15011 |
ASA4#,AVA44 12V 21W,AMBER |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-42160 |
ASA4# |
1 | ||
| 81551-42210 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81551-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81551-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81551-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81551-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81551-42211 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81551-42201 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81551-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81551-42202 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81551-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81551-42212 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81551-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81561-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561-42210 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81561-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561-42211 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81561-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81561-42212 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81561-42160 |
ASA4# |
1 | ||
| 81561-42201 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81561-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81561-42202 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81561-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-42030 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81580-42031 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81580-42032 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81580-42030 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81580-42032 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81580-42031 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-42050 |
ASA4# |
1 | ||
| 81584-42060 |
ASA4#,AVA44 |
1 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81584-22040 |
ASA4# |
10 | ||
| 81584-22040 |
ASA4#,AVA44 |
10 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81584-22040 |
ASA4# |
10 | ||
| 81584-22040 |
ASA4#,AVA44 |
10 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81555-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
2 | ||
| 81555-42210 |
ASA4#,AVA44..LE,LIMD,XLE |
2 | ||
| 81555-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
2 | ||
| 81555-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
2 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-42031 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81590-42031 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81590-42032 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81590-42030 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81590-42032 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81590-42030 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-42020 |
ASA4#,AVA44 |
1 | ||
| 81584-42050 |
ASA4# |
1 | ||
| Common parts | ||||
| 90109-06374 | ||||
| 90176-05019 | ||||
| 90179-05030 | ||||
(1510- )LIMD..USA
STOP LAMP = LED , FOR KOREA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ASA4#,AVA44 |
4 | ||
| 81496-52020 |
ASA4# |
4 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ASA4#,AVA44 |
4 | ||
| 81496-52020 |
ASA4# |
4 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
ASA4# |
2 | ||
| 81496-60010 |
ASA4#,AVA44 |
2 | ||
| 81536A - LED, REAR COMBINATION LAMP | ||||
| 81536-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
2 | ||
| 81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81538-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81548B - GASKET, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81538-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-13043 |
ASA4# |
2 | ||
| 90981-15011 |
ASA4#,AVA44 12V 21W,AMBER |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-42160 |
ASA4# |
1 | ||
| 81551-42210 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81551-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81551-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81551-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81551-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81551-42211 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81551-42201 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81551-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81551-42202 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81551-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81551-42212 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81551-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81561-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561-42210 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81561-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561-42211 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81561-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81561-42212 |
ASA4#,AVA44..LE,LIMD,XLE |
1 | ||
| 81561-42160 |
ASA4# |
1 | ||
| 81561-42201 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81561-42191 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81561-42202 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
1 | ||
| 81561-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81561-42192 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-42030 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81580-42031 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81580-42032 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81580-42030 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81580-42032 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81580-42031 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-42050 |
ASA4# |
1 | ||
| 81584-42060 |
ASA4#,AVA44 |
1 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81584-22040 |
ASA4# |
10 | ||
| 81584-22040 |
ASA4#,AVA44 |
10 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81584-22040 |
ASA4# |
10 | ||
| 81584-22040 |
ASA4#,AVA44 |
10 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81555-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
2 | ||
| 81555-42210 |
ASA4#,AVA44..LE,LIMD,XLE |
2 | ||
| 81555-42200 |
ASA4#,AVA44..LIMD..USA KOREA SPEC&HEAD LAMP-LED |
2 | ||
| 81555-42190 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
2 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-42031 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81590-42031 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81590-42032 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81590-42030 |
ASA4#,AVA44..LIMD HEAD LAMP-LED |
1 | ||
| 81590-42032 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81590-42030 |
ASA4#,AVA44..LIMD HEAD LAMP-LED, W(*AHB) |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-42020 |
ASA4#,AVA44 |
1 | ||
| 81584-42050 |
ASA4# |
1 | ||
| Common parts | ||||
| 81559-42200 | ||||
| 90109-06374 | ||||
| 90176-05019 | ||||
| 90179-05030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
