ASA38L-ANPSKA (2008)

Toyota Rav4 (Jpp)

Production Aug 2008 - Dec 2012
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0808- )SPO,X

Click highlighted areas on diagram

diagram 0901 51451F 51451G 5152 5152 52029 52085 52131A 52161C 52161C 52535 52536 52614 53119E 5351 5351 5351 5353 8101 9010506241 9011906565 9015960498 9015960498 9046705107 91674A1028 93567A5014
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

ASA3#,GSA3#..JPP..(SPO,X)

 4
51451G - GROMMET, NO.2
90189-06193

ASA3#,GSA3#..JPP

 2
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-42090

ASA3#,GSA3#..JPP

 1
52085 - STAY SUB-ASSY, FRONT BUMPER, CENTER
52085-42030

ASA3#,GSA3#..JPP

 1
52131A - REINFORCEMENT, FRONT BUMPER
52021-42082

ASA3#,GSA3#..JPP..USA

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ASA3#,GSA3#..JPP

 4
52161C - PIECE, FRONT BUMPER
52161-16010

ASA3#,GSA3#..JPP

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-42021

ASA3#,GSA3#..JPP

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-42021

ASA3#,GSA3#..JPP

 1
52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2
52614-42050

ASA3#,GSA3#..JPP

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-42020

ASA3#,GSA3#..JPP

 2
Common parts
90105-06241
90119-06565
90159-60498
90467-05107
91674-A1028
93567-A5014
Linked diagrams
0901
5152
5351
5353
8101

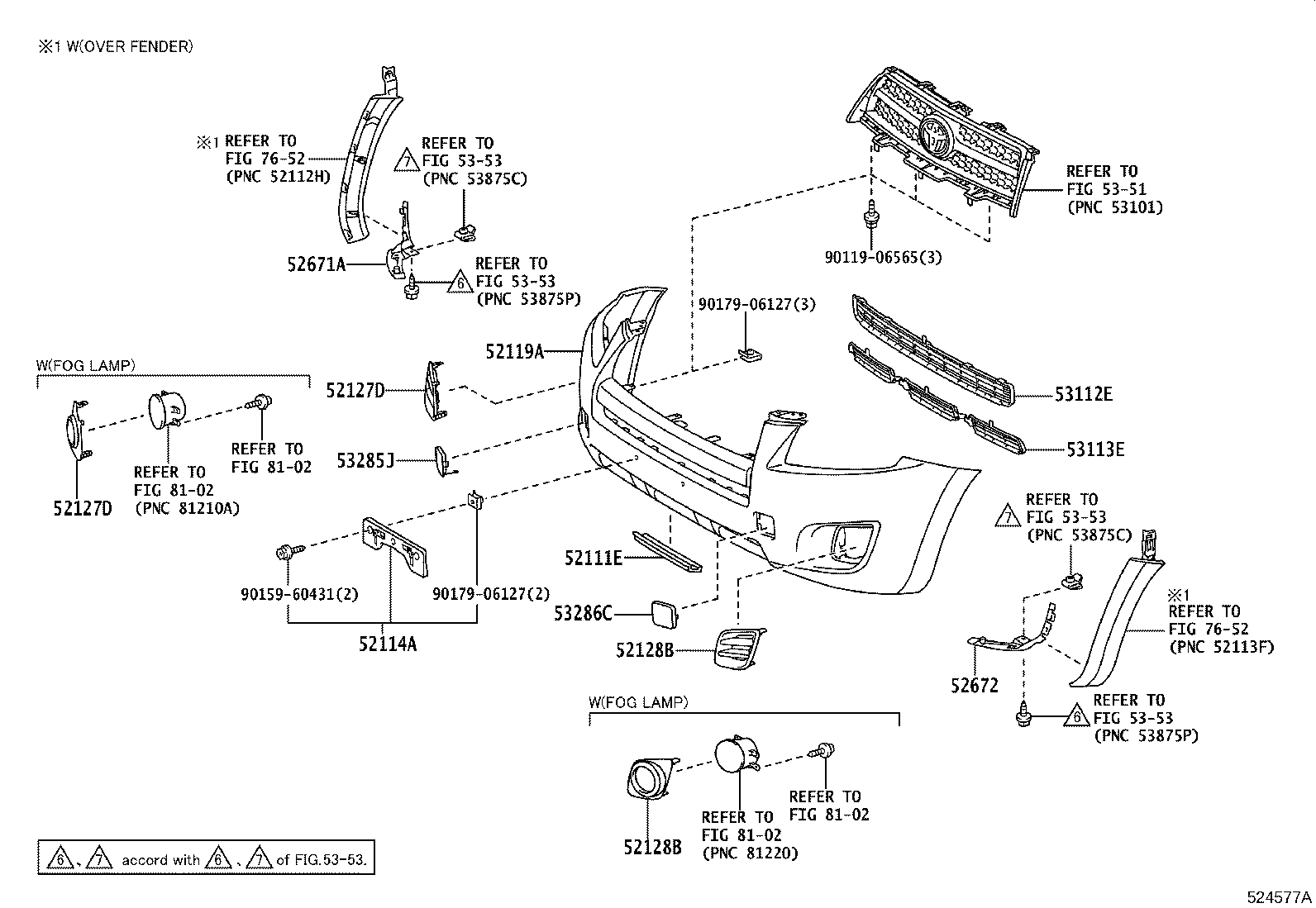

ILLUST NO. 2 OF 2(0808- )SPO,X

Click highlighted areas on diagram

diagram 52111E 52114A 52119A 52127D 52127D 52128B 52128B 52671A 52672 53112E 53113E 53285J 53286C 5351 5353 5353 5353 5353 7652 7652 8102 8102 8102 8102 9011906565 9015960431 9017906127 9017906127
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-42010

ASA3#,GSA3#..JPP

 1
52111-42020

ASA3#,GSA3#..JPP

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-42030

ASA3#,GSA3#..JPP..(SPO,X)

 1
52119A - COVER, FRONT BUMPER
52119-42972

ASA3#,GSA3#..JPP..SPO

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-42060

ASA3#,GSA3#..JPP..SPO

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-42060

ASA3#,GSA3#..JPP..SPO

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-42060

ASA3#,GSA3#..JPP..SPO

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-42060

ASA3#,GSA3#..JPP..SPO

 1
52671A - EXTENSION, FRONT BUMPER ARM, RH
52671-42010

ASA3#,GSA3#..JPP..(SPO,X)

 1
52672 - EXTENSION, FRONT BUMPER ARM, LH
52672-42010

ASA3#,GSA3#..JPP..(SPO,X)

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-42070

ASA3#,GSA3#..JPP..(SPO,X)

 1
53113E - GRILLE, RADIATOR, LOWER NO.2
53113-42050

ASA3#,GSA3#..JPP..(SPO,X)

 1
53285J - COVER, FRONT BUMPER ARM HOLE, RH
53285-42927

ASA3#,GSA3#..JPP..(SPO,X)

 1
53286C - COVER, FRONT BUMPER ARM HOLE, LH
53286-42928

ASA3#,GSA3#..JPP..(SPO,X)

 1
Common parts
90119-06565
90159-60431
90179-06127
Linked diagrams
5351
5353
7652
8102
