ASA38L-ANPGKA (2008)

Toyota Rav4 (Jpp)

Production Aug 2008 - Dec 2012
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )

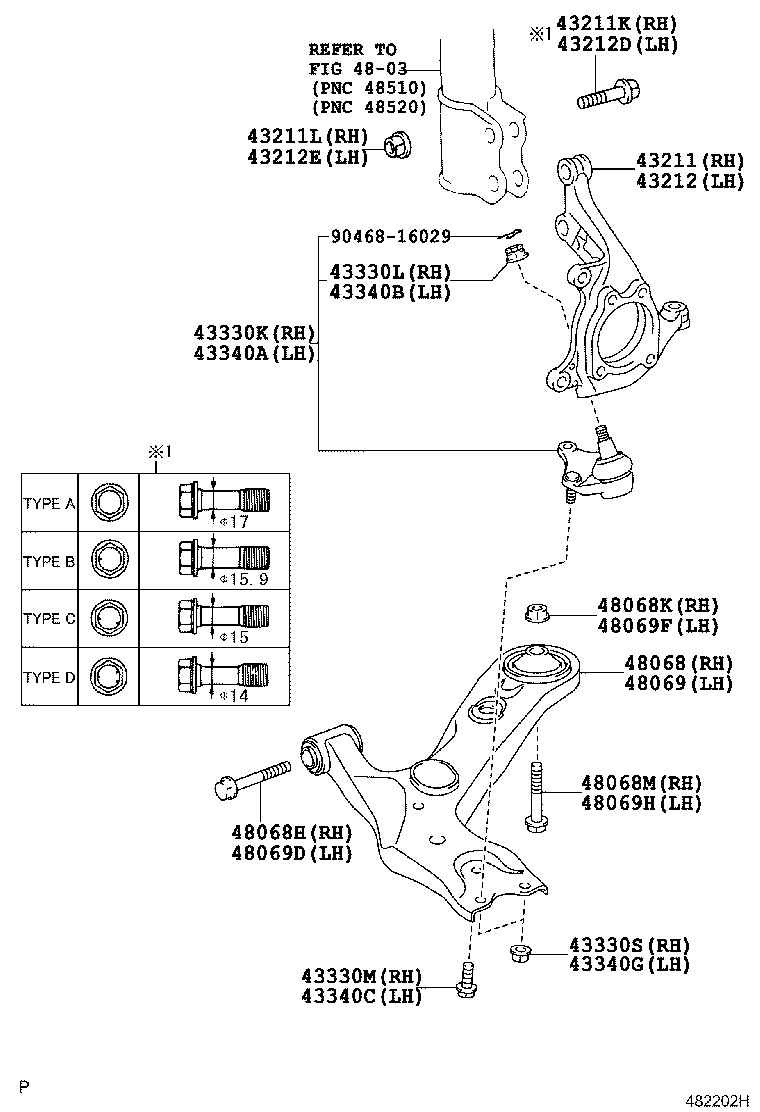

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9046816029
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-42080

ASA3#,GSA3#..JPP

 1
43211-42081

ASA3#,GSA3#..JPP

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17008

ASA3#,GSA3#..JPP

OD=17,TYPE A:REFER ILLUST.

 2
90105-17011

ASA3#,GSA3#..JPP

OD=14,TYPE D:REFER ILLUST.

 1
90105-17010

ASA3#,GSA3#..JPP

OD=15,TYPE C:REFER ILLUST.

 1
90105-17009

ASA3#,GSA3#..JPP

OD=15.9,TYPE B:REFER ILLUST.

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

ASA3#,GSA3#..JPP

 2
43212 - KNUCKLE, STEERING, LH
43212-42081

ASA3#,GSA3#..JPP

 1
43212-42080

ASA3#,GSA3#..JPP

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17008

ASA3#,GSA3#..JPP

OD=17,TYPE A:REFER ILLUST.

 2
90105-17009

ASA3#,GSA3#..JPP

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17011

ASA3#,GSA3#..JPP

OD=14,TYPE D:REFER ILLUST.

 1
90105-17010

ASA3#,GSA3#..JPP

OD=15,TYPE C:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

ASA3#,GSA3#..JPP

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-49095

ASA3#,GSA3#..JPP

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14011

ASA3#,GSA3#..JPP

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
91552-G1230

ASA3#,GSA3#..JPP

 1
90105-12346

ASA3#,GSA3#..JPP

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019

ASA3#,GSA3#..JPP

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-49095

ASA3#,GSA3#..JPP

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14011

ASA3#,GSA3#..JPP

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12346

ASA3#,GSA3#..JPP

 1
91552-G1230

ASA3#,GSA3#..JPP

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019

ASA3#,GSA3#..JPP

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-42051

ASA3#,GSA3#..JPP

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
91554-L1690

ASA3#,GSA3#..JPP

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-16006

ASA3#,GSA3#..JPP

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
91554-L1690

ASA3#,GSA3#..JPP

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-42051

ASA3#,GSA3#..JPP

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
91554-L1690

ASA3#,GSA3#..JPP

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-16006

ASA3#,GSA3#..JPP

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
91554-L1690

ASA3#,GSA3#..JPP

 1
Common parts
90468-16029
Linked diagrams
4803
