ASA33L-ANPSKK (2008)

Toyota Rav4 (Jpp)

Production Aug 2008 - Dec 2012
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )SPO,X

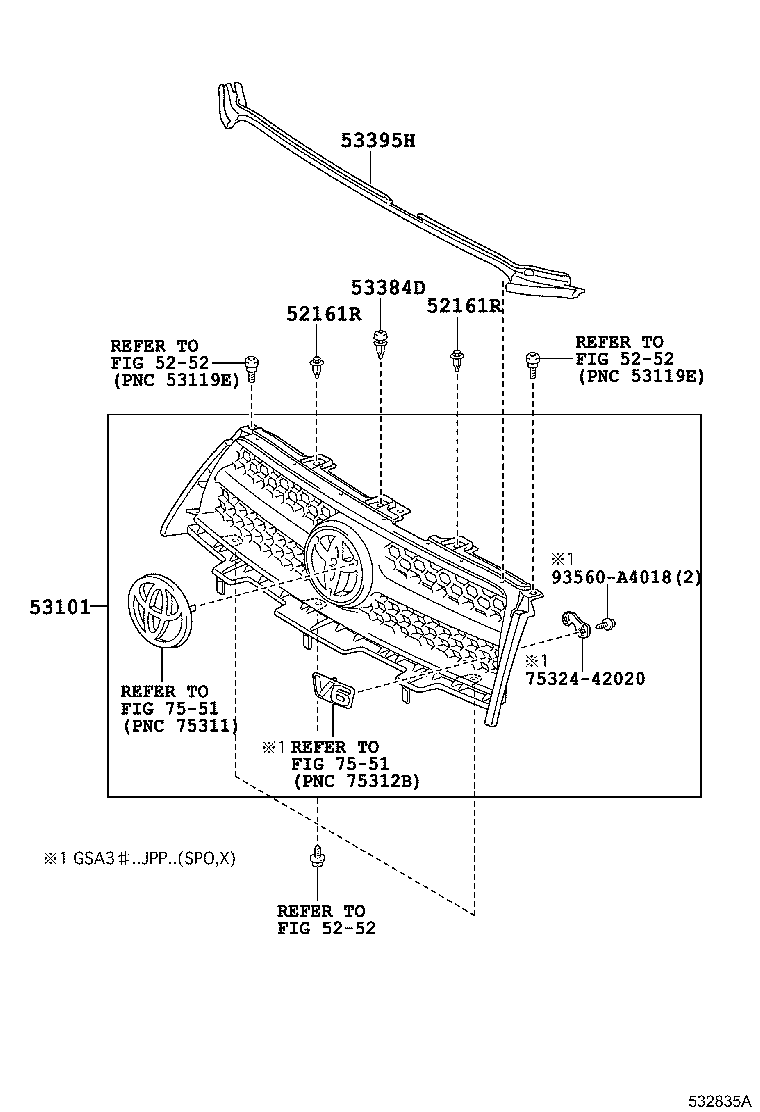

Click highlighted areas on diagram

diagram 52161R 52161R 5252 5252 5252 53101 53384D 53395H 7532442020 7551 7551 93560A4018
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ASA3#,GSA3#..JPP

 2
52161R - PIECE, FRONT BUMPER
52161-16010

ASA3#,GSA3#..JPP

 2
53101 - GRILLE SUB-ASSY, RADIATOR
53101-42220

ASA3#..JPP..(SPO,X)

NO PAINT REQ.

 1
53384D - CUSHION, HOOD, CENTER
53384-68010

ASA3#,GSA3#..JPP

 1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-42051

ASA3#,GSA3#..JPP

 1
53395-42050

ASA3#,GSA3#..JPP

 1
Common parts
75324-42020
93560-A4018
Linked diagrams
5252
7551
