ASA33L-ANPGKA (2008)

Toyota Rav4 (Jpp)

Production Aug 2008 - Dec 2012
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )ASA3#

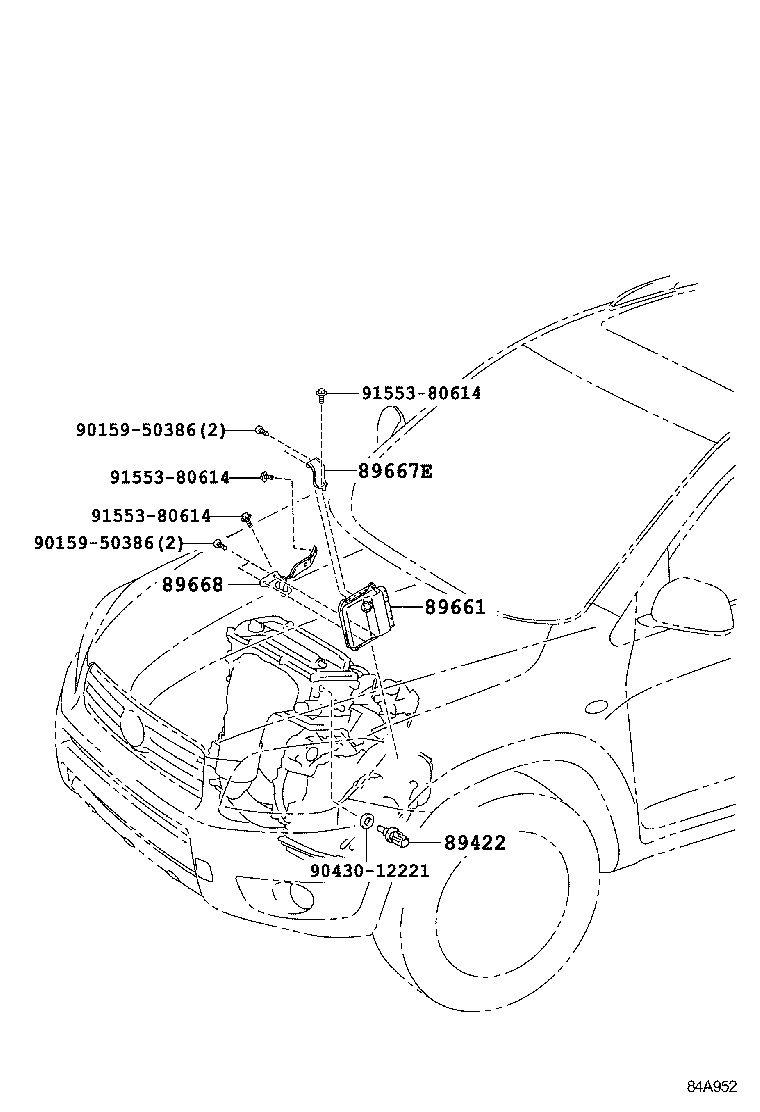

Click highlighted areas on diagram

diagram 89422 89661 89667E 89668 9015950386 9015950386 9043012221 9155380614 9155380614 9155380614
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ASA3#,GSA3#..JPP

 1
89661 - COMPUTER, ENGINE CONTROL
89661-42J90

ASA33..JPP

 1
89661-42Q30

ASA33..JPP

 1
89661-42K11

ASA33..JPP..USA

MEXICO SPEC

 1
89661-42J91

ASA33..JPP

 1
89661-42Q31

ASA33..JPP

 1
89661-42M71

ASA33..JPP..LIMD..USA

KOREA SPEC

 1
89661-42Q33

ASA33..JPP

 1
89661-42M70

ASA33..JPP..LIMD..USA

KOREA SPEC

 1
89661-42K10

ASA33..JPP..USA

MEXICO SPEC

 1
89661-42Q32

ASA33..JPP

 1
89661-42M72

ASA33..JPP..LIMD..USA

KOREA SPEC

 1
89661-42T70

ASA33..JPP

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-42050

ASA3#,GSA3#..JPP

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-42050

ASA3#,GSA3#..JPP

 1
Common parts
90159-50386
90430-12221
91553-80614
