ASA33L-ANPGKA (2008)

Toyota Rav4 (Jpp)

Production Aug 2008 - Dec 2012
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )ASA3#

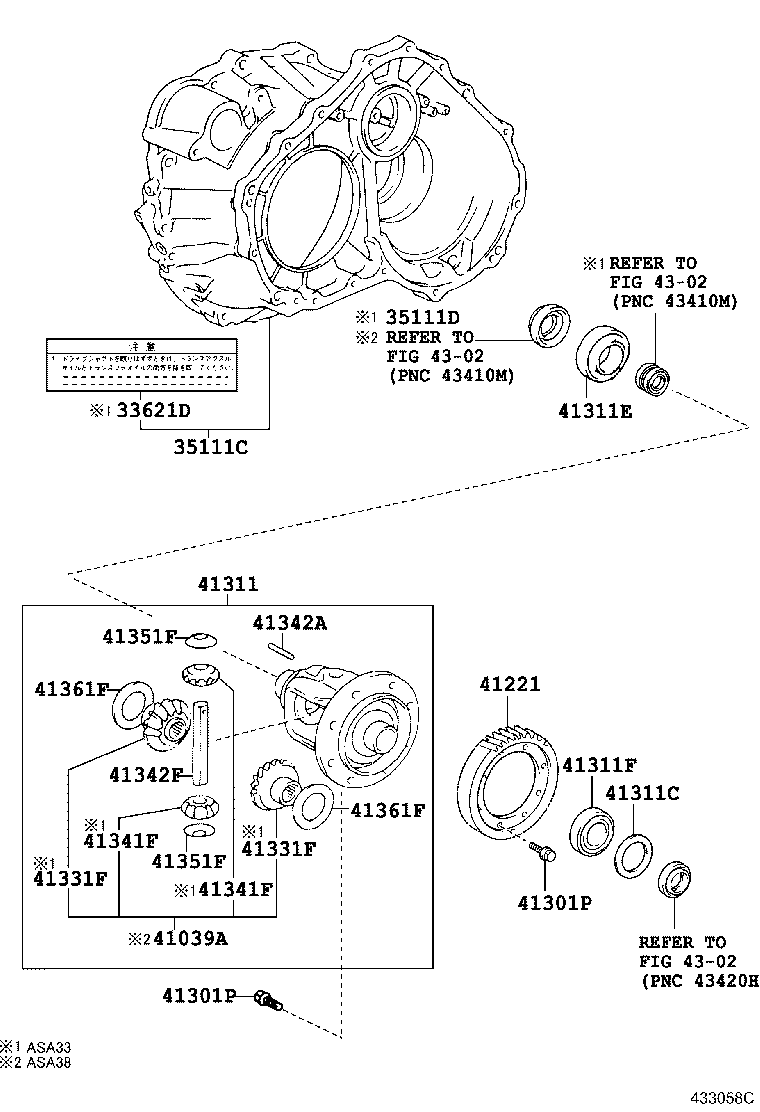

Click highlighted areas on diagram

U140F,U241E,U151E,U151F

diagram 33621D 35111C 35111D 41039A 41221 41301P 41301P 41311 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302 4302 4302
Part # Description Qty Price
33621D - LABEL, TRANSAXLE OIL INFORMATION
33621-42010

ASA33,GSA33..JPP

 1
35111C - HOUSING, TRANSAXLE
35105-28044

ASA33..JPP

 1
35111D - SEAL, OIL (FOR TRANSAXLE HOUSING)
90311-55005

ASA33,GSA33..JPP

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-28100

ASA33..JPP

 1
41301P - SCREW(FOR FRONT DIFFERENTIAL CASE)
90105-12303

ASA33,GSA3#..JPP

 14
41301P - SCREW(FOR FRONT DIFFERENTIAL CASE)
90105-12303

ASA33,GSA3#..JPP

 14
41311 - CASE, FRONT DIFFERENTIAL
41301-28100

ASA33..JPP

 1
41301-42180

ASA33..JPP

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-79001

ASA33,GSA3#..JPP

T=2.00,MARK 0

 1
90564-79002

ASA33,GSA3#..JPP

T=2.05,MARK 1

 1
90564-79003

ASA33,GSA3#..JPP

T=2.10,MARK 2

 1
90564-79010

ASA33,GSA3#..JPP

T=2.45,MARK 9

 1
90564-79004

ASA33,GSA3#..JPP

T=2.15,MARK 3

 1
90564-79006

ASA33,GSA3#..JPP

T=2.25,MARK 5

 1
90564-79012

ASA33,GSA3#..JPP

T=2.55,MARK B

 1
90564-79007

ASA33,GSA3#..JPP

T=2.30,MARK 6

 1
90564-79009

ASA33,GSA3#..JPP

T=2.40,MARK 8

 1
90564-79013

ASA33,GSA3#..JPP

T=2.60,MARK C

 1
90564-79015

ASA33,GSA3#..JPP

T=2.70,MARK E

 1
90564-79011

ASA33,GSA3#..JPP

T=2.50,MARK A

 1
90564-79008

ASA33,GSA3#..JPP

T=2.35,MARK 7

 1
90564-79091

ASA33,GSA3#..JPP

T=2.075,MARK K

 1
90564-79017

ASA33,GSA3#..JPP

T=2.80,MARK G

 1
90564-79090

ASA33,GSA3#..JPP

T=2.025,MARK J

 1
90564-79005

ASA33,GSA3#..JPP

T=2.20,MARK 4

 1
90564-79014

ASA33,GSA3#..JPP

T=2.65,MARK D

 1
90564-79103

ASA33,GSA3#..JPP

T=2.675,MARK X

 1
90564-79092

ASA33,GSA3#..JPP

T=2.125,MARK L

 1
90564-79016

ASA33,GSA3#..JPP

T=2.75,MARK F

 1
90564-79095

ASA33,GSA3#..JPP

T=2.275,MARK P

 1
90564-79096

ASA33,GSA3#..JPP

T=2.325,MARK Q

 1
90564-79018

ASA33,GSA3#..JPP

T=2.85,MARK H

 1
90564-79093

ASA33,GSA3#..JPP

T=2.175,MARK M

 1
90564-79098

ASA33,GSA3#..JPP

T=2.425,MARK S

 1
90564-79099

ASA33,GSA3#..JPP

T=2.475,MARK T

 1
90564-79106

ASA33,GSA3#..JPP

T=2.825,MARK AB

 1
90564-79097

ASA33,GSA3#..JPP

T=2.375,MARK R

 1
90564-79105

ASA33,GSA3#..JPP

T=2.775,MARK AA

 1
90564-79102

ASA33,GSA3#..JPP

T=2.625,MARK W

 1
90564-79104

ASA33,GSA3#..JPP

T=2.725,MARK Y

 1
90564-79101

ASA33,GSA3#..JPP

T=2.575,MARK V

 1
90564-79094

ASA33,GSA3#..JPP

T=2.225,MARK N

 1
90564-79100

ASA33,GSA3#..JPP

T=2.525,MARK U

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-62004

ASA33,GSA33..JPP

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50106

ASA33,GSA3#..JPP

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-48050

ASA33..JPP

 2
41331-48070

ASA33..JPP

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-48050

ASA33..JPP

 2
41331-48070

ASA33..JPP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-48060

ASA33..JPP

 2
41341-48040

ASA33..JPP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-48060

ASA33..JPP

 2
41341-48040

ASA33..JPP

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ASA3#,GSA3#..JPP

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-28020

ASA33,GSA3#..JPP

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-33011

ASA33,GSA3#..JPP

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-33011

ASA33,GSA3#..JPP

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41363-33010

ASA33,GSA3#..JPP

T=1.825

 2
41362-33080

ASA33,GSA3#..JPP

T=1.725

 2
41361-33010

ASA33,GSA3#..JPP

T=1.625

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41363-33010

ASA33,GSA3#..JPP

T=1.825

 2
41362-33080

ASA33,GSA3#..JPP

T=1.725

 2
41361-33010

ASA33,GSA3#..JPP

T=1.625

 2
