ASA33L-ANPGKA (2008)

Toyota Rav4 (Jpp)

Production Aug 2008 - Dec 2012
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )ASA3#

Click highlighted areas on diagram

U140F,U241E

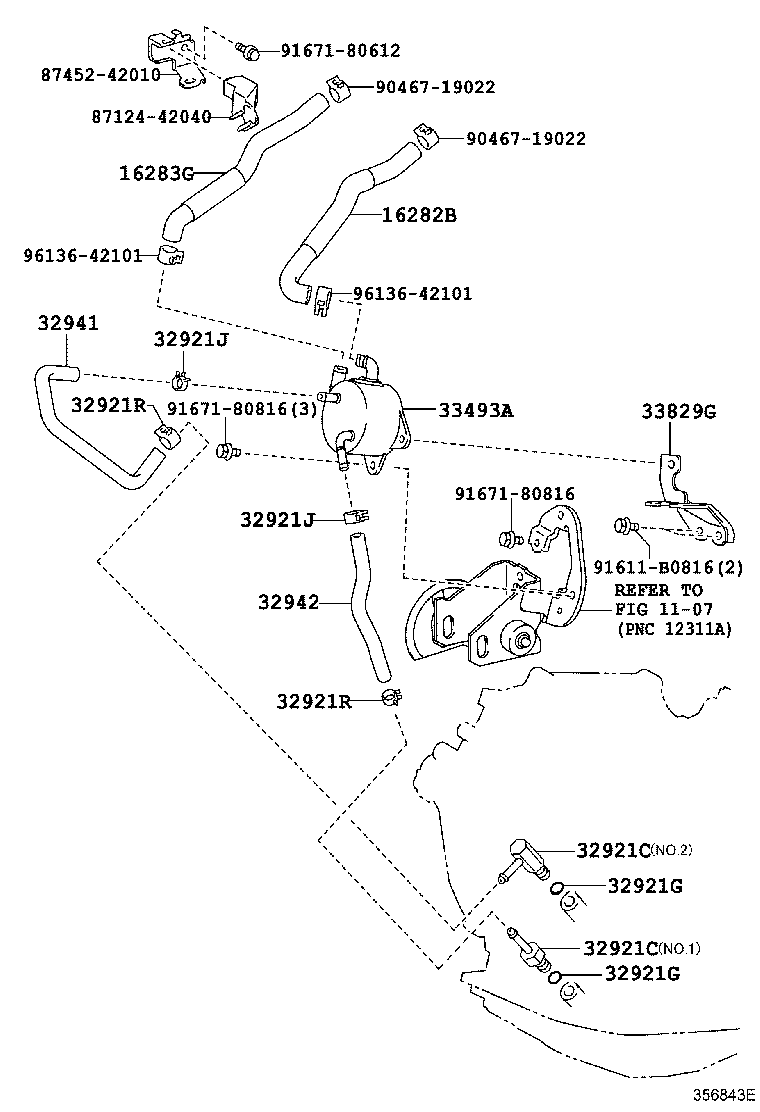

diagram 1107 16282B 16283G 32921C 32921C 32921G 32921G 32921J 32921J 32921R 32921R 32941 32942 33493A 33829G 8712442040 8745242010 9046719022 9046719022 91611B0816 9167180612 9167180816 9167180816 9613642101 9613642101
Part # Description Qty Price
16282B - HOSE, WATER BY-PASS, NO.5
16282-36010

2ARFE..ASA3#..JPP

 1
16282-36011

2ARFE..ASA3#..JPP

 1
16283G - HOSE, WATER BY-PASS, NO.6
16283-36010

2ARFE..ASA3#..JPP

 1
16283-36011

2ARFE..ASA3#..JPP

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-13009

ASA3#..JPP

NO.2

 1
90404-13004

ASA3#..JPP

NO.1

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-13009

ASA3#..JPP

NO.2

 1
90404-13004

ASA3#..JPP

NO.1

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ASA3#,GSA3#..JPP

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ASA3#,GSA3#..JPP

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

ASA3#..JPP

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

ASA3#..JPP

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

ASA3#..JPP

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

ASA3#..JPP

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-42040

ASA3#..JPP

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-42030

ASA3#..JPP

 1
33493A - COOLER, TRANSMISSION OIL
33493-42060

ASA3#..JPP

 1
33829G - SUPPORT, TRANSMISSION CONTROL CABLE
33829-42060

ASA3#..JPP

 1
Common parts
87124-42040
87452-42010
90467-19022
91611-B0816
91671-80612
91671-80816
96136-42101
Linked diagrams
1107
