ACA33L-ANPXKK (2005)

Toyota Rav4 (Jpp)

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )

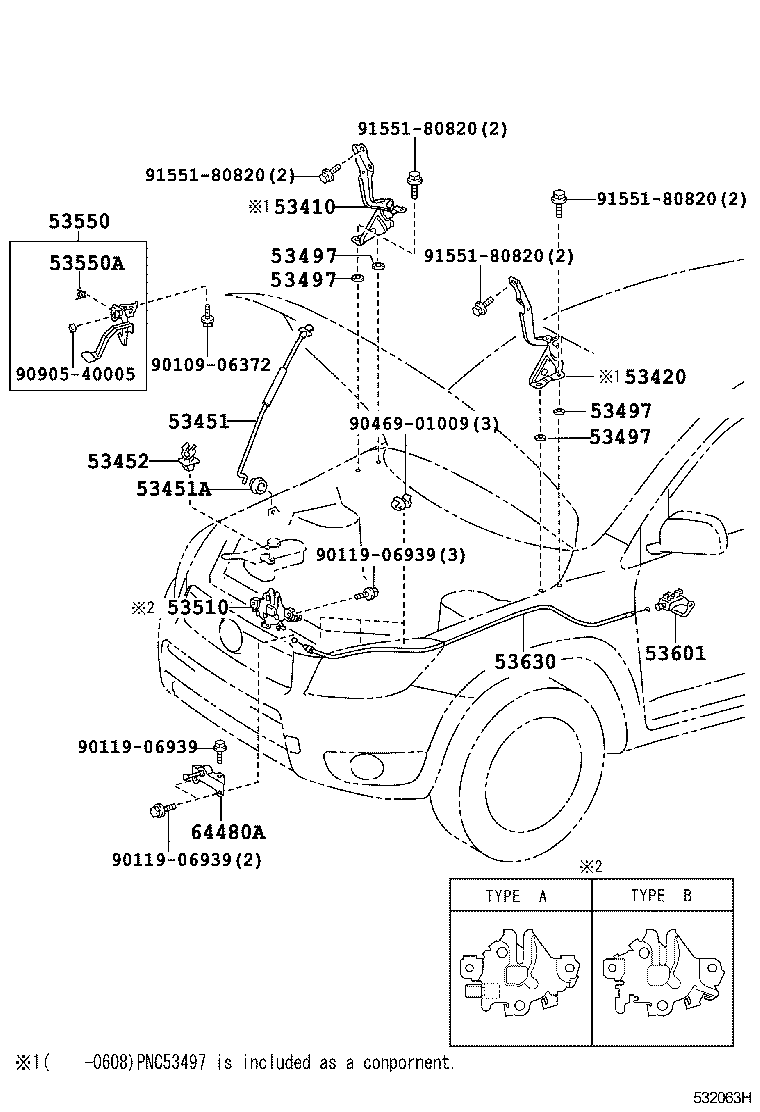

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53497 53497 53510 53550 53550A 53601 53630 64480A 9010906372 9011906939 9011906939 9011906939 9046901009 9090540005 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-42060

ACA3#,GSA3#..JPP

 1
53410-42040

ACA3#,GSA3#..JPP

 1
53420 - HINGE ASSY, HOOD, LH
53420-42060

ACA3#,GSA3#..JPP

 1
53420-42040

ACA3#,GSA3#..JPP

 1
53451 - ROD, HOOD SUPPORT
53440-42040

ACA3#,GSA3#..JPP

 1
53440-42030

ACA3#,GSA3#..JPP

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
53454-42010

ACA3#,GSA3#..JPP

 1
90480-15025

ACA3#,GSA3#..JPP

 1
53452 - HOLDER, HOOD STAY
53452-42020

ACA3#,GSA3#..JPP

 1
53452-42010

ACA3#,GSA3#..JPP

 1
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ACA3#,GSA3#..JPP

T=0.5

 4
53497-20070

ACA3#,GSA3#..JPP

T=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ACA3#,GSA3#..JPP

T=0.5

 4
53497-20070

ACA3#,GSA3#..JPP

T=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ACA3#,GSA3#..JPP

T=0.5

 4
53497-20070

ACA3#,GSA3#..JPP

T=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ACA3#,GSA3#..JPP

T=0.5

 4
53497-20070

ACA3#,GSA3#..JPP

T=2.0

 4
53510 - LOCK ASSY, HOOD
53510-42070

ACA3#,GSA3#..JPP

TYPE A:REFER ILLUST.

 1
53510-42090

ACA3#,GSA3#..JPP

TYPE B:REFER ILLUST.

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-42020

ACA3#,GSA3#..JPP

 1
53550A - SPRING, TORSION(FOR HOOD LOCK HOOK)
90508-18102

ACA3#,GSA3#..JPP

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010B9

ACA3#,GSA3#..JPP..(LIMD,X)

GRAY,TRIM1#

 1
53601-52010E0

ACA3#,GSA3#..JPP..(LIMD,X)

FAWN,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-42100

ACA3#,GSA3#..JPP

 1
64480A - STRIKER ASSY, ENGINE HOOD LOCK
64480-42010

ACA3#,GSA3#..JPP

 1
Common parts
90109-06372
90119-06939
90469-01009
90905-40005
91551-80820
