ACA33L-ANPXKK (2005)

Toyota Rav4 (Jpp)

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

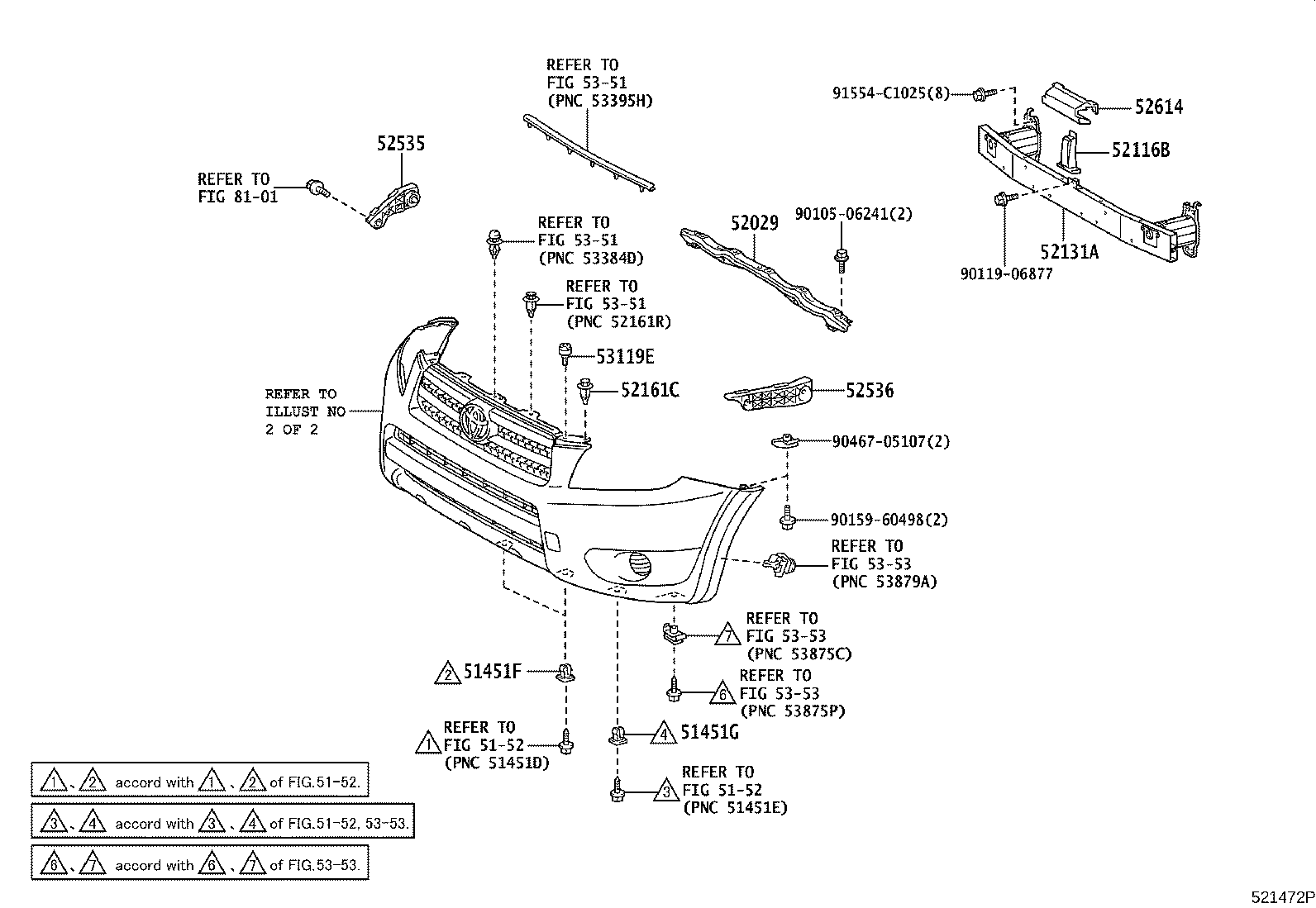

ILLUST NO. 1 OF 2(0511-0808)

Click highlighted areas on diagram

diagram 51451F 51451G 5152 5152 52029 52116B 52131A 52161C 52535 52536 52614 53119E 5351 5351 5351 5353 5353 5353 8101 9010506241 9011906877 9015960498 9046705107 91554C1025
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

ACA3#,GSA3#..JPP

 4
51451G - GROMMET, NO.2
90189-06193

ACA3#,GSA3#..JPP

 2
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-42070

ACA3#,GSA3#..JPP

 1
52116B - RETAINER, FRONT BUMPER
52116-42020

ACA3#,GSA3#..JPP

 1
52131A - REINFORCEMENT, FRONT BUMPER
52021-42061

ACA33,GSA33..JPP..CND

 1
52021-42062

ACA33,GSA33..JPP..CND

 1
52021-42060

ACA33,GSA33..JPP..CND

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ACA3#,GSA3#..JPP

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-42021

ACA3#,GSA3#..JPP

 1
52535-42020

ACA3#,GSA3#..JPP

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-42021

ACA3#,GSA3#..JPP

 1
52536-42020

ACA3#,GSA3#..JPP

 1
52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2
52614-42020

ACA3#,GSA3#..JPP

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-42020

ACA3#,GSA3#..JPP

 2
53119-20120

ACA3#,GSA3#..JPP

 2
Common parts
90105-06241
90119-06877
90159-60498
90467-05107
91554-C1025
Linked diagrams
5152
5351
5353
8101

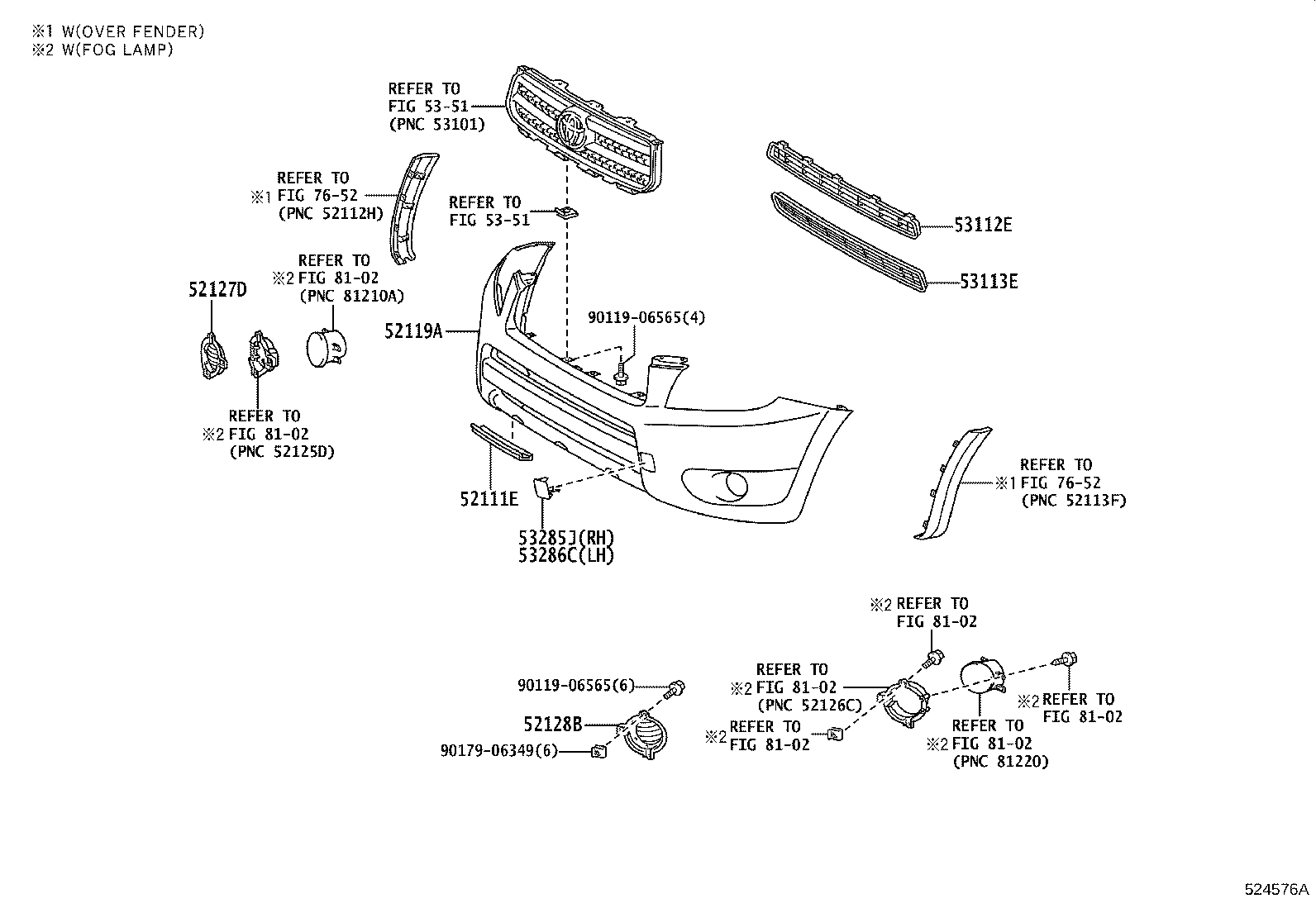

ILLUST NO. 2 OF 2(0511-0808)

Click highlighted areas on diagram

diagram 52111E 52119A 52127D 52128B 53112E 53113E 53285J 53286C 5351 5351 7652 7652 8102 8102 8102 8102 8102 8102 8102 9011906565 9011906565 9017906349
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-42010

ACA3#,GSA3#..JPP

 1
52119A - COVER, FRONT BUMPER
52119-42925

ACA3#,GSA3#..JPP..(LIMD,X)

 1
52119-42955

ACA3#,GSA3#..JPP..(LIMD,X)

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-42040

ACA3#,GSA3#..JPP..X

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-42040

ACA3#,GSA3#..JPP..X

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-42050

ACA3#,GSA3#..JPP

 1
53113E - GRILLE, RADIATOR, LOWER NO.2
53113-42040

ACA3#,GSA3#..JPP

 1
53285J - COVER, FRONT BUMPER ARM HOLE, RH
53285-42901

ACA3#,GSA3#..JPP

 1
53286C - COVER, FRONT BUMPER ARM HOLE, LH
53286-42901

ACA3#,GSA3#..JPP

 1
Common parts
90119-06565
90179-06349
Linked diagrams
5351
7652
8102
