ACA33L-ANPXKK (2005)
Toyota Rav4 (Jpp)
Production
Nov 2005
-
Aug 2008
Engine
2AZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0511-0808)

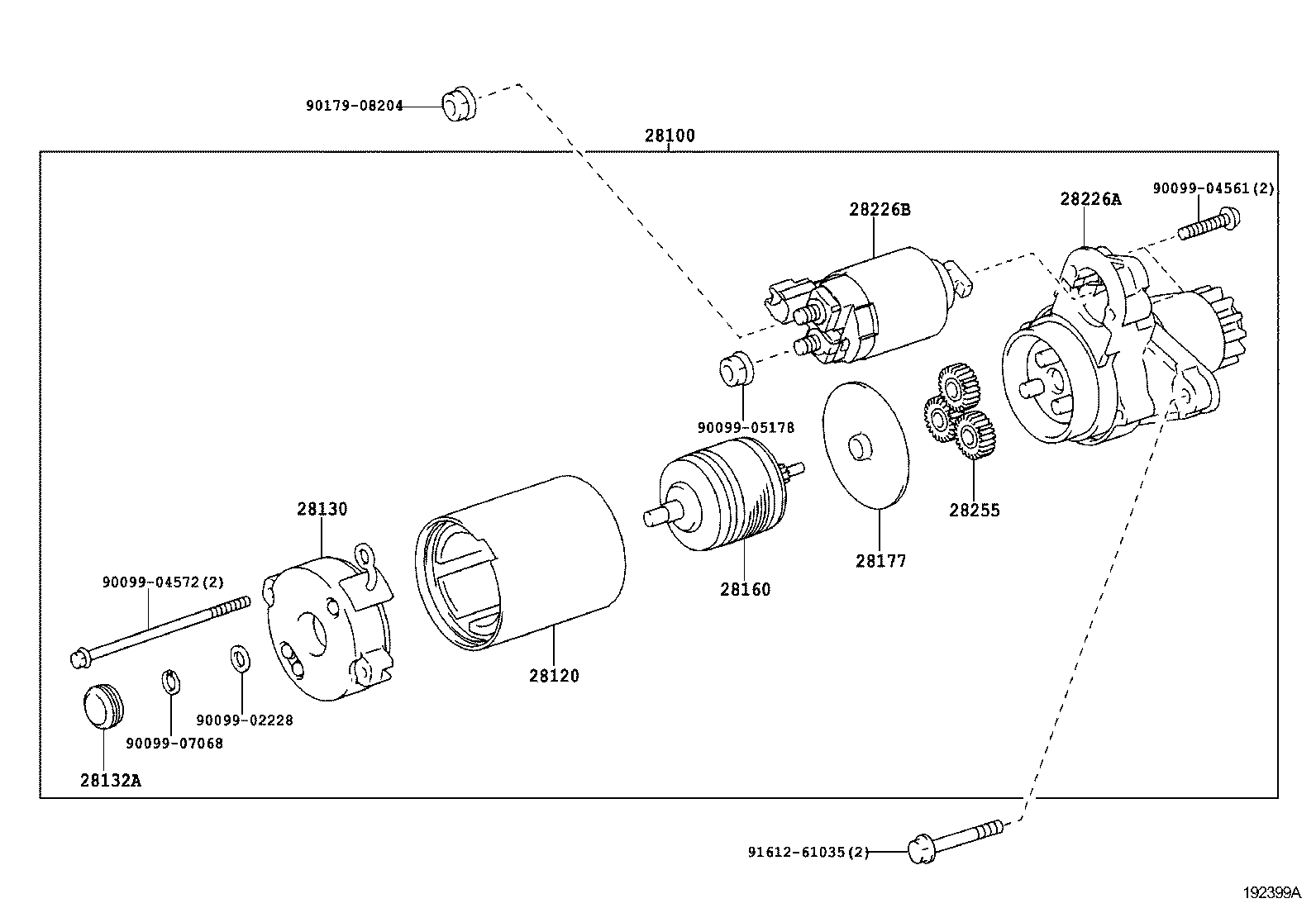

Click highlighted areas on diagram
12V 1.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-20020 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP 12V 1.7KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-28040 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-20020 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 28132A - COVER, STARTER COMMUTATOR END FRAME | ||||
| 28132-28040 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-28040 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-28041 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-28051 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-20020 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
3 | ||
| Common parts | ||||
| 90099-02228 | ||||
| 90099-04561 | ||||
| 90099-04572 | ||||
| 90099-05178 | ||||
| 90099-07068 | ||||
| 90179-08204 | ||||
| 91612-61035 | ||||
