ACA33L-ANPXKA (2005)

Toyota Rav4 (Jpp)

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0808)

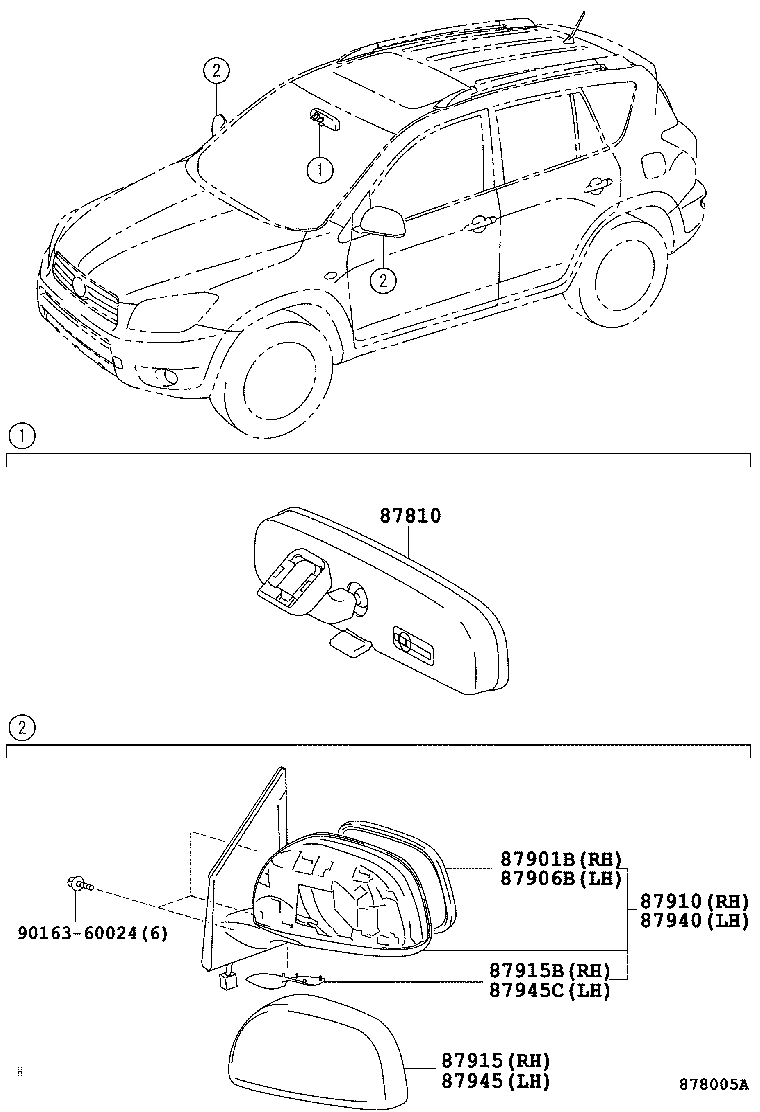

Click highlighted areas on diagram

diagram 87810 87901B 87906B 87910 87915 87915B 87940 87945 87945C 9016360024
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52041

ACA3#,GSA3#..JPP

 1
87810-52040

ACA3#,GSA3#..JPP

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-42870

ACA3#,GSA3#..JPP..X..USA

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-42810

ACA3#,GSA3#..JPP..X..USA

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-42870

ACA3#,GSA3#..JPP..X..USA

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-42041

ACA3#,GSA3#..JPP..X..USA

NO PAINT REQ.

 1
87915B - COVER, OUTER MIRROR, LOWER RH
87915-42090

ACA3#,GSA3#..JPP

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-42810

ACA3#,GSA3#..JPP..X..USA

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-42041

ACA3#,GSA3#..JPP..X..USA

NO PAINT REQ.

 1
87945C - COVER, OUTER MIRROR, LOWER LH
87945-42090

ACA3#,GSA3#..JPP

 1
Common parts
90163-60024
