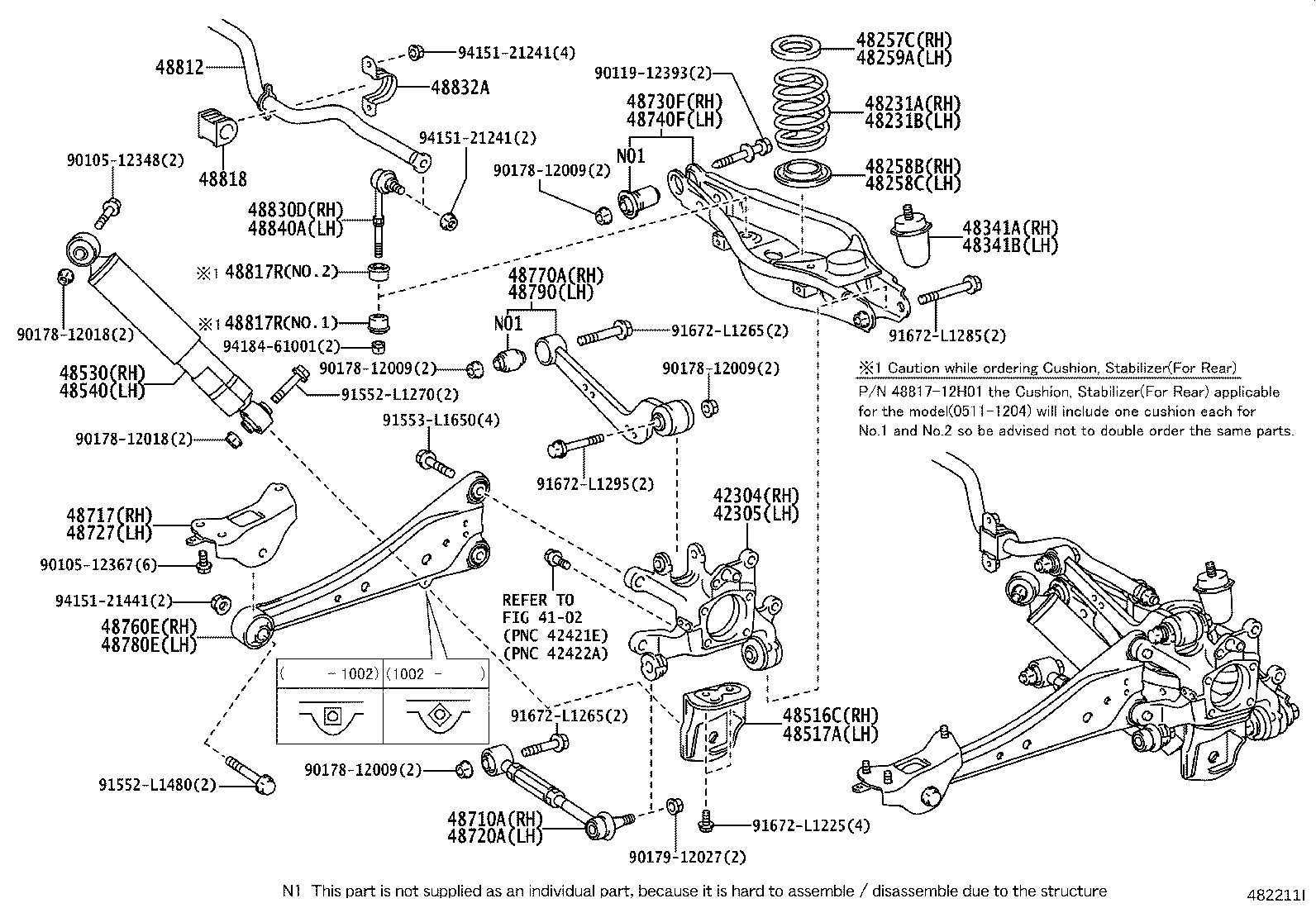

ACA33L-ANPXKA (2005)
Toyota Rav4 (Jpp)
(0511-1008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-42190 |
ACA33..JPP..X |
1 | ||
| 48231-42220 |
ACA33..JPP..X 225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS) |
1 | ||
| 48231-42220 |
ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE&THIRD SEAT-WITH(2PERSONS) |
1 | ||
| 48231-42180 |
ACA33..JPP..X 225/65R17H STEEL 6.5J |
1 | ||
| 48231-42180 |
ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-42180 |
ACA33..JPP..X 225/65R17H STEEL 6.5J |
1 | ||
| 48231-42190 |
ACA33..JPP..X |
1 | ||
| 48231-42180 |
ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE |
1 | ||
| 48231-42220 |
ACA33..JPP..X 225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS) |
1 | ||
| 48231-42220 |
ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE&THIRD SEAT-WITH(2PERSONS) |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-42030 |
ACA3#,GSA3#..JPP |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-42030 |
ACA3#,GSA3#..JPP |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 48516C - BRACKET, REAR SHOCK ABSORBER, NO.1 RH | ||||
| 48505-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 48517A - BRACKET, REAR SHOCK ABSORBER, NO.1 LH | ||||
| 48506-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-42130 |
ACA33,GSA3#..JPP MARK 48531-42130 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-42130 |
ACA33,GSA3#..JPP MARK 48531-42130 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 48717 - BRACKET, REAR SUSPENSION ARM, RH | ||||
| 48717-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 48727 - BRACKET, REAR SUSPENSION ARM, LH | ||||
| 48727-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-42050 |
ACA3#,GSA3#..JPP |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 48760E - ARM ASSY, TRAILING, REAR RH | ||||
| 48760-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-42040 |
ACA3#,GSA3#..JPP |
1 | ||
| 48780E - ARM ASSY, TRAILING, REAR LH | ||||
| 48780-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-42030 |
ACA33,GSA3#..JPP |
1 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-42021 |
ACA33,GSA3#..JPP NO.1:REFER ILLUST. |
2 | ||
| 48817-42030 |
ACA33,GSA3#..JPP NO.2:REFER ILLUST. |
2 | ||
| 48817-42020 |
ACA33,GSA3#..JPP NO.1,2:REFER ILLUST. |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-42021 |
ACA33,GSA3#..JPP NO.1:REFER ILLUST. |
2 | ||
| 48817-42030 |
ACA33,GSA3#..JPP NO.2:REFER ILLUST. |
2 | ||
| 48817-42020 |
ACA33,GSA3#..JPP NO.1,2:REFER ILLUST. |
4 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-42010 |
ACA33,GSA3#..JPP |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-42021 |
ACA33,GSA3#..JPP |
1 | ||
| 48830-42020 |
ACA33,GSA3#..JPP |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-42010 |
ACA33,GSA3#..JPP |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-42021 |
ACA33,GSA3#..JPP |
1 | ||
| 48830-42020 |
ACA33,GSA3#..JPP |
1 | ||
| Common parts | ||||
| 90105-12348 | ||||
| 90105-12367 | ||||
| 90119-12393 | ||||
| 90178-12009 | ||||
| 90178-12018 | ||||
| 90179-12027 | ||||
| 91552-L1270 | ||||
| 91552-L1480 | ||||
| 91553-L1650 | ||||
| 91672-L1225 | ||||
| 91672-L1265 | ||||
| 91672-L1285 | ||||
| 91672-L1295 | ||||
| 94151-21241 | ||||
| 94151-21441 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 4102 | ||||
