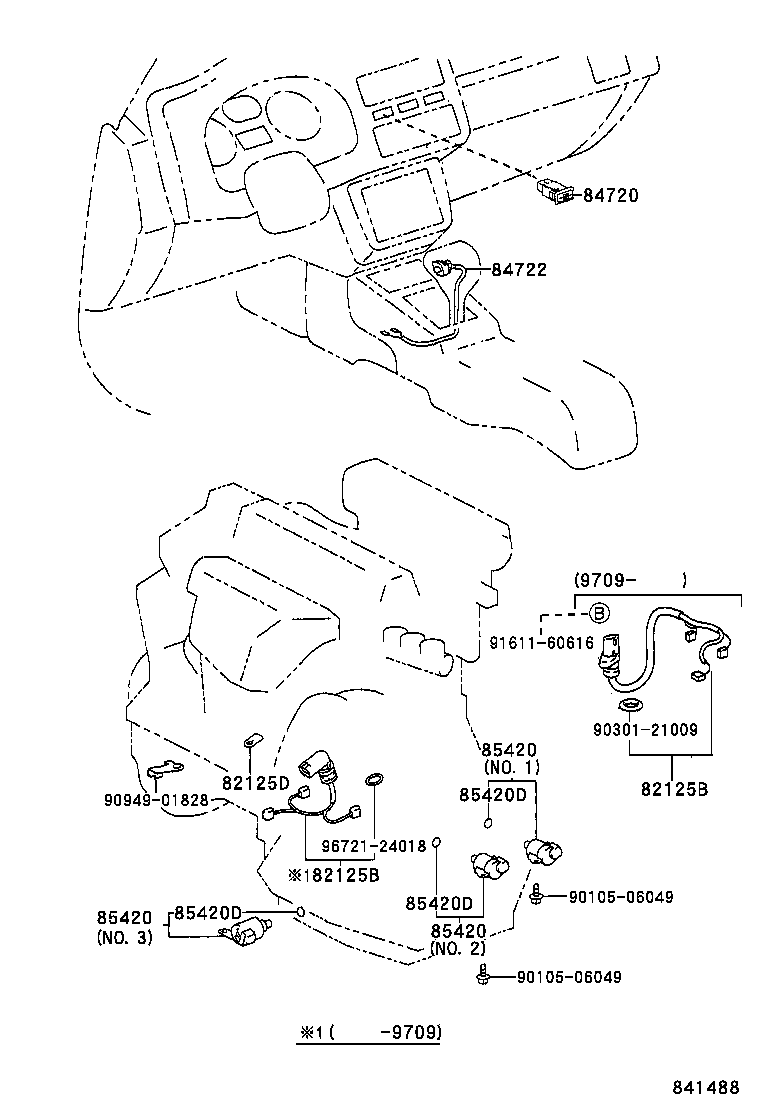

Toyota Rav4 SXA15 OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

Part #	Description	Period	Qty
82125B - WIRE, TRANSMISSION
82125-20220	SXA15,16..ATM	02/1996 - 09/1997	1
82125-12350	SXA15,16..ATM	09/1997 - 12/2999	1
82125B - WIRE, TRANSMISSION
82125-20220	SXA15,16..ATM	02/1996 - 09/1997	1
82125-12350	SXA15,16..ATM	09/1997 - 12/2999	1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020	SXA15,16..ATM	02/1996 - 09/1997	1
84720 - SWITCH ASSY, PATTERN SELECT
84720-42020	SXA1#..ATM	11/1995 - 12/2999	1
84722 - SWITCH, TRANSMISSION CONTROL
84722-42020C0	SXA1#..ATM BLACK,TRIM1#	09/1997 - 12/2999	1
84722-12070C0	SXA11,15,16..ATM BLACK,TRIM1#	11/1995 - 09/1997	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-20140	SXA15,16..ATM NO.3	02/1996 - 09/1997	1
85420-12120	SXA15,16..ATM NO.2	09/1997 - 09/1998	1
85420-21040	SXA15,16..ATM NO.2	09/1998 - 12/2999	1
85420-12100	SXA15,16..ATM NO.1	09/1997 - 09/1998	1
85420-21060	SXA15,16..ATM NO.3	09/1998 - 12/2999	1
85420-12140	SXA15,16..ATM NO.3	09/1997 - 09/1998	1
85420-30200	SXA15,16..ATM NO.1 & NO.2	02/1996 - 09/1997	2
85420-21010	SXA15,16..ATM NO.1	09/1998 - 12/2999	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-20140	SXA15,16..ATM NO.3	02/1996 - 09/1997	1
85420-12120	SXA15,16..ATM NO.2	09/1997 - 09/1998	1
85420-21040	SXA15,16..ATM NO.2	09/1998 - 12/2999	1
85420-12100	SXA15,16..ATM NO.1	09/1997 - 09/1998	1
85420-21060	SXA15,16..ATM NO.3	09/1998 - 12/2999	1
85420-12140	SXA15,16..ATM NO.3	09/1997 - 09/1998	1
85420-30200	SXA15,16..ATM NO.1 & NO.2	02/1996 - 09/1997	2
85420-21010	SXA15,16..ATM NO.1	09/1998 - 12/2999	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-20140	SXA15,16..ATM NO.3	02/1996 - 09/1997	1
85420-12120	SXA15,16..ATM NO.2	09/1997 - 09/1998	1
85420-21040	SXA15,16..ATM NO.2	09/1998 - 12/2999	1
85420-12100	SXA15,16..ATM NO.1	09/1997 - 09/1998	1
85420-21060	SXA15,16..ATM NO.3	09/1998 - 12/2999	1
85420-12140	SXA15,16..ATM NO.3	09/1997 - 09/1998	1
85420-30200	SXA15,16..ATM NO.1 & NO.2	02/1996 - 09/1997	2
85420-21010	SXA15,16..ATM NO.1	09/1998 - 12/2999	1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	SXA1#..ATM	11/1995 - 12/2999	3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	SXA1#..ATM	11/1995 - 12/2999	3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	SXA1#..ATM	11/1995 - 12/2999	3
Common parts
90105-06049
90301-21009
90949-01828
91611-60616
96721-24018

SXA15L-AZPGKA (1996)

(9602- )SXA15,16..ATM..HT
