SXA15L-AZPGKA (1996)
Toyota Rav4

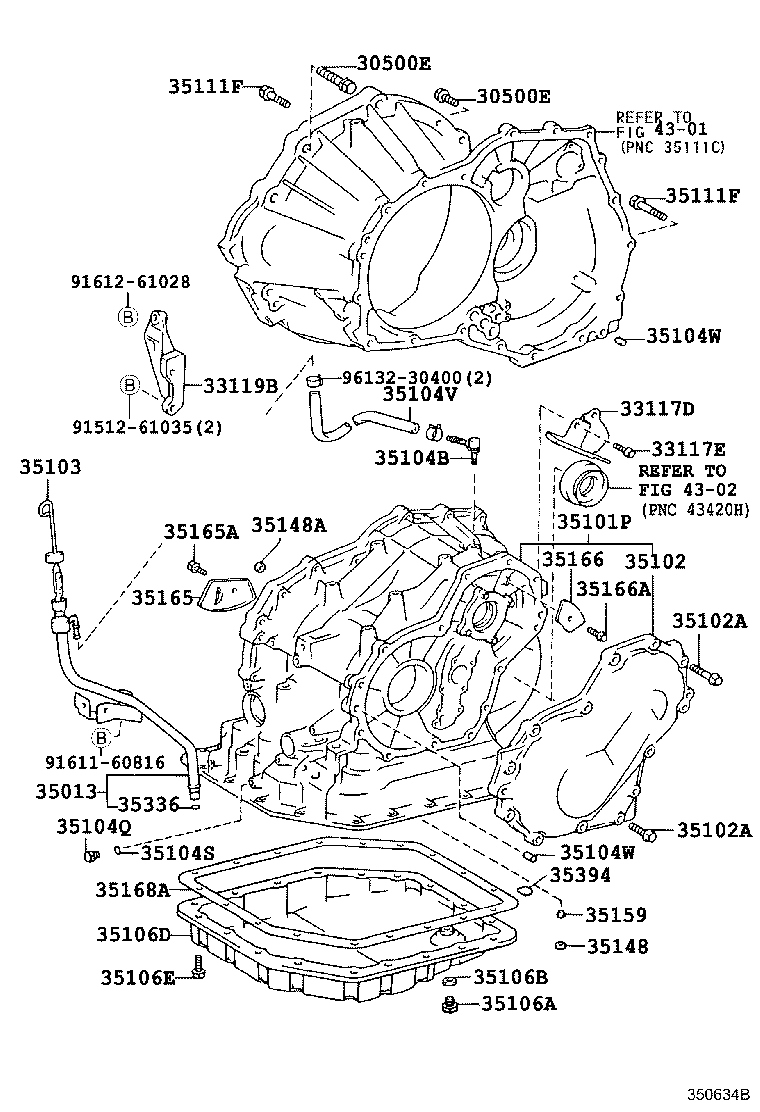

(9602-9709)SXA15,16..ATM
A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
SXA1#..ATM *8-1.25PX18-15 |
1 | ||
| 90105-10077 |
SXA1#..ATM *10-1.25PX43-26 |
1 | ||
| 91619-61245 |
SXA1#..ATM *12-1.25PX45-30 |
3 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
SXA1#..ATM *8-1.25PX18-15 |
1 | ||
| 90105-10077 |
SXA1#..ATM *10-1.25PX43-26 |
1 | ||
| 91619-61245 |
SXA1#..ATM *12-1.25PX45-30 |
3 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-12030 |
SXA15,16..ATM |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
SXA1#..ATM |
2 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-32020 |
SXA1#..ATM |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-42020 |
SXA15,16..ATM |
1 | ||
| 35013-42040 |
SXA15,16..ATM |
1 | ||
| 35101P - CASE & COVER SUB-ASSY, TRANSAXLE | ||||
| 35101-20034 |
SXA15,16..ATM |
1 | ||
| 35101-20032 |
SXA15,16..ATM |
1 | ||
| 35101-20033 |
SXA15,16..ATM |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35102-20031 |
SXA15,16..ATM |
1 | ||
| 35102-20030 |
SXA15,16..ATM |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
3 | ||
| 90105-08065 |
SXA15,16..ATM *8-1.25PX45-35 |
10 | ||
| 91511-80625 |
SXA15,16..ATM *6-1.0PX25-25 |
11 | ||
| 90105-06198 |
SXA15,16..ATM *6-1.00PX32-32 |
2 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
3 | ||
| 90105-08065 |
SXA15,16..ATM *8-1.25PX45-35 |
10 | ||
| 91511-80625 |
SXA15,16..ATM *6-1.0PX25-25 |
11 | ||
| 90105-06198 |
SXA15,16..ATM *6-1.00PX32-32 |
2 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-20240 |
SXA15,16..ATM |
1 | ||
| 35103-42030 |
SXA15,16..ATM |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03132 |
SXA15,16..ATM |
1 | ||
| 90930-03101 |
SXA15,16..ATM |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
SXA15,16..ATM |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
SXA15,16..ATM |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11017 |
SXA15,16..ATM |
1 | ||
| 90447-11018 |
SXA15,16..ATM |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-11001 |
SXA15,16..ATM REAR COVER SIDE |
2 | ||
| 90250-10021 |
SXA15,16..ATM |
2 | ||
| 90250-10021 |
SXA15,16..ATM HOUSING SIDE |
2 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-11001 |
SXA15,16..ATM REAR COVER SIDE |
2 | ||
| 90250-10021 |
SXA15,16..ATM |
2 | ||
| 90250-10021 |
SXA15,16..ATM HOUSING SIDE |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
SXA15,16..ATM |
1 | ||
| 90341-10011 |
SXA15,16..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
SXA15,16..ATM |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-12090 |
SXA15,16..ATM |
1 | ||
| 35106-12070 |
SXA15,16..ATM |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
SXA15,16..ATM |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08066 |
SXA15,16..ATM *8-1.25PX72-30 |
2 | ||
| 90105-08071 |
SXA15,16..ATM *8-1.25PX30-25 |
2 | ||
| 90105-08065 |
SXA15,16..ATM *8-1.25PX45-35 |
10 | ||
| 90105-08071 |
SXA15,16..ATM *8-1.25PX30-25 |
14 | ||
| 90105-08288 |
SXA15,16..ATM *8-1.28PX30-25 |
3 | ||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
5 | ||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
1 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08066 |
SXA15,16..ATM *8-1.25PX72-30 |
2 | ||
| 90105-08071 |
SXA15,16..ATM *8-1.25PX30-25 |
2 | ||
| 90105-08065 |
SXA15,16..ATM *8-1.25PX45-35 |
10 | ||
| 90105-08071 |
SXA15,16..ATM *8-1.25PX30-25 |
14 | ||
| 90105-08288 |
SXA15,16..ATM *8-1.28PX30-25 |
3 | ||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
5 | ||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
SXA15,16..ATM |
1 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
SXA1#..ATM |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-20010 |
SXA15,16..ATM |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-20010 |
SXA15,16..ATM |
1 | ||
| 35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1) | ||||
| 90105-06049 |
SXA15,16..ATM |
1 | ||
| 35166 - PLATE, TRANSMISSION CASE, NO.3 | ||||
| 35166-12010 |
SXA15,16..ATM |
1 | ||
| 35166-12020 |
SXA15,16..ATM |
1 | ||
| 35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3) | ||||
| 90105-06049 |
SXA15,16..ATM |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-12030 |
SXA15,16..ATM |
1 | ||
| 35168-12020 |
SXA15,16..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
SXA1#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
SXA15,16..ATM |
2 | ||
| Common parts | ||||
| 91512-61035 | ||||
| 91611-60816 | ||||
| 91612-61028 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||

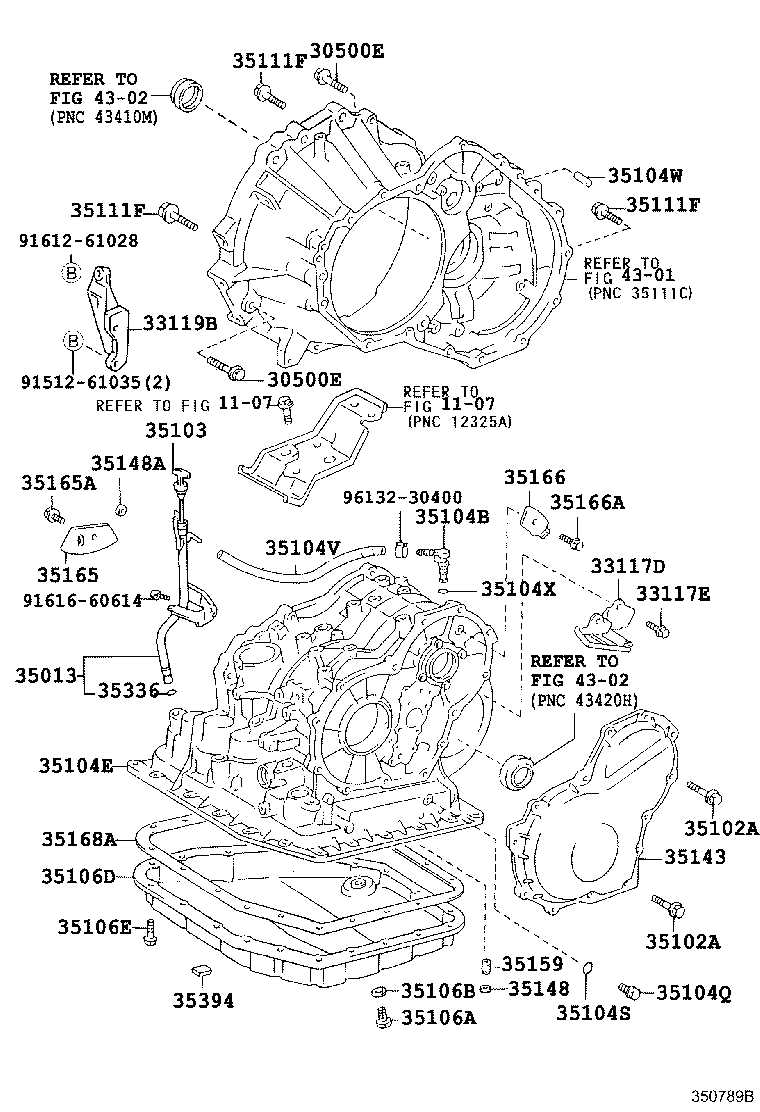

(9709- )SXA15,16..ATM
A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
SXA1#..ATM *8-1.25PX18-15 |
1 | ||
| 90105-10077 |
SXA1#..ATM *10-1.25PX43-26 |
1 | ||
| 91619-61245 |
SXA1#..ATM *12-1.25PX45-30 |
3 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
SXA1#..ATM *8-1.25PX18-15 |
1 | ||
| 90105-10077 |
SXA1#..ATM *10-1.25PX43-26 |
1 | ||
| 91619-61245 |
SXA1#..ATM *12-1.25PX45-30 |
3 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-12030 |
SXA15,16..ATM |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
SXA1#..ATM |
2 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-32020 |
SXA1#..ATM |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-42020 |
SXA15,16..ATM |
1 | ||
| 35013-42040 |
SXA15,16..ATM |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
3 | ||
| 90105-08065 |
SXA15,16..ATM *8-1.25PX45-35 |
10 | ||
| 91511-80625 |
SXA15,16..ATM *6-1.0PX25-25 |
11 | ||
| 90105-06198 |
SXA15,16..ATM *6-1.00PX32-32 |
2 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
3 | ||
| 90105-08065 |
SXA15,16..ATM *8-1.25PX45-35 |
10 | ||
| 91511-80625 |
SXA15,16..ATM *6-1.0PX25-25 |
11 | ||
| 90105-06198 |
SXA15,16..ATM *6-1.00PX32-32 |
2 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-20240 |
SXA15,16..ATM |
1 | ||
| 35103-42030 |
SXA15,16..ATM |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03132 |
SXA15,16..ATM |
1 | ||
| 90930-03101 |
SXA15,16..ATM |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-20110 |
SXA15,16..ATM |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
SXA15,16..ATM |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
SXA15,16..ATM |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11017 |
SXA15,16..ATM |
1 | ||
| 90447-11018 |
SXA15,16..ATM |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-11001 |
SXA15,16..ATM REAR COVER SIDE |
2 | ||
| 90250-10021 |
SXA15,16..ATM |
2 | ||
| 90250-10021 |
SXA15,16..ATM HOUSING SIDE |
2 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06010 |
SXA15,16..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
SXA15,16..ATM |
1 | ||
| 90341-10011 |
SXA15,16..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
SXA15,16..ATM |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-12090 |
SXA15,16..ATM |
1 | ||
| 35106-12070 |
SXA15,16..ATM |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
SXA15,16..ATM |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08066 |
SXA15,16..ATM *8-1.25PX72-30 |
2 | ||
| 90105-08071 |
SXA15,16..ATM *8-1.25PX30-25 |
2 | ||
| 90105-08065 |
SXA15,16..ATM *8-1.25PX45-35 |
10 | ||
| 90105-08071 |
SXA15,16..ATM *8-1.25PX30-25 |
14 | ||
| 90105-08288 |
SXA15,16..ATM *8-1.28PX30-25 |
3 | ||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
5 | ||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
1 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08066 |
SXA15,16..ATM *8-1.25PX72-30 |
2 | ||
| 90105-08071 |
SXA15,16..ATM *8-1.25PX30-25 |
2 | ||
| 90105-08065 |
SXA15,16..ATM *8-1.25PX45-35 |
10 | ||
| 90105-08071 |
SXA15,16..ATM *8-1.25PX30-25 |
14 | ||
| 90105-08288 |
SXA15,16..ATM *8-1.28PX30-25 |
3 | ||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
5 | ||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
1 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08066 |
SXA15,16..ATM *8-1.25PX72-30 |
2 | ||
| 90105-08071 |
SXA15,16..ATM *8-1.25PX30-25 |
2 | ||
| 90105-08065 |
SXA15,16..ATM *8-1.25PX45-35 |
10 | ||
| 90105-08071 |
SXA15,16..ATM *8-1.25PX30-25 |
14 | ||
| 90105-08288 |
SXA15,16..ATM *8-1.28PX30-25 |
3 | ||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
5 | ||
| 90105-08068 |
SXA15,16..ATM *8-1.25PX35-30 |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-12030 |
SXA15,16..ATM |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
SXA15,16..ATM |
1 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
SXA1#..ATM |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-20010 |
SXA15,16..ATM |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-20010 |
SXA15,16..ATM |
1 | ||
| 35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1) | ||||
| 90105-06049 |
SXA15,16..ATM |
1 | ||
| 35166 - PLATE, TRANSMISSION CASE, NO.3 | ||||
| 35166-12010 |
SXA15,16..ATM |
1 | ||
| 35166-12020 |
SXA15,16..ATM |
1 | ||
| 35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3) | ||||
| 90105-06049 |
SXA15,16..ATM |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-12030 |
SXA15,16..ATM |
1 | ||
| 35168-12020 |
SXA15,16..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
SXA1#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
SXA15,16..ATM |
2 | ||
| Common parts | ||||
| 91512-61035 | ||||
| 91612-61028 | ||||
| 91616-60614 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 4301 | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
