SXA15L-AKMGKA (1997)
Toyota Rav4
(9712- )SOT

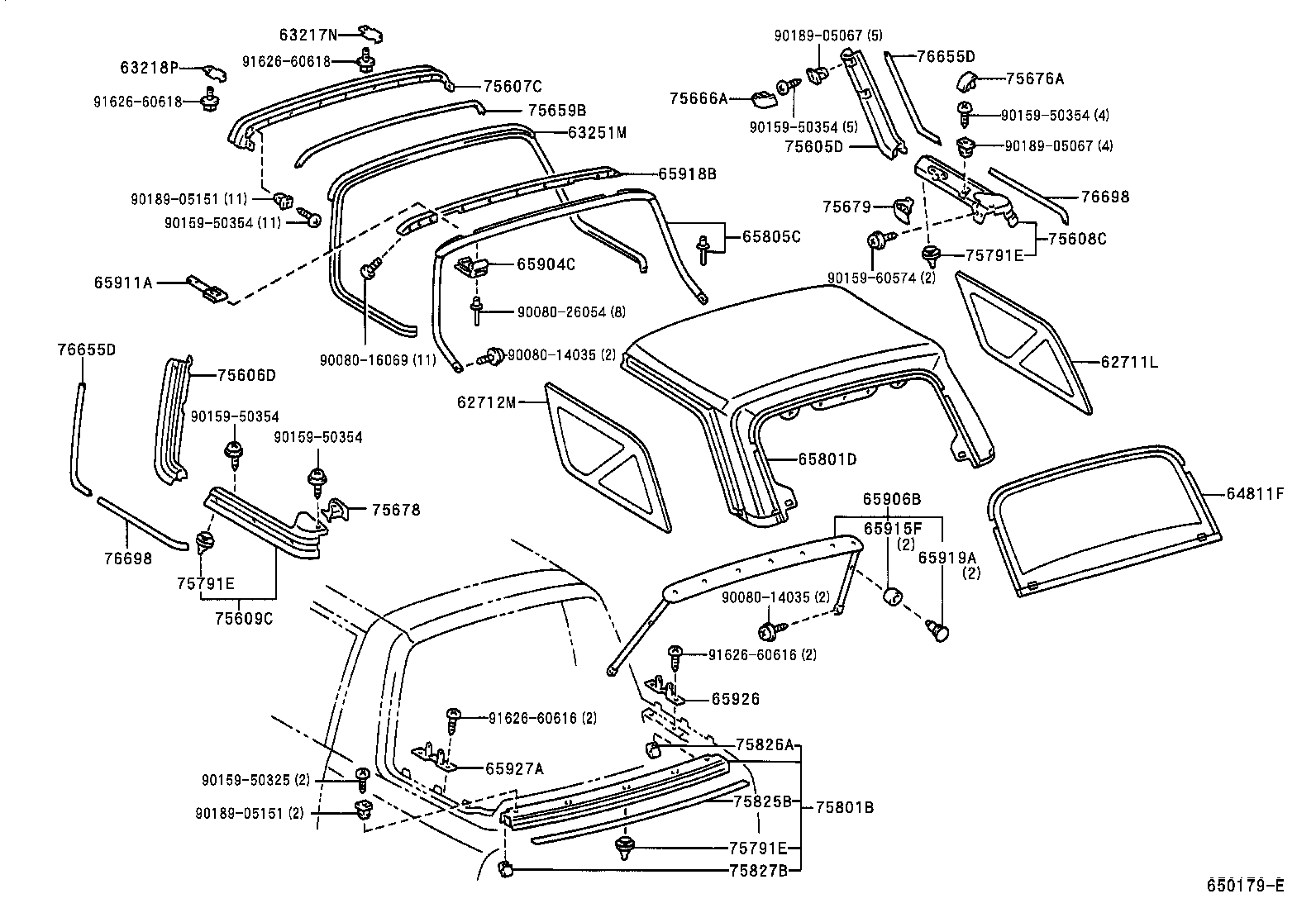

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62711L - QUARTER WINDOW, TARPAULIN, RH | ||||
| 62711-0W090C0 |
SXA10,15..SOT BLACK,KA1 ,KA2 ,K62 ,K65 ,K71 ,K95 ,K96 ,K98 ,056 ,1B9 ,202 ,3L5 ,4J6 ,6P3 ,760 ,8L5 |
1 | ||
| 62711-0W090C0 |
SXA10,15..SOT BLACK,K60 ,K61 ,K62 ,K65 ,K66 ,K68 ,K70 ,K71 ,056 ,199 ,202 ,3L5 ,4J6 ,6P3 ,8K5 ,8L5 |
1 | ||
| 62712M - QUARTER WINDOW, TARPAULIN, LH | ||||
| 62712-0W070C0 |
SXA10,15..SOT BLACK,K60 ,K61 ,K62 ,K65 ,K66 ,K68 ,K70 ,K71 ,056 ,199 ,202 ,3L5 ,4J6 ,6P3 ,8K5 ,8L5 |
1 | ||
| 62712-0W070C0 |
SXA10,15..SOT BLACK,KA1 ,KA2 ,K62 ,K65 ,K71 ,K95 ,K96 ,K98 ,056 ,1B9 ,202 ,3L5 ,4J6 ,6P3 ,760 ,8L5 |
1 | ||
| 63217N - HOOK, TARPAULIN, RH | ||||
| 63217-0W040 |
SXA10,15..SOT |
1 | ||
| 63218P - HOOK, TARPAULIN, LH | ||||
| 63217-0W040 |
SXA10,15..SOT |
1 | ||
| 63251M - WEATHERSTRIP, TARPAULIN, OUTER | ||||
| 63251-0W040 |
SXA10,15..SOT |
1 | ||
| 64811F - BACK WINDOW, TARPAULIN | ||||
| 64811-0W290C0 |
SXA10,15..SOT BLACK,KA1 ,KA2 ,K62 ,K65 ,K71 ,K95 ,K96 ,K98 ,056 ,1B9 ,202 ,3L5 ,4J6 ,6P3 ,760 ,8L5 |
1 | ||
| 64811-0W290C0 |
SXA10,15..SOT BLACK,K60 ,K61 ,K62 ,K65 ,K66 ,K68 ,K70 ,K71 ,056 ,199 ,202 ,3L5 ,4J6 ,6P3 ,8K5 ,8L5 |
1 | ||
| 65801D - TOP SUB-ASSY, COVER | ||||
| 65801-0W010C0 |
SXA10,15..SOT BLACK,K60 ,K61 ,K62 ,K65 ,K66 ,K68 ,K70 ,K71 ,056 ,199 ,202 ,3L5 ,4J6 ,6P3 ,8K5 ,8L5 |
1 | ||
| 65801-0W010C0 |
SXA10,15..SOT BLACK,KA1 ,KA2 ,K62 ,K65 ,K71 ,K95 ,K96 ,K98 ,056 ,1B9 ,202 ,3L5 ,4J6 ,6P3 ,760 ,8L5 |
1 | ||
| 65805C - BOW SUB-ASSY, TOP COVER TARPAULIN, FRONT | ||||
| 65805-0W010 |
SXA10,15..SOT |
1 | ||
| 65904C - LATCH SUB-ASSY, TARPAULIN | ||||
| 65904-0W030 |
SXA10,15..SOT |
2 | ||
| 65906B - BOW SUB-ASSY, TARPAULIN, NO.2 | ||||
| 65906-0W030 |
SXA10,15..SOT |
1 | ||
| 65911A - COVER, TARPAULIN | ||||
| 65911-0W040 |
SXA10,15..SOT |
2 | ||
| 65915F - PAD, TARPAULIN COVER, REAR | ||||
| 65915-0W020 |
SXA10,15..SOT |
2 | ||
| 65918B - RETAINER, TARPAULIN COVER, LOWER | ||||
| 65918-0W030 |
SXA10,15..SOT |
1 | ||
| 65919A - PIN, NO.1 BOW LOCATING | ||||
| 65919-0W030 |
SXA10,15..SOT |
2 | ||
| 65926 - BRACKET, TARPAULIN RAIL PIVOT, RH | ||||
| 65926-0W030 |
SXA10,15..SOT |
1 | ||
| 65927A - BRACKET, TARPAULIN RAIL PIVOT, LH | ||||
| 65927-0W030 |
SXA10,15..SOT |
1 | ||
| 75605D - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH | ||||
| 75605-0W010 |
SXA10,15..SOT |
1 | ||
| 75606D - MOULDING SUB-ASSY, QUARTER OUTSIDE, LH | ||||
| 75606-0W010 |
SXA10,15..SOT |
1 | ||
| 75607C - MOULDING SUB-ASSY, ROOF TOP | ||||
| 75607-0W010 |
SXA10,15..SOT |
1 | ||
| 75608C - MOULDING SUB-ASSY, QUARTER BELT, REAR RH | ||||
| 75608-0W010 |
SXA10,15..SOT |
1 | ||
| 75609C - MOULDING SUB-ASSY, QUARTER BELT, REAR LH | ||||
| 75609-0W010 |
SXA10,15..SOT |
1 | ||
| 75659B - PAD, ROOF MOULDING | ||||
| 75659-0W010 |
SXA10,15..SOT |
1 | ||
| 75666A - COVER, QUARTER PANEL BACK MOULDING END, NO.1 | ||||
| 75666-0W010 |
SXA10,15..SOT |
4 | ||
| 75676A - COVER, QUARTER BELT MOULDING END, FRONT RH | ||||
| 75676-0W010 |
SXA10,15..SOT |
2 | ||
| 75678 - COVER, QUARTER BELT MOULDING END, REAR RH | ||||
| 75678-0W010 |
SXA10,15..SOT |
1 | ||
| 75679 - COVER, QUARTER BELT MOULDING END, REAR LH | ||||
| 75679-0W010 |
SXA10,15..SOT |
1 | ||
| 75791E - CLIP, BELT MOULDING SIDE | ||||
| 75791-0W010 |
SXA10,15..SOT |
5 | ||
| 75791E - CLIP, BELT MOULDING SIDE | ||||
| 75791-0W010 |
SXA10,15..SOT |
5 | ||
| 75791E - CLIP, BELT MOULDING SIDE | ||||
| 75791-0W010 |
SXA10,15..SOT |
5 | ||
| 75801B - MOULDING SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 75801-0W010 |
SXA10,15..SOT |
1 | ||
| 75825B - PAD, BACK DOOR OUTSIDE MOULDING, UPPER | ||||
| 75659-0W010 |
SXA10,15..SOT |
1 | ||
| 75826A - PAD, BACK DOOR OUTSIDE MOULDING, RH | ||||
| 75826-0W010 |
SXA10,15..SOT |
1 | ||
| 75827B - PAD, BACK DOOR OUTSIDE MOULDING, LH | ||||
| 75827-0W010 |
SXA10,15..SOT |
1 | ||
| 76655D - PAD, QUARTER WINDOW OUTSIDE MOULDING | ||||
| 75659-0W010 |
SXA10,15..SOT |
2 | ||
| 76655D - PAD, QUARTER WINDOW OUTSIDE MOULDING | ||||
| 75659-0W010 |
SXA10,15..SOT |
2 | ||
| 76698 - PAD, QUARTER BELT MOULDING | ||||
| 75659-0W010 |
SXA10,15..SOT |
2 | ||
| 76698 - PAD, QUARTER BELT MOULDING | ||||
| 75659-0W010 |
SXA10,15..SOT |
2 | ||
| Common parts | ||||
| 90080-14035 | ||||
| 90080-16069 | ||||
| 90080-26054 | ||||
| 90159-50325 | ||||
| 90159-50354 | ||||
| 90159-60574 | ||||
| 90189-05067 | ||||
| 90189-05151 | ||||
| 91626-60616 | ||||
| 91626-60618 | ||||
