SXA11L-AWPGKA (1995)

Toyota Rav4

Production Nov 1995 - Aug 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )SXA10,11..ATM

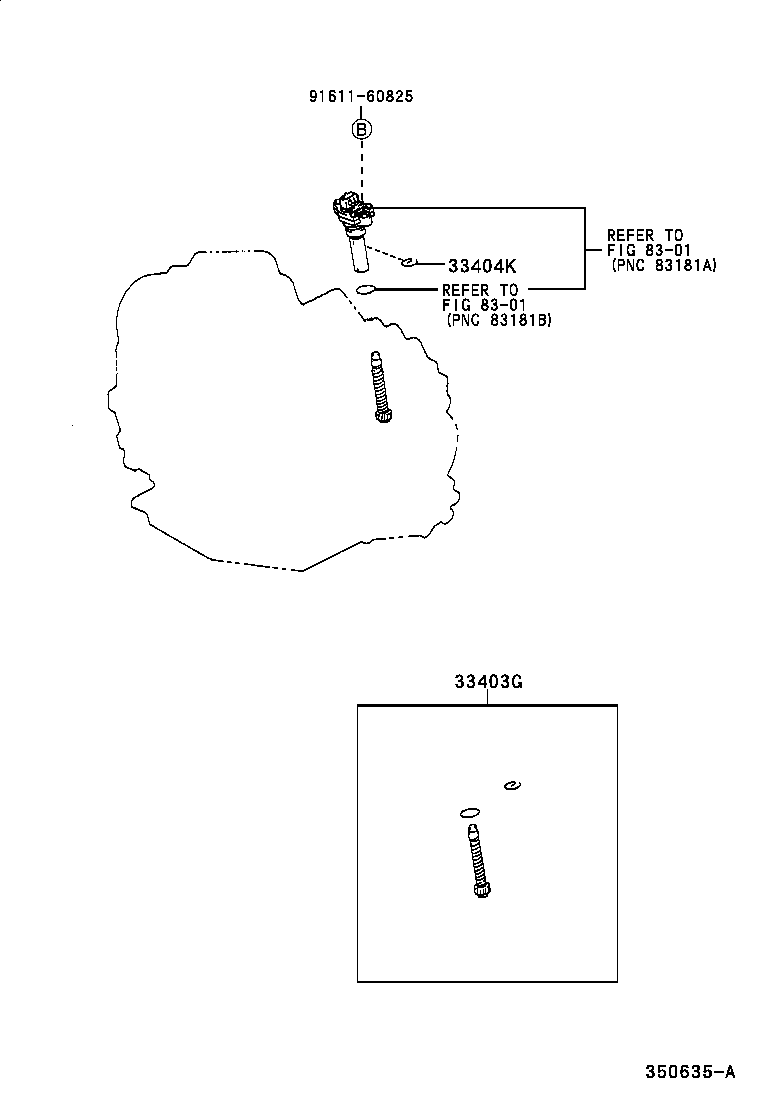

Click highlighted areas on diagram

A540H

diagram 33403G 33404K 8301 8301 9161160825
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-49065

SXA11..ATM

N=25,MARK 25:33,W(ALUMINUM WHEEL)

 1
33403-49035

SXA10,11..ATM

N=24,MARK 24:33

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

SXA1#..ATM

 1
Common parts
91611-60825
Linked diagrams
8301
