SXA10L-AZMGKA (1995)

Toyota Rav4

Production Nov 1995 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )SXA10,15..HT

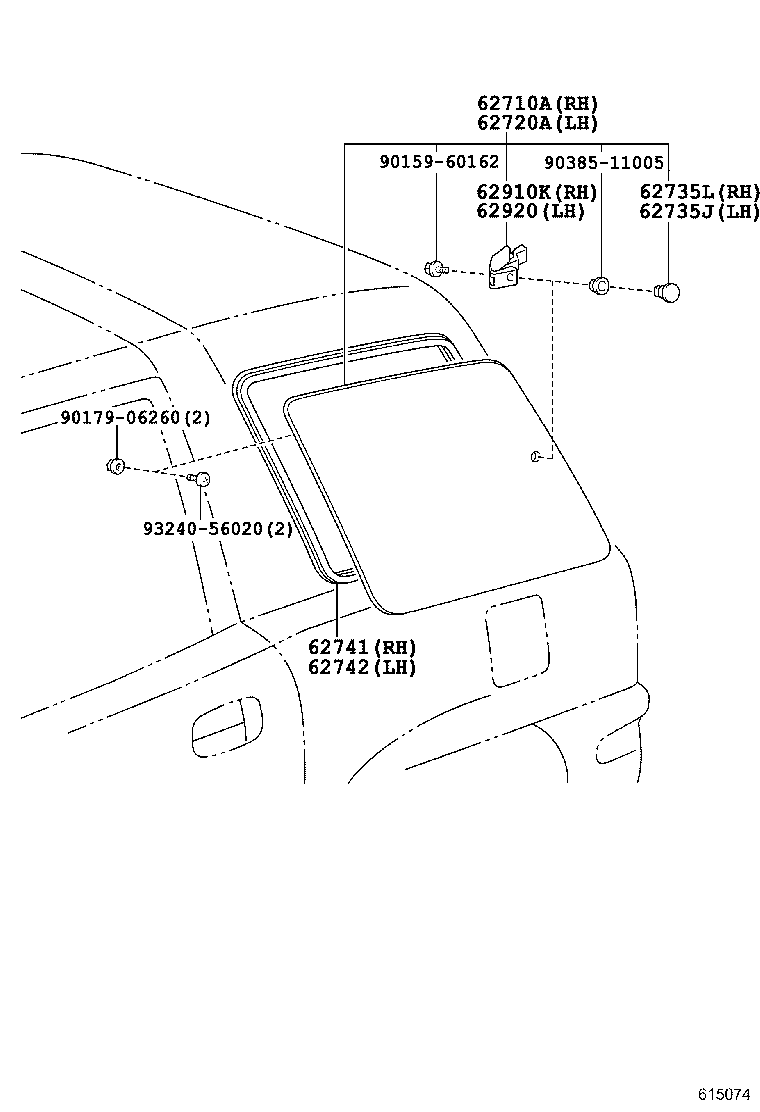

Click highlighted areas on diagram

diagram 62710A 62720A 62735J 62735L 62741 62742 62910K 62920 9015960162 9017906260 9038511005 9324056020
Part # Description Qty Price
62710A - WINDOW ASSY, QUARTER, RH
62710-42070B0

SXA10,15..HT

*TT,T=3.1,DK.GRAY,SHADOW GRAY,TRIM1#

 1
62710-42030

SXA10,15

*TT,T=3.1,GREEN

 1
62710-42030B1

SXA10,15..HT

*TT,T=3.1,GREEN,SHADOW GRAY,TRIM1#

 1
62710-42030B0

SXA10,15

*TT,T=3.1,GREEN,BLUISH GRAY,TRIM1#

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-42070B1

SXA10,15..HT

*TT,T=3.1,GREEN,SHADOW GRAY,TRIM1#

 1
62720-42080B0

SXA10,15

*TT,T=3.1,GREEN,BLUISH GRAY,TRIM1#

 2
62720-42100B0

SXA10,15..HT

*TT,T=3.1,DK.GRAY,SHADOW GRAY,TRIM1#

 1
62720-42080

SXA10,15

*TT,T=3.1,GREEN

 1
62735J - RETAINER, QUARTER WINDOW HINGE, LH
62735-95D00

SXA10,15..HT

 1
62735L - RETAINER, QUARTER WINDOW HINGE, RH
62735-95D00

SXA10,15..HT

 1
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-42010

SXA10,15..HT

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-42010

SXA10,15..HT

 1
62910K - LOCK ASSY, QUARTER WINDOW, RH
62910-42010

SXA10,15

 1
62910-42010B1

SXA10,15..HT

SHADOW GRAY,TRIM1#

 1
62910-42010B0

SXA10,15

BLUISH GRAY,TRIM1#

 1
62920 - LOCK ASSY, QUARTER WINDOW, LH
62920-42020

SXA10,15

 1
62920-42020B0

SXA10,15

BLUISH GRAY,TRIM1#

 1
62920-42010B1

SXA10,15..HT

SHADOW GRAY,TRIM1#

 1
Common parts
90159-60162
90179-06260
90385-11005
93240-56020
