SXA10L-AZMGKA (1995)

Toyota Rav4

Production Nov 1995 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

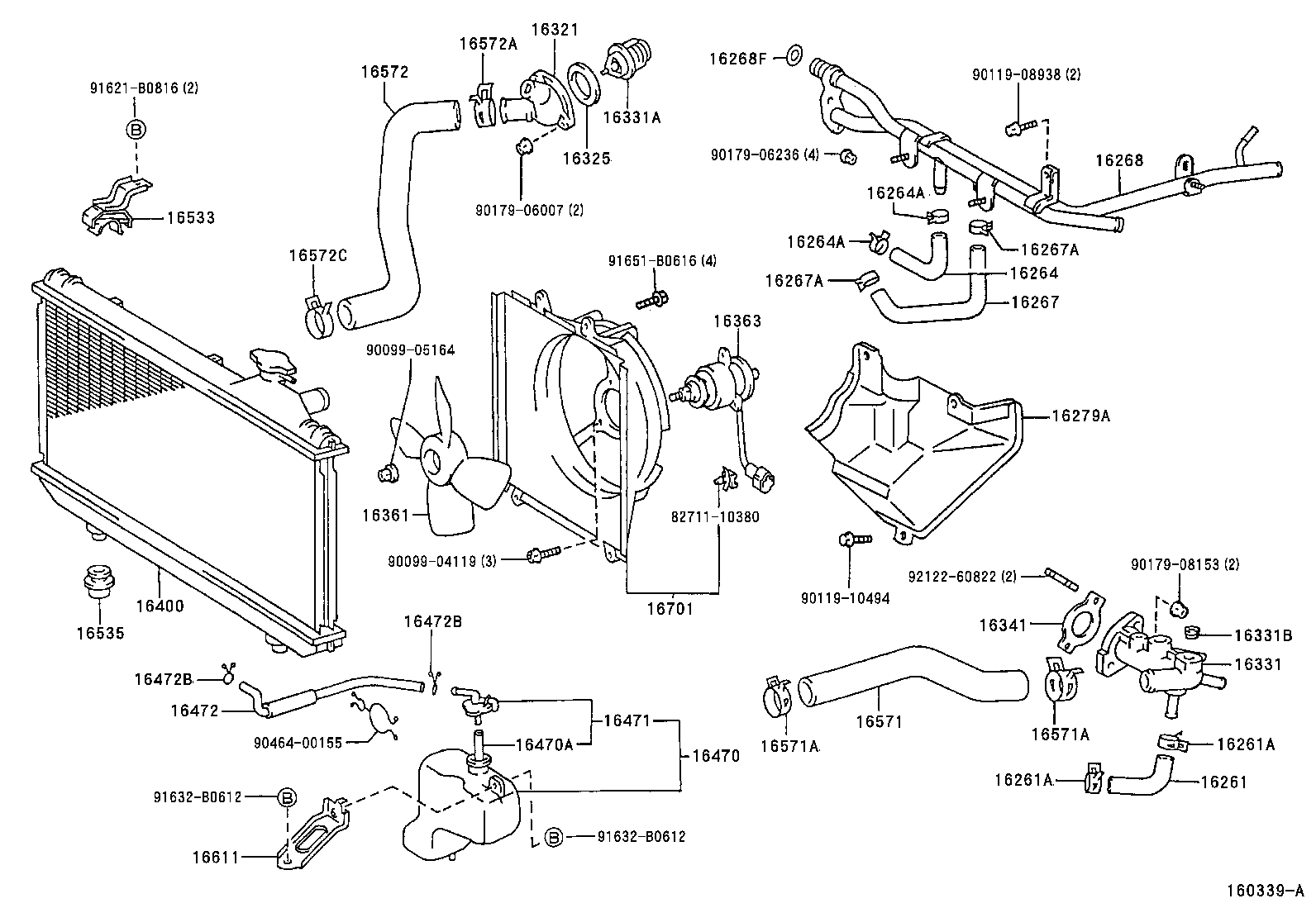

ILLUST NO. 1 OF 2(9511-9709)

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16267 16267A 16267A 16268 16268F 16279A 16321 16325 16331 16331A 16331B 16341 16361 16363 16400 16470 16470A 16471 16472 16472B 16472B 16533 16535 16571 16571A 16571A 16572 16572A 16572C 16611 16701 8271110380 9009904119 9009905164 9011908938 9011910494 9017906007 9017906236 9017908153 9046400155 91621B0816 91632B0612 91632B0612 91651B0616 9212260822
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-74010

3SFE..SXA1#

 1
16261-74100

3SFE..SXA1#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3SFE..SXA1#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3SFE..SXA1#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-74030

3SFE..SXA1#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-20005

3SFE..SXA1#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-20005

3SFE..SXA1#

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-74030

3SFE..SXA1#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-20005

3SFE..SXA1#

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-20005

3SFE..SXA1#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-74230

3SFE..SXA1#

 1
16268-74180

3SFE..SXA1#

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24017

3SFE..SXA1#

 1
16279A - PROTECTOR, HOSE HEAT
16279-74050

3SFE..SXA1#

 1
16321 - INLET, WATER
16321-74050

3SFE..SXA1#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63011

3SFE..SXA1#

 1
16331 - OUTLET, WATER
16331-74170

3SFE..SXA1#

 1
16331-74220

3SFE..SXA1#

TYPE B:REFER TO ILLUSTRATION

 1
16331-74260

3SFE..SXA1#

TYPE A:REFER TO ILLUSTRATION

 1
16331A - THERMOSTAT
90916-03090

3SFE..SXA1#

*WAX 82-95

 1
90916-03046

3SFE..SXA1#

*WAX 82-95

 1
16331B - PLUG(FOR WATER OUTLET)
90345-53009

3SFE..SXA1#

 1
90345-53007

3SFE..SXA1#

 1
16341 - GASKET, WATER OUTLET
16341-74020

3SFE..SXA1#

 1
16361 - FAN
16361-64030

3SFE..SXA1#

 1
16363 - MOTOR, COOLING FAN
16363-74170

3SFE..SXA1#

 1
16400 - RADIATOR ASSY
16400-7A111

3SFE..SXA1#..MTM

 1
16400-7A490

3SFE..SXA1#..MTM

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-74281

3SFE..SXA1#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

3SFE..SXA1#

*H,L=180

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-74271

3SFE..SXA1#

 1
16472 - HOSE, BREATHER
16472-74280

3SFE..SXA1#

 1
16472B - CLIP(FOR BREATHER HOSE)
90467-11085

3SFE..SXA1#

 2
16472B - CLIP(FOR BREATHER HOSE)
90467-11085

3SFE..SXA1#

 2
16533 - SUPPORT, RADIATOR, UPPER
16533-74300

3SFE..SXA1#

 2
16533-74270

3SFE..SXA1#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-74170

3SFE..SXA1#

 2
16535-74210

3SFE..SXA1#

 2
16571 - HOSE, RADIATOR, INLET
16571-74310

3SFE..SXA1#

 1
16571-74400

3SFE..SXA1#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34003

3SFE..SXA1#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34003

3SFE..SXA1#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-74250

3SFE..SXA1#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34003

3SFE..SXA1#

 1
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90467-34006

3SFE..SXA1#

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-74160

3SFE..SXA1#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-74540

3SFE..SXA1#

 1
Common parts
82711-10380
90099-04119
90099-05164
90119-08938
90119-10494
90179-06007
90179-06236
90179-08153
90464-00155
91621-B0816
91632-B0612
91651-B0616
92122-60822

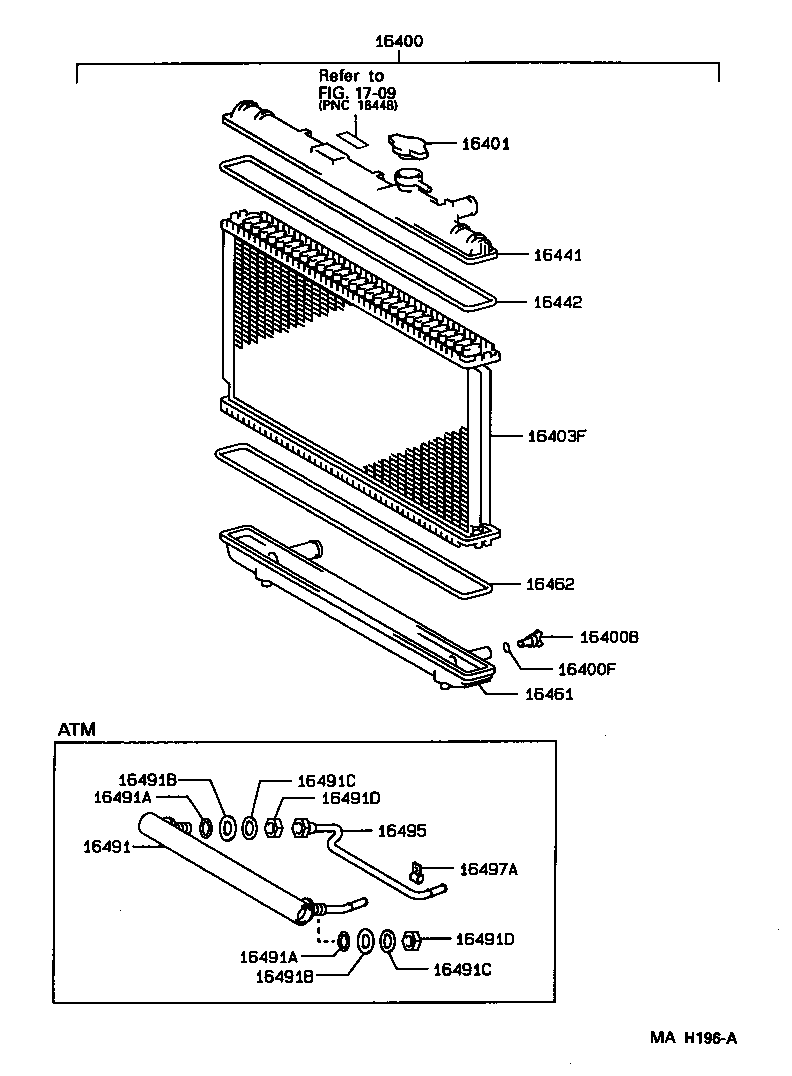

ILLUST NO. 2 OF 2(9709- )

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16441 16442 16461 16462 16491 16491A 16491A 16491B 16491B 16491C 16491C 16491D 16491D 16495 16497A 164987A210 1709
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-7A111

3SFE..SXA1#..MTM

 1
16400-7A490

3SFE..SXA1#..MTM

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-15210

3SFE..SXA1#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520

3SFE..SXA1#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-7A470

3SFE..SXA1#

 1
16401-15520

3SFE..SXA1#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-7A250

3SFE..SXA1#

 1
16403-7A110

3SFE..SXA1#

 1
16441 - TANK, RADIATOR, UPPER
16441-7A111

3SFE..SXA1#

 1
16441-7A470

3SFE..SXA1#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-64780

3SFE..SXA1#

 1
16442-7A210

3SFE..SXA1#

 1
16461 - TANK, RADIATOR, LOWER
16461-7A111

3SFE..SXA1#..MTM

 1
16461-7A470

3SFE..SXA1#..MTM

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-7A250

3SFE..SXA1#

 1
16442-7A110

3SFE..SXA1#

 1
Common parts
16498-7A210
Linked diagrams
1709

ILLUST NO. 1 OF 2(9709- )

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16267 16267A 16267A 16268 16268F 16279A 16321 16325 16331 16331 16331A 16331B 16341 16361 16363 16400 16470 16470A 16471 16472 16472B 16472B 16523A 16533 16535 16571 16571A 16571A 16572 16572A 16572C 16611 16701 8271110380 9009904119 9009905164 9011908938 9011910494 9017906007 9017906236 9017906311 9017906311 9017908153 9046400155 91621B0816 91631B0612 91631B0612 91632B0612 91651B0616 9212260822
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-74010

3SFE..SXA1#

 1
16261-74100

3SFE..SXA1#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3SFE..SXA1#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3SFE..SXA1#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-74030

3SFE..SXA1#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-20005

3SFE..SXA1#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-20005

3SFE..SXA1#

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-74030

3SFE..SXA1#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-20005

3SFE..SXA1#

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-20005

3SFE..SXA1#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-74230

3SFE..SXA1#

 1
16268-74180

3SFE..SXA1#

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24017

3SFE..SXA1#

 1
16279A - PROTECTOR, HOSE HEAT
16279-74050

3SFE..SXA1#

 1
16321 - INLET, WATER
16321-74050

3SFE..SXA1#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63011

3SFE..SXA1#

 1
16331 - OUTLET, WATER
16331-74170

3SFE..SXA1#

 1
16331-74220

3SFE..SXA1#

TYPE B:REFER TO ILLUSTRATION

 1
16331-74260

3SFE..SXA1#

TYPE A:REFER TO ILLUSTRATION

 1
16331 - OUTLET, WATER
16331-74170

3SFE..SXA1#

 1
16331-74220

3SFE..SXA1#

TYPE B:REFER TO ILLUSTRATION

 1
16331-74260

3SFE..SXA1#

TYPE A:REFER TO ILLUSTRATION

 1
16331A - THERMOSTAT
90916-03090

3SFE..SXA1#

*WAX 82-95

 1
90916-03046

3SFE..SXA1#

*WAX 82-95

 1
16331B - PLUG(FOR WATER OUTLET)
90345-53009

3SFE..SXA1#

 1
90345-53007

3SFE..SXA1#

 1
16341 - GASKET, WATER OUTLET
16341-74020

3SFE..SXA1#

 1
16361 - FAN
16361-64030

3SFE..SXA1#

 1
16363 - MOTOR, COOLING FAN
16363-74170

3SFE..SXA1#

 1
16400 - RADIATOR ASSY
16400-7A111

3SFE..SXA1#..MTM

 1
16400-7A490

3SFE..SXA1#..MTM

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-74281

3SFE..SXA1#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

3SFE..SXA1#

*H,L=180

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-74271

3SFE..SXA1#

 1
16472 - HOSE, BREATHER
16472-74280

3SFE..SXA1#

 1
16472B - CLIP(FOR BREATHER HOSE)
90467-11085

3SFE..SXA1#

 2
16472B - CLIP(FOR BREATHER HOSE)
90467-11085

3SFE..SXA1#

 2
16523A - CUSHION, RADIATOR SUPPORT
16523-74010

3SFE..SXA1#

 2
16533 - SUPPORT, RADIATOR, UPPER
16533-74300

3SFE..SXA1#

 2
16533-74270

3SFE..SXA1#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-74170

3SFE..SXA1#

 2
16535-74210

3SFE..SXA1#

 2
16571 - HOSE, RADIATOR, INLET
16571-74310

3SFE..SXA1#

 1
16571-74400

3SFE..SXA1#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34003

3SFE..SXA1#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34003

3SFE..SXA1#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-74250

3SFE..SXA1#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34003

3SFE..SXA1#

 1
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90467-34006

3SFE..SXA1#

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-74160

3SFE..SXA1#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-74540

3SFE..SXA1#

 1
Common parts
82711-10380
90099-04119
90099-05164
90119-08938
90119-10494
90179-06007
90179-06236
90179-06311
90179-08153
90464-00155
91621-B0816
91631-B0612
91632-B0612
91651-B0616
92122-60822

ILLUST NO. 2 OF 2(9511-9709)

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16441 16442 16461 16462 16491 16491A 16491A 16491B 16491B 16491C 16491C 16491D 16491D 16495 16497A 1709
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-7A111

3SFE..SXA1#..MTM

 1
16400-7A490

3SFE..SXA1#..MTM

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-15210

3SFE..SXA1#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520

3SFE..SXA1#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-7A470

3SFE..SXA1#

 1
16401-15520

3SFE..SXA1#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-7A250

3SFE..SXA1#

 1
16403-7A110

3SFE..SXA1#

 1
16441 - TANK, RADIATOR, UPPER
16441-7A111

3SFE..SXA1#

 1
16441-7A470

3SFE..SXA1#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-64780

3SFE..SXA1#

 1
16442-7A210

3SFE..SXA1#

 1
16461 - TANK, RADIATOR, LOWER
16461-7A111

3SFE..SXA1#..MTM

 1
16461-7A470

3SFE..SXA1#..MTM

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-7A250

3SFE..SXA1#

 1
16442-7A110

3SFE..SXA1#

 1
Linked diagrams
1709
