AXAP54L-ANXMBK (2020)

Toyota Rav4

Production Jun 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(2006- )

Click highlighted areas on diagram

HEATER CONTROL PANEL

diagram 55900 9046705172
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-42620

AXAP54

 1
Common parts
90467-05172

ILLUST NO. 2 OF 3(2006- )

Click highlighted areas on diagram

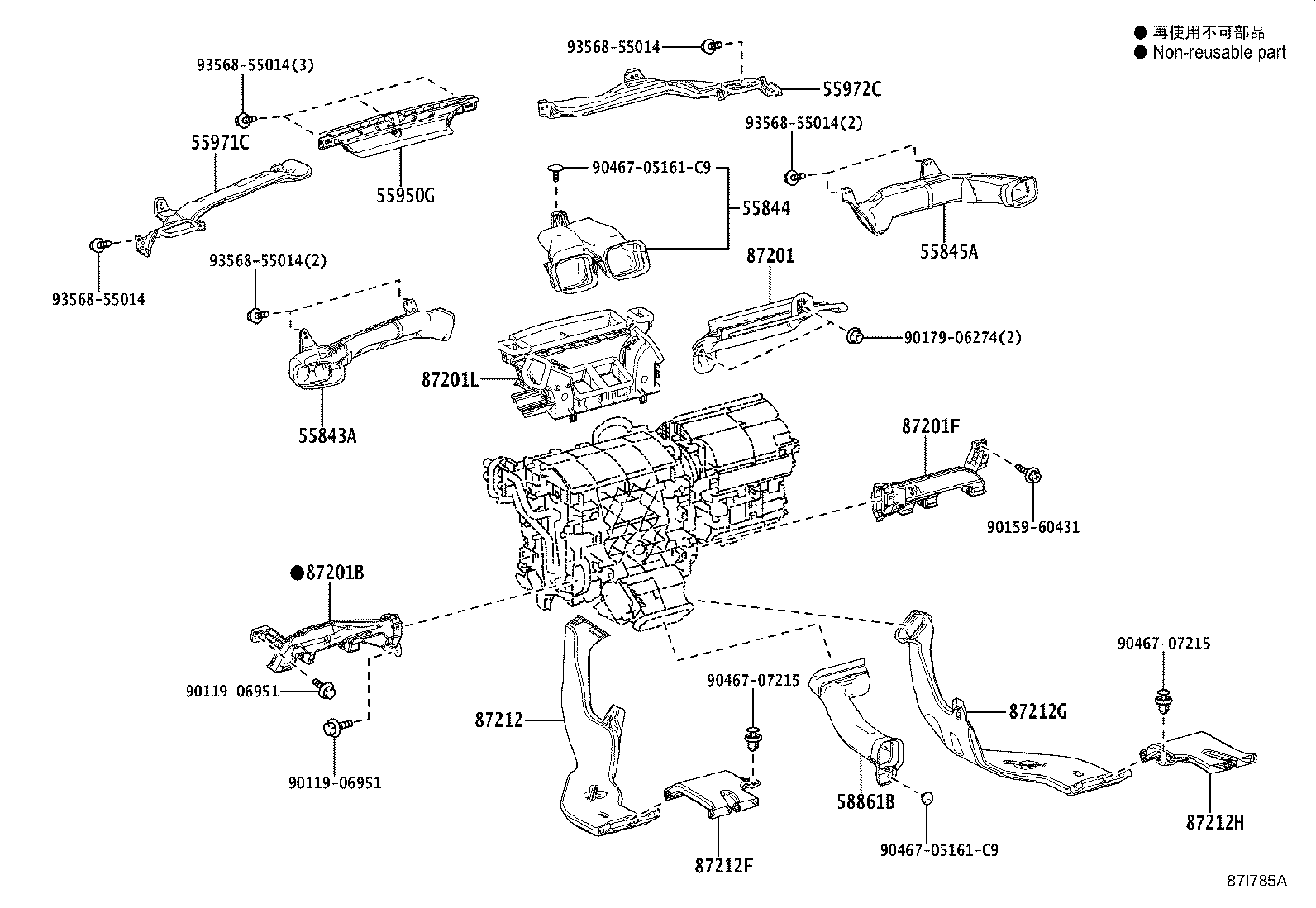

AIR DUCT

diagram 55843A 55844 55845A 55950G 55971C 55972C 58861B 87201 87201B 87201F 87201L 87212 87212F 87212G 87212H 9011906951 9011906951 9015960431 9017906274 9046705161C9 9046705161C9 9046707215 9046707215 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-42100

AXAP54

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-42110

AXAP54

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-42090

AXAP54

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-42070

AXAP54

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-42070

AXAP54

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-42070

AXAP54

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-42020

AXAP54

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-42060

AXAP54

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-42040

AXAP54

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87201-42050

AXAP54

 1
87201L - DUCT SUB-ASSY, AIR, NO.4
87201-42120

AXAP54

 1
87212 - DUCT, AIR, REAR NO.1
87213-42070

AXAP54

 1
87212F - DUCT, AIR, REAR NO.2
87216-42030

AXAP54

 1
87212G - DUCT, AIR, REAR NO.3
87212-42080

AXAP54

 1
87212H - DUCT, AIR, REAR NO.4
87215-42060

AXAP54

 1
Common parts
90119-06951
90159-60431
90179-06274
90467-05161C9
90467-07215
93568-55014

ILLUST NO. 3 OF 3(2006- )

Click highlighted areas on diagram

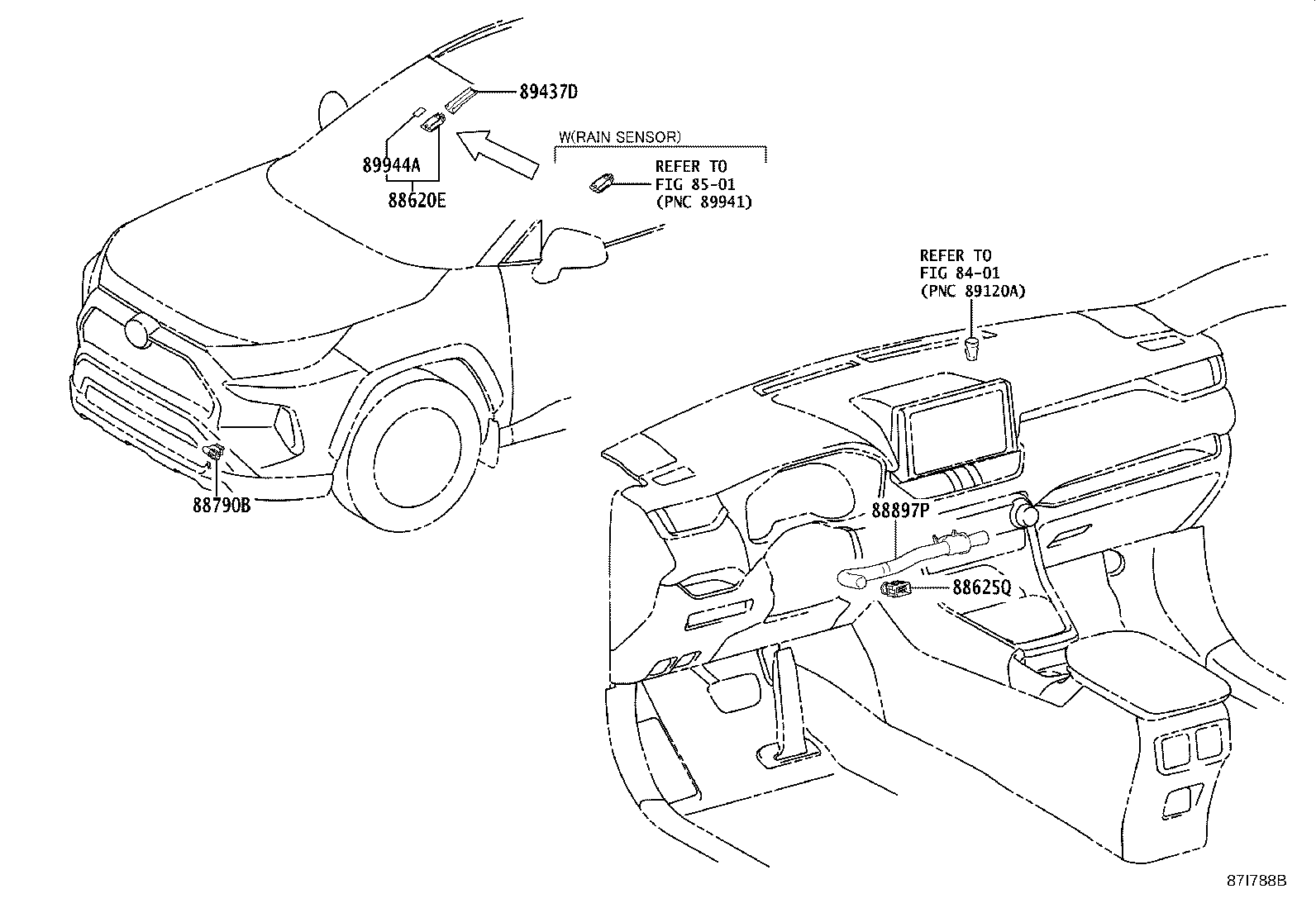

SENSOR

diagram 8401 8501 88620E 88625Q 88790B 88897P 89437D 89944A
Part # Description Qty Price
88620E - THERMISTOR ASSY, AIR CONDITIONER
89941-76010

AXAP54

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

AXAP54

 1
88790B - THERMISTOR ASSY
88790-28100

AXAP54

 1
88897P - ASPIRATOR
87201-42070

AXAP54

 1
89437D - COVER, SENSOR
89943-42040

AXAP54

 1
89944A - TAPE(FOR AIR CONDITIONER THERMISTOR)
89944-42010

AXAP54

 1
89944-42010

AXAP54..CND

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST

 1
Linked diagrams
8401
8501
