AXAP54L-ANXMBK (2020)
Toyota Rav4
Production
Jun 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

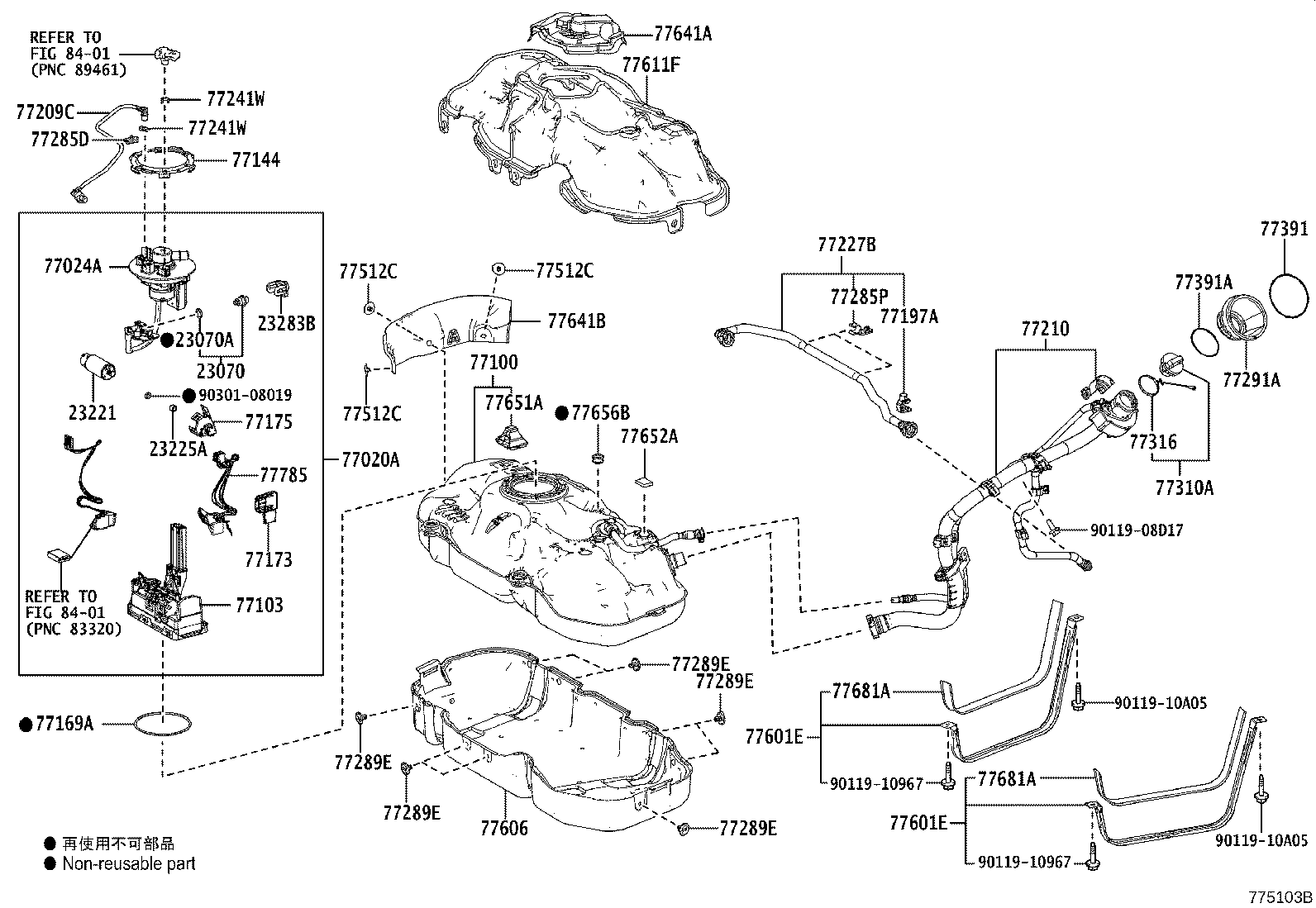

ILLUST NO. 1 OF 3(2006- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-25020 |
A25AFXS..AXAP54 |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
A25AFXS..AXAP54 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-25030 |
A25AFXS..AXAP54 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31020 |
A25AFXS..AXAP54 |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-24010 |
A25AFXS..AXAP54 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-42270 |
AXAP54 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-42170 |
AXAP54 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-42410 |
AXAP54 |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-42120 |
AXAP54 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
AXAP54 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
AXAP54 |
1 | ||
| 77173 - BRACKET, FUEL GAGE | ||||
| 77173-12020 |
AXAP54 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-12030 |
AXAP54 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-47010 |
AXAP54 |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-42250 |
AXAP54 |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-42260 |
AXAP54 |
1 | ||
| 77227B - TUBE, FUEL TANK BREATHER, NO.7 | ||||
| 77227-42130 |
AXAP54 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
AXAP54 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
AXAP54 |
2 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
AXAP54 |
1 | ||
| 77285P - CLAMP, NO.1(FOR CHARCOAL CANISTER PIPE) | ||||
| 77285-42340 |
AXAP54 |
2 | ||
| 77289E - CLAMP, FUEL TANK, NO.1 | ||||
| 77289-47050 |
AXAP54 |
8 | ||
| 77289E - CLAMP, FUEL TANK, NO.1 | ||||
| 77289-47050 |
AXAP54 |
8 | ||
| 77289E - CLAMP, FUEL TANK, NO.1 | ||||
| 77289-47050 |
AXAP54 |
8 | ||
| 77289E - CLAMP, FUEL TANK, NO.1 | ||||
| 77289-47050 |
AXAP54 |
8 | ||
| 77289E - CLAMP, FUEL TANK, NO.1 | ||||
| 77289-47050 |
AXAP54 |
8 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-42060 |
AXAP54 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-53040 |
AXAP54 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
AXAP54 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-42010 |
AXAP54 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AXAP54 |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
AXAP54 |
3 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
AXAP54 |
3 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
AXAP54 |
3 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-42140 |
AXAP54 |
2 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-42140 |
AXAP54 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-42070 |
AXAP54 |
1 | ||
| 77611F - COVER, FUEL TANK, UPPER | ||||
| 77611-42120 |
AXAP54 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-42080 |
AXAP54 |
1 | ||
| 77641B - COVER, FUEL TANK | ||||
| 77641-42090 |
AXAP54 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-33060 |
AXAP54 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-33060 |
AXAP54 |
1 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-33010 |
AXAP54 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77682-47020 |
AXAP54 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77682-47020 |
AXAP54 |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-42080 |
AXAP54 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-10967 | ||||
| 90119-10A05 | ||||
| 90301-08019 | ||||
| Linked diagrams | ||||
| 8401 | ||||

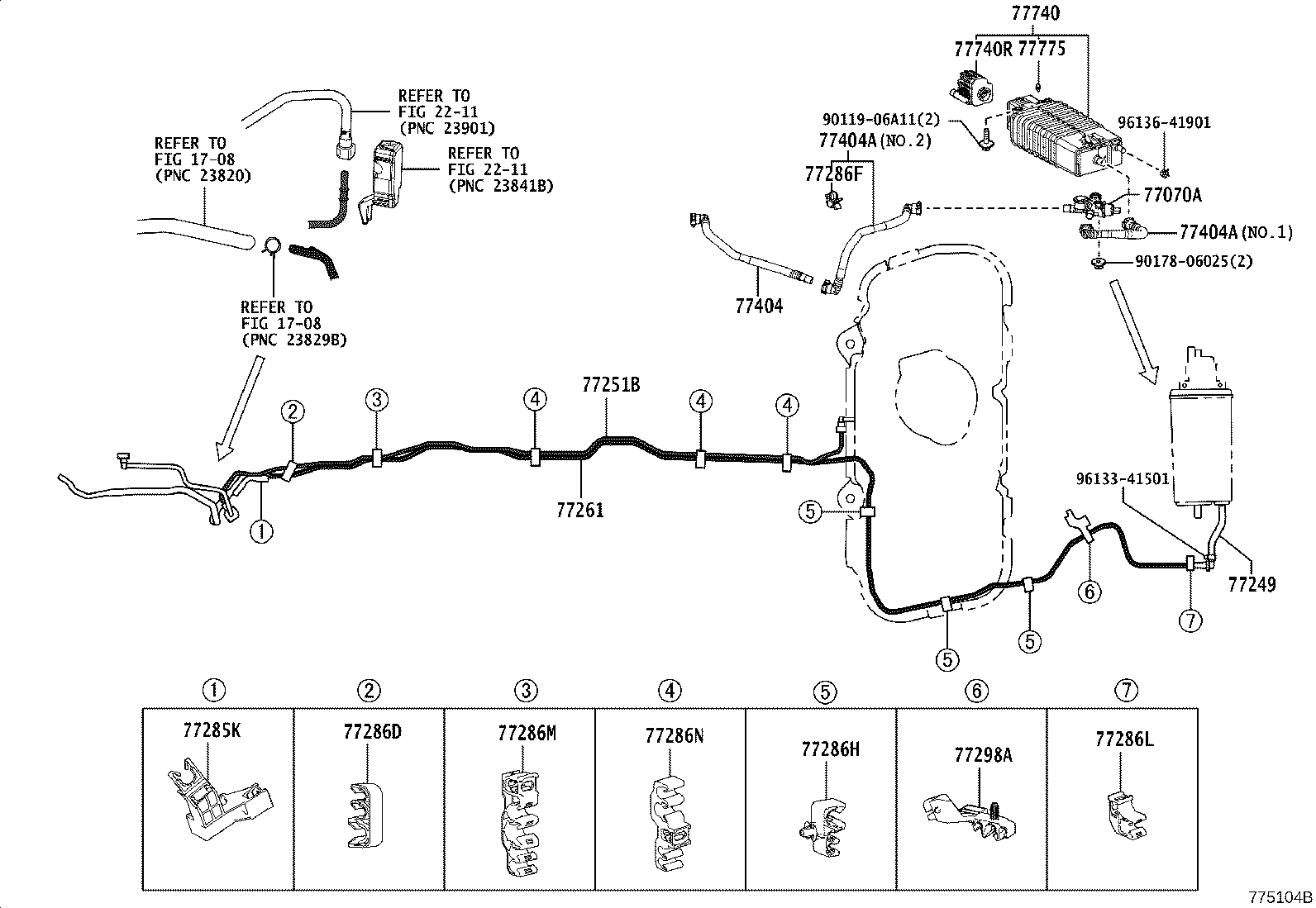

ILLUST NO. 2 OF 3(2006- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77070A - VALVE ASSY, CLOSE TANK | ||||
| 90910-15085 |
AXAP54 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-42130 |
AXAP54 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-42280 |
AXAP54 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-42150 |
AXAP54 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-42170 |
AXAP54 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-42180 |
AXAP54 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-42170 |
AXAP54 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-42270 |
AXAP54 |
3 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-42290 |
AXAP54 |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77285-42310 |
AXAP54 |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77298-12160 |
AXAP54 |
3 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77285-42280 |
AXAP54 |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-42150 |
AXAP54 |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-42170 |
AXAP54 NO.2:REFER ILLUST. |
1 | ||
| 77404-42140 |
AXAP54 NO.1:REFER ILLUST. |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-42170 |
AXAP54 NO.2:REFER ILLUST. |
1 | ||
| 77404-42140 |
AXAP54 NO.1:REFER ILLUST. |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-33240 |
AXAP54 |
1 | ||
| 77740R - PUMP SUB-ASSY, LEAK DETECTION | ||||
| 90910-14008 |
AXAP54 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-33010 |
AXAP54 |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90178-06025 | ||||
| 96133-41501 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(2006- )
Click highlighted areas on diagram
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-12010 |
AXAP54 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-42100 |
AXAP54 |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-35040 |
AXAP54 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12110 |
AXAP54 |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-42010 |
AXAP54 |
1 | ||
| 77379A - SPACER, FUEL LID OPEN LEVER | ||||
| 77379-12030 |
AXAP54 |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 90541-06069 | ||||
