AXAP54L-ANXMBK (2020)
Toyota Rav4
ILLUST NO. 2 OF 2(2006- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67199 - COVER, BACK DOOR HANDLE | ||||
| 69195-42010C0 |
AXAP54 BLACK,TRIM2#,RH |
1 | ||
| 69196-42010C0 |
AXAP54 BLACK,TRIM2#,LH |
1 | ||
| 67199 - COVER, BACK DOOR HANDLE | ||||
| 69195-42010C0 |
AXAP54 BLACK,TRIM2#,RH |
1 | ||
| 69196-42010C0 |
AXAP54 BLACK,TRIM2#,LH |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-42060C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
AXAP54 |
9 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
AXAP54 |
9 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-42020C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-42060C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-42020C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-42060C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-42070C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-42050C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 67939-42060C0 |
AXAP54..SE INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOME LINK,BLACK,TRIM2# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-42050C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 67939-42060C0 |
AXAP54..SE INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOME LINK,BLACK,TRIM2# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
AXAP54 |
4 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
AXAP54 |
4 | ||
| 74653 - GRIP, BACK DOOR ASSIST, RH | ||||
| 74653-42010C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 74654A - GRIP, BACK DOOR ASSIST, LH | ||||
| 74654-42010C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90467-09232 | ||||
| 90467-09241 | ||||
| 91673-80620 | ||||

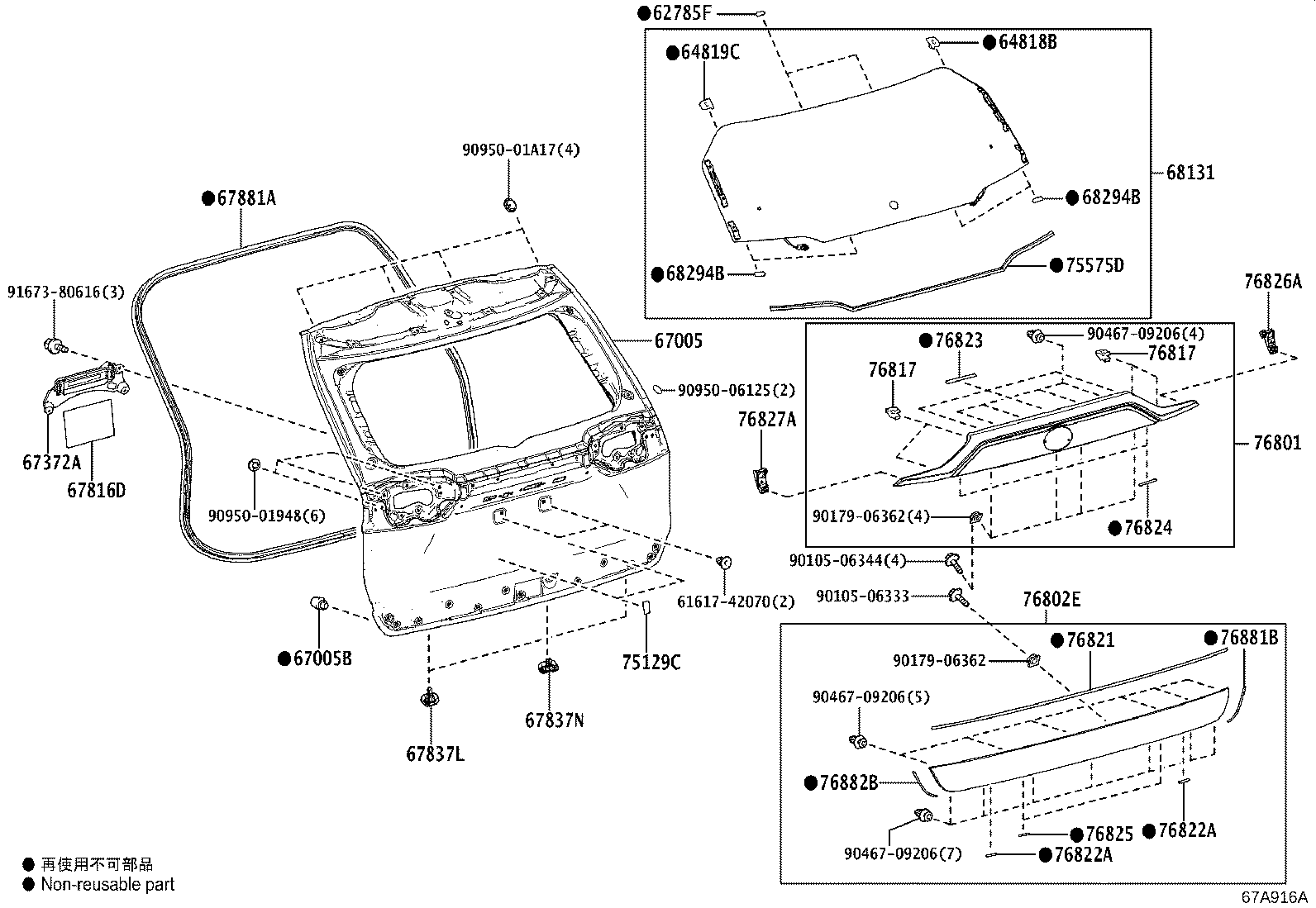

ILLUST NO. 1 OF 2(2006- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-60030 |
AXAP54 |
2 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-42050 |
AXAP54 |
1 | ||
| 64819C - SPACER, BACK DOOR GLASS, NO.2 | ||||
| 64819-42050 |
AXAP54 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-42660 |
AXAP54..SE |
1 | ||
| 67005-42640 |
AXAP54..SE POWER DOOR LOCK-WITH(TWO OPERATION & *PBD) |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 69478-42010 |
AXAP54 |
2 | ||
| 69478-42020 |
AXAP54 |
2 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67372-42030 |
AXAP54 |
1 | ||
| 67816D - SHEET, BACK DOOR PANEL SILENCER | ||||
| 67816-42020 |
AXAP54 |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-42050 |
AXAP54 |
2 | ||
| 67837N - SEAL, BACK DOOR DUST PROOF | ||||
| 67837-52040 |
AXAP54 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-42080 |
AXAP54 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-42230 |
AXAP54 |
1 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AXAP54 |
4 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AXAP54 |
4 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-30010 |
AXAP54 |
2 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-42040 |
AXAP54 |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-42904 |
AXAP54..SE PAINT REQ. |
1 | ||
| 76801-42908 |
AXAP54..SE PAINT REQ. |
1 | ||
| 76802E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER | ||||
| 76802-42170C0 |
AXAP54..SE ATTITUDE BLACK MC.,040 ,1D6 ,1G3 ,218 ,3U5 ,8X8 |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-05171 |
AXAP54 |
4 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-05171 |
AXAP54 |
4 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-42060 |
AXAP54 |
1 | ||
| 76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR | ||||
| 76822-42060 |
AXAP54 |
2 | ||
| 76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR | ||||
| 76822-42060 |
AXAP54 |
2 | ||
| 76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH | ||||
| 76823-42030 |
AXAP54 |
3 | ||
| 76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH | ||||
| 76824-42030 |
AXAP54 |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76882-42010 |
AXAP54 |
2 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-42140 |
AXAP54 |
1 | ||
| 76827A - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-42050 |
AXAP54 |
1 | ||
| 76881B - PROTECTOR, BACK DOOR LOWER MOULDING, RH | ||||
| 76881-42010 |
AXAP54 |
1 | ||
| 76882B - PROTECTOR, BACK DOOR LOWER MOULDING, LH | ||||
| 76881-42010 |
AXAP54 |
1 | ||
| Common parts | ||||
| 61617-42070 | ||||
| 90105-06333 | ||||
| 90105-06344 | ||||
| 90179-06362 | ||||
| 90467-09206 | ||||
| 90950-01948 | ||||
| 90950-01A17 | ||||
| 90950-06125 | ||||
| 91673-80616 | ||||
